Low Price RV90X 9mm plastic shaft Rotary Potentiometer For Professional Audio System

Basic Information

Place of Origin:	China
Brand Name:	SANNI
Certification:	ISO9001:2015
Model Number:	RV90XB2N0FB

Minimum Order Quantity:	2000PCS
Price:	USD0.06 per pc
Packaging Details:	2000PCS/BOX
Delivery Time:	25 Working days
Payment Terms:	T/T
Supply Ability:	30000pcs/Month

Contact Now

Housing Material:

Plastic & Metal

Housing Color:

Green

Terminal Material:

Copper

Terminal Finish:

Silver Plating

Standard Resistance Valume:

200~2M Ohm

Tortary Life:

10000 Cycles

Rated Power Linear Taper:

0.05W

Audio Taper:

0.025W

RV90X Rotary Potentiometer For Professional Audio System

Description of Rotary Potentiometer

The rotating potentiometer is an adjustable electrical resistor, which slides on the resistors by the brush, and obtains the output voltage associated with the input voltage in the circuit. It is mainly used for communication products, walkie-talkie, automobile power amplifier, multimedia audio, smart home, computer peripheral, etc.

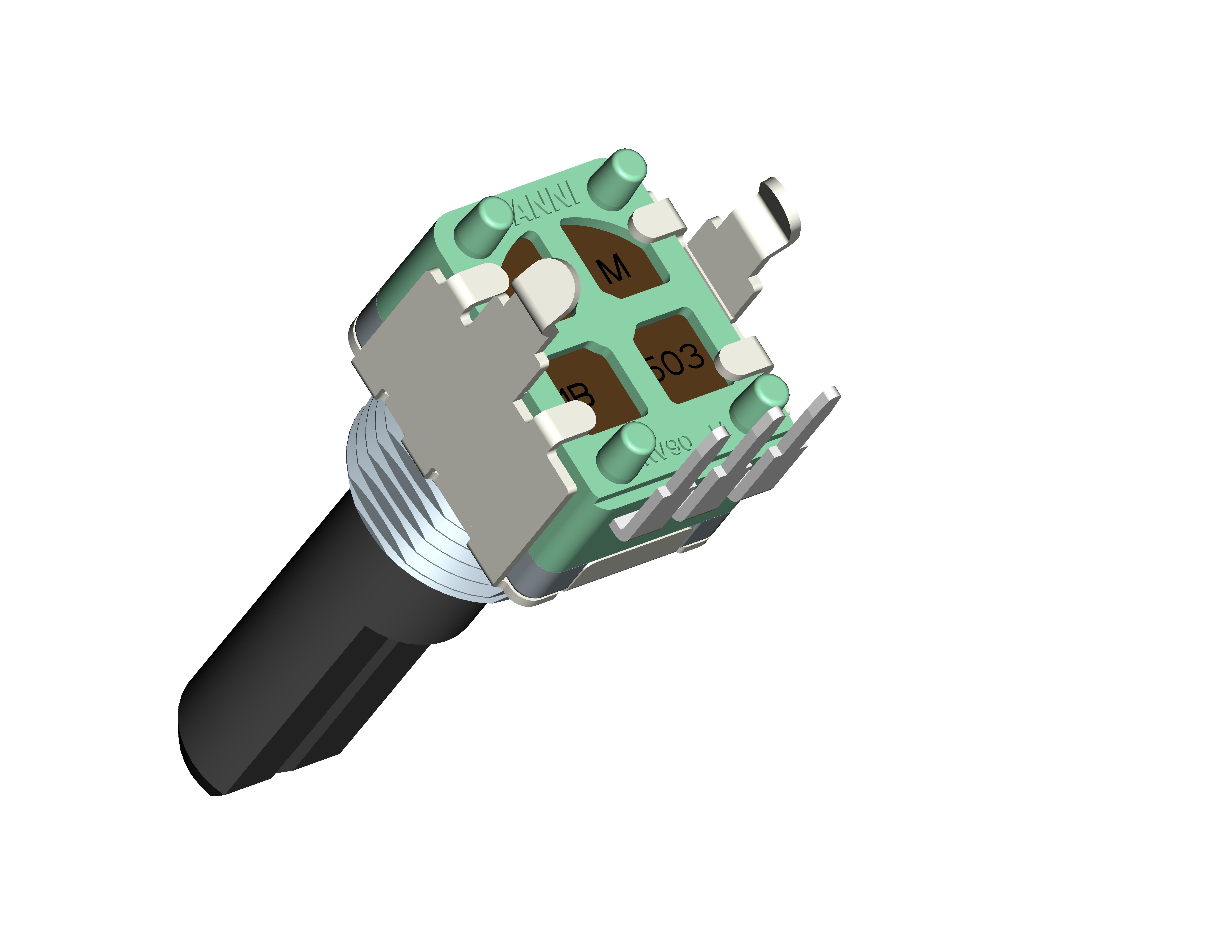

Low Price RV90X 9mm plastic shaft Rotary Potentiometer For Professional Audio System 0

Features of Rotary Potentiometer

Using plastic sealing structure, can effectively deal with wave welding.

Good sealing performance

Push-pull switch or rotating switch can be chosen.

Shaft length and shape can be adjusted.

A variety of mounting methods for choice.

Product Specification

1.Electrical Characteristics
Total resistance	200Ω-2MΩ
Total resistance tolerance	200Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance	20ΩMax.
Rated Power	Linear taper:0.05W, Audio Taper 0.025W
Insulation resistance	100MΩ min. 250V DC
Noise	100mV Max
Voltage proof	100V AC for 1 minute
Maximum operation voltage	50V AC/20V DC
2.Mechanical Characteristics
Rotation stopper strength	Min:3Kgf
Total rotation angle	280^o±10^o
Totational torque	10-100gf.cm
Key push-pull strength	Min:8Kgf 10s Min
Key Wobble	Max: 0.5*L/20mm P-P
Terminal Strength	5N for 1 minute
3.Environmental Performance
Operating temperature range	-10^oC to +70^oC
Storage temperature range	-40^oC to +85^oC
4.Welding heat reference
Manual Soldering	96.5 Sn/3.0 Ag/0.5 Cu Sold Wire or No-Clean Rosin Core Wire 280oC Max. For 3 Seconds
Wave Soldering	96.5 Sn/3.0 Ag/0.5 Cu Sold Wire or No-Clean Flux 260oC Max. For 5 Seconds

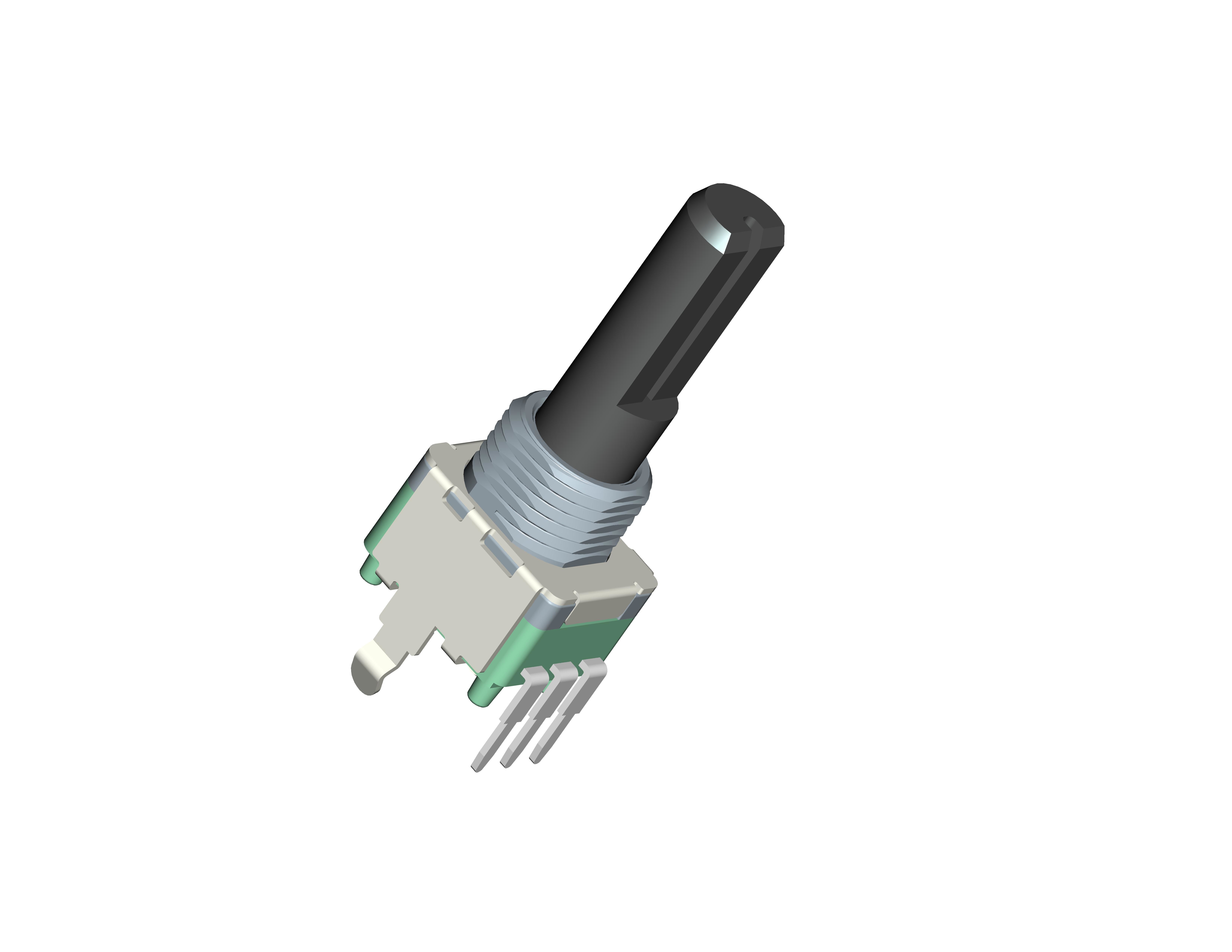

Low Price RV90X 9mm plastic shaft Rotary Potentiometer For Professional Audio System 1
