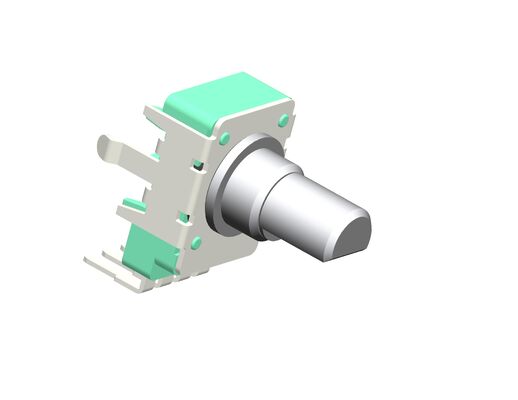

Low Price Precision Rotary Potentiometer 10K Ohm Voltage Rating 500VAC - PCB Lug 0.05W

Precision Rotary Potentiometer 10K Ohm Voltage Rating 500VAC - PCB Lug 0.05W

Product Description:

The Rotary Potentiometer product, featuring the ability to serve as either a single, dual, or multiple gang unit, is a versatile and essential component for varying electrical resistance in a circuit without interruption. This potentiometer is a highly reliable rotary voltage divider potentiometer, ideal for applications that require precise control over voltage and current. Complying with an insulation resistance of 100MΩ minimum, this rotary potentiometer device ensures safety and stability in its performance, safeguarding against electrical faults and enhancing the longevity of the device.

Designed with a through-hole or DIP (Dual In-line Package) mounting type, the rotary potentiometer can be easily integrated into various electronic assemblies. This mounting style is favored for its stability and ease of soldering, which makes it suitable for prototyping as well as mass production. The through-hole design also provides a robust mechanical connection, ensuring that the potentiometer remains securely in place even under mechanical stress or vibration.

When it comes to manufacturing and quality control, the resistance tolerance of this rotary electrical potentiometer is maintained within ±20%, providing a satisfactory balance between precision and cost-effectiveness. This tolerance level is adequate for numerous applications where the exact resistance value is not critical, but a consistent and predictable performance is necessary.

The compact dimension of this rotary potentiometer, with a size of 11mm, makes it an excellent choice for applications where space is at a premium. Despite its small size, it does not compromise on functionality or durability. This miniature design is particularly useful in portable devices, audio equipment, and other applications where every millimeter counts.

The application of this rotary potentiometer device is widespread, ranging from volume controls on audio equipment to adjusting the level of signals in various electronic circuits. Its versatility also extends to industrial applications where it can act as a user interface for controlling a wide array of parameters. The precise control offered by this potentiometer makes it an indispensable tool for engineers and designers alike.

Furthermore, the rotary potentiometer acts as a variable resistor or rheostat, providing smooth transition and fine-tuning capabilities. This feature is crucial in applications where fine adjustments can have a significant impact on performance, such as in calibration equipment and precision instruments. The smooth operation of the rotary mechanism ensures a reliable and noise-free adjustment, which is especially important in high-fidelity audio applications.

To summarize, this Rotary Potentiometer is a multi-gang configuration component with a robust insulation resistance of 100MΩ minimum and a through-hole/DIP mounting style. It boasts a resistance tolerance of ±20% and occupies a modest footprint with its 11mm dimension. Whether it is used as a rotary voltage divider potentiometer or in its capacity as a rotary electrical potentiometer, it is engineered to meet a wide range of adjustable resistance needs, providing a cost-effective and space-efficient solution for designers and engineers in various fields.

Applications:

The SANNI RV11 Rotary Potentiometer , originating from the renowned manufacturing hub of Dongguan, China, stands out as a versatile component in a variety of electrical and electronic applications. This rotary variable resistor is crafted for precision and durability, with a resistance range that spans from 300Ω to 3MΩ, catering to a broad spectrum of resistance requirements. The SANNI RV11 model is engineered to be adaptable, offering configurations as a single, dual, or multiple gang (Gan) system to suit complex circuit designs.

With its robust through-hole/DIP mounting type , the RV11 ensures secure and reliable integration into printed circuit boards (PCBs), making it a staple in both hobbyist and industrial settings. The product's dielectric strength of 500VAC is a testament to its ability to withstand high voltage stress, ensuring long-term reliability and safety in operation.

Applications of the SANNI RV11 Rotary Potentiometer are diverse and include its use as a rotary voltage divider potentiometer in audio equipment. It is commonly employed to adjust volume, balance, and tone controls in amplifiers, mixers, and receivers, providing smooth and continuous adjustment to the audio signal. In addition, the RV11 finds its place in lighting control systems, where it acts as a rotary adjustable resistor, enabling users to fine-tune the brightness of lamps and LED arrays with precision.

Moreover, the SANNI RV11 is integral in industrial control panels, where precise voltage regulation is necessary. It serves as an essential component in the calibration and tuning of sensors, transducers, and feedback loops. Its high adaptability and accuracy make it an ideal choice for laboratory equipment, where variable control of electrical parameters is crucial.

In the realm of consumer electronics, the SANNI RV11 Rotary Potentiometer is implemented within gaming controllers and joystick mechanisms to offer a tactile and responsive user experience. Its reliability and smooth operation are key to achieving the desired analog input in these interactive devices.

To summarize, the SANNI RV11 Rotary Potentiometer excels as a flexible and reliable component in a myriad of scenarios, from audio systems to industrial machinery, and from precision laboratory instruments to interactive consumer electronics. Its design and construction, characterized by the high-quality standards of Dongguan, China, ensure that the RV11 meets the demands of any application where variable resistance is needed.

Customization:

Brand Name: SANNI

Model Number: RV11

Place of Origin: Dongguan China

Dimension: 11mm

Mounting Type: Through Hole/DIP Mount

Material: Plastic/Metal

Shaft Length: 6mm-20mm Normal Or Customized

Resistance: 300Ω-3MKΩ

The SANNI RV11 Rotary Potentiometer is a high-quality Rotary Electrical Position Sensor designed to deliver precise and reliable performance. Originating from Dongguan China, this Rotary Multi-Turn Potentiometer is an essential component for various applications requiring accurate resistance measurement. The 11mm Rotary Linear Variable Resistor is available with a customizable shaft length ranging from 6mm to 20mm to suit your specific needs. It features a durable plastic/metal construction and is suitable for Through Hole/DIP Mount mounting types. With resistance options spanning from 300Ω to 3MKΩ, the SANNI RV11 potentiometer ensures adaptability and functionality for a multitude of electronic projects.

Support and Services:

The Rotary Potentiometer provides reliable and precise variable resistance for various applications such as audio control, motion control, and user-input interfaces. For optimal performance and durability, it is constructed with high-quality materials and designed to withstand a wide range of environmental conditions.

To ensure proper usage and maintenance, our product technical support and services include detailed product documentation, which covers installation guidelines, specifications, and recommended use cases. Additionally, users can access our online resources for troubleshooting guides, frequently asked questions (FAQs), and application notes to help resolve common issues and optimize product performance.

Our dedicated technical support team is available to provide assistance with more complex issues or inquiries about product capabilities. They offer expert advice on customization, integration into existing systems, and recommendations for complementary products or accessories.

For customers looking to extend the life of their Rotary Potentiometer or enhance its functionality, we offer a range of services including calibration, repair, and upgrade options. These services are designed to maintain the product's precision and reliability over its lifespan.

We are committed to customer satisfaction and ensure our Rotary Potentiometer meets the highest standards of quality and performance. For any product-related support, please refer to our comprehensive support resources or get in touch with our technical support team for personalized assistance.

Packing and Shipping:

Product Packaging for Rotary Potentiometer:

Each rotary potentiometer is individually sealed in a static-resistant bag to prevent damage from electrostatic discharge. The potentiometers are then placed into custom-fit foam slots within a sturdy cardboard box, ensuring maximum protection during handling. The box is labeled with the product type, resistance value, and a scannable barcode for inventory tracking. An instruction leaflet is included in the box, providing installation guidance and technical specifications.

Shipping Information for Rotary Potentiometer:

All orders for rotary potentiometers are processed within 24 hours of receipt. Standard shipping methods include ground service with tracking and insurance options. For expedited delivery, express shipping is available upon request at an additional cost. Shipping containers are chosen based on the order size and destination to minimize movement and potential damage during transit. Each shipment includes a packing slip with detailed product information and the order number for easy reference upon receipt.

FAQ:

Q1: What is the resistance range of the SANNI RV11 Rotary Potentiometer?

A1: The SANNI RV11 Rotary Potentiometer offers a variety of resistance ranges. Please refer to the specific product datasheet for the exact range or contact the manufacturer for more details.

Q2: Can the SANNI RV11 be used for audio applications?

A2: Yes, the SANNI RV11 Rotary Potentiometer is suitable for audio applications. It can be used for volume control or as a tone adjuster in audio equipment.

Q3: What is the power rating of the SANNI RV11 Rotary Potentiometer?

A3: The power rating for the SANNI RV11 Rotary Potentiometer varies depending on the specific model. Please check the product specification sheet for the exact power rating or contact customer support for assistance.

Q4: Is the SANNI RV11 Rotary Potentiometer suitable for use in harsh environments?

A4: The SANNI RV11 is designed to withstand general use, but for harsh environments, it is recommended to check if the potentiometer meets the necessary environmental specifications. Consult the product documentation or reach out to the manufacturer for detailed environmental tolerance information.

Q5: How do I wire the SANNI RV11 Rotary Potentiometer to my circuit?

A5: Wiring the SANNI RV11 Rotary Potentiometer to your circuit requires connecting the two outer pins to the supply voltage and ground, and the middle pin will provide a variable voltage output that changes with the rotation. For detailed instructions, refer to the datasheet or consult with an electronics technician.
