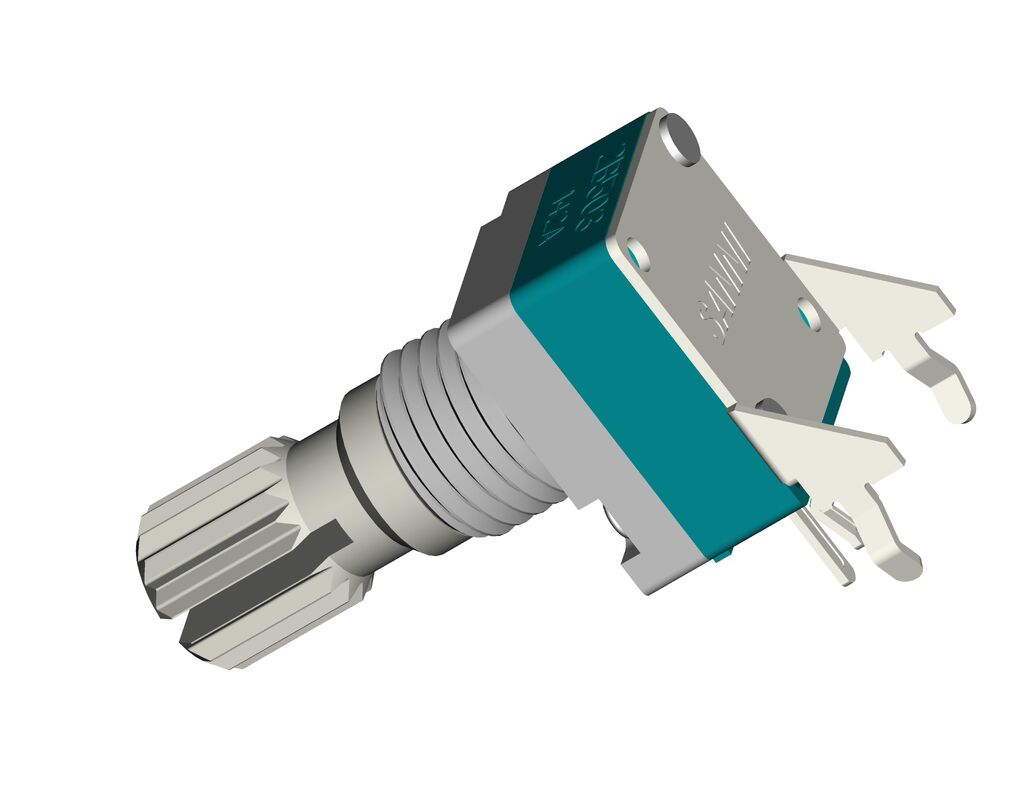

Smooth Control 6mm-20mm Shaft Length Rotary Potentiometer Plastic/Metal

Product Description:

The Rotary Electrical Potentiometer is an essential component in the realm of electronics, serving as a reliable and precise rotary manual adjustment tool for varying resistance within an electrical circuit. Its versatile applications range from controlling sound levels in audio equipment to adjusting light intensity in lighting systems, and much more. This product is designed with meticulous attention to detail to ensure that it meets the requirements of both hobbyists and professional engineers alike.

With a shaft length that can be customized between 6mm and 20mm, this Rotary Electrical Potentiometer caters to a wide array of applications and design specifications. The customizable shaft length ensures that it can be integrated into various types of equipment without the need for additional modifications, providing a seamless fit and easy installation. Whether the application requires a short shaft for compact spaces or a longer shaft for easier access, this potentiometer can be tailored to meet those needs.

The potentiometer boasts a robust dielectric strength of 500VAC, making it an excellent choice for applications that demand high voltage handling capabilities. This high dielectric strength provides an additional layer of safety and reliability, ensuring that the potentiometer will maintain its integrity and performance even under strenuous conditions. Users can have peace of mind knowing that their equipment is safeguarded against potential voltage spikes and insulation breakdown.

Flexibility in design is further enhanced by the option to choose between a single or dual gang configuration. The single gang Rotary Electrical Potentiometer is perfect for standard applications where a single variable resistance is required. Meanwhile, the dual gang model allows for the simultaneous adjustment of two separate circuits, ideal for more complex setups where dual control is necessary. This feature is particularly useful in stereo audio systems, where balancing the left and right channels is crucial.

This Rotary Multi-Turn Potentiometer has a compact dimension of 9mm, making it an excellent choice for applications where space is at a premium. Despite its small size, it does not compromise on performance or durability. Its compact design allows it to be incorporated into a variety of electronic devices without adding unnecessary bulk or weight, maintaining the overall sleekness and portability of the device.

The mounting type of this potentiometer is Through Hole/DIP Mount, known for its ease of installation and strong mechanical bond. This mounting style ensures a secure and stable connection to the circuit board, which is vital for consistent performance and longevity. Through-hole mounting also provides excellent electrical connectivity and is preferred in applications subjected to mechanical stress or high temperatures, where solder joints need to be especially resilient.

In conclusion, the Rotary Electrical Potentiometer is an indispensable rotary manual adjustment tool that offers unparalleled flexibility, reliability, and precision. Its customizable shaft length, high dielectric strength, single or dual gang options, compact dimension of 9mm, and secure through-hole mounting make it an excellent choice for a wide range of applications. Whether you are designing a new piece of audio equipment, creating a custom lighting solution, or simply need a reliable potentiometer for general use, this Rotary Multi-Turn Potentiometer is sure to exceed your expectations.

Features:

• Product Name: Rotary Potentiometer
• Shaft Diameter: 6mm Or Customized
• Operating Temperature: -25℃ to 85℃
• Resistance Range: 300Ω to 3MΩ
• Terminal Type: PCB Lug
• Shaft Type: Round/Flat/Knurled
• Rotary Manual Adjustment Tool
• Rotary Potentiometer Device
• Rotary Electrical Potentiometer

Technical Parameters:

Applications:

The SANNI brand, known for its precision and durability, offers the RV93 model of the Rotary Potentiometer, which is an essential component in a vast array of electronic applications. Originating from Dongguan, China, this product is engineered to cater to both single and dual gang requirements, making it a versatile choice for designers and engineers alike.

The RV93 Rotary Potentiometer operates efficiently within a temperature range of -25℃ to 85℃, ensuring reliable performance across different environments. This adaptability makes it ideal for being incorporated into devices that may experience varying operating temperatures. Furthermore, SANNI has designed this potentiometer with multiple shaft types, including round, flat, and knurled options, to provide better compatibility with various interface designs.

The SANNI RV93 potentiometer also boasts a dielectric strength of 500VAC, ensuring that it can withstand significant voltage without breakdown. This feature is crucial for maintaining the safety and longevity of the device it is integrated into. As a Rotary Electrical Potentiometer, it is commonly used in audio equipment to control volume, balance, and tone. Its precision control allows for fine adjustments, making it an indispensable component for audiophiles and professional sound engineers.

In industrial settings, the RV91 serves as a Rotary Linear Variable Resistor, where precise control of electrical resistance is critical for process regulation. Its robust construction and the ability to handle dual-gang configurations make it suitable for control panels, instrumentation, and automation systems where precise adjustments are necessary for monitoring and controlling various industrial processes.

As a Rotary Variable Resistor, the RV93 is also found in consumer electronics, automotive industry for dashboard controls, and in aviation for cockpit instrumentation. Its high durability and wide operating temperature range make it a reliable choice for applications that demand longevity and resilience. Whether it's for adjusting light intensity in home dimmer switches or fine-tuning sensitivity settings in professional-grade joysticks, the RV93 provides the tactile feedback and control precision required for these applications.

Overall, the SANNI RV93 Rotary Potentiometer is a testament to the brand's commitment to quality and versatility. It is a product that not only meets the demands of various applications but also exceeds expectations in terms of performance and reliability.

Customization:

Introducing the SANNI RV93 Rotary Potentiometer, the premium Rotary Manual Adjustment Tool for precision control in your electrical applications. With its origins in Dongguan China, this Rotary Electrical Potentiometer is renowned for its reliable performance and sturdy construction.

The SANNI RV93 model comes with a standard shaft diameter of 6mm, which can be customized to fit your specific requirements. This flexibility ensures that the Rotary Electrical Position Sensor integrates seamlessly into your existing setups or new projects.

Constructed from high-quality Plastic & Metal, the product name Rotary Potentiometer stands for durability and longevity. Each unit is designed to offer an Insulation Resistance of 100MΩ Min, guaranteeing efficient operation and safety.

Whether you require a Single or Dual gang configuration, the SANNI Rotary Potentiometer can be tailored to meet your needs, ensuring precise and smooth manual adjustments every time. Choose SANNI for a potentiometer solution that combines precision with customization.

Support and Services:

The Rotary Potentiometer is a high-quality variable resistor which allows for precise control over voltage and current in your electronic circuits. Our product supports a wide range of applications, from audio equipment to industrial machinery controls.

Key features of our Rotary Potentiometer include a smooth rotational feel, robust construction for longevity, and high-resolution adjustment capabilities. The device is built to ensure consistent performance and reliability, with options for different resistance values and tapers to suit your specific needs.

For technical support and services, we provide a comprehensive guide that details installation procedures, troubleshooting tips, and maintenance practices to ensure optimal functionality and longevity of your product. Our support resources are designed to help you understand the intricacies of our Rotary Potentiometer and to assist you in integrating it seamlessly into your projects.

In the event that you encounter any issues with our product, our dedicated technical support team is ready to assist you. We offer step-by-step guidance to diagnose and resolve any problems you may encounter, ensuring that your experience with our Rotary Potentiometer is smooth and satisfactory.

Additionally, we continually work to improve our products and services based on customer feedback. We encourage users to share their experiences and suggestions to help us serve you better. Our commitment to quality and customer satisfaction is unwavering, and we strive to provide the best support for our Rotary Potentiometer.

Packing and Shipping:

Product Packaging for Rotary Potentiometer:

Each rotary potentiometer is securely enclosed in a static-free bag to prevent any electrostatic discharge damage. The potentiometer is then placed in a sturdy, individual cardboard box with custom-fitted foam inserts that cushion the device during transit. The box is sealed with tamper-evident tape to ensure the product's integrity upon arrival.

Shipping Information for Rotary Potentiometer:

The boxed potentiometers are packed into a larger, durable shipping carton with additional packing materials to minimize movement and potential impact. The carton is clearly labeled with "Fragile - Handle with Care" to prompt careful handling. Each carton is accompanied by a detailed packing slip and is shipped via a trusted courier to ensure timely and safe delivery.

FAQ:

Q1: What is the resistance range of the SANNI RV93 Rotary Potentiometer?

A1: The SANNI RV93 Rotary Potentiometer offers a range of resistance values, which can vary depending on the specific model. Please refer to the product specifications sheet or contact customer support for the exact resistance range of the model you are interested in.

Q2: Can the SANNI RV93 Rotary Potentiometer be used for audio applications?

A2: Yes, the SANNI RV93 Rotary Potentiometer is suitable for use in audio applications. Its smooth rotational feel and reliable performance make it ideal for adjusting volume or other audio levels.

Q3: What is the power rating of the SANNI RV93 Rotary Potentiometer?

A3: The power rating for the SANNI RV93 Rotary Potentiometer can vary. To ensure you have the correct information for your application, please refer to the datasheet or contact our customer service team for the specific power rating of the potentiometer you are considering.

Q4: Is the SANNI RV93 Rotary Potentiometer suitable for precision applications?

A4: Yes, the SANNI RV93 Rotary Potentiometer is designed to provide precise control over resistance values, making it suitable for various precision applications where accurate adjustments are required.

Q5: How do I install the SANNI RV93 Rotary Potentiometer in my device?

A5: Installation of the SANNI RV93 Rotary Potentiometer should be done according to the guidelines provided in the technical datasheet. It typically involves mounting the potentiometer to your device's panel and connecting the electrical terminals to your circuit. If you are unsure about the installation process, it is recommended to seek the assistance of a professional.
