Home ProductsBarrier Terminal BlockBarrier Type 2 Position Terminal Block Screws Fixed For Car Amplifier BT02-001

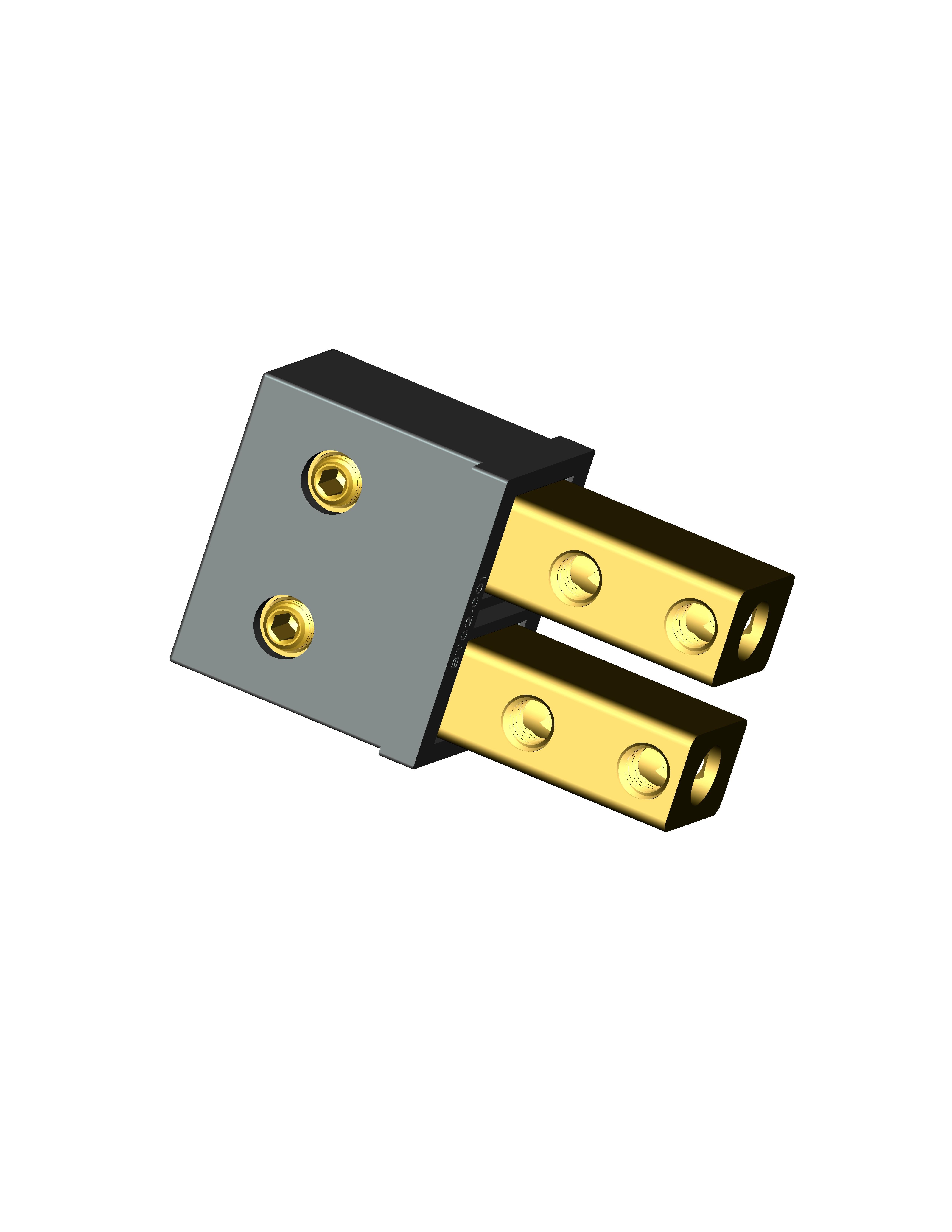

Barrier Type 2 Position Terminal Block Screws Fixed For Car Amplifier BT02-001

Barrier Type 2 Position Terminal Block Screws Fixed For Car Amplifier BT02-001
Barrier Type 2 Position Terminal Block Screws Fixed For Car Amplifier BT02-001
Barrier Type 2 Position Terminal Block Screws Fixed For Car Amplifier BT02-001
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: BT02-001
Minimum Order Quantity: 1000pcs
Price: USD0.2~0.3 per pc
Packaging Details: 150pcs per Carton box,
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 10000pccs per Month
Contact Now
Model NO.: BT02-001 Brand: RORUDA
Contact Termination Form: Screws Fixed Function: Power Or Audio Connecting
Samples: Free Sample With Freight Collect Shipping Customization: Available | Customized Request
High Light:

2 Position Terminal Block Barrier

,

2 Position Terminal Block Screws Fixed

,

2Position car amplifier terminal block

BT02-001 2 Position Panel Barrier Terminal Block For Car Amplifier



Description of Barrier Terminal Block



Using the terminal block is an economical and convenient way to distribute an electrical circuit from a single input source, to several devices in the branch circuit. Thus reducing the total number of wires in your electrical panel and saving your time and money.



Application of Barrier Terminal Block



Car amplifier power distributing or audio signal distributing/connecting.

Barrier Type 2 Position Terminal Block Screws Fixed For Car Amplifier BT02-001 0



Specification of Barrier Terminal Block



Materials & Finish Spec
Body: PBT or PC UL94-V0
Screw: steel , finish: Nickel plating over Copper
Terminal: zinc alloy, Finish: Nickel/Tin over Copper or Gold plating
Electrical Character
Rated voltage: DC300V
Rated current: 35A
Insulation resistance: ≥1000OHM
Wire range: 12-22AWG with standing
Withstand Voltage: 1500V AC/minute
Mechanical Character
Torque: 15.7Lb/in
Operating temperatures: -40 to 80°C
Mounting PCB Insertion



Barrier Type 2 Position Terminal Block Screws Fixed For Car Amplifier BT02-001 1Barrier Type 2 Position Terminal Block Screws Fixed For Car Amplifier BT02-001 2Barrier Type 2 Position Terminal Block Screws Fixed For Car Amplifier BT02-001 3


Tag:

Audio Barrier Terminal Block

Amplifier Barrier Type Terminal Block

2 Position Terminal Block Barrier
