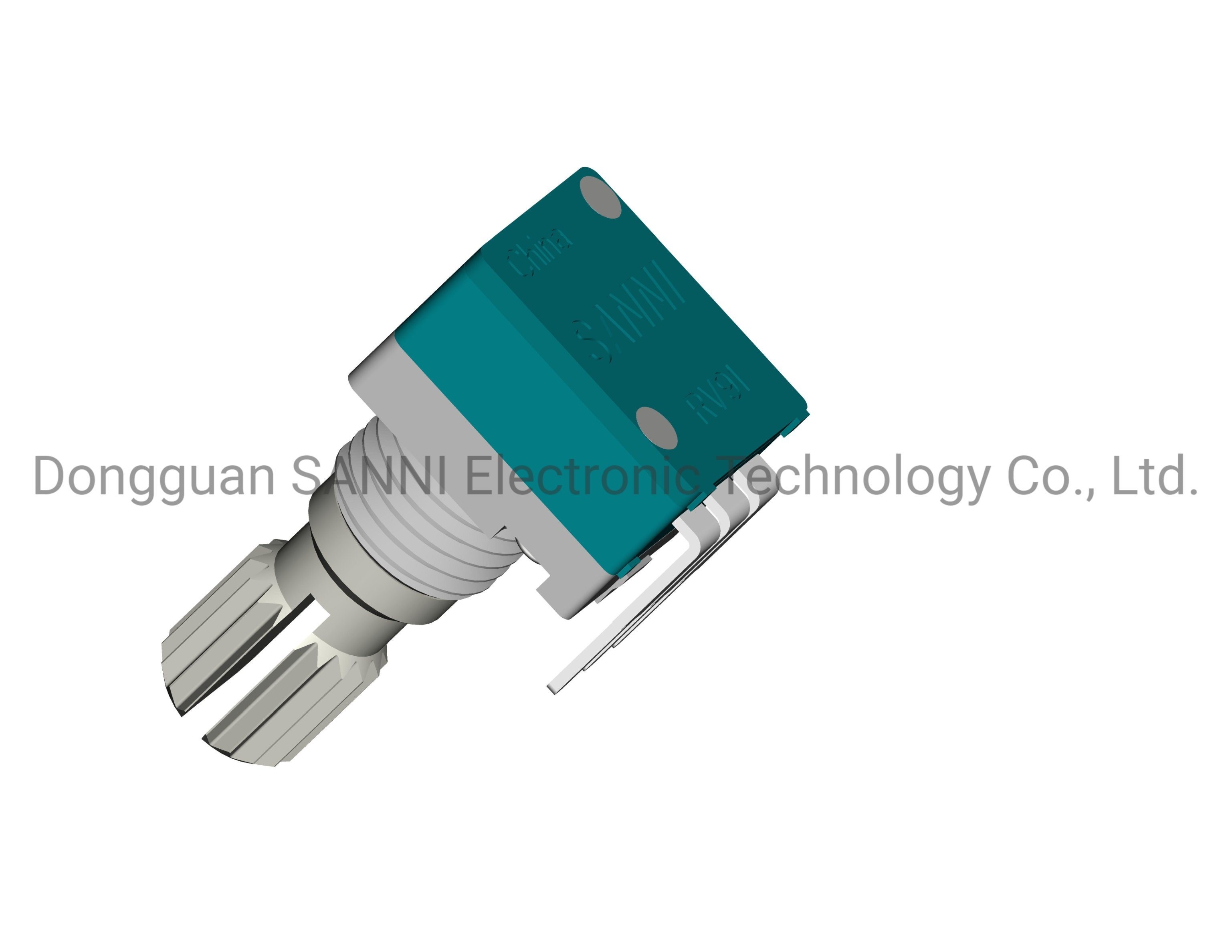

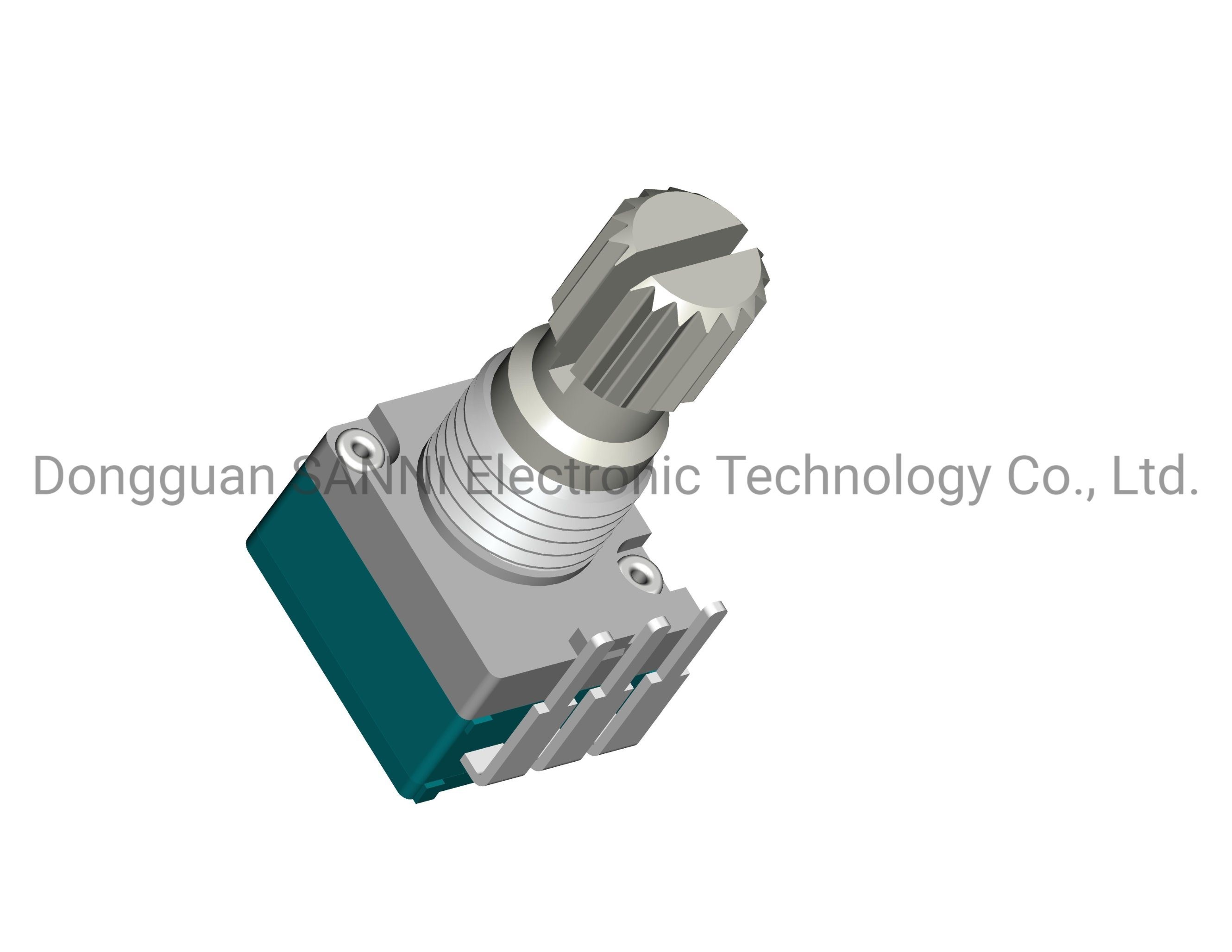

RV931AN0 Rotary Vertical PCB Mount Potentiometer Metal Shaft Sealed

RV931AN0 Rotary Vertical PCB Mount Potentiometer Metal Shaft Sealed
RV931AN0 Rotary Vertical PCB Mount Potentiometer Metal Shaft Sealed
RV931AN0 Rotary Vertical PCB Mount Potentiometer Metal Shaft Sealed RV931AN0 Rotary Vertical PCB Mount Potentiometer Metal Shaft Sealed
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV931AN0
Minimum Order Quantity: 2000PCS
Price: USD0.2~0.3 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Shape: Square Resistance Change Scale: Log Or Linear
Brand: Sanni Shaft Material: Metal
Shaft Type: Knurled/D Type/Solid/Customize Installation: DIP PCB Mount
Base Material: ABS/PC Customization: Available | Customized Request
Highlight:

Rotary Vertical PCB Mount Potentiometer

,

Vertical PCB Mount Potentiometer Metal

,

Sealed vertical potentiometer

RV931AN0 Rotary Potentiometer Metal Shaft Sealed Vertical Type Potentiometer

Description of Rotary Potentiometer



The rotating potentiometer is an adjustable electrical resistor, which wipes on the resistors by the wiper, and obtains the output voltage associated with the input voltage in the circuit.



Features of Rotary Potentiometer



Good sealing performance

Using plastic sealing structure, can effectively deal with wave welding.

Push-pull switch or rotating switch can be chosen.

Can be with positioning.

Shaft length and shape can be adjusted.

A variety of mounting methods for choice.



Product Specification





1.Electrical Characteristics
Total resistance 200Ω-2MΩ
Total resistance tolerance 200Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Insulation resistance 100MΩ min. 250V DC
Residual resistance 20ΩMax.
Rated Power Linear taper:0.05W, Audio Taper 0.025W
Noise 100mV Max
Voltage proof 100V AC for 1 minute
Maximum operation voltage 50V AC/20V DC
Gang error applicable for Dual unit parts for audio volume control purposes -40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.)
2.Mechanical Characteristics
Rotation stopper strength Min:4Kgf
Total rotation angle 300o±5o
Totational torque 10-150gf.cm
Key push-pull strength Min:8Kgf
Terminal Strength 5N for 1 minute
Key Wobble Max: 0.6*L/20mm P-P
4.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
5.Welding heat reference
Manual Soldering 350oC±10oC/3+1S
Wave Soldering 260oC±5oC/10±1S



Our Advantage



1. More than 10 years of experience in research and development production design.

2. 10+ dedicated and experienced engineers and designers in R&D department.

3. 9 automation production lines, more than 100 experienced workers for higher precision products.

4. Professional Testing instruments and team to ensure product quality.

5. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.



RV931AN0KQ 9mm Metal Shaft Sealed Vertical Type Potentiometer

RV931AN0KQ 9mm Metal Shaft Sealed Vertical Type PotentiometerRV931AN0KQ 9mm Metal Shaft Sealed Vertical Type PotentiometerRV931AN0KQ 9mm Metal Shaft Sealed Vertical Type PotentiometerRV931AN0KQ 9mm Metal Shaft Sealed Vertical Type PotentiometerRV931AN0KQ 9mm Metal Shaft Sealed Vertical Type Potentiometer
