Home ProductsRotary PotentiometerRV9110N0 Rotary Potentiometer 9mm Single Unit Metal Shaft Sealed

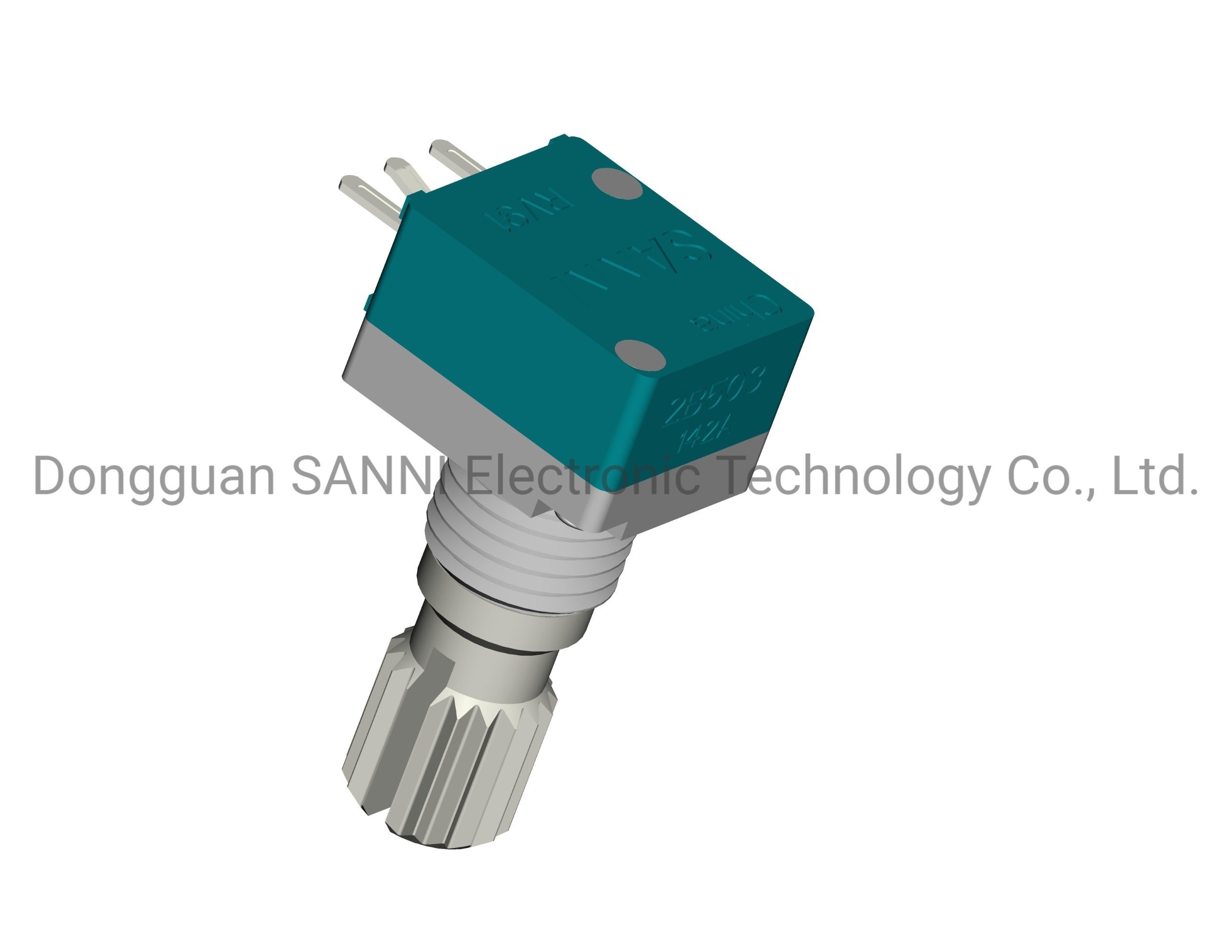

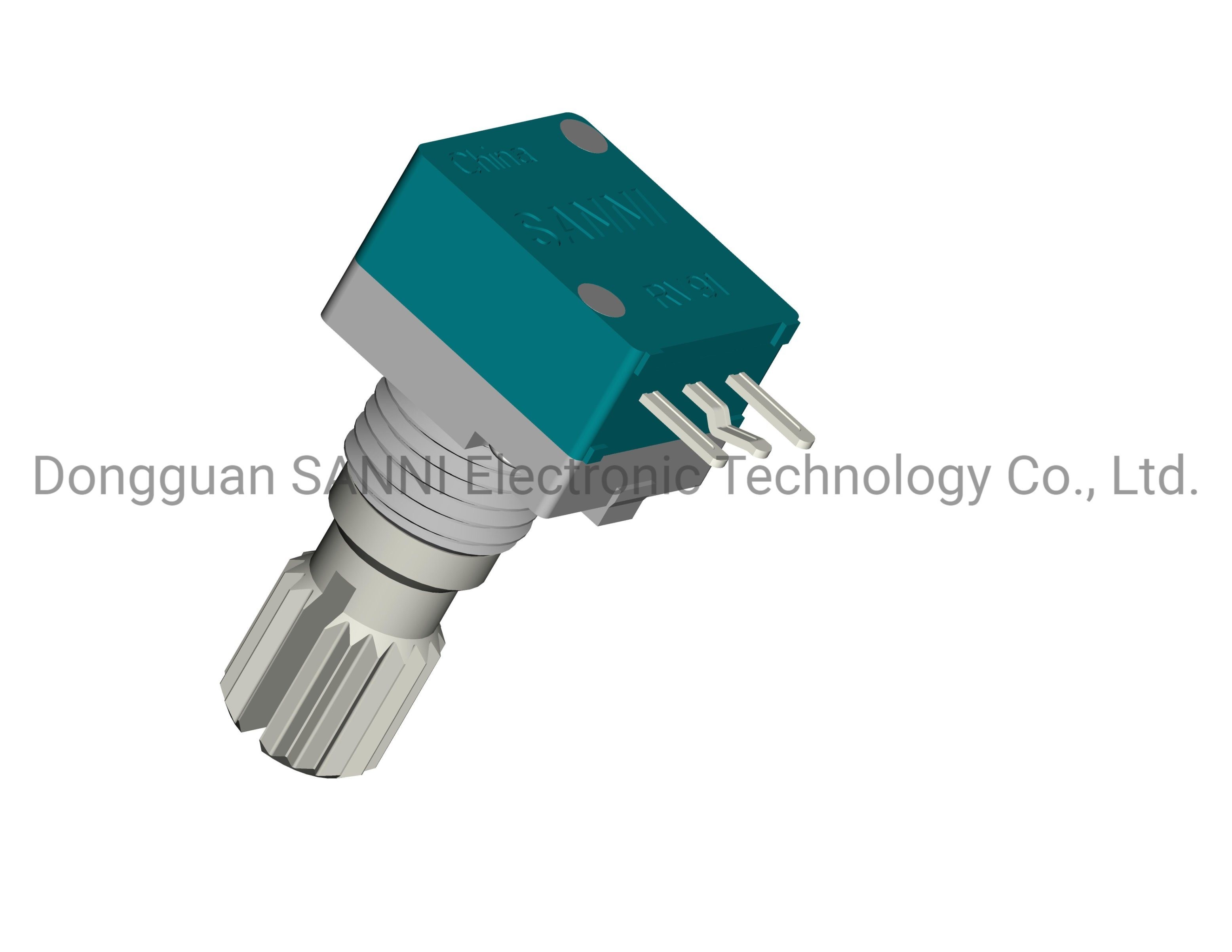

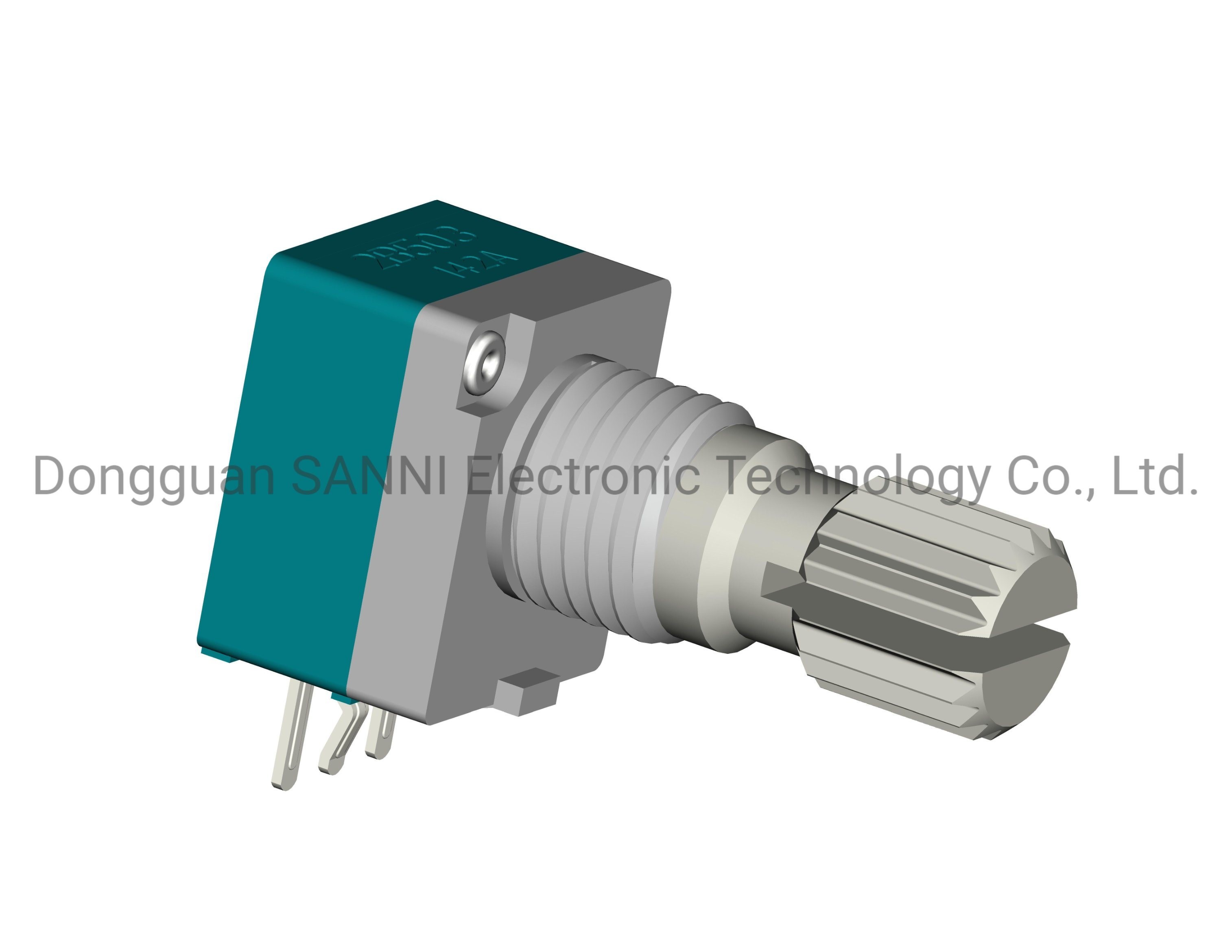

RV9110N0 Rotary Potentiometer 9mm Single Unit Metal Shaft Sealed

RV9110N0 Rotary Potentiometer 9mm Single Unit Metal Shaft Sealed
RV9110N0 Rotary Potentiometer 9mm Single Unit Metal Shaft Sealed
RV9110N0 Rotary Potentiometer 9mm Single Unit Metal Shaft Sealed RV9110N0 Rotary Potentiometer 9mm Single Unit Metal Shaft Sealed RV9110N0 Rotary Potentiometer 9mm Single Unit Metal Shaft Sealed RV9110N0 Rotary Potentiometer 9mm Single Unit Metal Shaft Sealed
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV9110N0
Minimum Order Quantity: 2000PCS
Price: USD0.2~0.3 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV9110N0KQ Shape: Square
Resistance Taper: Linear Or Audio Brand: SANNI
Shaft Material: Metal Shaft Type: Knurled/D Type/Solid/Customize
Installation: DIP PCB Mount Customization: Available | Customized Request
Highlight:

Rotary Potentiometer 9mm

,

Rotary Potentiometer Single Unit

,

Sealed 9mm potentiometer

RV9110N0 Rotary Potentiometer 9mm Single Unit Metal Shaft Sealed Potentiometer

Product Description

  • 9mm Insulated shaft sealed potentiometer
  • shaft material: Metal ( AL/ Iron with plating/Stainless steel or others per customer's requirement)
  • Width: 9.5mm
  • Use:Used for player, instrument equipment, sound, meter, sound console, naviation/auto AV, walkie-talkie, white goods,medical equipment, Aoto

Product features

  •    Rohs compliant
  •    Seal type
  •    Small volume
  •    Structural diversification
  •    High Quality
  • Operation temperature range:-40°C to 85°C

Product Characters



1.Mechanical Characteristics
Total rotation angle 300o±5o
Rotation stopper strength Min:4Kgf
Totational torque 10-150gf.cm
Key push-pull strength Min:8Kgf
Terminal Strength 5N for 1 minute
Key Wobble Max: 0.6*L/20mm P-P
2.Electrical Characteristics
Total resistance 200Ω-2MΩ
Total resistance tolerance 200Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance 20ΩMax.
Insulation resistance 100MΩ min. 250V DC
Rated Power Linear taper:0.05W, Audio Taper 0.025W
Noise 100mV Max
Voltage proof 100V AC for 1 minute
Maximum operation voltage 50V AC/20V DC
3.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
5.Welding heat reference
Manual Soldering 350oC±10oC/3+1S
Wave Soldering 260oC±5oC/10±1S


FAQ

• Q: Can I get sample from you?

• A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.

• Q: Do you accept customization?

• A: Yes, customization is acceptable, please contact our sales staffs for consult.

• Q: Can you provide help for technical issues?

• A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.
RV9110N0KQ 9mm Metal Shaft Sealed Potentiometer

RV9110N0KQ 9mm Metal Shaft Sealed PotentiometerRV9110N0KQ 9mm Metal Shaft Sealed PotentiometerRV9110N0KQ 9mm Metal Shaft Sealed PotentiometerRV9110N0KQ 9mm Metal Shaft Sealed PotentiometerRV9110N0KQ 9mm Metal Shaft Sealed Potentiometer
