Home ProductsRotary Potentiometer8mm Rotary Push Button Potentiometer Metal Shaft Sealed RV8141M

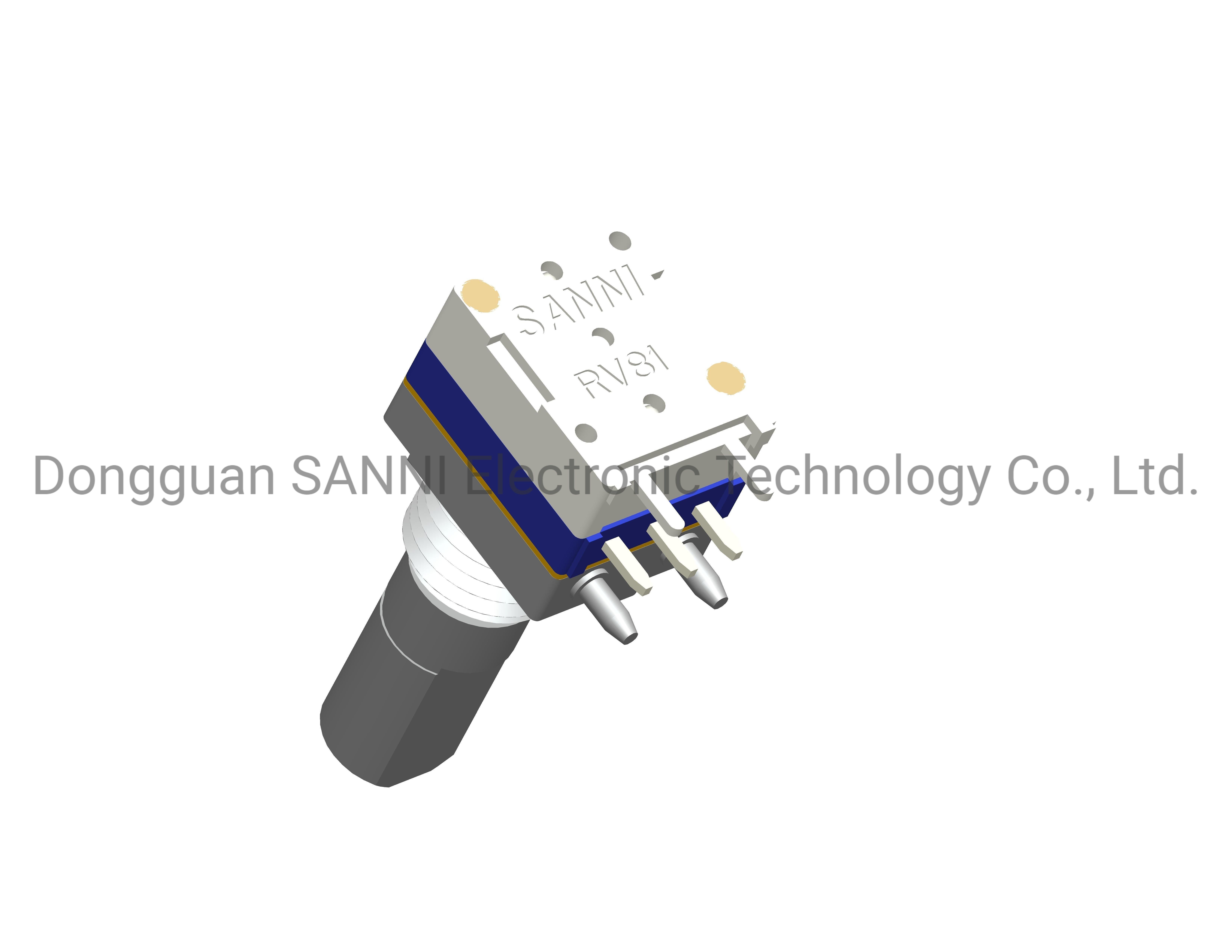

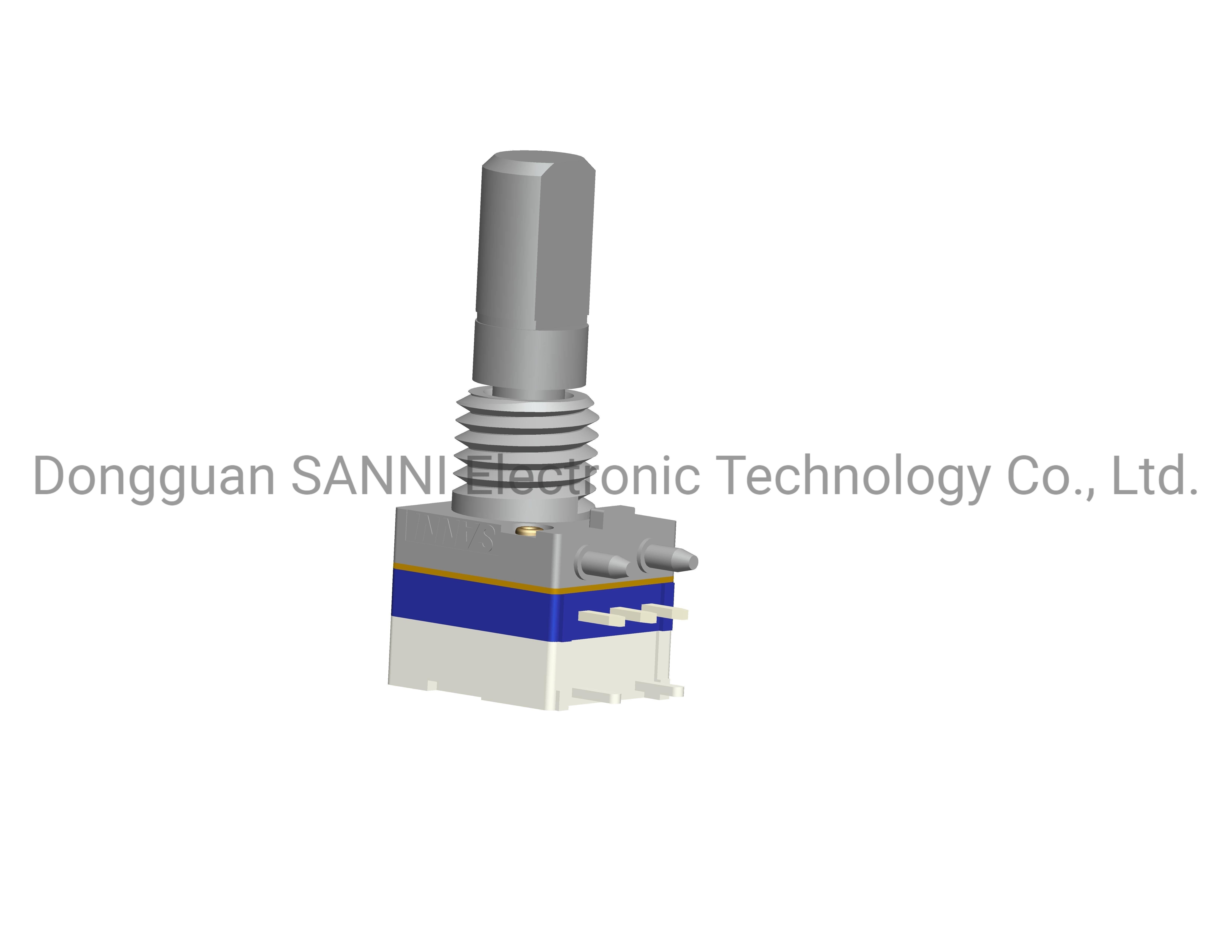

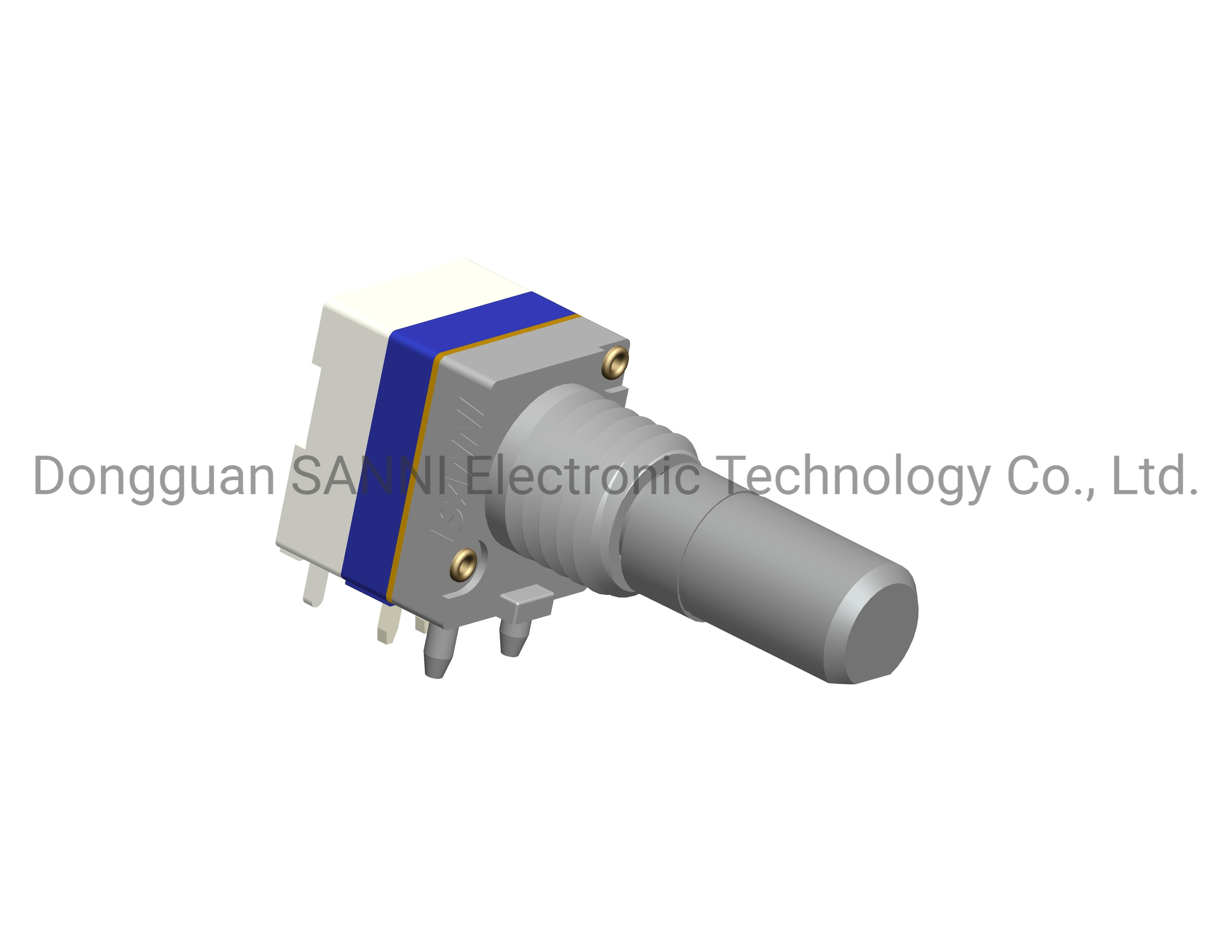

8mm Rotary Push Button Potentiometer Metal Shaft Sealed RV8141M

8mm Rotary Push Button Potentiometer Metal Shaft Sealed RV8141M
8mm Rotary Push Button Potentiometer Metal Shaft Sealed RV8141M
8mm Rotary Push Button Potentiometer Metal Shaft Sealed RV8141M 8mm Rotary Push Button Potentiometer Metal Shaft Sealed RV8141M 8mm Rotary Push Button Potentiometer Metal Shaft Sealed RV8141M
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV8141M
Minimum Order Quantity: 2000PCS
Price: USD0.3~0.5 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV8141M Brand: Sanni
Shaft Material: Metal Shaft Type: Knurled/D Type/Solid/Customize
Switch Type: Push Switch Specification: 8mm
Samples: Free Sample With Freight Collect Shipping Customization: Available | Customized Request
Highlight:

Rotary Push Button Potentiometer

,

8mm Push Button Potentiometer

,

Metal Shaft Sealed Potentiometer

RV8141M 8mm Rotary Potentiometer Metal Shaft Sealed with Push Switch

Product Description

  • 8mm Insulated shaft sealed potentiometer
  • shaft material: Metal ( AL/ Iron with plating/Stainless steel or others per customer's requirement)
  • Width: 7.7mm
  • Use:Used for player, instrument equipment, sound, meter, sound console, naviation/auto AV, walkie-talkie, white goods,medical equipment, Aoto

Product features

  •    Rohs compliant
  •    Seal type
  •    Small volume
  •    Structural diversification
  •    High Quality



8mm Rotary Push Button Potentiometer Metal Shaft Sealed RV8141M 0

Product Specification

1.Electrical Characteristics
Total resistance 100Ω-3MΩ
Total resistance tolerance 50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance R≤10KΩ: 10ΩMax./10KΩ<R>500KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power Linear taper:0.05W, Audio Taper 0.025W
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
Maximum operation voltage 50V AC/10V DC
2.Mechanical Characteristics
Rotation stopper strength Min:3Kgf
Total rotation angle 300o±5o
Totational torque 10-100gf.cm
Key push-pull strength Min:8Kgf
Key Wobble Max: 0.6*L/20mm P-P
Terminal Strength 5N for 1 minute
3.Switch Characteristics
Switch Type Push
Rated Power 0.1A 5V DC
Switch Torque 500gf+/-200gf.cm Max
Switch Travel 0.5mm
Operating Life without load 10000 cycles 100mΩ Max
Operating life with load:as rating 10000 cycles 200mΩ Max
Initial contact resistance 100mΩ Max
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
4.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
5.Welding heat reference
Manual Soldering 96.5 Sn/3.0 Ag/0.5 Cu Sold Wire or No-Clean Rosin Core Wire 280oC Max. For 3 Seconds
Wave Soldering 96.5 Sn/3.0 Ag/0.5 Cu Sold Wire or No-Clean Flux 260oC Max. For 5 Seconds
RV8141MFE 8mm Shaft Sealed Potentiometer with SwitchRV8141MFE 8mm Shaft Sealed Potentiometer with SwitchRV8141MFE 8mm Shaft Sealed Potentiometer with SwitchRV8141MFE 8mm Shaft Sealed Potentiometer with SwitchRV8141MFE 8mm Shaft Sealed Potentiometer with Switch
