Model NO.:	RV16110G0	Taper:	Linear Or Log
Brand:	Sanni	Mount Direction:	Horizontal
Units:	Dual Unit	Specification:	16mm
Material:	Metal & Plastic	Customization:	Available \| Customized Request
Highlight:	16mm Rotary Potentiometer , Rotary Potentiometer Metal Shaft , Dual Unit 16mm potentiometer

1.Electrical Characteristics
Total resistance	300Ω-3MΩ
Total resistance tolerance	50Ω~10KΩ:±30%/10KΩ~500KΩ:±20%/500KΩ~2MΩ:±30%
Residual resistance	R≤10KΩ: 10ΩMax./10KΩ<R>500KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power	Linear taper:0.05W, Audio Taper 0.025W
Voltage proof	250V AC for 1 minute
Insulation resistance	100MΩ min. 250V DC
Maximum operation voltage	50V AC/10V DC
2.Mechanical Characteristics
Rotation stopper strength	Min:6.0Kgf
Total rotation angle	300^o±5^o
Totational torque	20-200gf.cm
Key push-pull strength	Min:8Kgf
Vibration	10 to 55 to 10Hz/min.the amplitude is 1.5mm for all the frequencies in the 3 direction of X.Y an Z and for 2 hours respectively.
Terminal Strength	5N for 1 minute
3.Environmental Performance
Operating temperature range	-10^oC to +70^oC
Storage temperature range	-40^oC to +85^oC
4.Welding heat reference
Reference for hand soldering	260^oC-280^oC±10^oC/3+1S

	Dongguan SANNI Electronics Technology Co., Ltd.
	SUNNY Technology Park,Chisheng Industrial Zone,Nanwu Village,Houjie Town,Dongguan City.Guangdong Province.China
	86-769-85968666-807
	Sanni@chinasanni.com

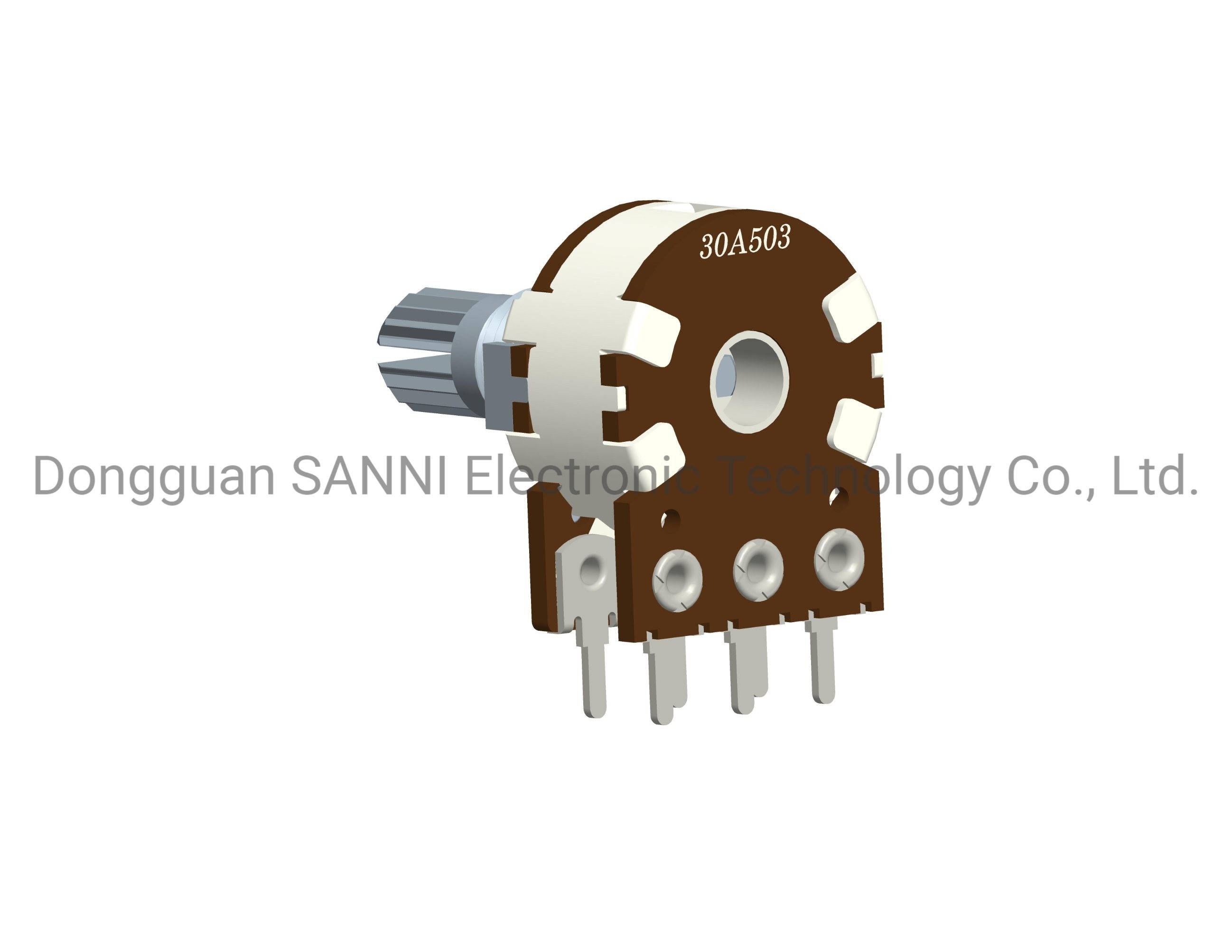

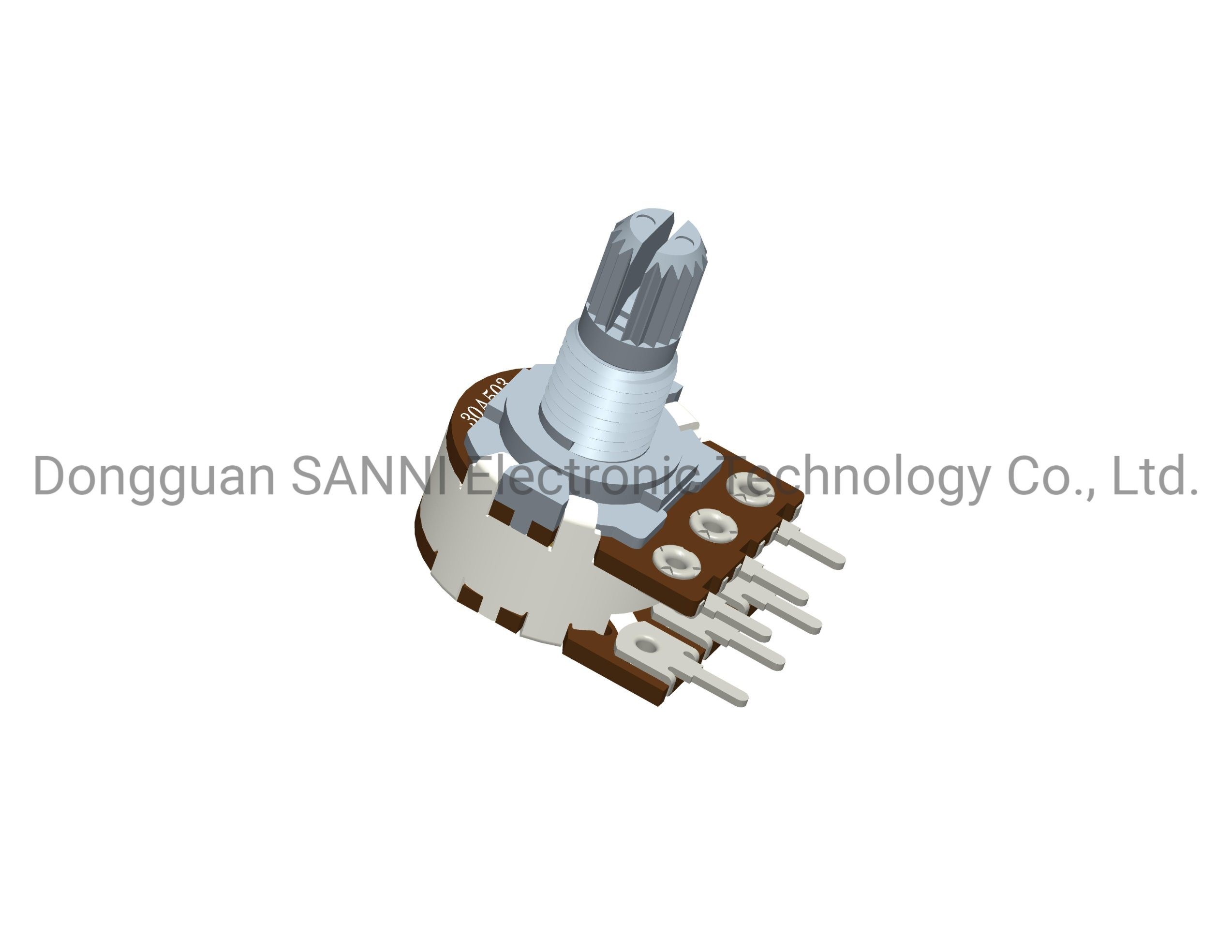

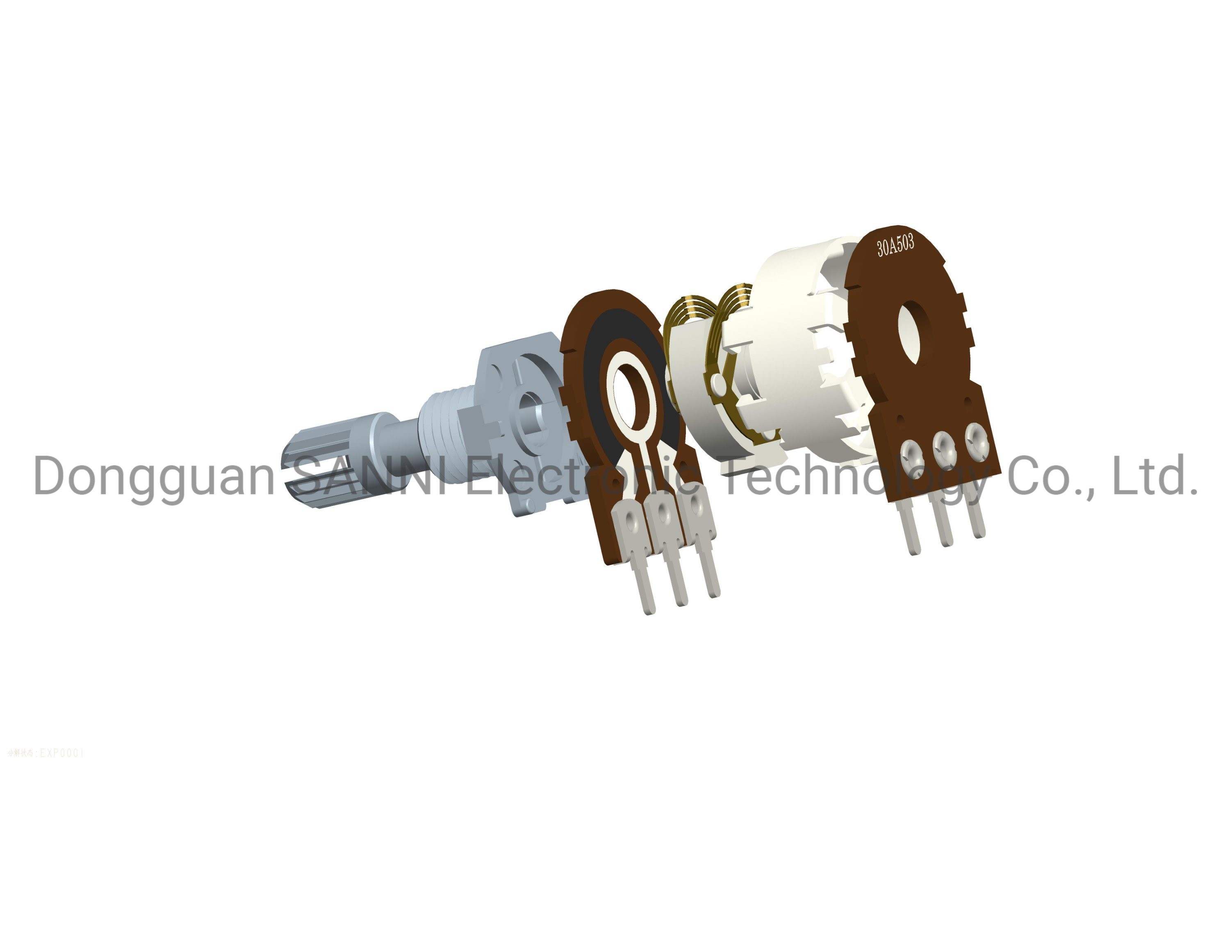

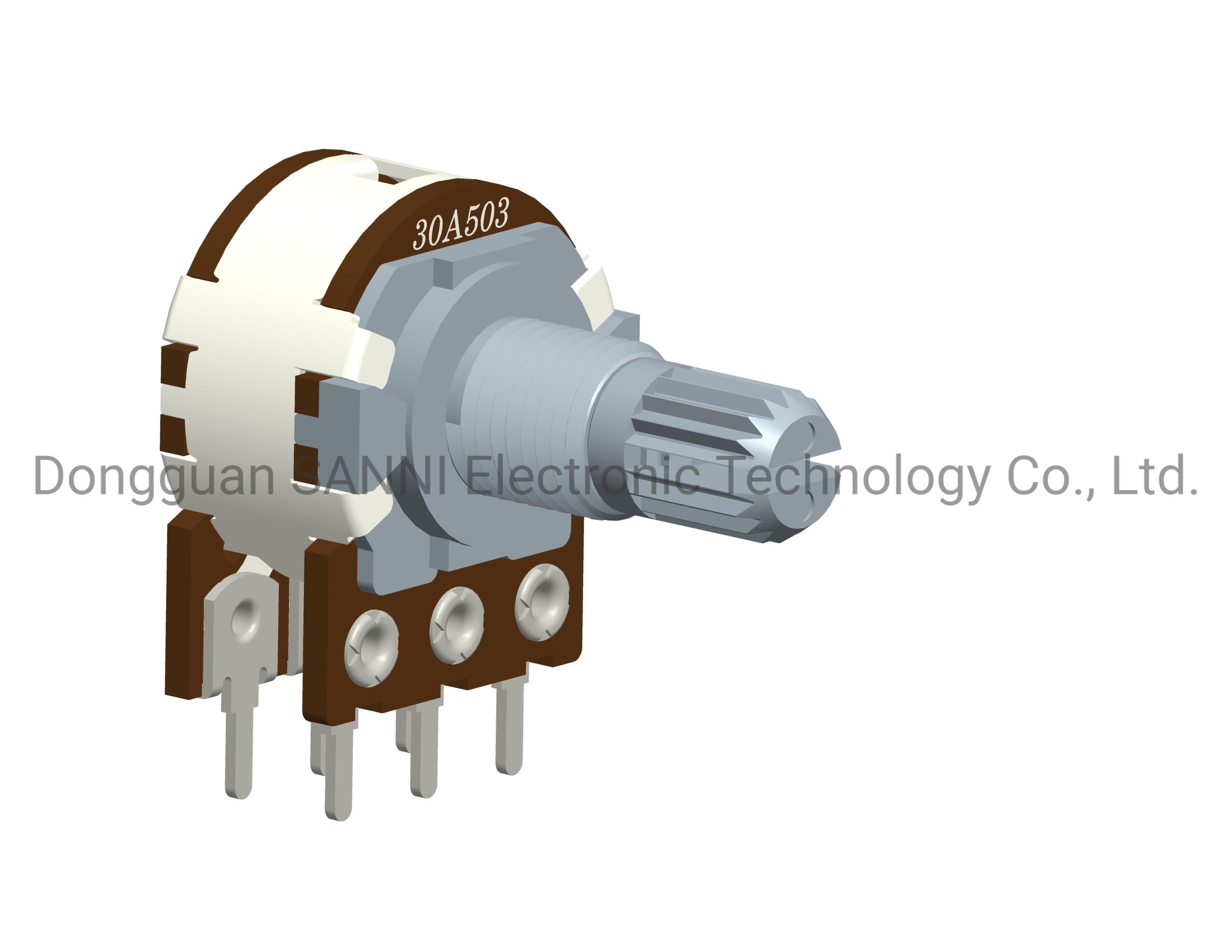

16mm Dual Unit Rotary Potentiometer Metal Shaft Sealed RV16110G0
