Home ProductsRotary PotentiometerHorizontal Plastic Shaft Potentiometer 16mm With Rotary Switch RV16801NS

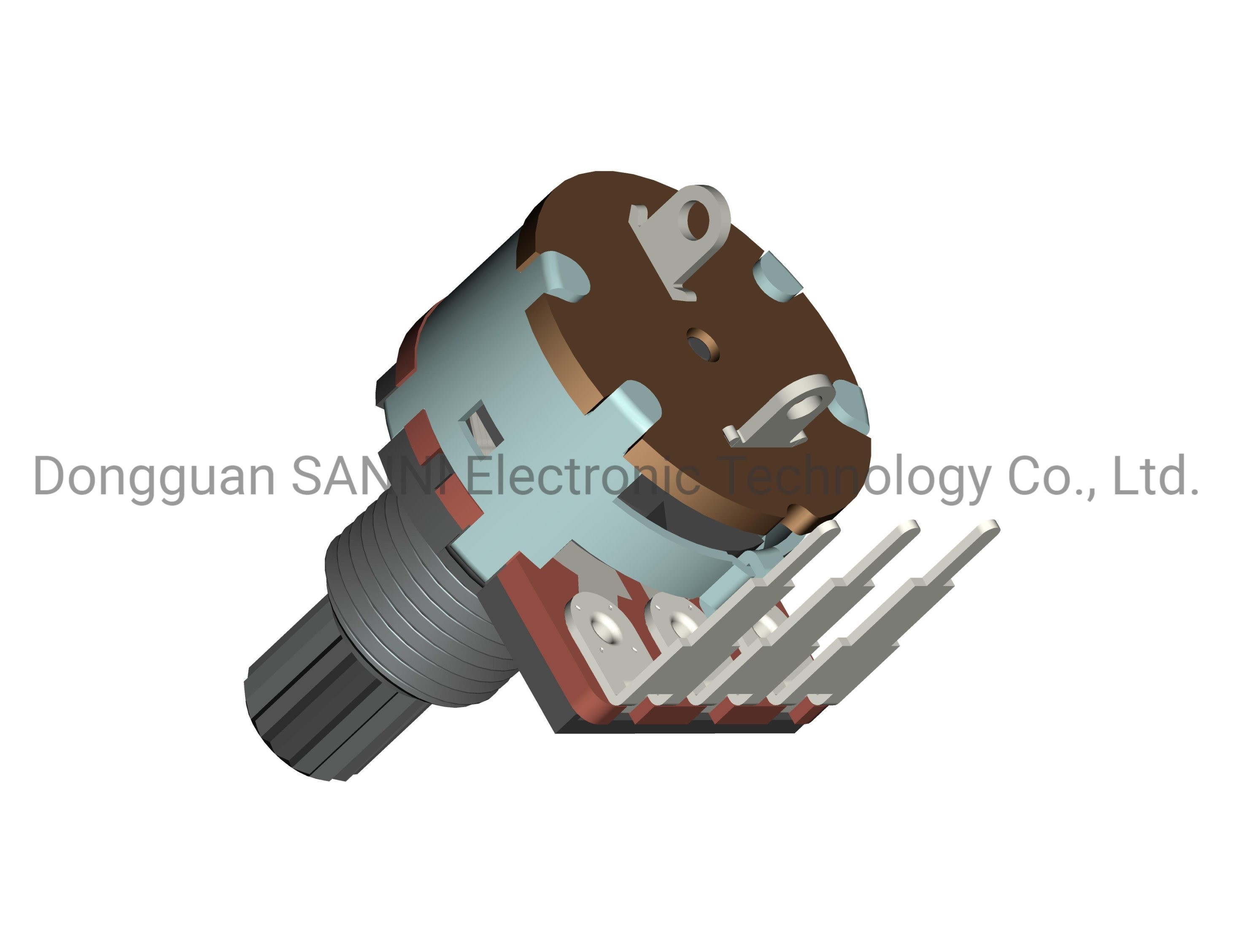

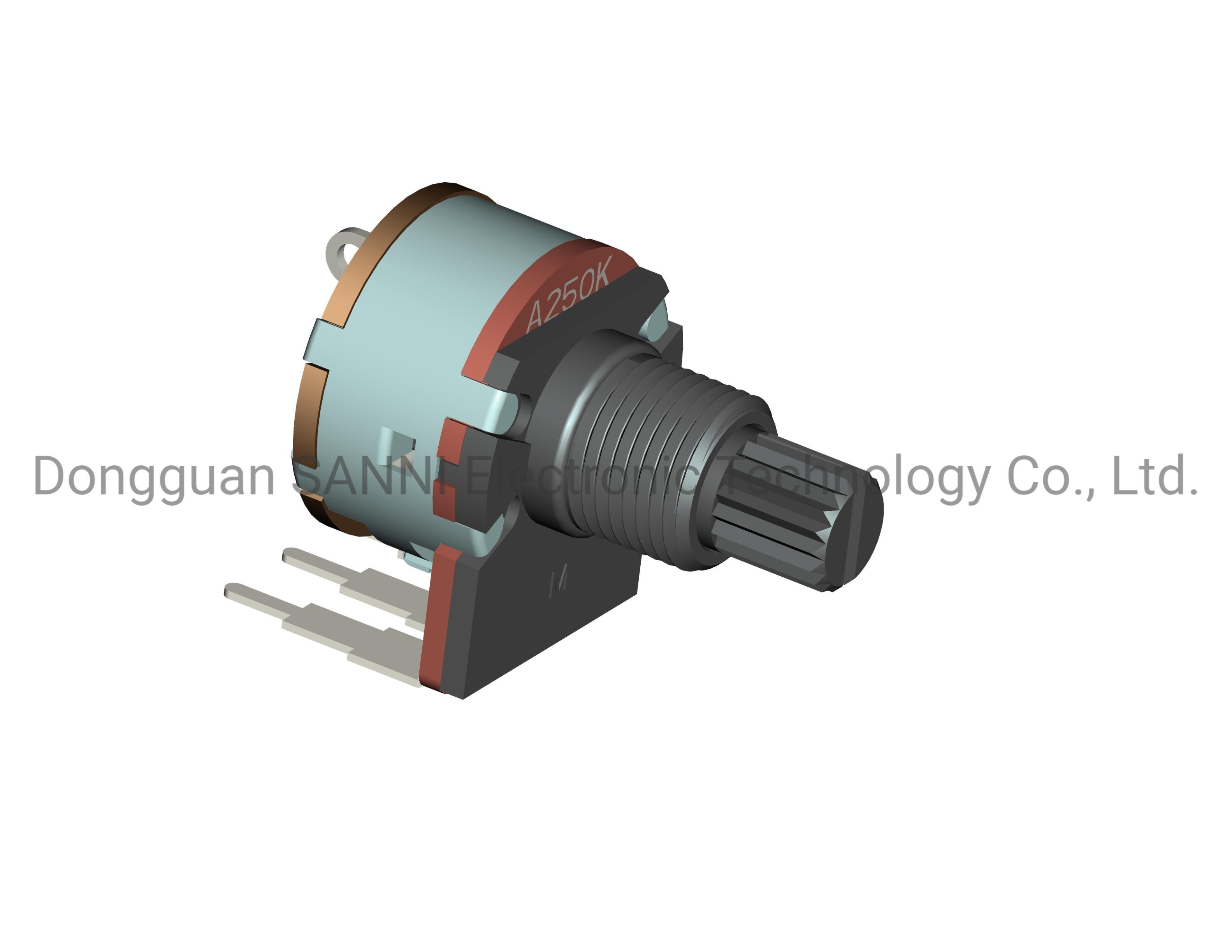

Horizontal Plastic Shaft Potentiometer 16mm With Rotary Switch RV16801NS

Horizontal Plastic Shaft Potentiometer 16mm With Rotary Switch RV16801NS
Horizontal Plastic Shaft Potentiometer 16mm With Rotary Switch RV16801NS
Horizontal Plastic Shaft Potentiometer 16mm With Rotary Switch RV16801NS Horizontal Plastic Shaft Potentiometer 16mm With Rotary Switch RV16801NS
Basic Information
Place of Origin: China
Brand Name: SANNI
Minimum Order Quantity: 2000PCS
Price: USD0.25~0.35 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV16801NS Shape: Square
Application: Audio Switch: Rotary
Transport Package: Carton Boxes Specification: 16mm
Trademark: SANNI Origin: China
Resistance: Variable Resistor Function For Resistance: Load Resistor
Material: Carbon Film Resistor Packaging: Throught Hole
Type: Rotary Potentiometer Customization: Available | Customized Request
Highlight:

Plastic Shaft Potentiometer 16mm

,

Horizontal Plastic Shaft Potentiometer

,

Potentiometer 16mm Rotary

RV16801NS Rotary Potentiometer 16mm Plastic Shaft Potentiometer With Rotary Switch



Application of Rotary Potentiometer



Rotary Potentiometer is mainly suitable for communication products,  automobile power amplifier,multimedia audio, and other electronic equipment, but also can use medical equipment, household appliances.It's main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.



Features of Rotary Potentiometer



Good sealing performance

Using plastic sealing structure, can effectively deal with wave welding.

Push-pull switch or rotating switch can be chosen.

Can be with positioning.

Shaft length and shape can be adjusted.

A variety of mounting methods for choice.



Specification of Rotary Potentiometer



1.Mechanical Characteristics
Rotation stopper strength Min:6.0Kgf
Total rotation angle 300o±5o
Totational torque 20-200gf.cm
Key push-pull strength Min:8Kgf
Vibration 10 to 55 to 10Hz/min.the amplitude is 1.5mm for all the frequencies in the 3 direction of X.Y an Z and for 2 hours respectively.
Terminal Strength 5N for 1 minute
2.Electrical Characteristics
Total resistance 500Ω-2MΩ
Total resistance tolerance 50Ω~10KΩ:±30%/10KΩ~500KΩ:±20%/500KΩ~2MΩ:±30%
Residual resistance R≤10KΩ: 10ΩMax./10KΩ<R>500KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power Linear taper:0.05W, Audio Taper 0.025W
Insulation resistance 100MΩ min. 250V DC
Voltage proof 250V AC for 1 minute
Maximum operation voltage 50V AC/10V DC
3.Switch Characteristics
Switch Type SPST
Rated Power 1A 16V DC
Switch Torque 500gf.cm Max
Switch Angle 40o Max
Operating Life without load 15000 cycles 100mΩ Max
Operating life with load:as rating 15000 cycles 200mΩ Max
Initial contact resistance 100mΩ Max
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
4.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
5.Welding heat reference
Reference for hand soldering 260oC-280oC±10oC/3+1S

Our Advantage



1. More than 10 years of experience in research and development production design.

2. 10+ dedicated and experienced engineers and designers in R&D department.

3. 9 automation production lines, more than 100 experienced workers for higher precision products.

4. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.

5. Professional Testing instruments and team to ensure product quality.
