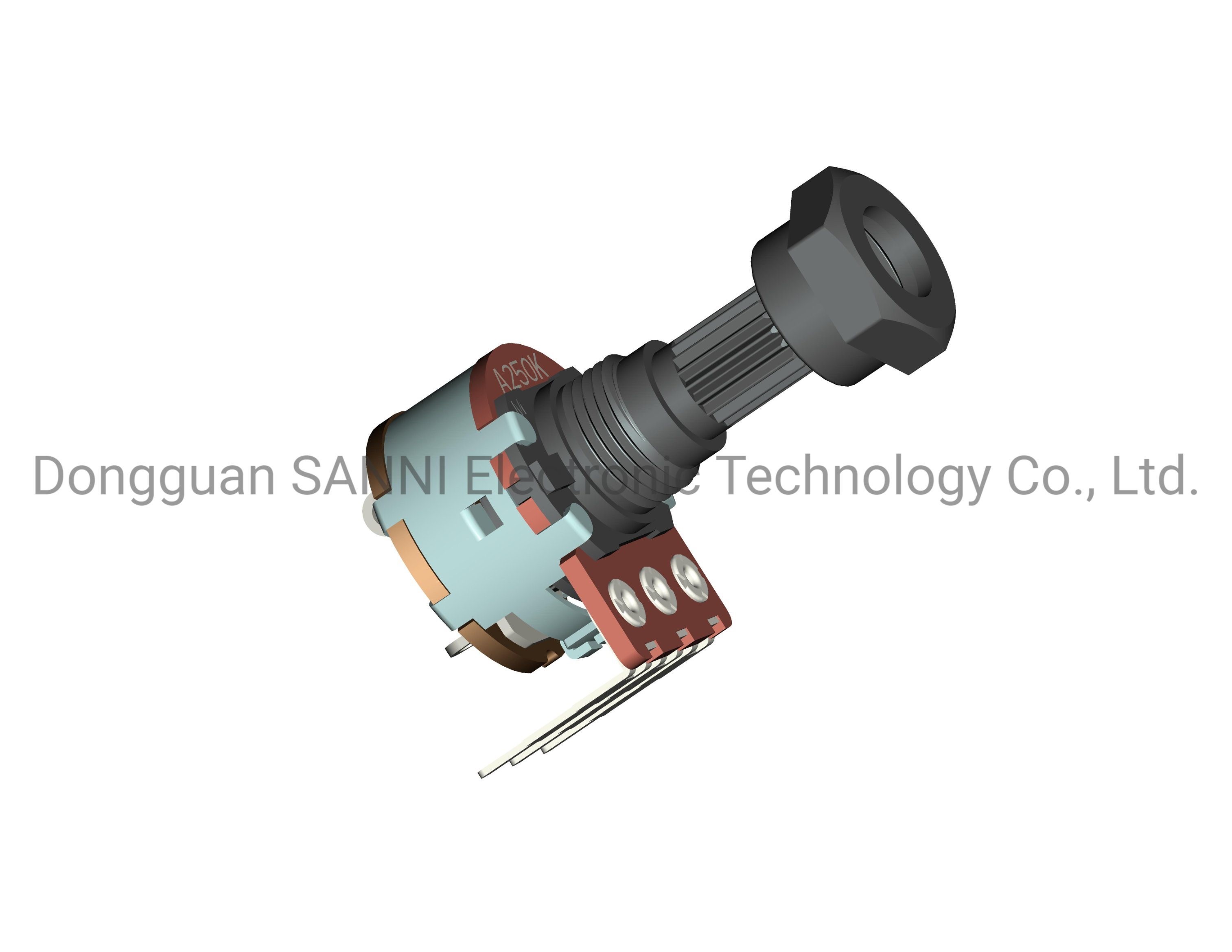

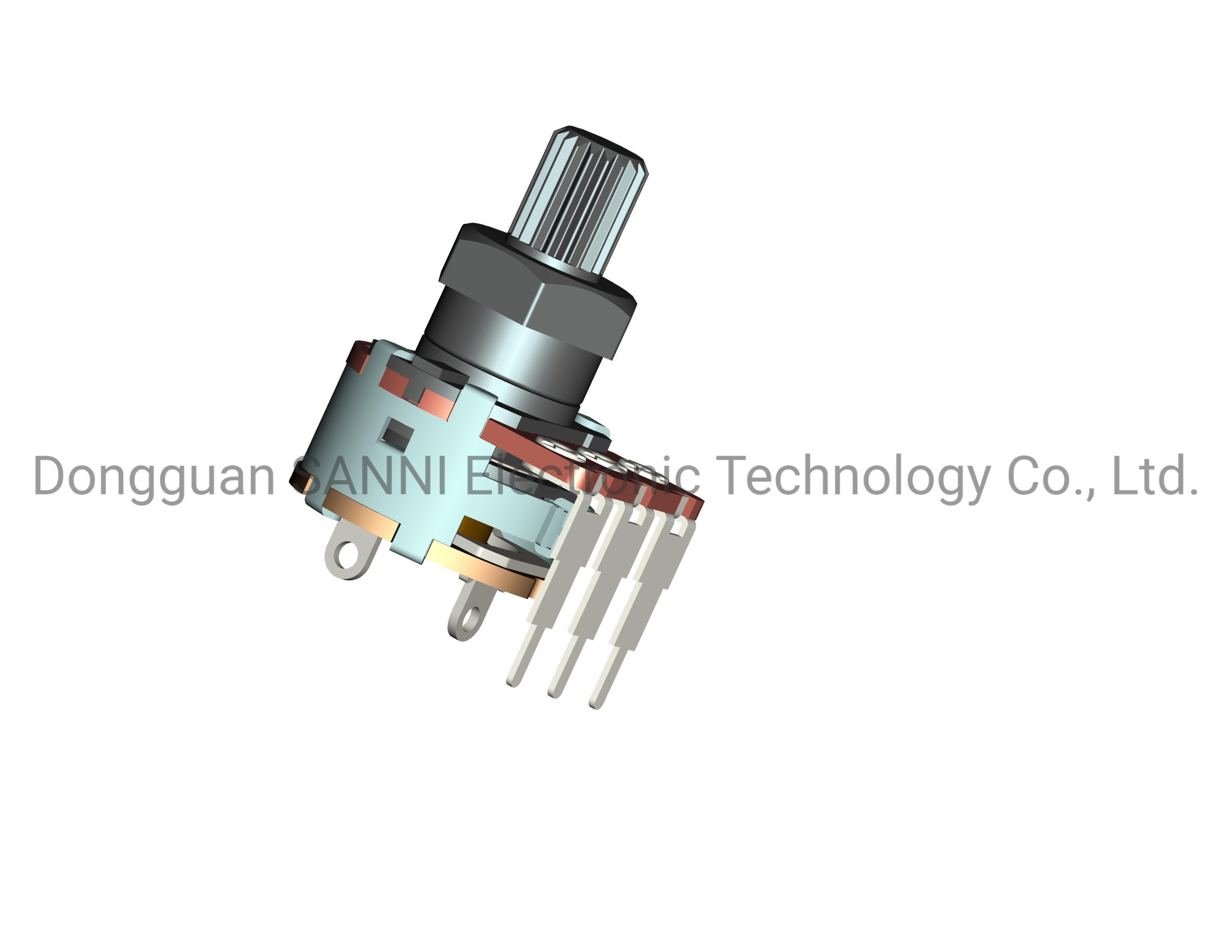

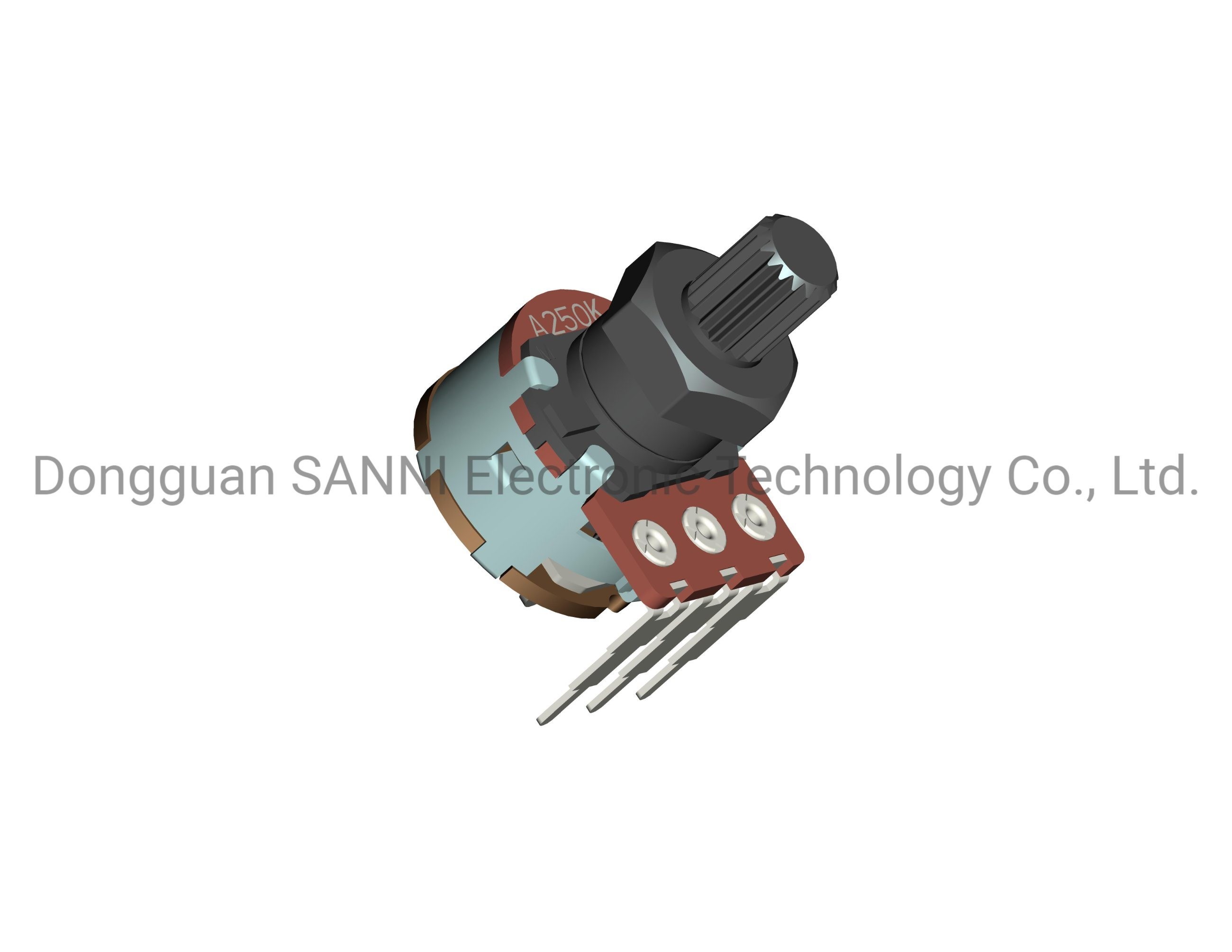

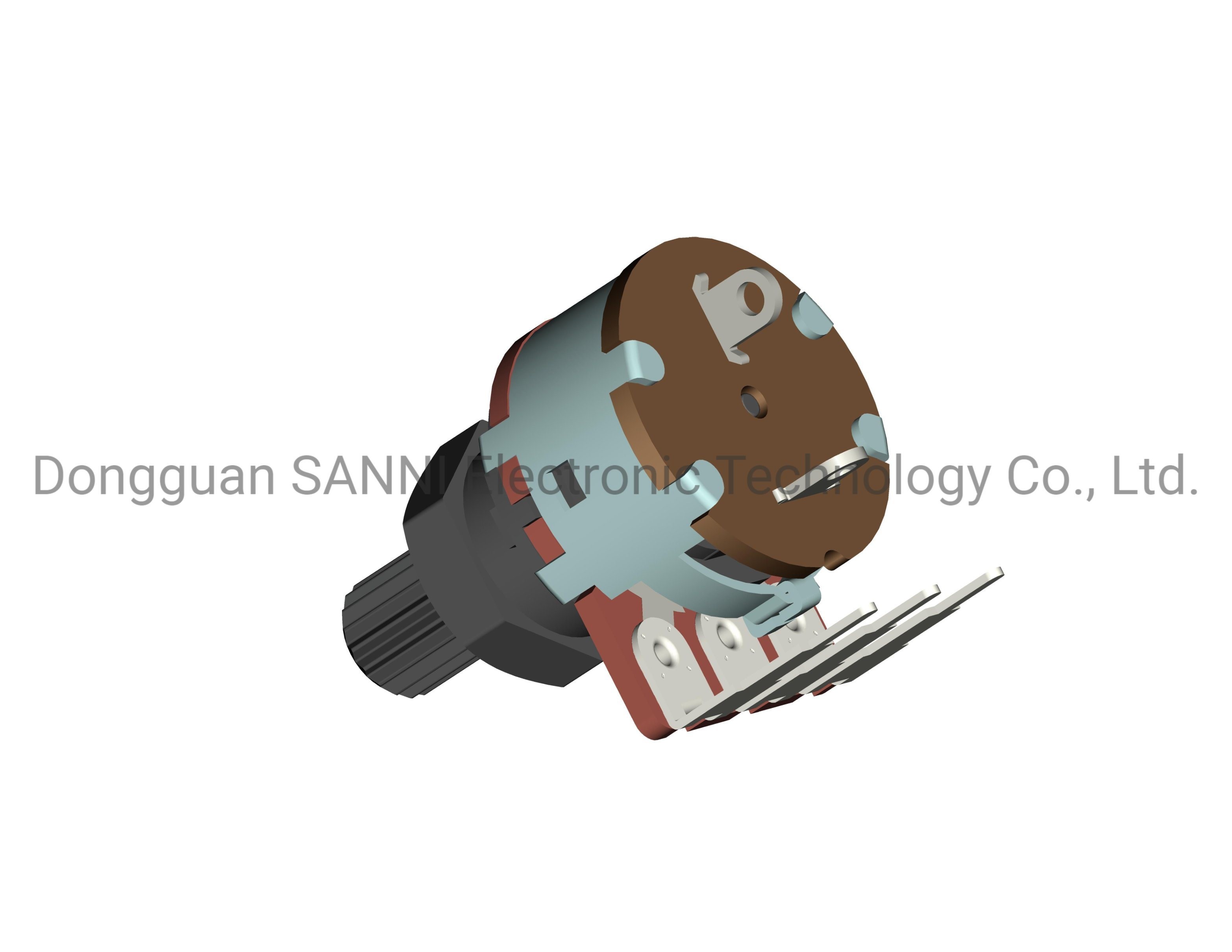

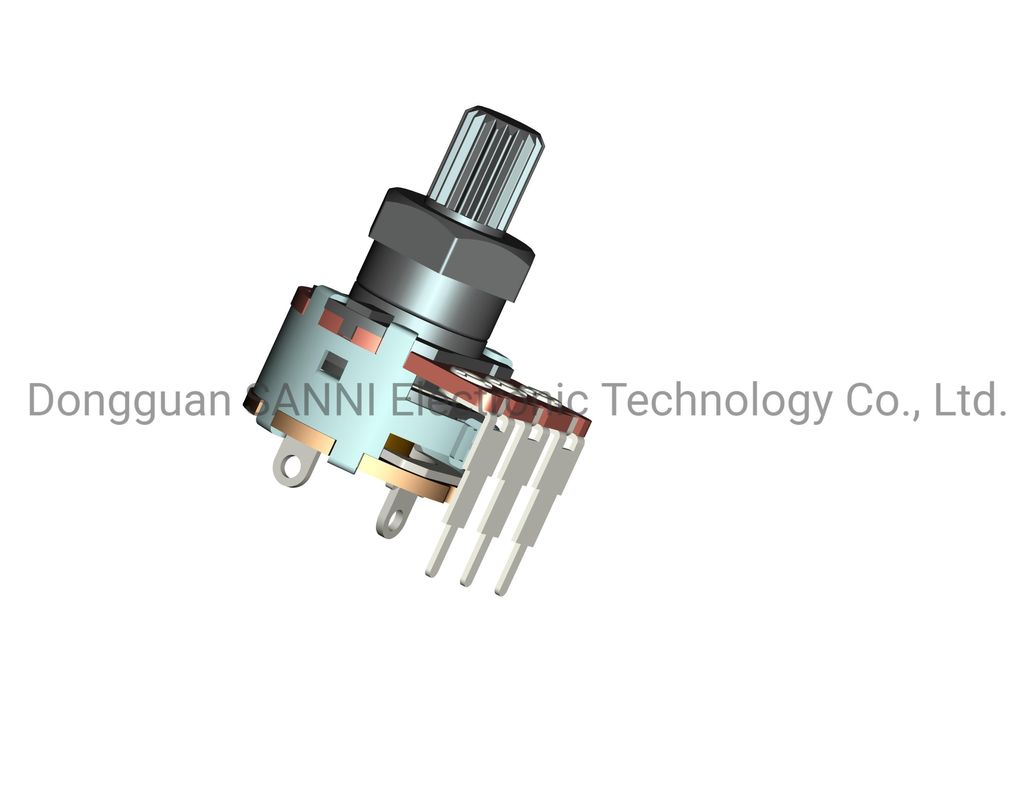

Name: RV16802NS 16mm Plastic Shaft Potentiometer with Switch
Brand: Dongguan SANNI Electronics Technology Co., Ltd.
Price: 7.05 USD
Availability: InStock

RV16802NS 16mm Plastic Shaft Potentiometer with Switch

Basic Information

Place of Origin:	China
Brand Name:	SANNI

Minimum Order Quantity:	2000PCS
Packaging Details:	2000PCS/BOX
Delivery Time:	25 Working days
Payment Terms:	T/T
Supply Ability:	30000pcs/Month

Contact Now

Model NO.:	RV16802NS	Quantity:	Duplex
Shape:	Square	Application:	Audio
SMD Direction:	Horizontal	Units:	2
Switch:	Rotary	Transport Package:	Carton Boxes
Specification:	16mm	Trademark:	SANNI
Origin:	China	Supply Ability:	50000PCS Per Month
Resistance:	Variable Resistor	Function For Resistance:	Load Resistor
Installation:	SMD Resistor	Material:	Carbon Film Resistor
Packaging:	Throught Hole	Type:	Rotary Potentiometer
Samples:	US$ 0/Piece 1 Piece(Min.Order) \| Request Sample	Customization:	Available \| Customized Request
Highlight:	RV16802NS Potentiometer , 16mm Shaft Potentiometer , 16mm Plastic Shaft Potentiometer

Product Description

Company Info.

Basic Info.

Model NO.

RV16802NS

Quantity

Duplex

Shape

Square

Application

Audio

SMD Direction

Horizontal

Units

Switch

Rotary

Transport Package

Carton Boxes

Specification

16mm

Trademark

SANNI

Origin

China

Production Capacity

50000PCS Per Month

Product Description

16mm Insulated shaft sealed potentiometer
Width: 16mm
Most suitable f16or car amplifier volume control
Use:Used for car amplifier, audio amplifier, musical instrument amplifier, guitar effector, mixer, instrument and equipment
Product features
Rohs compliant
Seal type
Small volume
Structural diversification
High Quality
Switch performance
circuit type: SPST
Rated Power: 1A 16V DC
Switching torque: 500gf.cm max
Switching angle: 40° max
Operating life without load: 30,000cycles 100mΩ max
Operating life with load: as rating 30,000cycles 200mΩ max
Initial contact resistance: 100mΩ max
Insulation resistance : 100mΩ max min. 250V DC
Voltage proof: 300V AC for 1 minute
Mechanical characteristics
Total rotational angle: 300°±5°
Rotational torque: 10-150gf.cm CC:click torque:60-400gf.cm
Rotational stopper strength: MIN:3Kgf
Key Push-pull strength: MIN:8Kgf
Key wobble: Max:0.6*L/20mmP-P
Terminal strength: 5N for 1 minute
Electrical characteristics
Total resistance: 101-305 (100Ω-3MΩ)
Total resistance tolerance:10KΩ-100KΩ:±20% other:±30%
Residual resistance: R≤100KΩ 20Ωmax
50KΩ≤R Nominal total
resistance of 0.1% or less
Rated power: 0.05W
Insulation resistance: 100KΩ min. 205V DC
Voltage proof: 300V AC for 1minute
Maximum operating voltage: 50V AC.10V DC
Operating life: 15000 cycles
