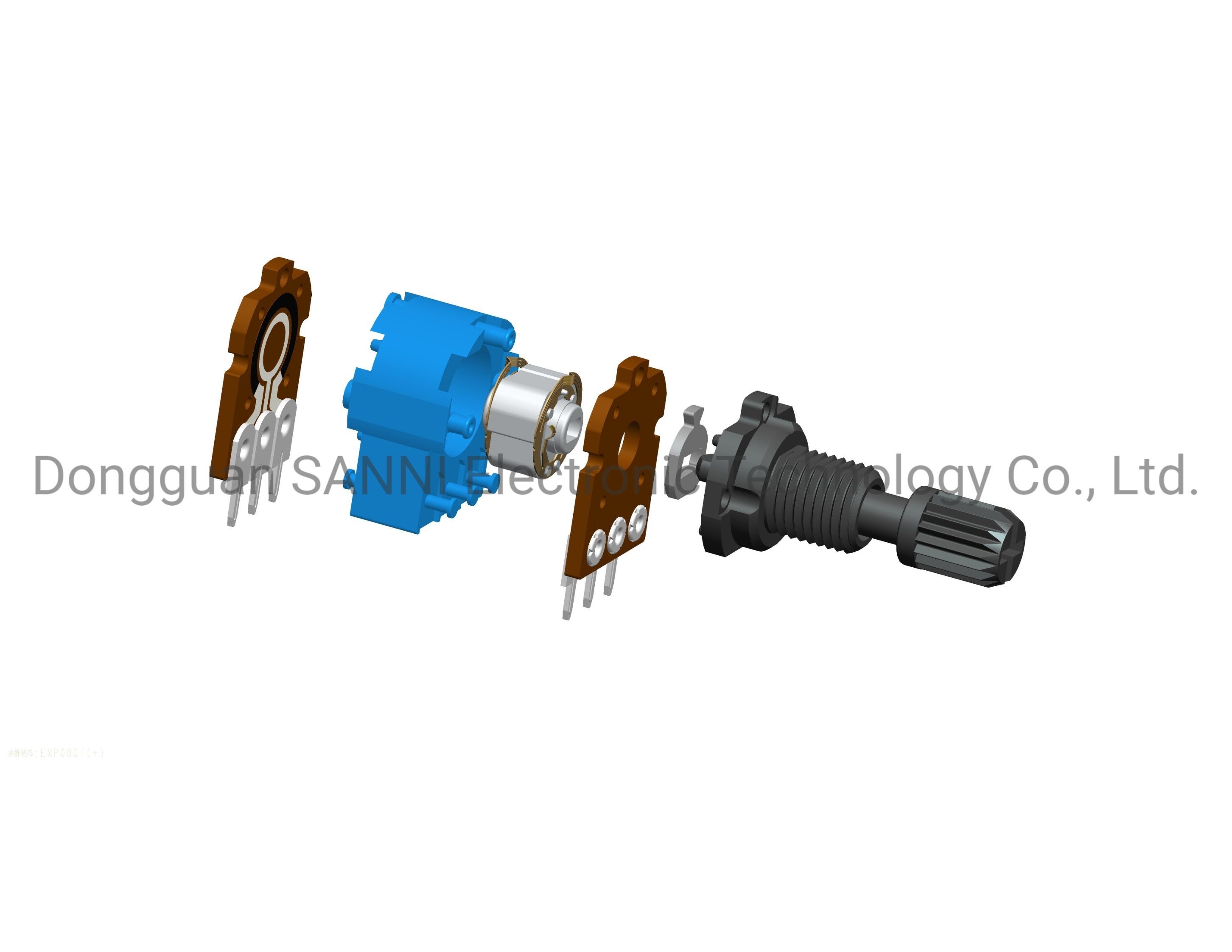

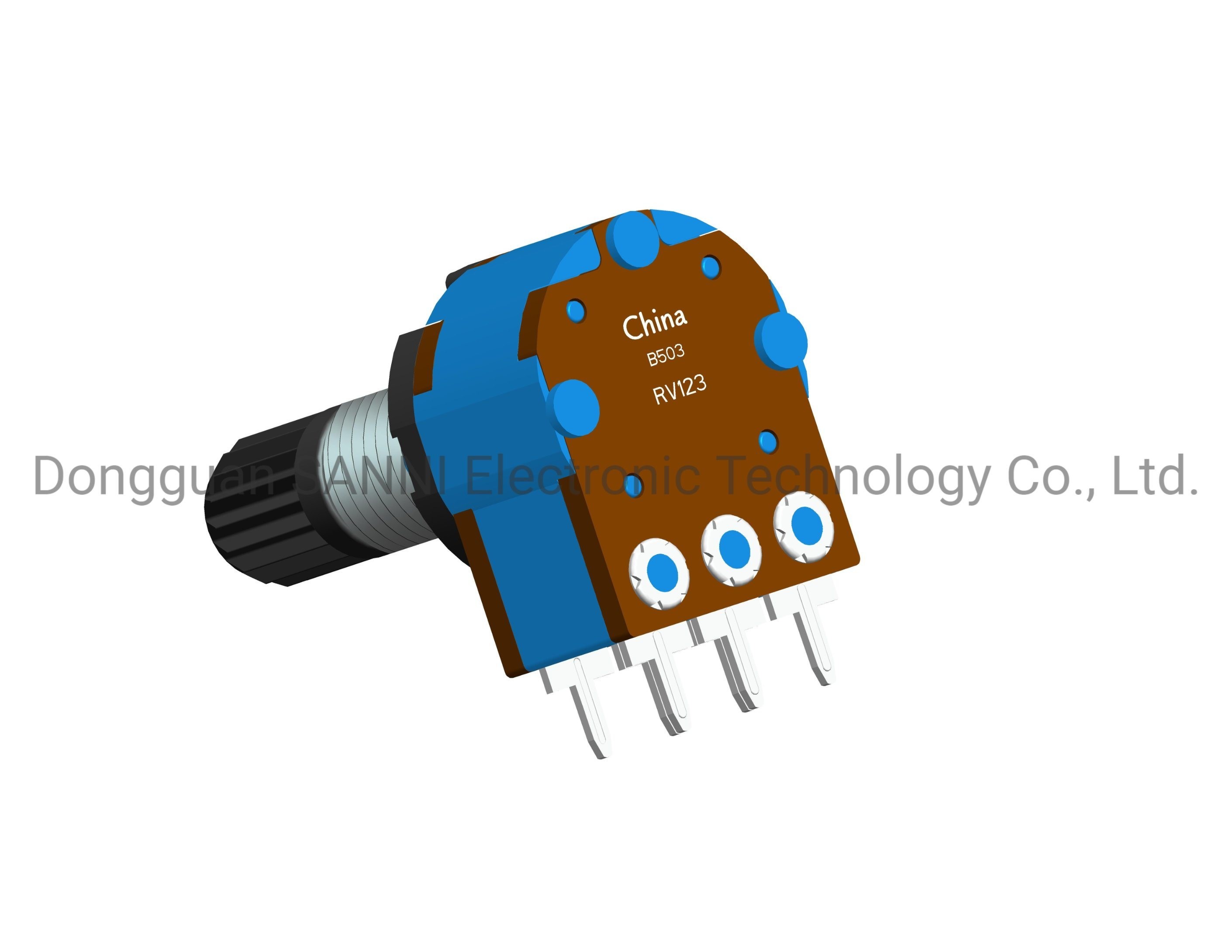

12mm Dual Unit Rotary Potentiometer Insulated Shaft Sealed RV123G0 OEM

12mm Dual Unit Rotary Potentiometer Insulated Shaft Sealed RV123G0 OEM
12mm Dual Unit Rotary Potentiometer Insulated Shaft Sealed RV123G0 OEM
12mm Dual Unit Rotary Potentiometer Insulated Shaft Sealed RV123G0 OEM 12mm Dual Unit Rotary Potentiometer Insulated Shaft Sealed RV123G0 OEM
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV123G0
Minimum Order Quantity: 2000PCS
Price: USD0.2~0.3 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV123G0 Taper: Linear Or Log
Brand: Sanni Specification: 12mm
Resistance: 30K,50K,100K Or Customize Customization: Available | Customized Request
Highlight:

Rotary Potentiometer 12mm

,

Rotary Potentiometer OEM

,

Dual Unit 12mm potentiometer

RV123G0 12mm Rotary Potentiometer Insulated Shaft Sealed Dual Unit

Description of Rotary Potentiometer

The rotating potentiometer is an adjustable electrical resistor, which wipes on the resistors by the wiper, and obtains the output voltage associated with the input voltage in the circuit.

Features of Rotary Potentiometer

Using plastic sealing structure, can effectively deal with wave welding.
Good sealing performance
Can be with positioning.
Push-pull switch or rotating switch can be chosen.
Shaft length and shape can be adjusted.
A variety of mounting methods for choice.

Application of Rotary Potentiometer

Rotary Potentiometer is mainly suitable for walkie-talkie, multimedia audio, automobile power amplifier and other electronic equipment, but also can use household appliances or medical equipment. It's main functions are: light intensity adjustment,volume adjustment,  menu selection, speed adjustment, temperature adjustment, etc.

Specification of Rotary Potentiometer


1.Electrical Characteristics
Total resistance 100Ω-3MΩ
Total resistance tolerance 50Ω~10KΩ:±30%/10KΩ~500KΩ:±20%/500KΩ~2MΩ:±30%
Residual resistance R≤10KΩ: 10ΩMax./10KΩ<R>500KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power 0.05W
Insulation resistance 100MΩ min. 250V DC
Voltage proof 250V AC for 1 minute
Maximum operation voltage 50V AC/10V DC
2.Mechanical Characteristics
Rotation stopper strength Min:4.0Kgf
Total rotation angle 300o±5o
Totational1 10-150gf.cm
Key push-pull strength Min:8Kgf
Terminal Strength 5N for 1 minute
3.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
4.Welding heat reference
Reference for hand soldering 350oC±10oC/3+1S
Reference for dip soldering 260oC±5oC/10±1S
RV123G0ts 12mm Insulated Shaft Sealed PotentiometerRV123G0ts 12mm Insulated Shaft Sealed PotentiometerRV123G0ts 12mm Insulated Shaft Sealed PotentiometerRV123G0ts 12mm Insulated Shaft Sealed PotentiometerRV123G0ts 12mm Insulated Shaft Sealed PotentiometerRV123G0ts 12mm Insulated Shaft Sealed Potentiometer
