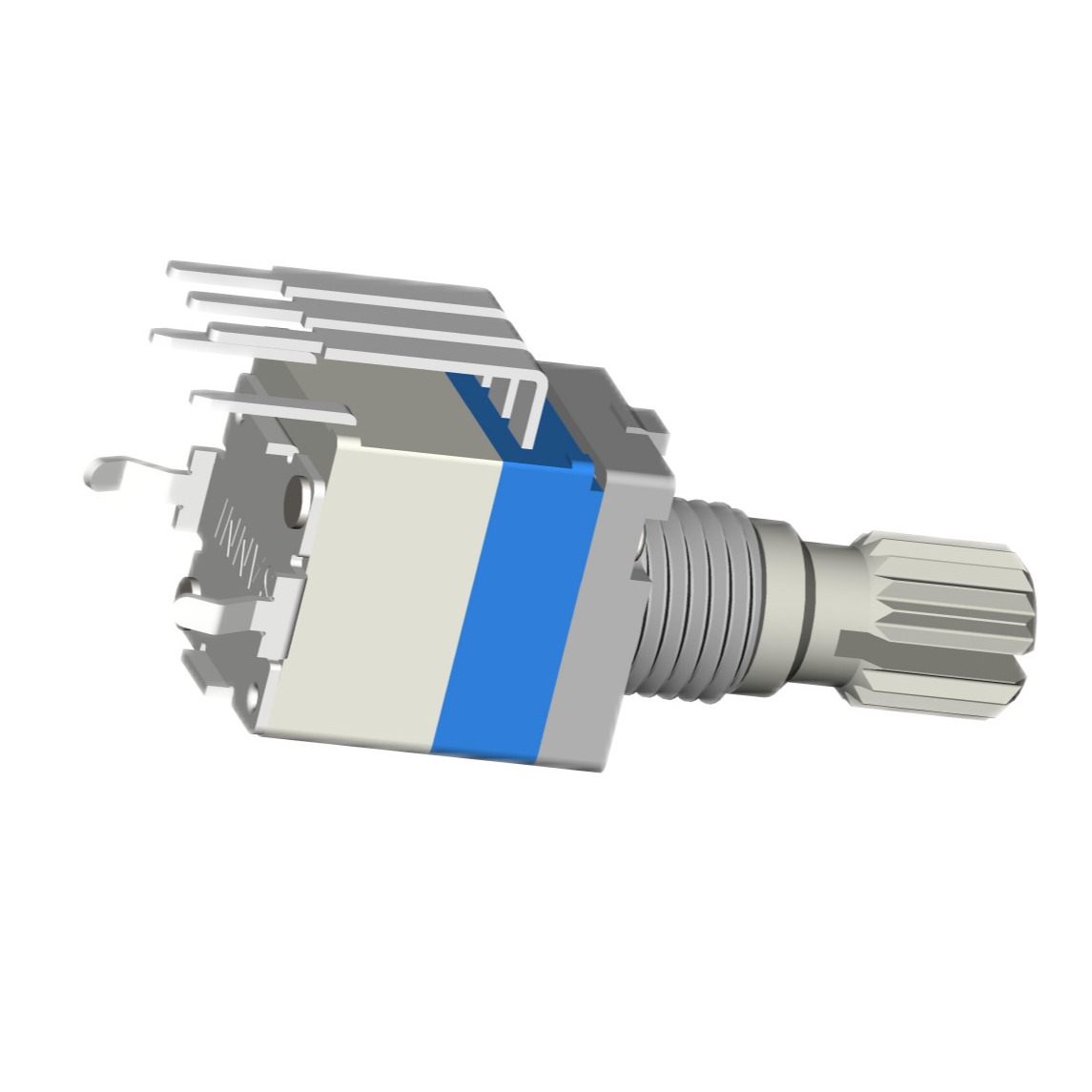

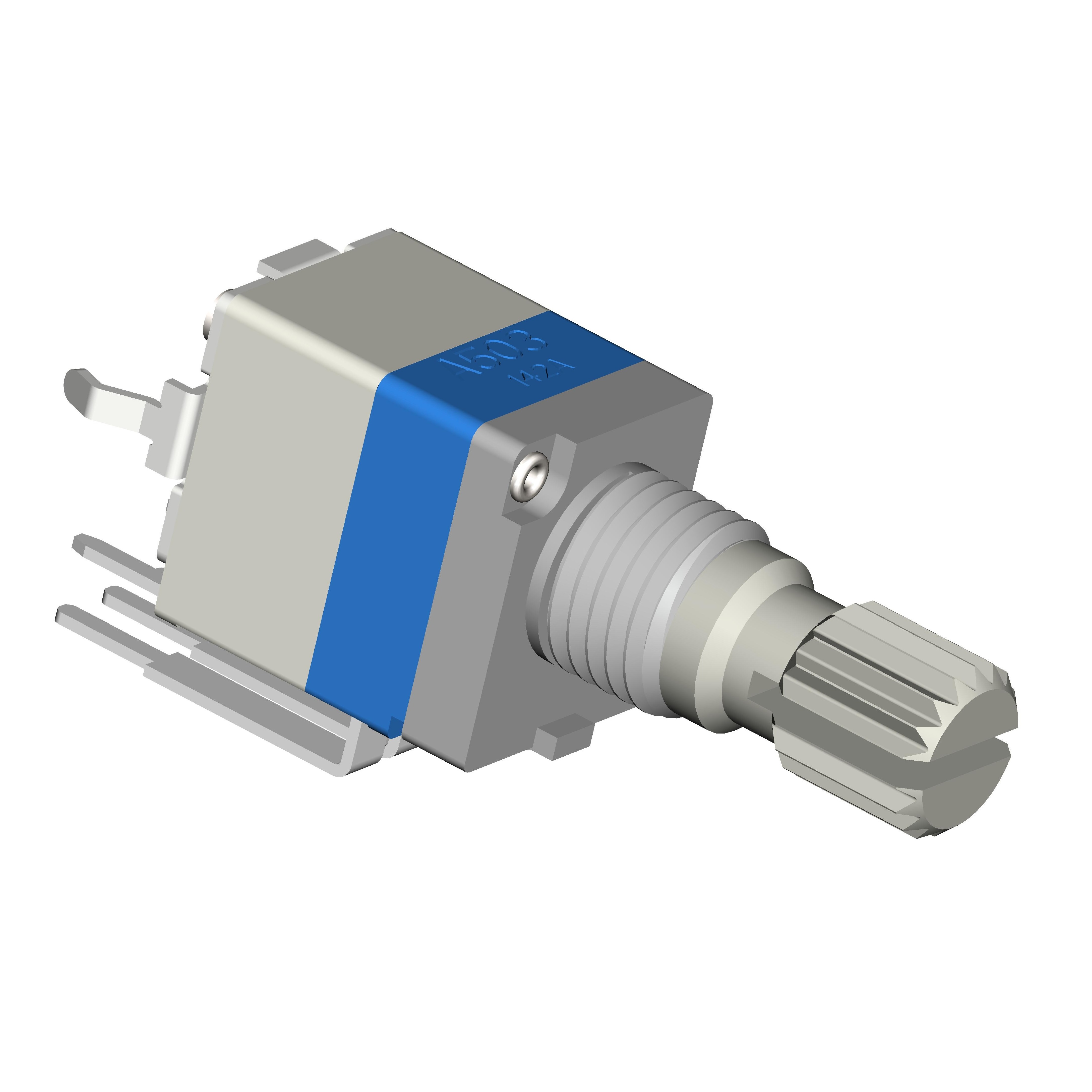

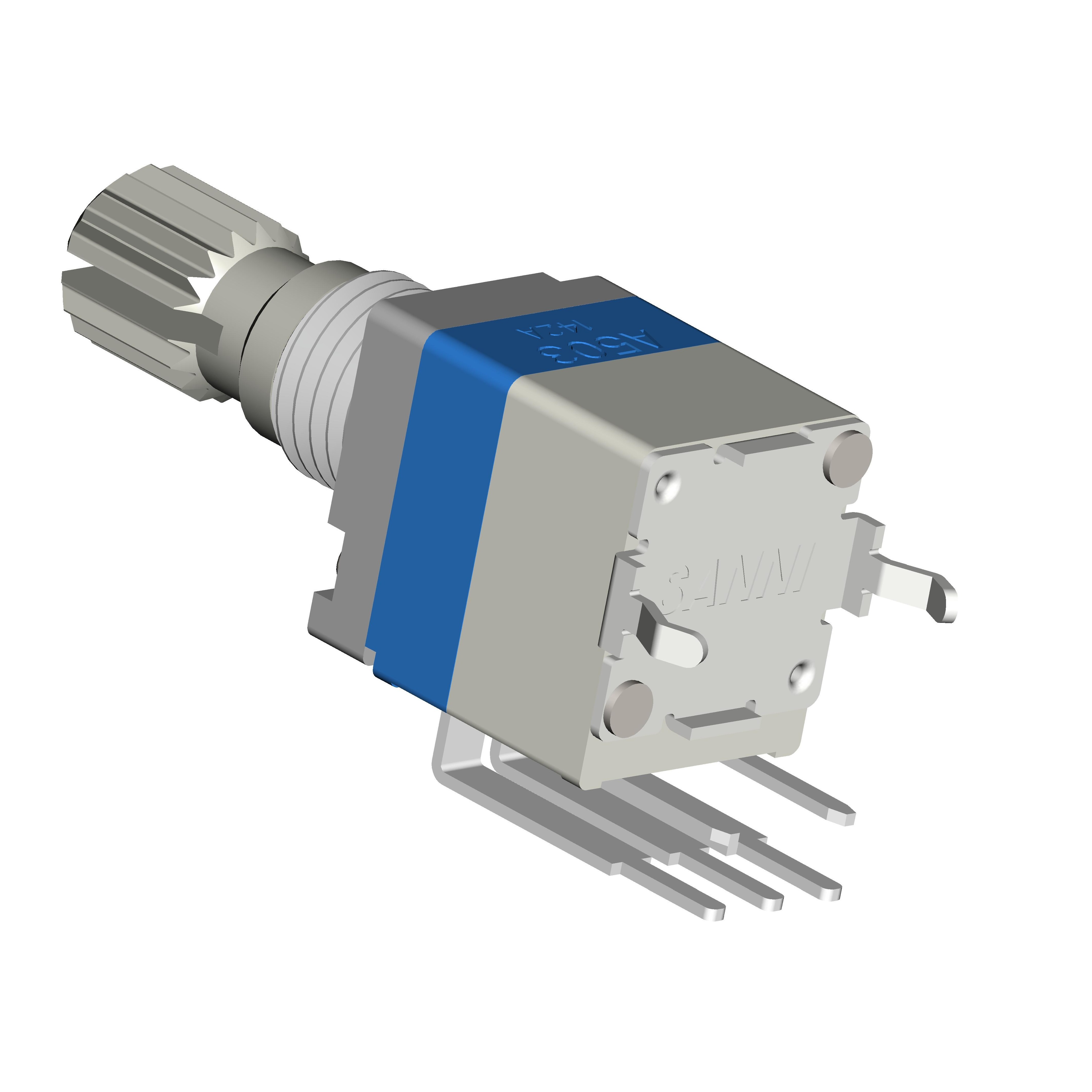

Metal Shaft Sealed Rotary Potentiometer With Switch Single Unit RV9312NS

Metal Shaft Sealed Rotary Potentiometer With Switch Single Unit RV9312NS
Metal Shaft Sealed Rotary Potentiometer With Switch Single Unit RV9312NS
Metal Shaft Sealed Rotary Potentiometer With Switch Single Unit RV9312NS Metal Shaft Sealed Rotary Potentiometer With Switch Single Unit RV9312NS Metal Shaft Sealed Rotary Potentiometer With Switch Single Unit RV9312NS
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV9312NS
Minimum Order Quantity: 2000PCS
Price: USD0.3~0.4 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV9312NS Taper: Linear Or Audio
Brand: SANNI Switch: SPST Rotary Switch
Specification: 9mm Material: Plastic & Metal
Customization: Available | Customized Request Sampler Term: 5pcs Free Samples With Freight Collect Shipping
High Light:

Sealed Rotary Potentiometer

,

Metal Shaft Rotary Potentiometer

,

Single Unit Potentiometer With Switch

RV9312NS Rotary Potentiometer Single Unit Metal Shaft Sealed Potentiometer With Switch

Description of Rotary Potentiometer



The rotating potentiometer is an adjustable electrical resistor, which wipes on the resistors by the brush, and obtains the output voltage associated with the input voltage in the circuit. It is mainly used for walkie-talkie,multimedia audio, automobile power amplifier, smart home, computer peripheral, etc.



Features of Rotary Potentiometer



Good sealing performance

Using plastic sealing structure, can effectively deal with wave welding.

Can be with positioning.

With rotation switch.

Shaft length and shape can be adjusted.

A variety of mounting methods for choice.



Product Specification



1.Electrical Characteristics
Total resistance 200Ω-2MΩ
Total resistance tolerance 200Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance 20ΩMax.
Rated Power Linear taper:0.05W, Audio Taper 0.025W
Insulation resistance 100MΩ min. 250V DC
Noise 100mV Max
Voltage proof 100V AC for 1 minute
Maximum operation voltage 50V AC/20V DC
2.Mechanical Characteristics
Rotation stopper strength Min:4Kgf
Total rotation angle 300o±5o
Totational torque 10-150gf.cm
Key push-pull strength Min:8Kgf
Key Wobble Max: 0.6*L/20mm P-P
Terminal Strength 5N for 1 minute
3.Switch Characteristics
Switch Type SPST
Rated Power 1A 16V DC
Switch Torque 500gf.cm Max
Switch Angle 40o Max
Operating Life without load 15000 cycles 100mΩ Max
Operating life with load:as rating 15000 cycles 200mΩ Max
Initial contact resistance 100mΩ Max
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
4.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
5.Welding heat reference
Manual Soldering 350oC±10oC/3+1S
Wave Soldering 260oC±5oC/10±1S



Our Advantage



1. More than 10 years of experience in research and development production design.

2. 10 automation production lines, more than 100 experienced workers for higher precision products.

3. 10+ dedicated and experienced engineers and designers in R&D department.

4. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.

5. Professional Testing instruments and team to ensure product quality.



RV9312NSKQ Single Unit Metal Shaft Sealed Potentiometer SwitchRV9312NSKQ Single Unit Metal Shaft Sealed Potentiometer SwitchRV9312NSKQ Single Unit Metal Shaft Sealed Potentiometer SwitchRV9312NSKQ Single Unit Metal Shaft Sealed Potentiometer SwitchRV9312NSKQ Single Unit Metal Shaft Sealed Potentiometer SwitchRV9312NSKQ Single Unit Metal Shaft Sealed Potentiometer Switch
