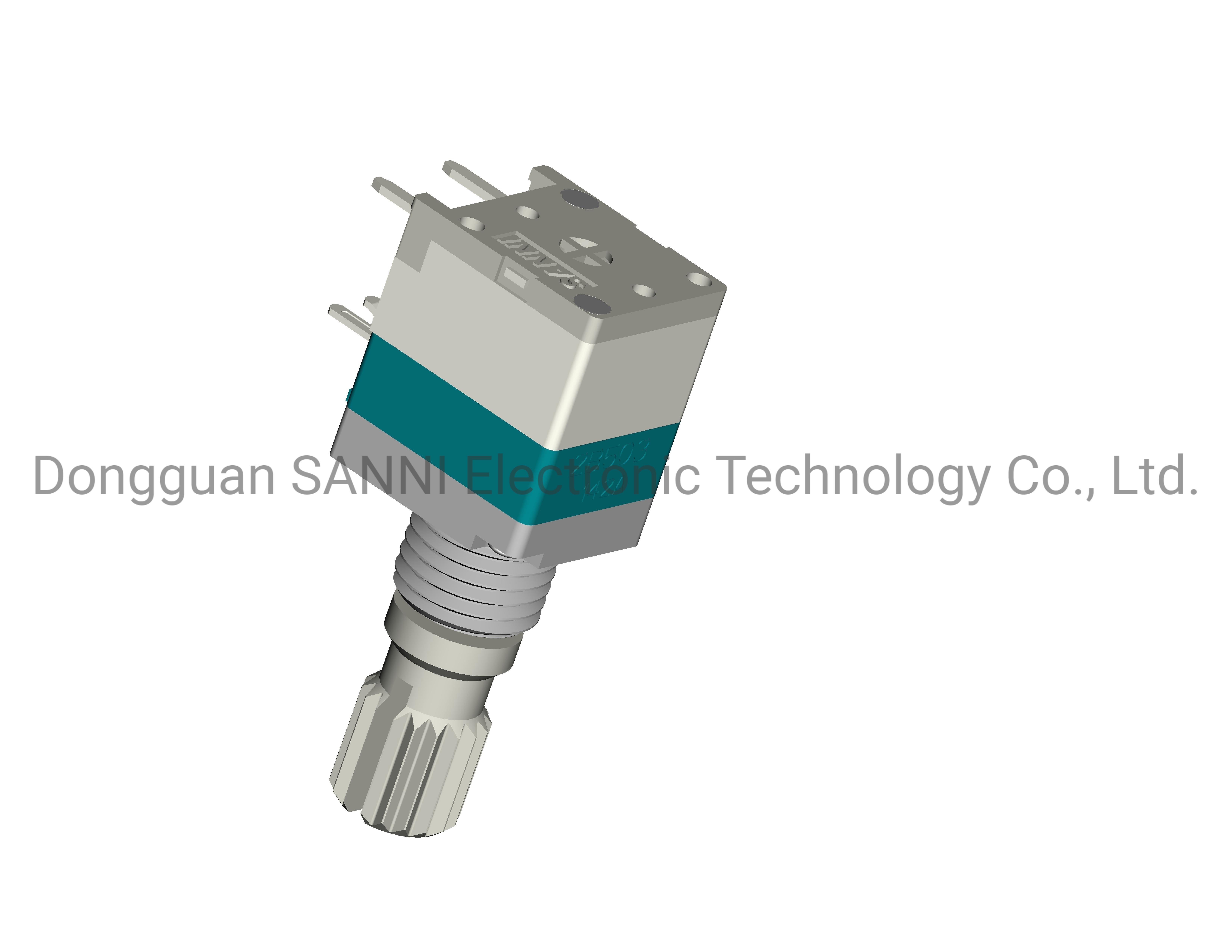

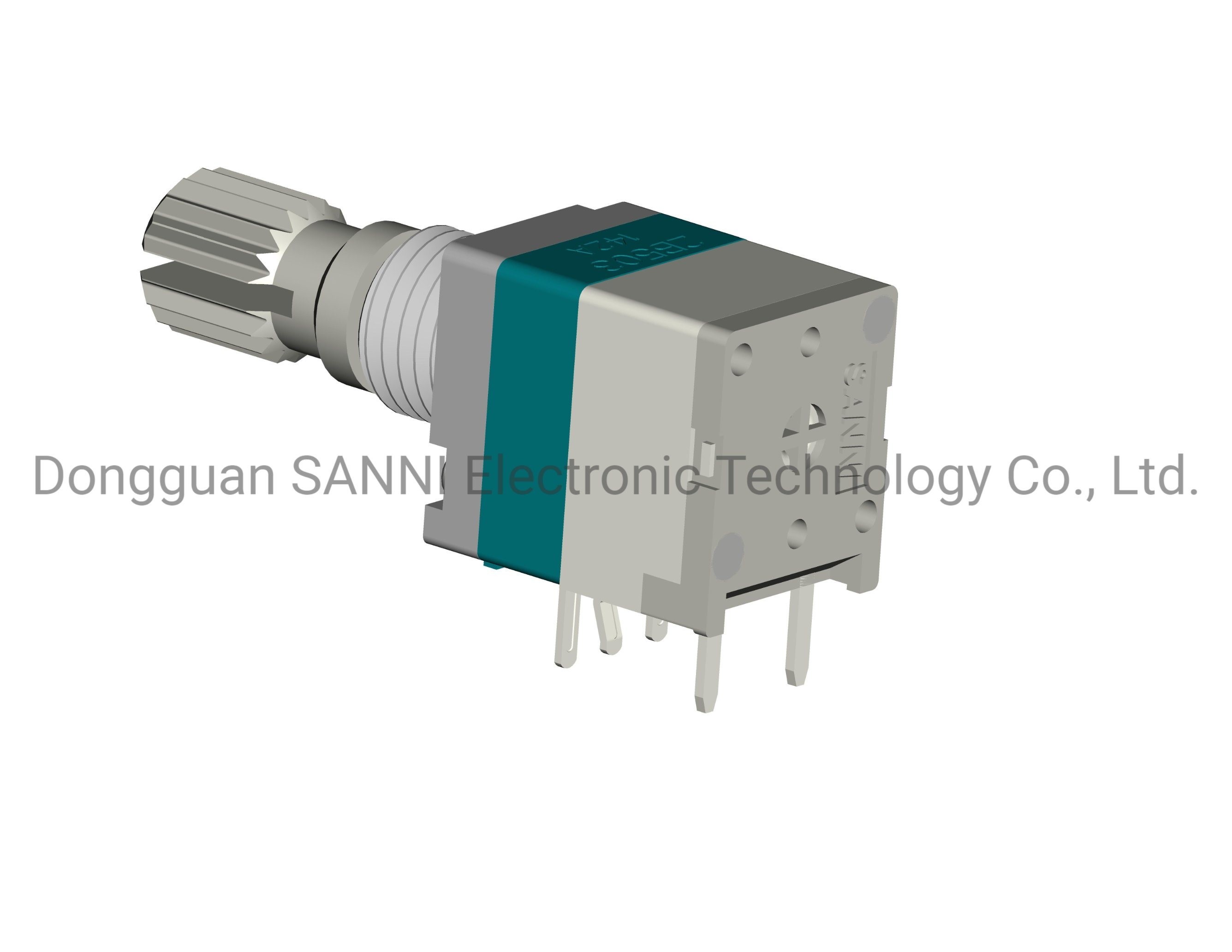

Metal Shaft Sealed Rotating Potentiometer With Push Switch Single Unit RV9110NM

Metal Shaft Sealed Rotating Potentiometer With Push Switch Single Unit RV9110NM
Metal Shaft Sealed Rotating Potentiometer With Push Switch Single Unit RV9110NM
Metal Shaft Sealed Rotating Potentiometer With Push Switch Single Unit RV9110NM Metal Shaft Sealed Rotating Potentiometer With Push Switch Single Unit RV9110NM
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV9110NM
Minimum Order Quantity: 2000PCS
Price: USD0.3~0.5 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV9110NMKQ Shape: Square
Taper: Log Or Linear Brand: SANNI
Switch: Push Switch Material: Metal & Plastic
Samples: Free Sample With Freight Collect Shipping Customization: Available | Customized Request
Highlight:

Metal Shaft Rotating Potentiometer

,

Rotating Potentiometer With Push Switch

,

Single Unit Potentiometer With Push Switch

RV9110NM Rotary Potentiometer Single Unit Metal Shaft Sealed With Push Switch

Description of Rotary Potentiometer

The rotating potentiometer is an adjustable electrical resistor, which slides on the resistors by the brush, and obtains the output voltage associated with the input voltage in the circuit.

Application of Rotary Potentiometer

Rotary Potentiometer is mainly suitable for communication products, multimedia audio, automobile power amplifier,walkie-talkie, and other electronic equipment, but also can use for household appliances, medical equipment. It's main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.

Product Characteristics


1.Mechanical Characteristics
Total rotation angle300o±5o
Rotation stopper strengthMin:4Kgf
Totational torque10-150gf.cm
Key push-pull strengthMin:8Kgf
Terminal Strength5N for 1 minute
Key WobbleMax: 0.6*L/20mm P-P
2.Electrical Characteristics
Total resistance200Ω-2MΩ
Total resistance tolerance200Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance20ΩMax.
Insulation resistance100MΩ min. 250V DC
Rated PowerLinear taper:0.05W, Audio Taper 0.025W
Noise100mV Max
Voltage proof100V AC for 1 minute
Maximum operation voltage50V AC/20V DC
Gang error applicable for Dual unit parts for audio volume control purposes-40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.)
3.Switch Characteristics
Switch Type Push Switch
Rated Power1A 16V DC
Switch Torque500gf.cm Max
Switch Travel0.5mm
Operating Life without load15000 cycles 100mΩ Max
Operating life with load:as rating15000 cycles 200mΩ Max
Initial contact resistance100mΩ Max
Insulation resistance100MΩ min. 250V DC
Voltage proof300V AC for 1 minute
4.Environmental Performance
Operating temperature range-10oC to +70oC
Storage temperature range-40oC to +85oC
5.Welding heat reference
Manual Soldering350oC±10oC/3+1S
Wave Soldering260oC±5oC/10±1S


Our Services
1. Offer 1 year warranty
2. within 24 hours to reply your inquiries
3. OEM/ODM service to meet all your needs
4. Strong R&D team for technical support
5. Offer free sample for test



RV9110NMKQ Single Unit Metal Shaft Sealed Potentiometer SwitchRV9110NMKQ Single Unit Metal Shaft Sealed Potentiometer SwitchRV9110NMKQ Single Unit Metal Shaft Sealed Potentiometer SwitchRV9110NMKQ Single Unit Metal Shaft Sealed Potentiometer SwitchRV9110NMKQ Single Unit Metal Shaft Sealed Potentiometer SwitchRV9110NMKQ Single Unit Metal Shaft Sealed Potentiometer Switch
