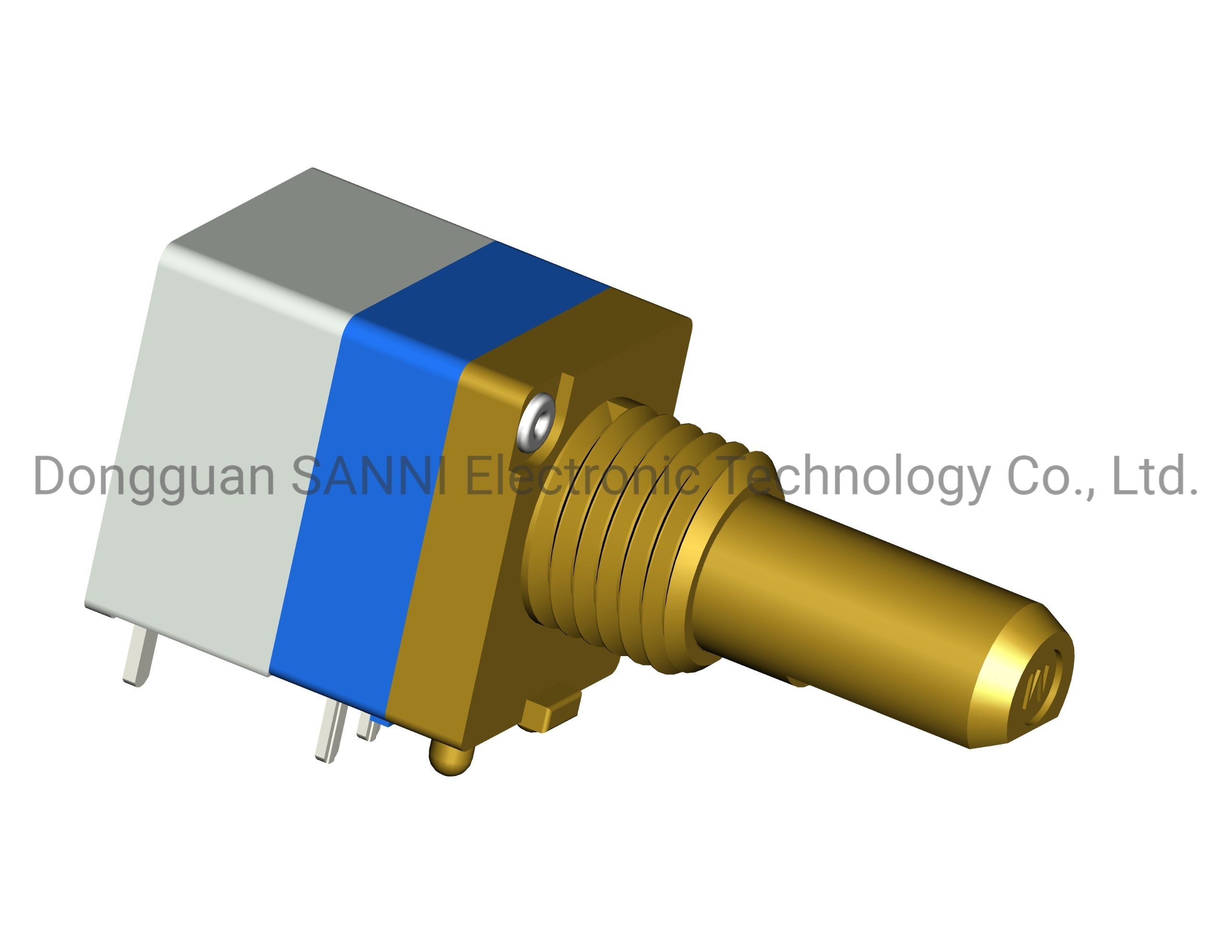

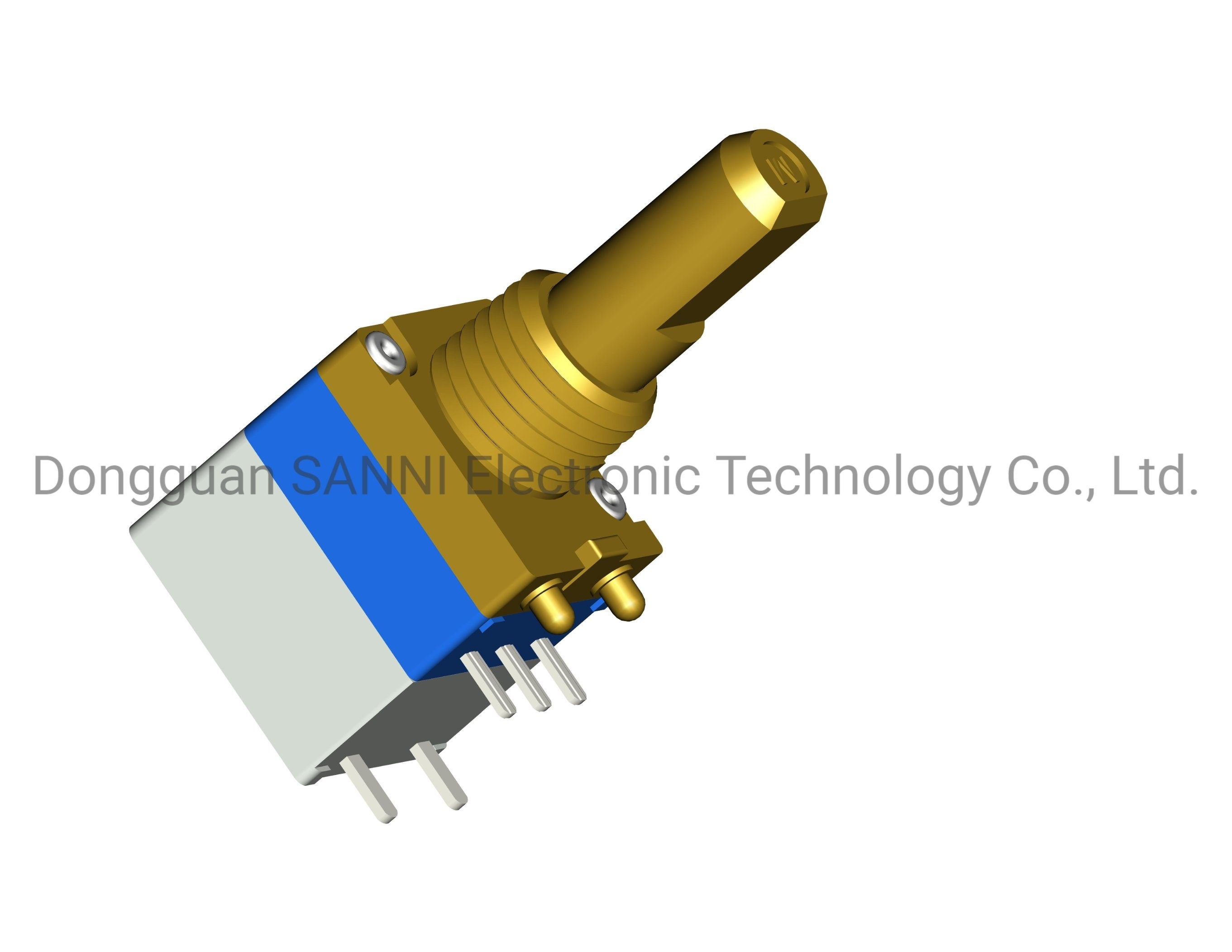

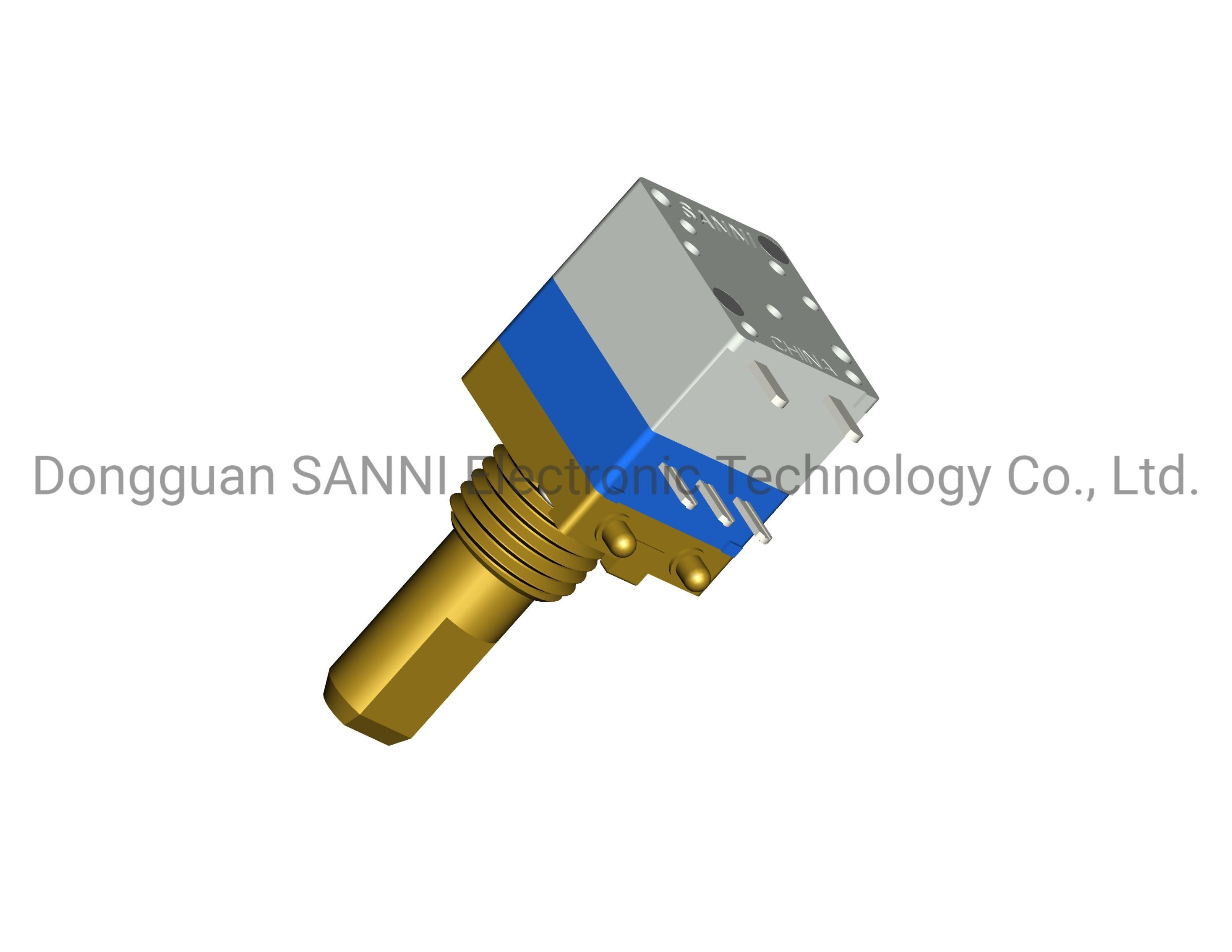

Rotary 10k Ohm Potentiometer , Metal Shaft B Taper Potentiometer RV9C11NS

Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV9C11NS
Minimum Order Quantity: 2000PCS
Price: USD0.4~0.6 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Model NO.: RV9C11NS Shape: Square
Application: Audio,amplifier And Other Control Switch: SPST Switch
Body Material: Plastic Terminal Material: Brass
Shaft Material: Aluminum, Brass, Stainless Steel Ect... Installation: PCB DIP Mounting
Customization: Available | Customized Request
High Light:

Rotary 10k Ohm Potentiometer

,

B Taper 10k Ohm Potentiometer

,

Metal Shaft B Taper Potentiometer

RV9C11NS Rotary Potentiometer With Rotary Switch Metal Shaft At 10KOhm B Taper



RV9C11NS Rotary Potentiometer With Rotary Switch

Description of Rotary Potentiometer



The rotating potentiometer is an adjustable electrical resistor, which slides on the resistors by the brush, and obtains the output voltage associated with the input voltage in the circuit. It is mainly used for communication products, walkie-talkie, automobile power amplifier, multimedia audio, smart home, computer peripheral, etc.



Application of Rotary Potentiometer



Rotary Potentiometer is mainly suitable for communication products, walkie-talkie, multimedia audio, automobile power amplifier and other electronic equipment, but also can use household appliances, medical equipment, its main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.



Product Specification



1.Electrical Characteristics
Total resistance 200Ω-2MΩ
Total resistance tolerance 200Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance 20ΩMax.
Rated Power Linear taper:0.05W, Audio Taper 0.025W
Insulation resistance 100MΩ min. 250V DC
Noise 100mV Max
Voltage proof 100V AC for 1 minute
Maximum operation voltage 50V AC/20V DC
2.Mechanical Characteristics
Rotation stopper strength Min:3Kgf
Total rotation angle 280o±10o
Totational torque 10-100gf.cm
Key push-pull strength Min:8Kgf 10s Min
Key Wobble Max: 0.5*L/20mm P-P
Terminal Strength 5N for 1 minute
3.Switch Characteristics
Rated Power 0.1A 16V DC
Switch Torque 200~800gf.cm
Switch Angle 40o Max
Operating Life without load 15000 cycles 100mΩ Max
Operating life with load:as rating 15000 cycles 200mΩ Max
Initial contact resistance 100mΩ Max
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
4.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
5.Welding heat reference
Manual Soldering 96.5 Sn/3.0 Ag/0.5 Cu Sold Wire or No-Clean Rosin Core Wire 280oC Max. For 3 Seconds
Wave Soldering 96.5 Sn/3.0 Ag/0.5 Cu Sold Wire or No-Clean Flux 260oC Max. For 5 Seconds
