Model NO.:	RV27120	Shape:	Square
Mounting Direction:	Horizontal	Units:	Dual Unit
Transport Package:	Carton Boxes	Specification:	27mm
Installation:	DIP PCB Mount	Customization:	Available \| Customized Request
Highlight:	Rotary Sealed Potentiometer , Metal Shaft Sealed Potentiometer , Audio Potentiometer Rotary

1.Electrical Characteristics
Total resistance	100Ω-3MΩ
Total resistance tolerance	50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance	R≤10KΩ: 10ΩMax./10KΩ<R>500KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power	Linear taper:0.05W, Audio Taper 0.025W
Insulation resistance	100MΩ min. 250V DC
Voltage proof	300V AC for 1 minute
Maximum operation voltage	50V AC/10V DC
2.Mechanical Characteristics
Rotation stopper strength	Min:5.0Kgf
Total rotation angle	300^o±5^o
Totational torque	20-200gf.cm
Key push-pull strength	Min:8Kgf
Vibration	Max: 0.6*L/20mm P-P
Terminal Strength	5N for 1 minute
3.Environmental Performance
Operating temperature range	-10^oC to +70^oC
Storage temperature range	-40^oC to +85^oC
4.Soldering Performance
Manual Soldering	350^oC±10^oC/3+1S
Wave Soldering	260^oC±5^oC/10±1S

	Dongguan SANNI Electronics Technology Co., Ltd.
	SUNNY Technology Park,Chisheng Industrial Zone,Nanwu Village,Houjie Town,Dongguan City.Guangdong Province.China
	86-769-85968666-807
	Sanni@chinasanni.com

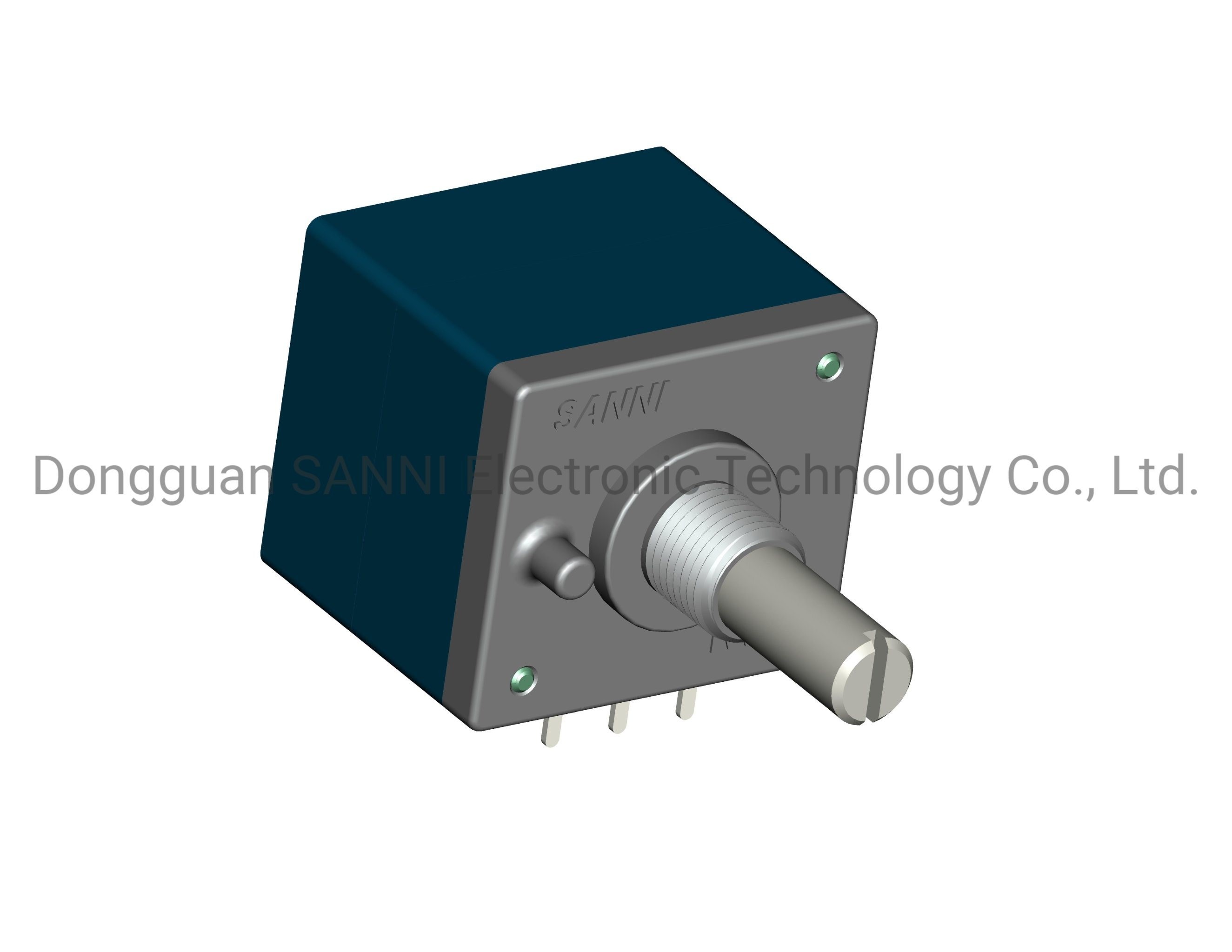

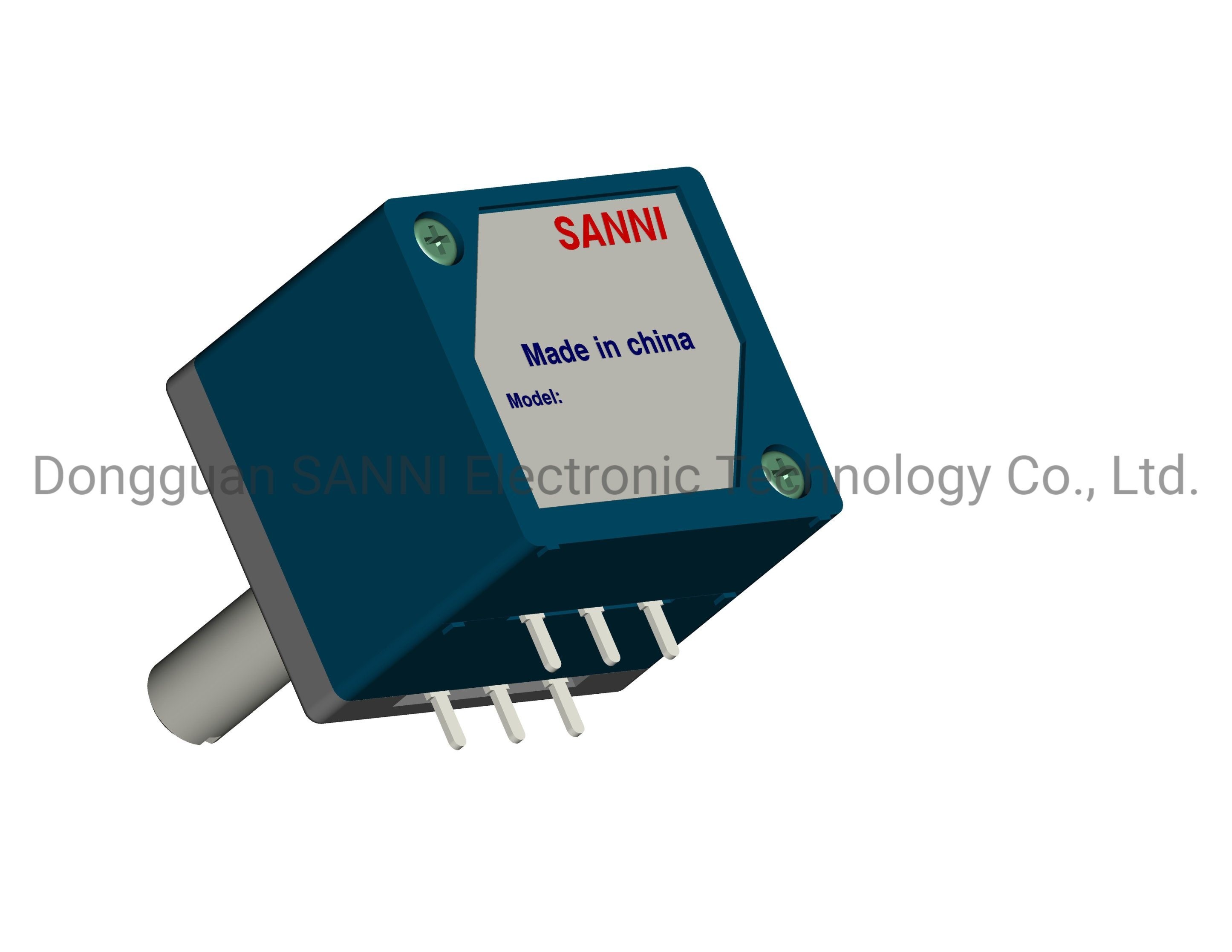

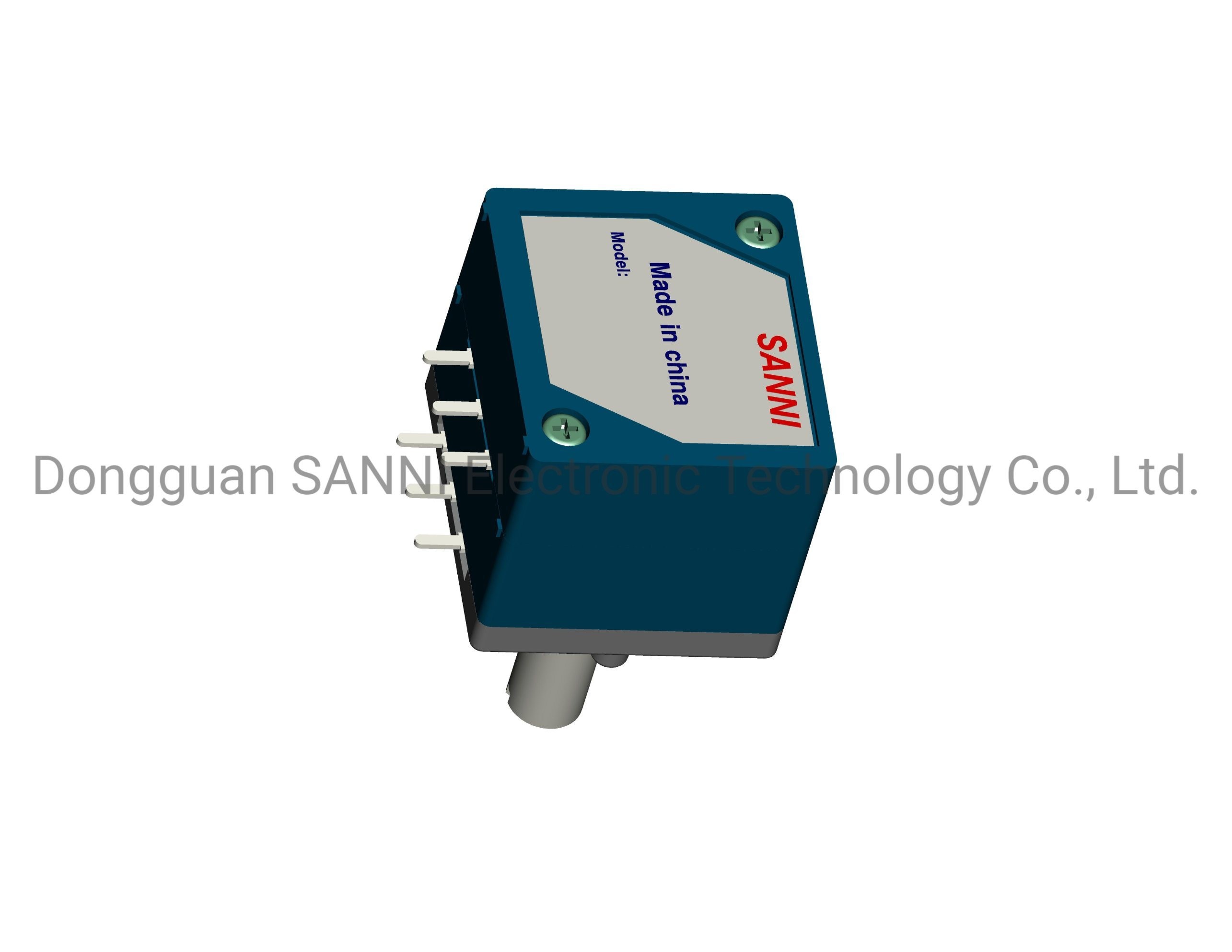

RV27 Metal Shaft Sealed Potentiometer Rotary For Audio Product House Hold Appliances
