Home ProductsRotary PotentiometerRV16801NS Rotary Potentiometer Round Shape Vertical Mounting With Rotary Switch

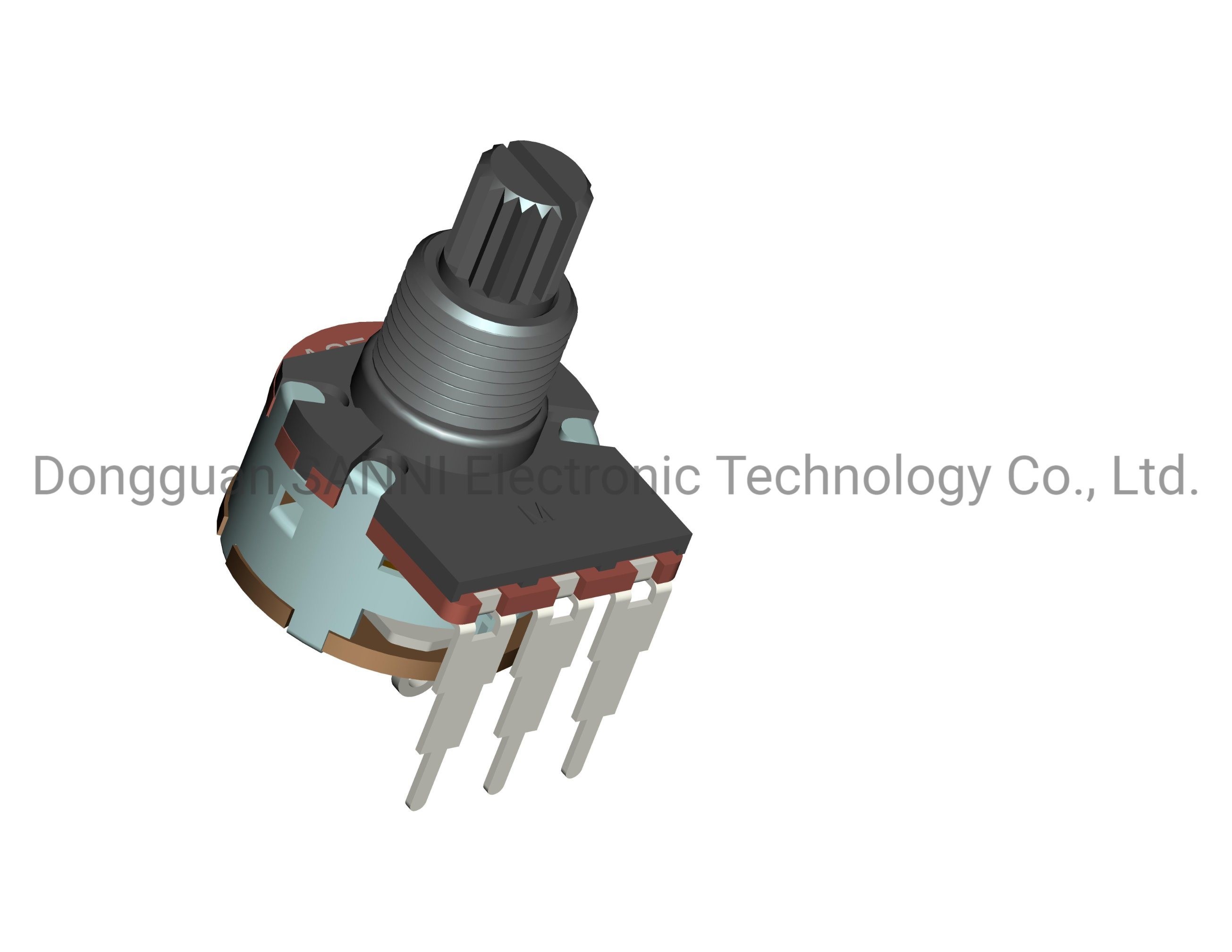

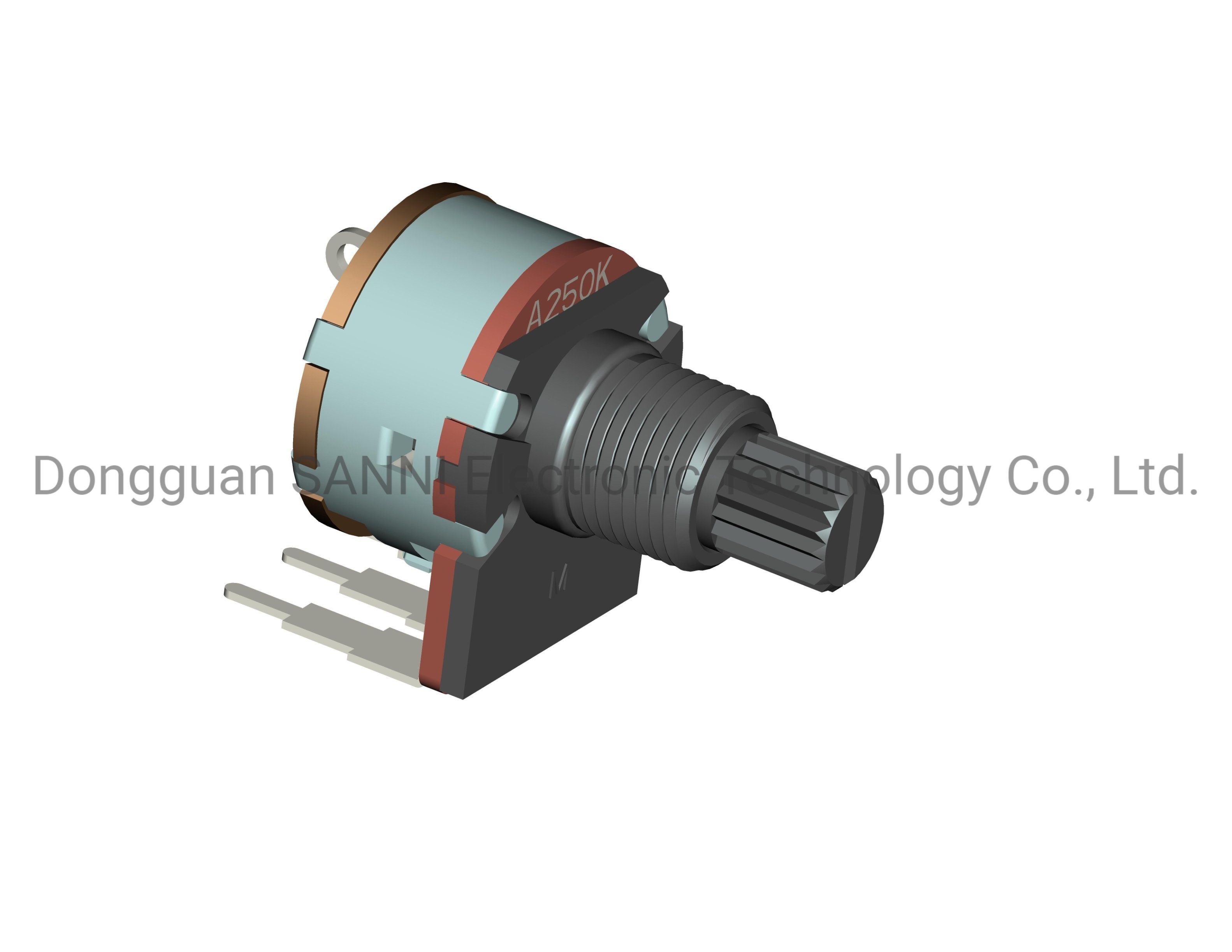

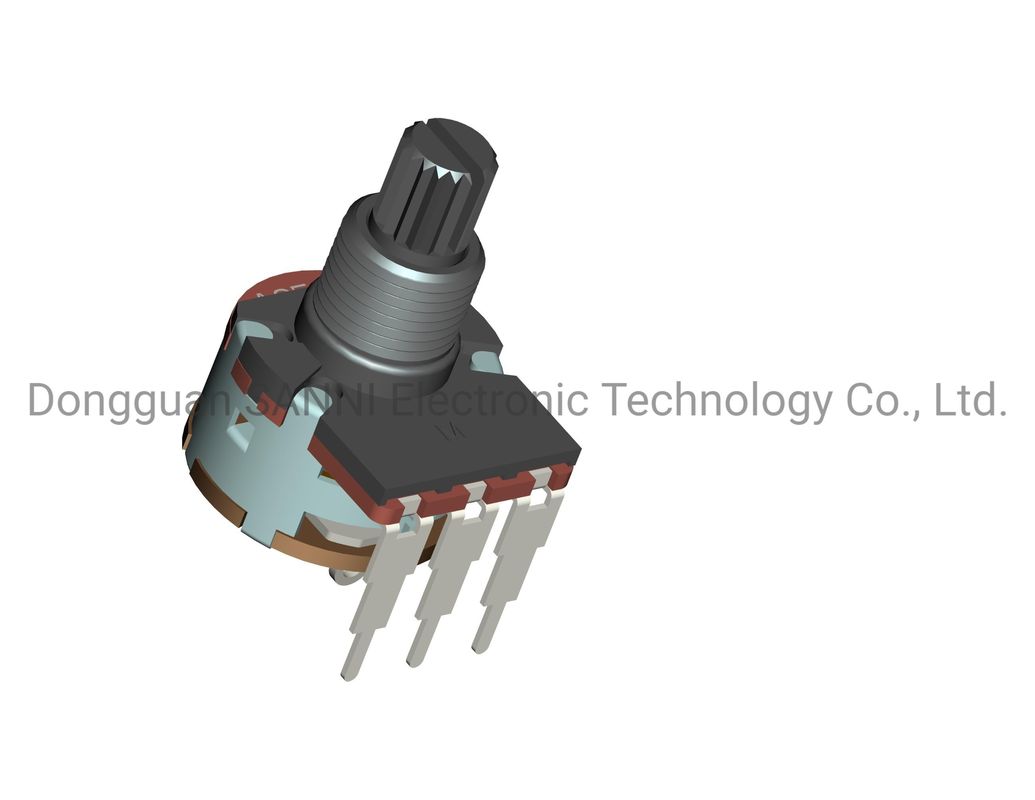

RV16801NS Rotary Potentiometer Round Shape Vertical Mounting With Rotary Switch

RV16801NS Rotary Potentiometer Round Shape Vertical Mounting With Rotary Switch
RV16801NS Rotary Potentiometer Round Shape Vertical Mounting With Rotary Switch
RV16801NS Rotary Potentiometer Round Shape Vertical Mounting With Rotary Switch RV16801NS Rotary Potentiometer Round Shape Vertical Mounting With Rotary Switch
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV16801NS
Minimum Order Quantity: 2000PCS
Price: USD0.25~0.45 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV16801NS Shape: Round
Mounting Direction: Vertical Switch: SPST
Specification: 16mm Installation: PCB DIP Mounting
Customization: Available | Customized Request
Highlight:

Rotary Potentiometer Round

,

Rotary Potentiometer Vertical

,

Rotary Switch Round Potentiometer

RV16801NS Metal Shaft Rotary Potentiometer with Rotary Switch

Application of Rotary Potentiometer



Rotary Potentiometer is mainly suitable for communication products, walkie-talkie, multimedia audio, automobile power amplifier and other electronic equipment, but also can use household appliances, medical equipment, its main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.



Product Specification



1.Electrical Characteristics
Total resistance 500Ω-2MΩ
Total resistance tolerance 50Ω~10KΩ:±30%/10KΩ~500KΩ:±20%/500KΩ~2MΩ:±30%
Residual resistance R≤10KΩ: 10ΩMax./10KΩ<R>500KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power Linear taper:0.05W, Audio Taper 0.025W
Insulation resistance 100MΩ min. 250V DC
Voltage proof 250V AC for 1 minute
Maximum operation voltage 50V AC/10V DC
2.Mechanical Characteristics
Rotation stopper strength Min:6.0Kgf
Total rotation angle 300o±5o
Totational torque 20-200gf.cm
Key push-pull strength Min:8Kgf
Vibration 10 to 55 to 10Hz/min.the amplitude is 1.5mm for all the frequencies in the 3 direction of X.Y an Z and for 2 hours respectively.
Terminal Strength 5N for 1 minute
3.Switch Characteristics
Switch Type SPST
Rated Power 1A 16V DC
Switch Torque 500gf.cm Max
Switch Angle 40o Max
Operating Life without load 15000 cycles 100mΩ Max
Operating life with load:as rating 15000 cycles 200mΩ Max
Initial contact resistance 100mΩ Max
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
4.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
5.Welding heat reference
Reference for hand soldering 260oC-280oC±10oC/3+1S
RV16801NS Insulated Shaft Potentiometer with Rotary SwitchRV16801NS Insulated Shaft Potentiometer with Rotary SwitchRV16801NS Insulated Shaft Potentiometer with Rotary SwitchRV16801NS Insulated Shaft Potentiometer with Rotary SwitchRV16801NS Insulated Shaft Potentiometer with Rotary SwitchRV16801NS Insulated Shaft Potentiometer with Rotary Switch
