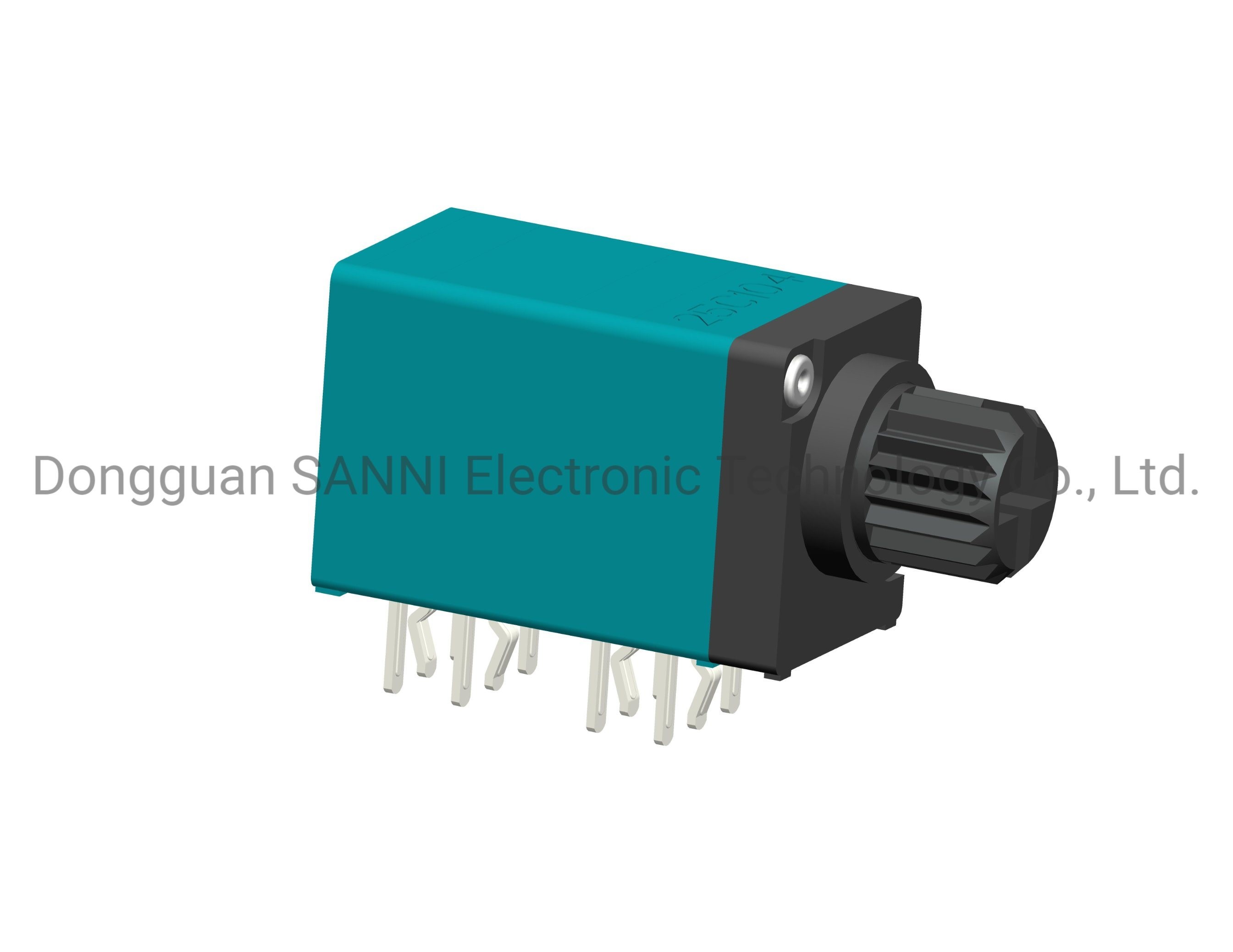

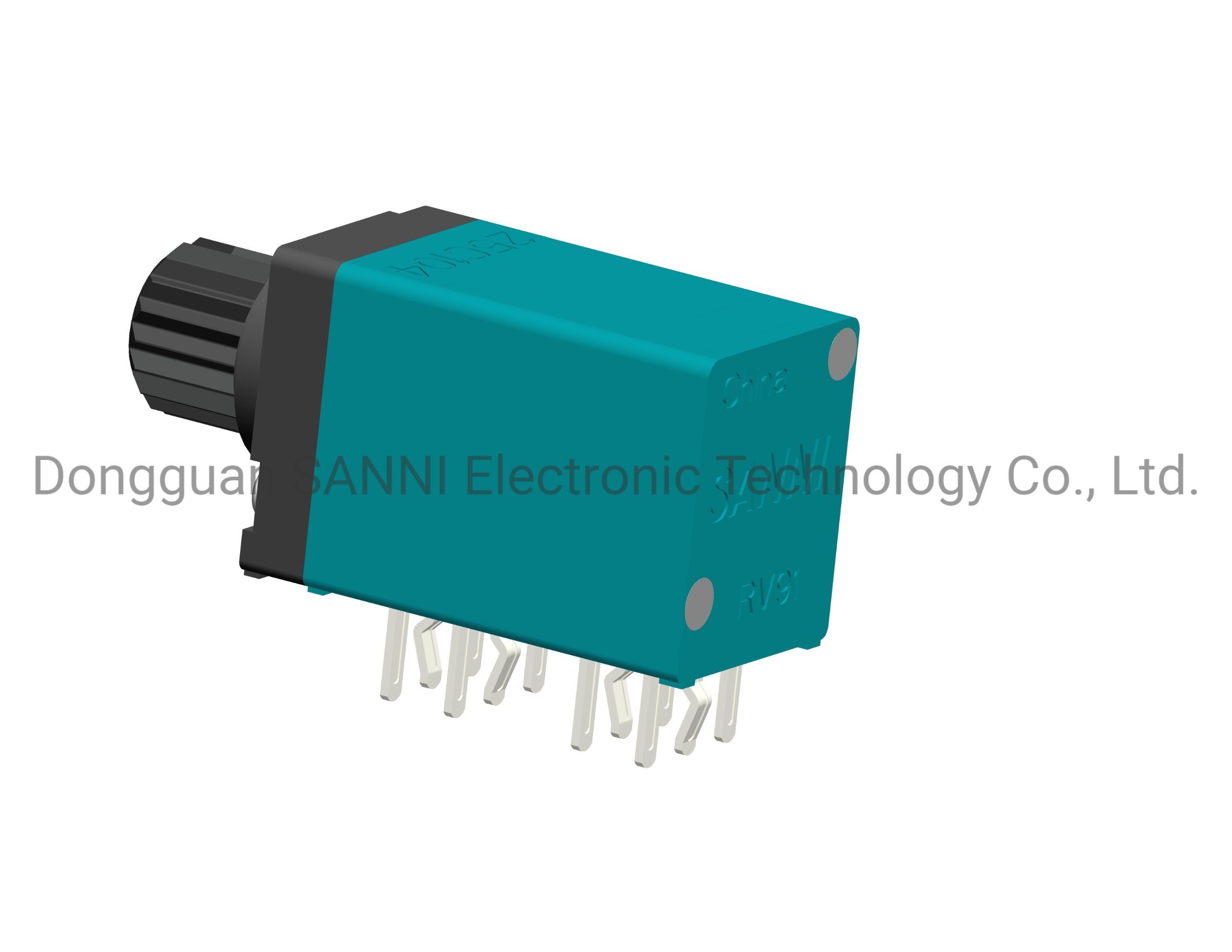

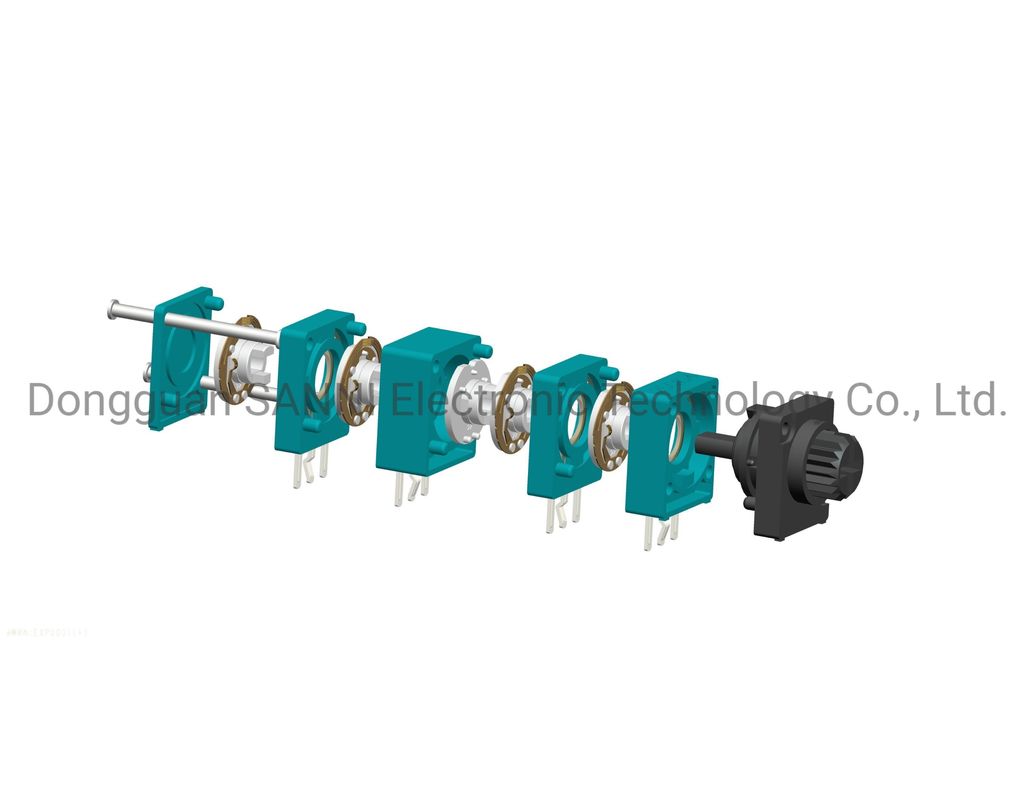

RV97P0B0 Rotary Potentiometer Quad Unit Insulated Shaft Sealed

RV97P0B0 Rotary Potentiometer Quad Unit Insulated Shaft Sealed
RV97P0B0 Rotary Potentiometer Quad Unit Insulated Shaft Sealed
RV97P0B0 Rotary Potentiometer Quad Unit Insulated Shaft Sealed RV97P0B0 Rotary Potentiometer Quad Unit Insulated Shaft Sealed RV97P0B0 Rotary Potentiometer Quad Unit Insulated Shaft Sealed
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV97P0B0
Minimum Order Quantity: 2000PCS
Price: USD0.5- 0.7 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV97P0B0 Shape: Square
Resistance Change Scale: Log Or Linear Mounting Direction: Horizontal
Specification: 9mm Installation: PCB DIP Mounting
Terminal Material: Brass With Silver Plating Customization: Available | Customized Request
Highlight:

Rotary Potentiometer Quad Unit

,

Rotary Potentiometer Insulated Shaft

RV97P0B0 Rotary Potentiometer Quad Unit Insulated Shaft Sealed Potentiometer



Features of Rotary Potentiometer



Using plastic sealing structure, can effectively deal with wave welding.

Good sealing performance

Can be with positioning.

Push-pull switch or rotating switch can be chosen.

Shaft length and shape can be adjusted.

A variety of mounting methods for choice.



Application of Rotary Potentiometer



Rotary Potentiometer is mainly suitable for communication products, walkie-talkie, multimedia audio, automobile power amplifier and other electronic equipment, but also can use household appliances, medical equipment, its main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.



Specification of Rotary Potentiometer



1.Electrical Characteristics
Total resistance 100Ω-3MΩ
Total resistance tolerance 50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance R≤10KΩ: 10ΩMax./10KΩ<R>100KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power 0.05W
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
Maximum operation voltage 50V AC/10V DC
Gang error applicable for Dual unit parts for audio volume control purposes -40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.)
2.Mechanical Characteristics
Rotation stopper strength Min:4Kgf
Total rotation angle 300o±5o
Totational torque 10-150gf.cm CC: click torque: 60-400gf.cm
Key push-pull strength Min:8Kgf
Key Wobble Max: 0.6*L/20mm P-P
Terminal Strength 5N for 1 minute
3.Environmental Performance
Cold -40oC±2oC for 96H
Dry heat 85oC±2oC for 96H
Damp heat -40oC±2oC ,90 to 95%RH for 96H
4.Welding heat reference
Hand Soldering 350oC±10oC/3+1S
Dip Soldering 260oC±5oC/10±1S
RV97P0B0 9mm Four-Unit Shaft Sealed PotentiometerRV97P0B0 9mm Four-Unit Shaft Sealed PotentiometerRV97P0B0 9mm Four-Unit Shaft Sealed PotentiometerRV97P0B0 9mm Four-Unit Shaft Sealed PotentiometerRV97P0B0 9mm Four-Unit Shaft Sealed PotentiometerRV97P0B0 9mm Four-Unit Shaft Sealed Potentiometer
