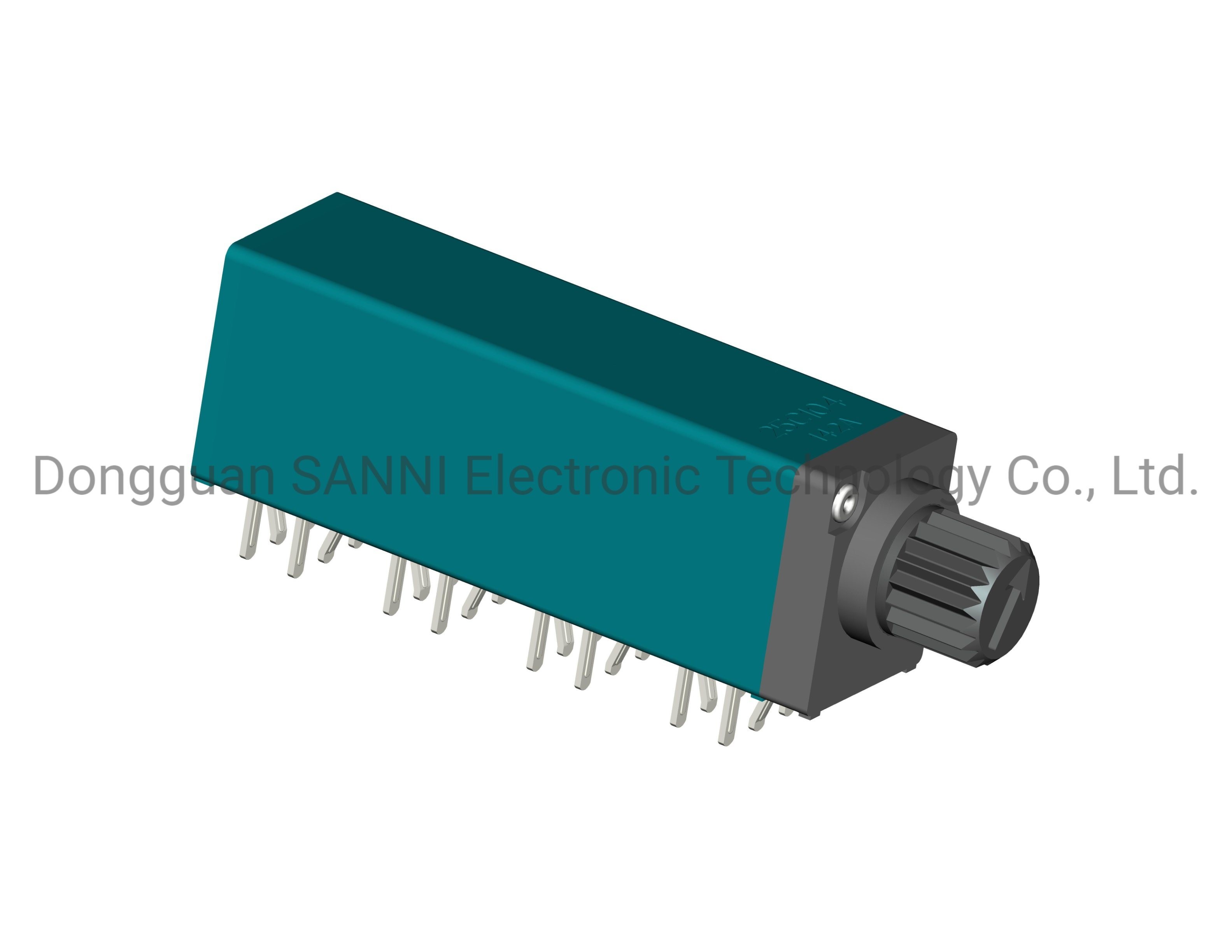

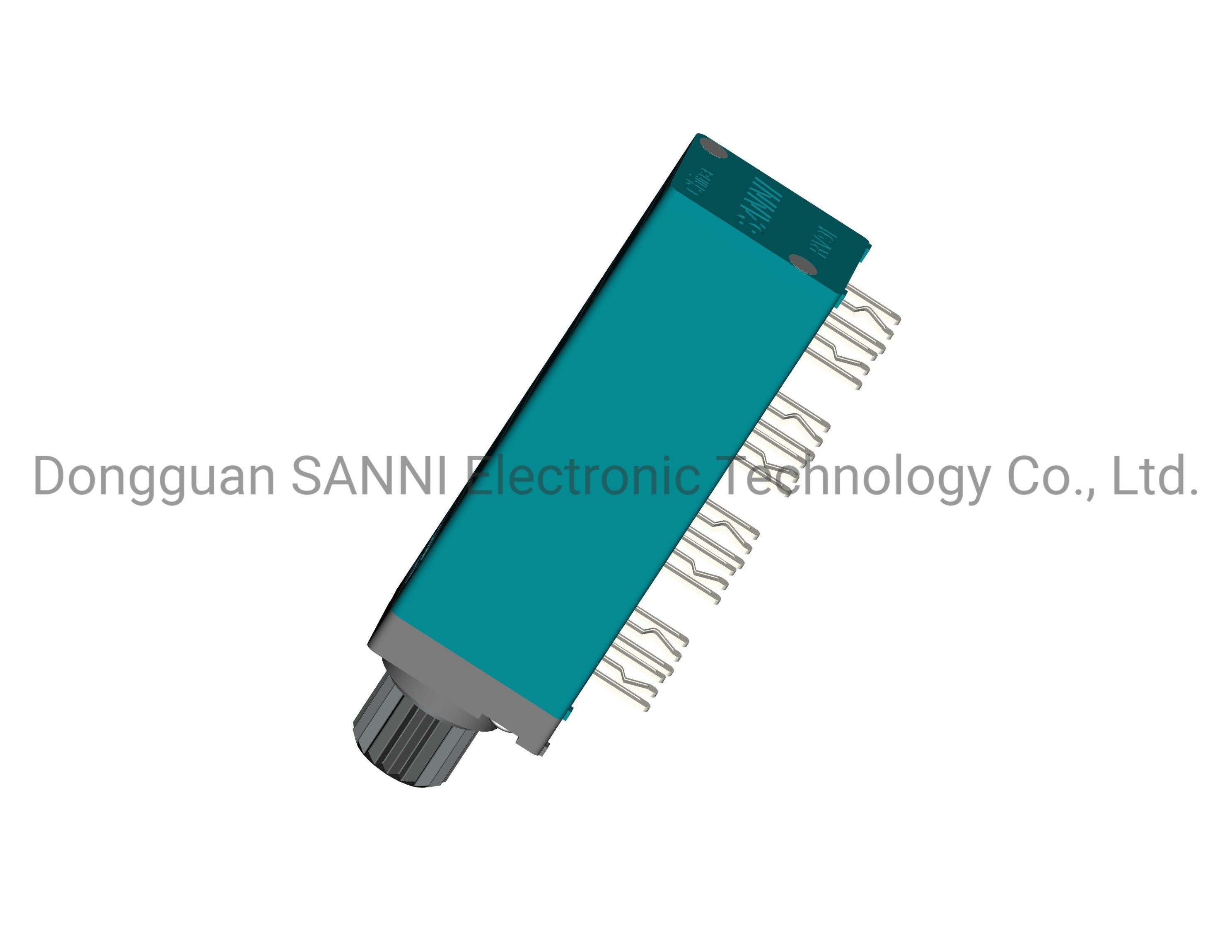

Eight Unit Rotary Horizontal Potentiometer Shaft Sealed RV97P0F0

Eight Unit Rotary Horizontal Potentiometer Shaft Sealed RV97P0F0
Eight Unit Rotary Horizontal Potentiometer Shaft Sealed RV97P0F0
Eight Unit Rotary Horizontal Potentiometer Shaft Sealed RV97P0F0 Eight Unit Rotary Horizontal Potentiometer Shaft Sealed RV97P0F0
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV97P0F0
Minimum Order Quantity: 2000PCS
Price: USD0.8~1.2 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Shape: Square Resistance Taper: Log Or Linear
Mount Direction: Horizontal Specification: 9mm
Installation: DIP PCB Mount Base Material: PC Or ABS
Customization: Available | Customized Request
Highlight:

Eight Unit Horizontal Potentiometer

,

Horizontal Potentiometer Rotary

RV97P0F0 Rotary Potentiometer Eight Unit Shaft Sealed Potentiometer

Product Description

  • 9mm Insulated shaft sealed potentiometer
  • Width: 9.5mm
  • Use:Used for car amplifier, audio amplifier, musical instrument amplifier, guitar effector, mixer, instrument and equipment

Product Features

  •    Rohs compliant
  •    Seal type
  •    Small volume
  •    Structural diversification
  •    High Quality

Product Specification


1.Electrical Characteristics
Total resistance100Ω-3MΩ
Total resistance tolerance50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistanceR≤10KΩ: 10ΩMax./10KΩ<R>100KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power0.05W
Insulation resistance100MΩ min. 250V DC
Voltage proof300V AC for 1 minute
Maximum operation voltage50V AC/10V DC
Gang error applicable for Dual unit parts for audio volume control purposes-40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.)
2.Mechanical Characteristics
Rotation stopper strengthMin:4Kgf
Total rotation angle300o±5o
Totational torque10-150gf.cm CC: click torque: 60-400gf.cm
Key push-pull strengthMin:8Kgf
Key WobbleMax: 0.6*L/20mm P-P
Terminal Strength5N for 1 minute
3.Environmental Performance
Cold-40oC±2oC for 96H
Dry heat85oC±2oC for 96H
Damp heat-40oC±2oC ,90 to 95%RH for 96H
4.Welding heat reference
Hand Soldering350oC±10oC/3+1S
Dip Soldering260oC±5oC/10±1S


Our Advantage


1. More than 10 years of experience in research and development production design.

2. 4 automation production lines, more than 100 experienced workers for higher precision products.

3. 10+ dedicated and experienced engineers and designers in R&D department.

4. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.

5. Professional Testing instruments and team to ensure product quality.


RV97P0F0 Eight Unit Shaft Sealed PotentiometerRV97P0F0 Eight Unit Shaft Sealed PotentiometerRV97P0F0 Eight Unit Shaft Sealed PotentiometerRV97P0F0 Eight Unit Shaft Sealed PotentiometerRV97P0F0 Eight Unit Shaft Sealed PotentiometerRV97P0F0 Eight Unit Shaft Sealed Potentiometer
