Home ProductsRotary PotentiometerRV97P1A0 Square Rotary Potentiometer Three Units Insulated Shaft Sealed

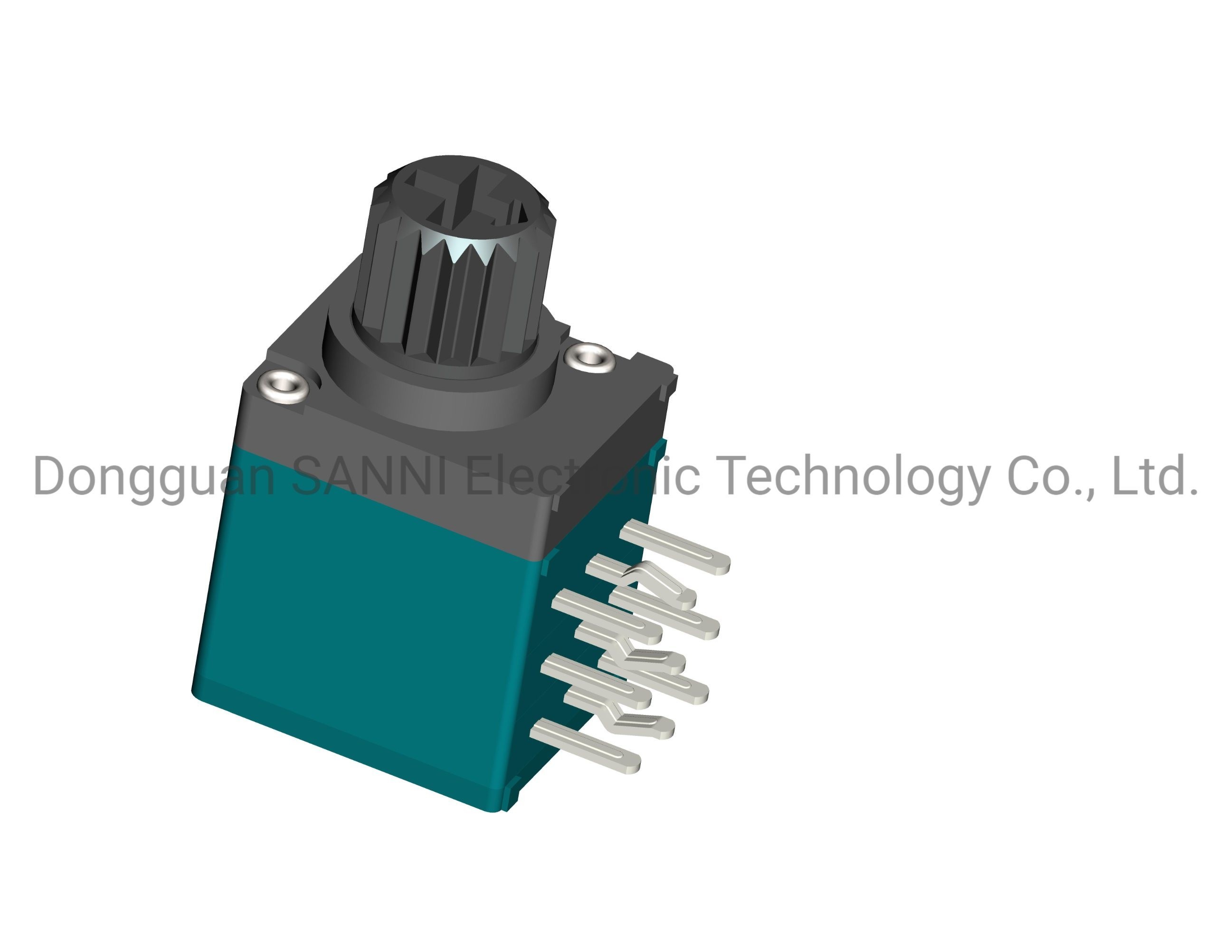

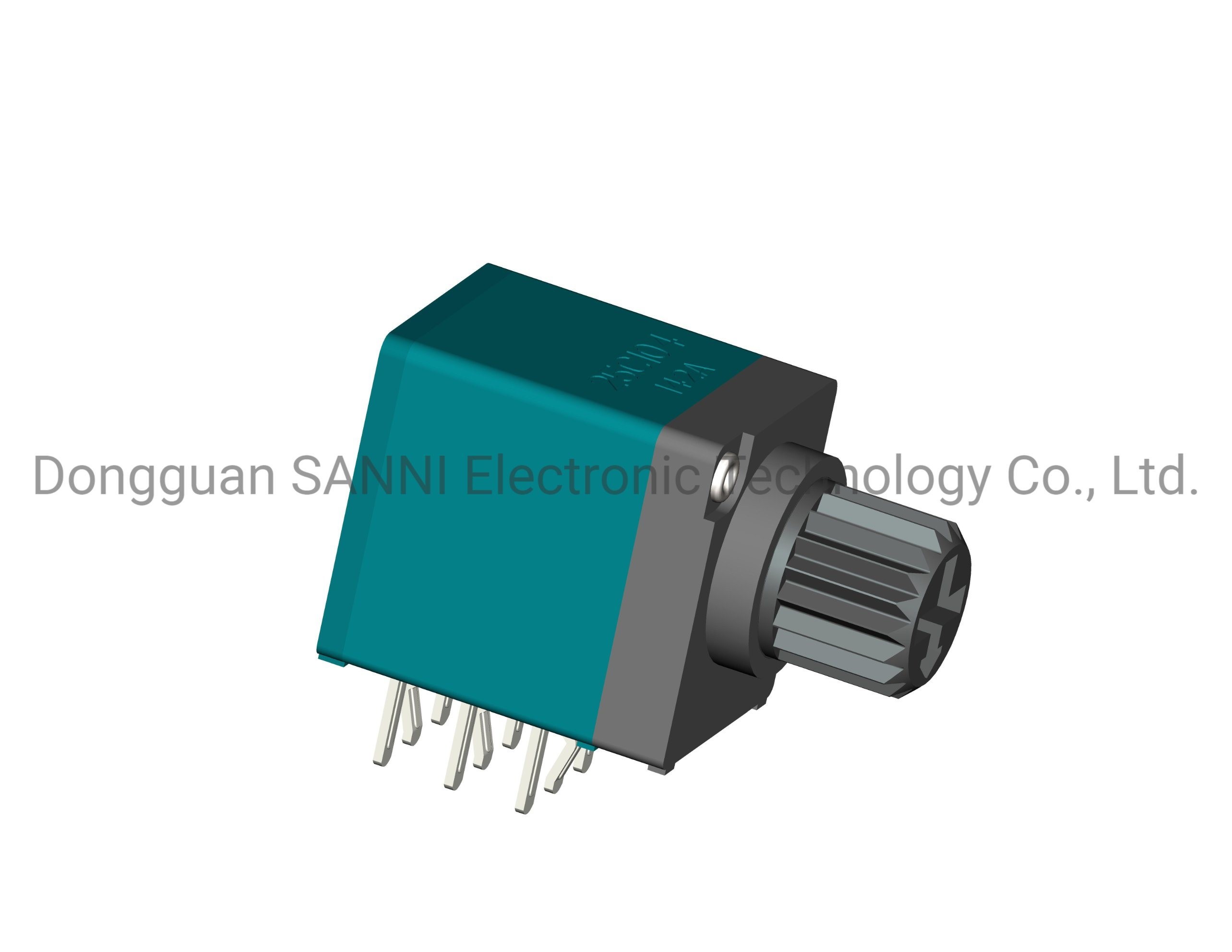

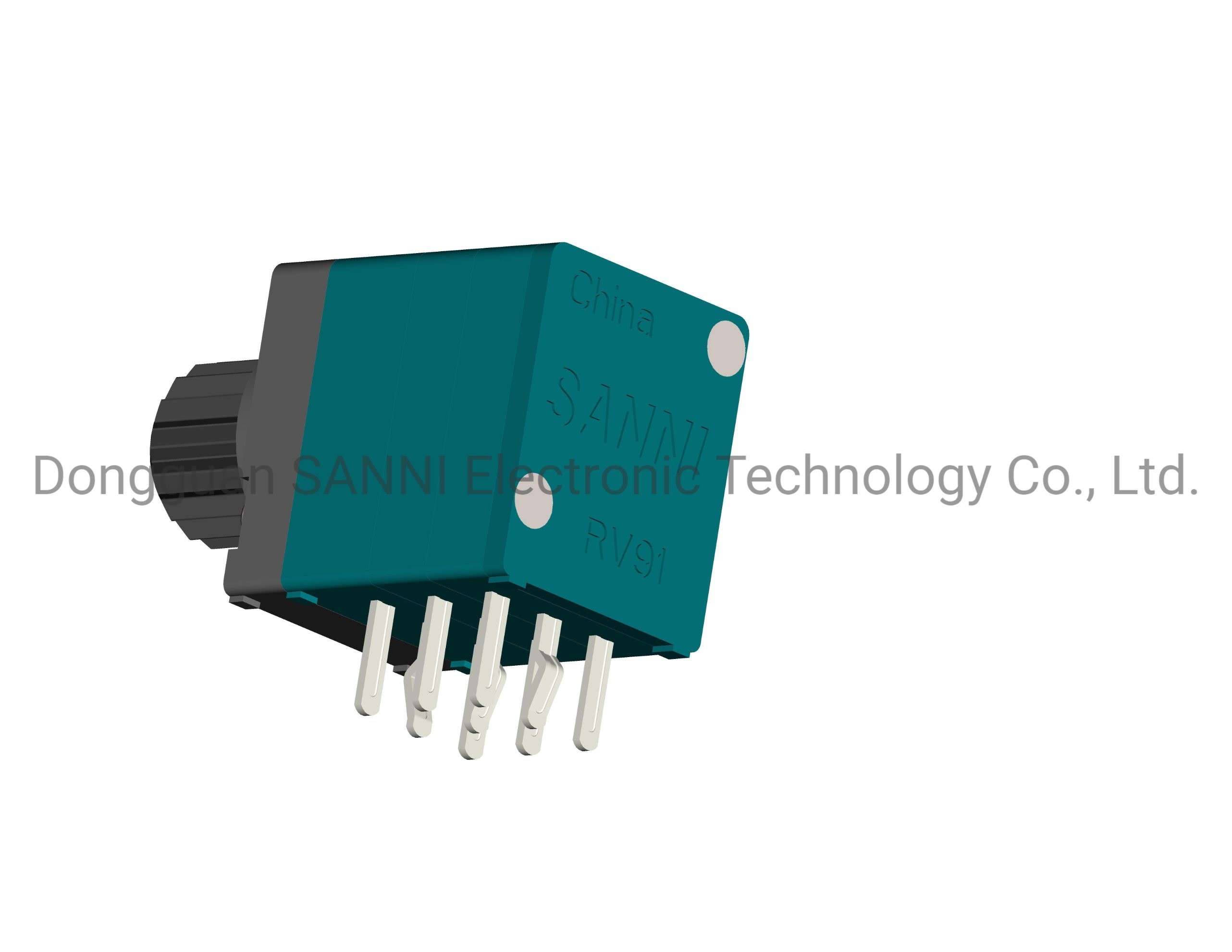

RV97P1A0 Square Rotary Potentiometer Three Units Insulated Shaft Sealed

RV97P1A0 Square Rotary Potentiometer Three Units Insulated Shaft Sealed
RV97P1A0 Square Rotary Potentiometer Three Units Insulated Shaft Sealed
RV97P1A0 Square Rotary Potentiometer Three Units Insulated Shaft Sealed RV97P1A0 Square Rotary Potentiometer Three Units Insulated Shaft Sealed RV97P1A0 Square Rotary Potentiometer Three Units Insulated Shaft Sealed
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV97P1A0
Minimum Order Quantity: 2000PCS
Price: USD0.3~0.5 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV97P1A0 Shape: Square
Base Material: ABS/PC Resistor Material: Carbon Film Resistor
Terminal Material: Brass With Silver Plating Installation: PCB DIP Mounting
Highlight:

Square Rotary Potentiometer

,

Rotary Potentiometer Three Units

RV97P1A0 Rotary Potentiometer Three Units Insulated Shaft Sealed Potentiometer



Features of Rotary Potentiometer



Using plastic sealing structure, can effectively deal with wave welding.

Good sealing performance

Can be with positioning.

Push-pull switch or rotating switch can be chosen.

Shaft length and shape can be adjusted.

A variety of mounting methods for choice.



Application of Rotary Potentiometer

Rotary Potentiometer is mainly suitable for communication products, walkie-talkie, multimedia audio, automobile power amplifier and other electronic equipment, but also can use household appliances, medical equipment, its main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.



Product Specification of Rotary Potentiometer





1.Mechanical Characteristics
Total rotation angle 300o±5o
Rotation stopper strength Min:4Kgf
Totational torque 10-150gf.cm CC: click torque: 60-400gf.cm
Key push-pull strength Min:8Kgf
Key Wobble Max: 0.6*L/20mm P-P
Terminal Strength 5N for 1 minute
2.Electrical Characteristics
Total resistance 100Ω-3MΩ
Total resistance tolerance 50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Rated Power 0.05W
Residual resistance R≤10KΩ: 10ΩMax./10KΩ<R>100KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Maximum operation voltage 50V AC/10V DC
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
Gang error applicable for Dual unit parts for audio volume control purposes -40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.)
3.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
4.Welding heat reference
Hand Soldering 350oC±10oC/3+1S
Dip Soldering 260oC±5oC/10±1S



Our Services

1. Offer 1 year warranty

2. OEM/ODM service to meet all your needs

3. Strong R&D team for technical support

4. Offer free sample for test


RV97P1A0 Three Unit Shaft Sealed Potentiometer

RV97P1A0 Three Unit Shaft Sealed PotentiometerRV97P1A0 Three Unit Shaft Sealed PotentiometerRV97P1A0 Three Unit Shaft Sealed PotentiometerRV97P1A0 Three Unit Shaft Sealed PotentiometerRV97P1A0 Three Unit Shaft Sealed Potentiometer
