Home ProductsRotary PotentiometerSix Unit Rotary Type Potentiometer Insulated Shaft Sealed RV97P0D0

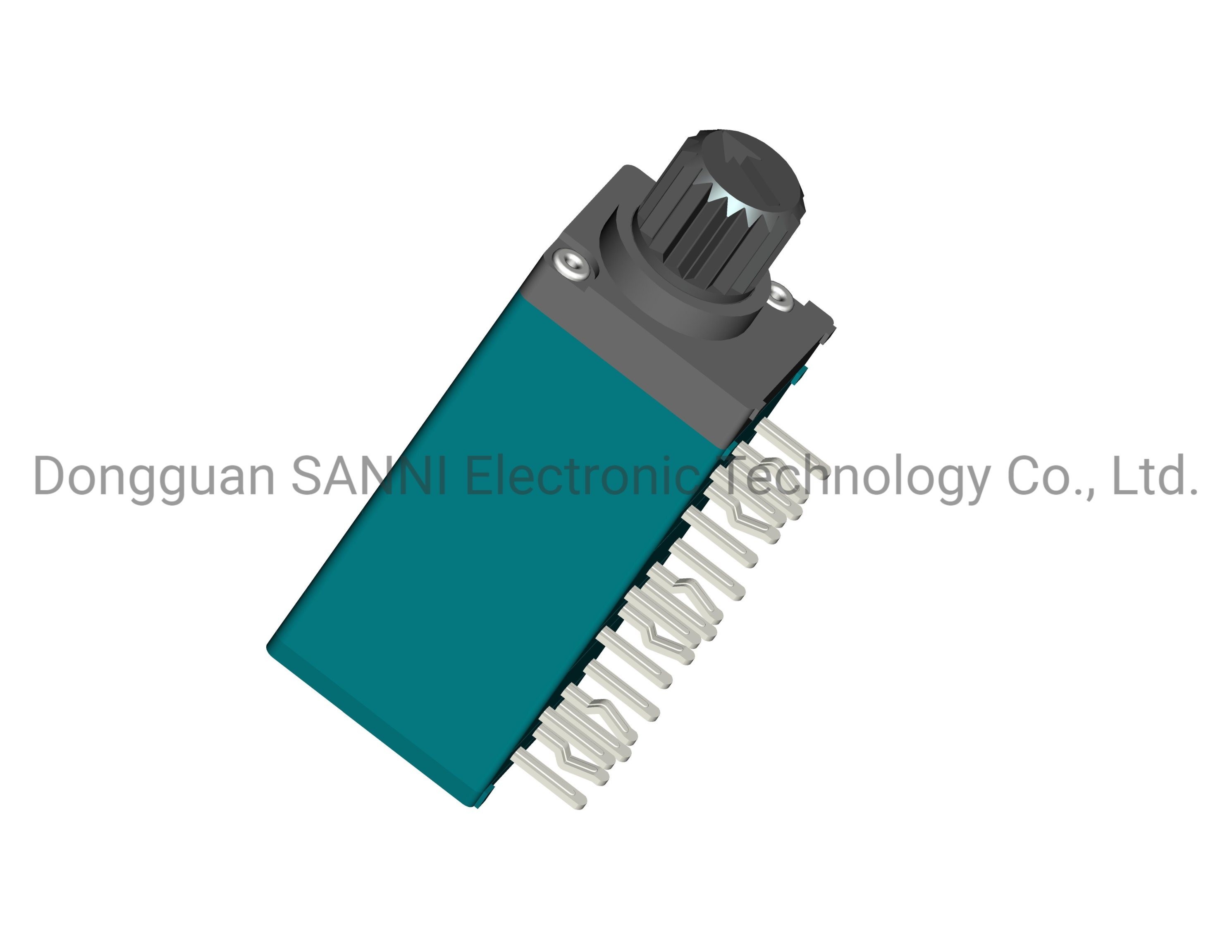

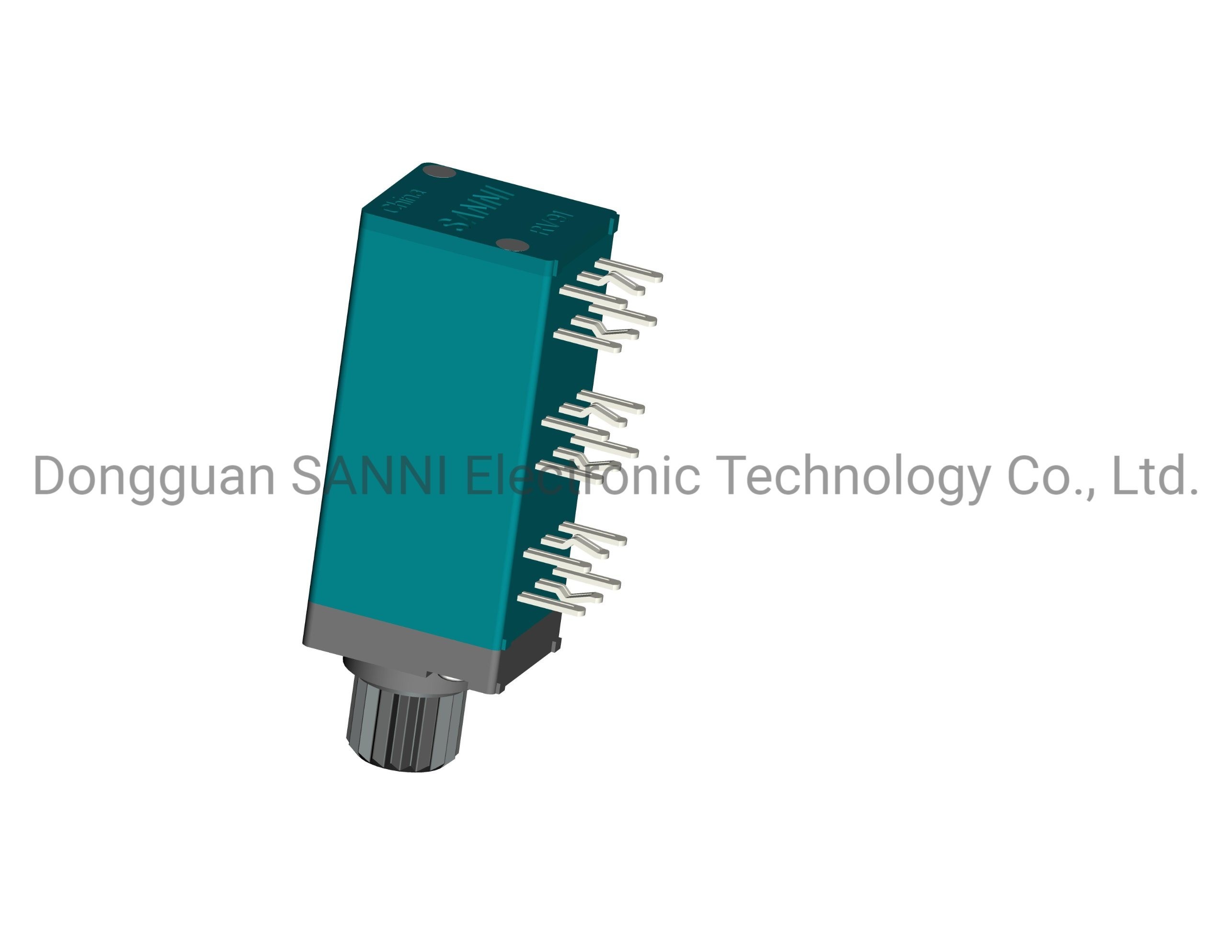

Six Unit Rotary Type Potentiometer Insulated Shaft Sealed RV97P0D0

Six Unit Rotary Type Potentiometer Insulated Shaft Sealed RV97P0D0
Six Unit Rotary Type Potentiometer Insulated Shaft Sealed RV97P0D0
Six Unit Rotary Type Potentiometer Insulated Shaft Sealed RV97P0D0 Six Unit Rotary Type Potentiometer Insulated Shaft Sealed RV97P0D0 Six Unit Rotary Type Potentiometer Insulated Shaft Sealed RV97P0D0
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV97P0D0
Minimum Order Quantity: 2000PCS
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV97P0D0 Shape: Square
Brand: Sanni Mounting Direction: Horizontal
Specification: 9mm Installation: PCB DIP Mounting
Samples: Free Sample With Freight Collect Shipping Customization: Available | Customized Request
Highlight:

Six Unit Rotary Type Potentiometer

,

Sealed Rotary Type Potentiometer

Rotary Potentiometer RV97P0D0 Six Unit Insulated Shaft Sealed Potentiometer

Features of Rotary Potentiometer



Good sealing performance -Using plastic sealing structure, can effectively deal with wave welding.

Good rotation feeling

Push-pull switch or rotating switch can be chosen.

Shaft length and shape can be adjusted.

A variety of mounting methods for choice.



Application of Rotary Potentiometer



Mainly suitable for communication products,walkie-talkie,  automobile power amplifier,multimedia audio and other electronic equipment, but also can use for medical equipment, household appliances, it's main functions are: light intensity adjustment, volume adjustment,  speed adjustment,menu selection, temperature adjustment, etc.



Specification of Rotary Potentiometer



1.Electrical Characteristics
Total resistance 100Ω-3MΩ
Total resistance tolerance 50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance R≤10KΩ: 10ΩMax./10KΩ<R>100KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power 0.05W
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
Maximum operation voltage 50V AC/10V DC
Gang error applicable for Dual unit parts for audio volume control purposes -40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.)
2.Mechanical Characteristics
Rotation stopper strength Min:4Kgf
Totational torque 10-150gf.cm CC: click torque: 60-400gf.cm
Total rotation angle 300o±5o
Key push-pull strength Min:8Kgf
Terminal Strength 5N for 1 minute
3.Environmental Performance
Cold -40oC±2oC for 96H
Dry heat 85oC±2oC for 96H
Damp heat -40oC±2oC ,90 to 95%RH for 96H
4.Welding heat reference
Hand Soldering 350oC±10oC/3+1S
Dip Soldering 260oC±5oC/10±1S



FAQ

• Q: Can I get sample from you?

• A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.

• Q: Do you accept customization?

• A: Yes, customization is acceptable, please contact our sales staffs for consult.

• Q: Can you provide help for technical issues?

• A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.

RV97P0D0 Six Unit Insulated Shaft Sealed Potentiometer

RV97P0D0 Six Unit Insulated Shaft Sealed PotentiometerRV97P0D0 Six Unit Insulated Shaft Sealed PotentiometerRV97P0D0 Six Unit Insulated Shaft Sealed PotentiometerRV97P0D0 Six Unit Insulated Shaft Sealed PotentiometerRV97P0D0 Six Unit Insulated Shaft Sealed Potentiometer
