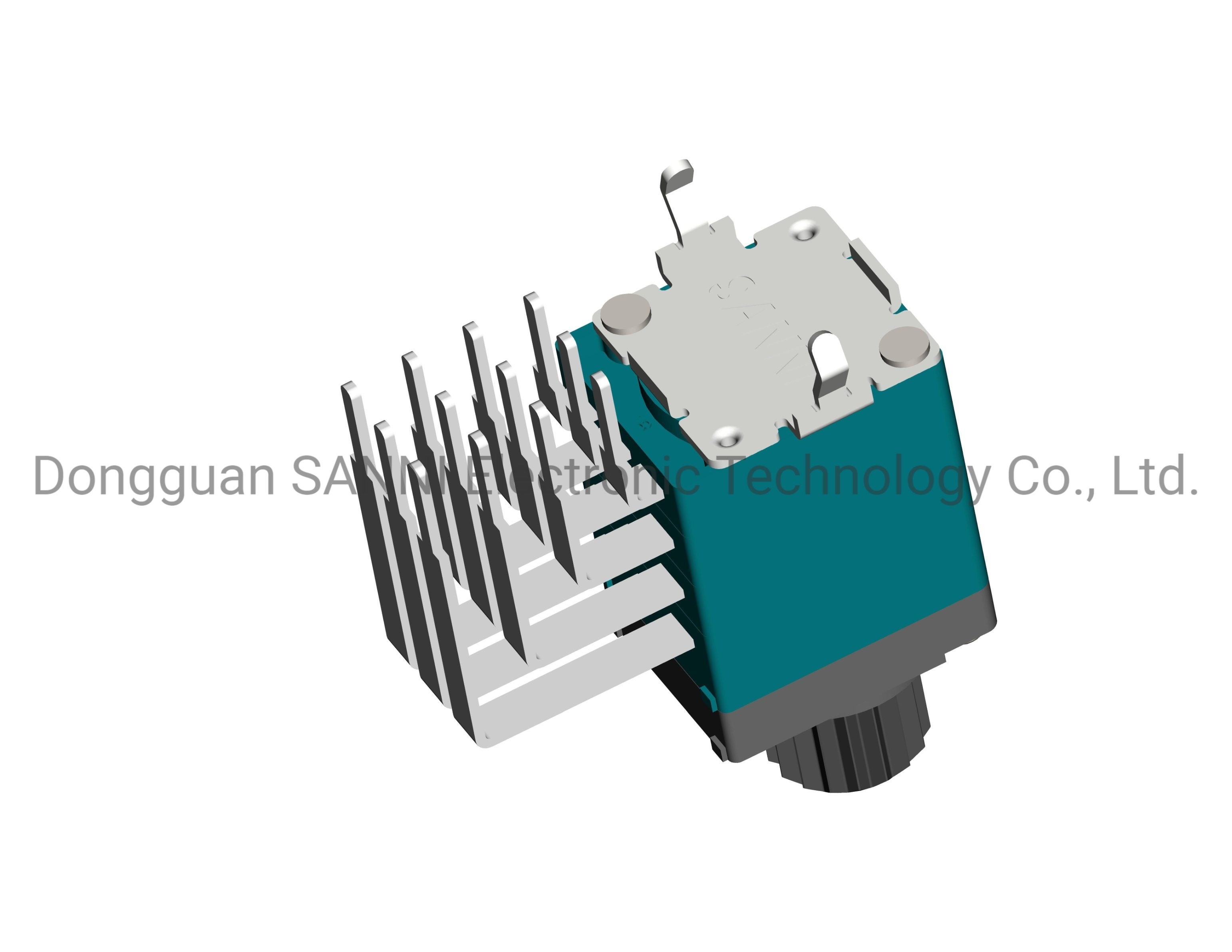

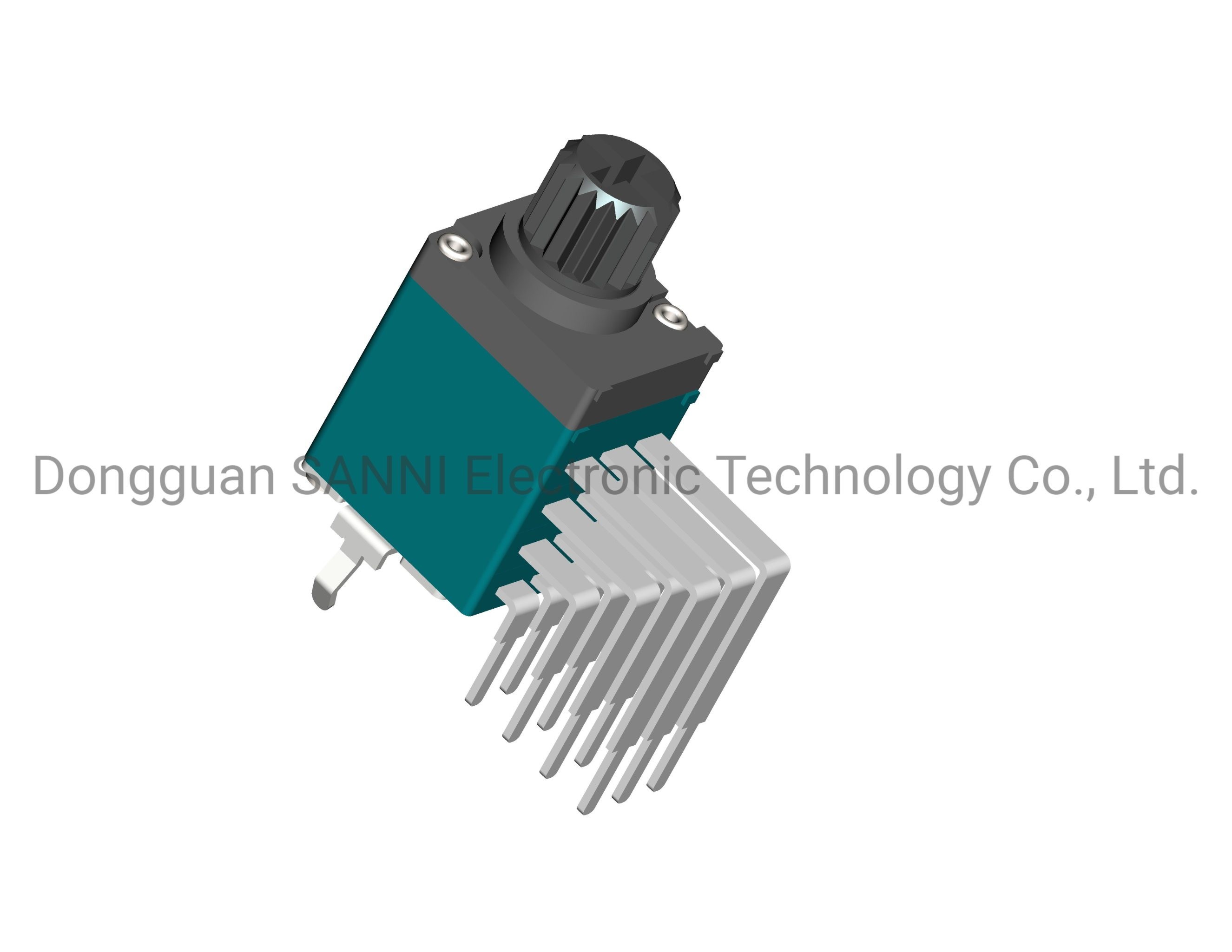

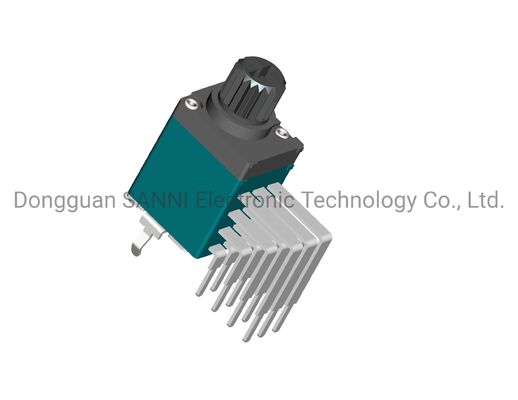

Four Unit Rotary Potentiometer Vertical Type Square Shape RV97P2B0

Four Unit Rotary Potentiometer Vertical Type Square Shape RV97P2B0
Four Unit Rotary Potentiometer Vertical Type Square Shape RV97P2B0
Four Unit Rotary Potentiometer Vertical Type Square Shape RV97P2B0 Four Unit Rotary Potentiometer Vertical Type Square Shape RV97P2B0
Basic Information
Place of Origin: China
Brand Name: SANNI
Minimum Order Quantity: 2000PCS
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV97P2B0 Quantity: Duplex
Shape: Square Resistance Change Scale: Log Or Linear
Application: Audio Brand: Sanni
SMD Direction: Vertical Transport Package: Carton Boxes
Specification: 9mm Trademark: SANNI
Origin: China Supply Ability: 10000PCS Per Month
Resistance: Variable Resistor Function For Resistance: Load Resistor
Installation: SMD Resistor Material: Carbon Film Resistor
Packaging: Throught Hole Type: Rotary Potentiometer
Samples: US$ 15/Piece 1 Piece(Min.Order) | Request Sample Customization: Available | Customized Request
Highlight:

Four Unit Rotary Potentiometer

,

Rotary Potentiometer Vertical Type

,

Rotary square potentiometer

RV97P2B0 Rotary Potentiometer Vertical Type Four Unit Insulated Shaft Sealed



Description of Rotary Potentiometer



The rotating potentiometer is an adjustable electrical resistor, which slides on the resistors by the brush, and obtains the output voltage associated with the input voltage in the circuit. It is mainly used for communication products, walkie-talkie, automobile power amplifier, multimedia audio, smart home, computer peripheral, etc.



Features of Rotary Potentiometer

Using plastic sealing structure, can effectively deal with wave welding.

Good sealing performance

Can be with positioning.

Push-pull switch or rotating switch can be chosen.

Shaft length and shape can be adjusted.

A variety of mounting methods for choice.



Product Specification



1.Mechanical Characteristics
Total rotation angle 300o±5o
Rotation stopper strength Min:4Kgf
Totational torque 10-150gf.cm CC: click torque: 60-400gf.cm
Key push-pull strength Min:8Kgf
Key Wobble Max: 0.6*L/20mm P-P
Terminal Strength 5N for 1 minute
2.Electrical Characteristics
Total resistance 100Ω-3MΩ
Total resistance tolerance 50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Rated Power 0.05W
Residual resistance R≤10KΩ: 10ΩMax./10KΩ<R>100KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Maximum operation voltage 50V AC/10V DC
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
Gang error applicable for Dual unit parts for audio volume control purposes -40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.)
3.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
4.Welding heat reference
Hand Soldering 350oC±10oC/3+1S
Dip Soldering 260oC±5oC/10±1S



Our Advantage



1. More than 10 years of experience in research and development production design.

2. 10+ dedicated and experienced engineers and designers in R&D department.

3. 10 automation production lines, more than 100 experienced workers for higher precision products.

4. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.

5. Professional Testing instruments and team to ensure product quality.

RV97P2B0 Vertical Type Four Unit Insulated Shaft Sealed Rotary PotentiometerRV97P2B0 Vertical Type Four Unit Insulated Shaft Sealed Rotary PotentiometerRV97P2B0 Vertical Type Four Unit Insulated Shaft Sealed Rotary PotentiometerRV97P2B0 Vertical Type Four Unit Insulated Shaft Sealed Rotary PotentiometerRV97P2B0 Vertical Type Four Unit Insulated Shaft Sealed Rotary PotentiometerRV97P2B0 Vertical Type Four Unit Insulated Shaft Sealed Rotary Potentiometer
