Model NO.:	RV90XB2N0FB	Brand:	Sanni
Shaft Material:	Plastic	Shaft Type:	Knurled/D Type/Solid/Customize
Specification:	9mm	Installation:	PCB Insertion
Samples:	Free Sample With Freight Collect Shipping	Customization:	Available \| Customized Request
Highlight:	9mm Potentiometer Vertical , Sealed Potentiometer Vertical , Rotary 9mm Potentiometer

1.Electrical Characteristics
Total resistance	200Ω-2MΩ
Total resistance tolerance	200Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance	20ΩMax.
Rated Power	Linear taper:0.05W, Audio Taper 0.025W
Insulation resistance	100MΩ min. 250V DC
Noise	100mV Max
Voltage proof	100V AC for 1 minute
Maximum operation voltage	50V AC/20V DC
2.Mechanical Characteristics
Rotation stopper strength	Min:3Kgf
Total rotation angle	280^o±10^o
Totational torque	10-100gf.cm
Key push-pull strength	Min:8Kgf 10s Min
Key Wobble	Max: 0.5*L/20mm P-P
Terminal Strength	5N for 1 minute
3.Environmental Performance
Operating temperature range	-10^oC to +70^oC
Storage temperature range	-40^oC to +85^oC
5.Welding heat reference
Manual Soldering	96.5 Sn/3.0 Ag/0.5 Cu Sold Wire or No-Clean Rosin Core Wire 280oC Max. For 3 Seconds
Wave Soldering	96.5 Sn/3.0 Ag/0.5 Cu Sold Wire or No-Clean Flux 260oC Max. For 5 Seconds

	Dongguan SANNI Electronics Technology Co., Ltd.
	SUNNY Technology Park,Chisheng Industrial Zone,Nanwu Village,Houjie Town,Dongguan City.Guangdong Province.China
	86-769-85968666-807
	Sanni@chinasanni.com

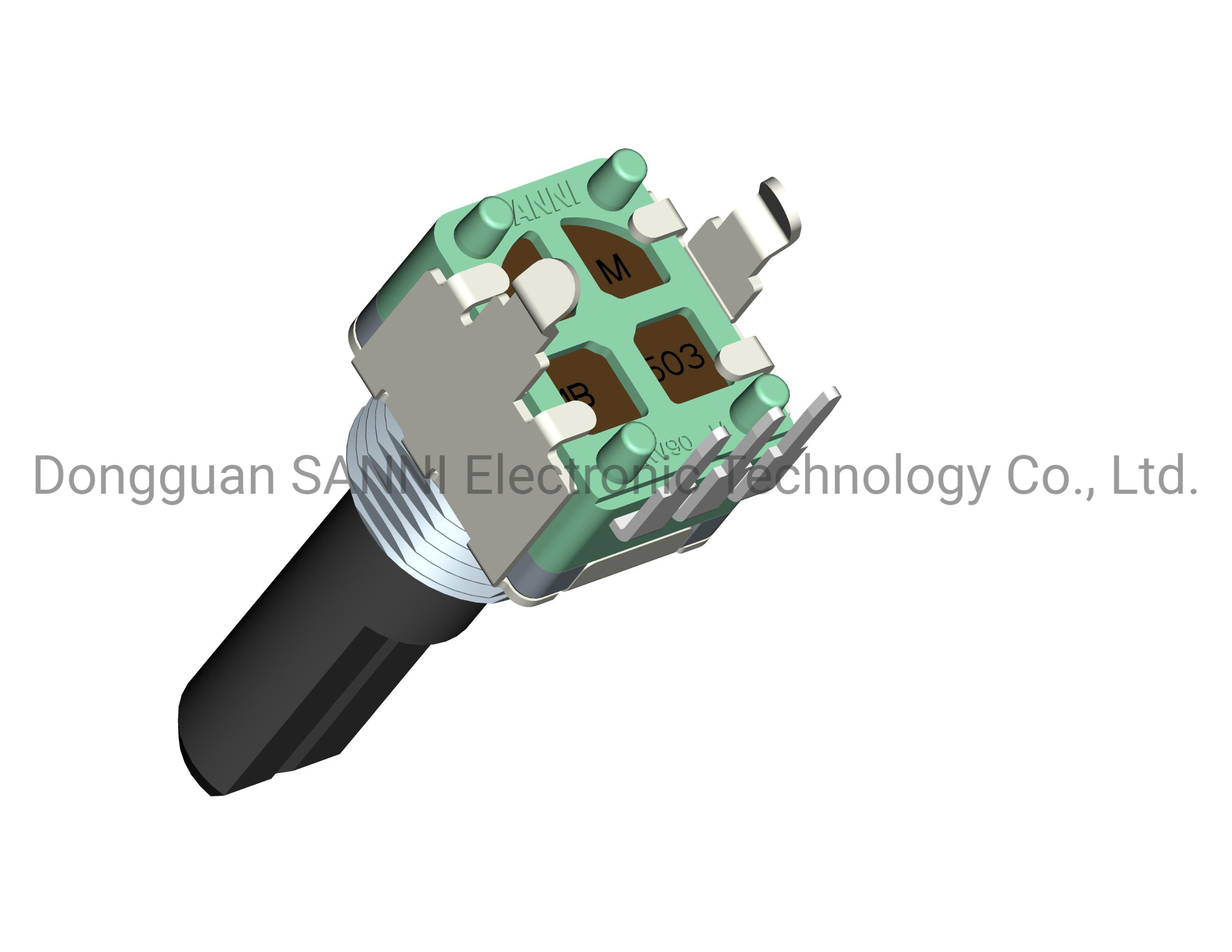

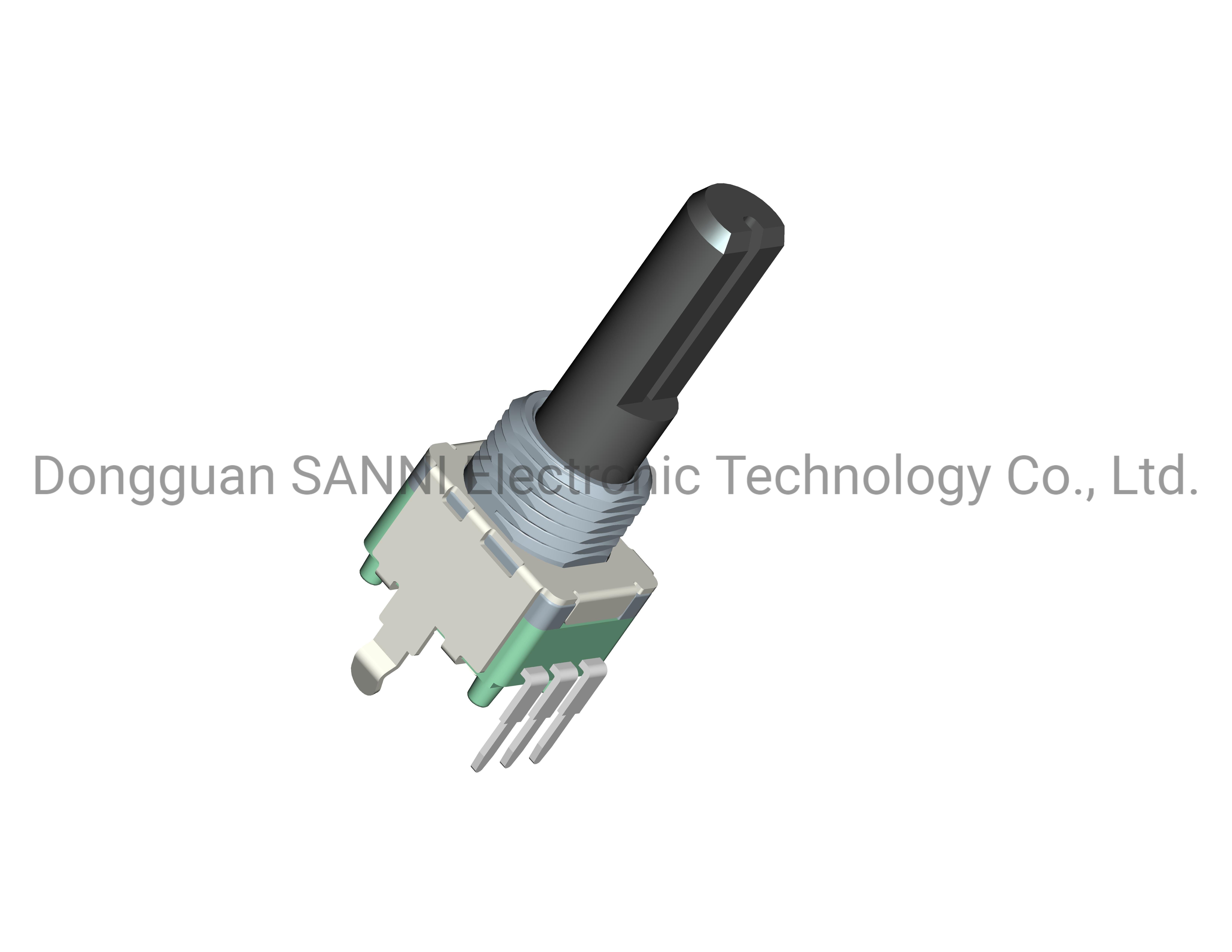

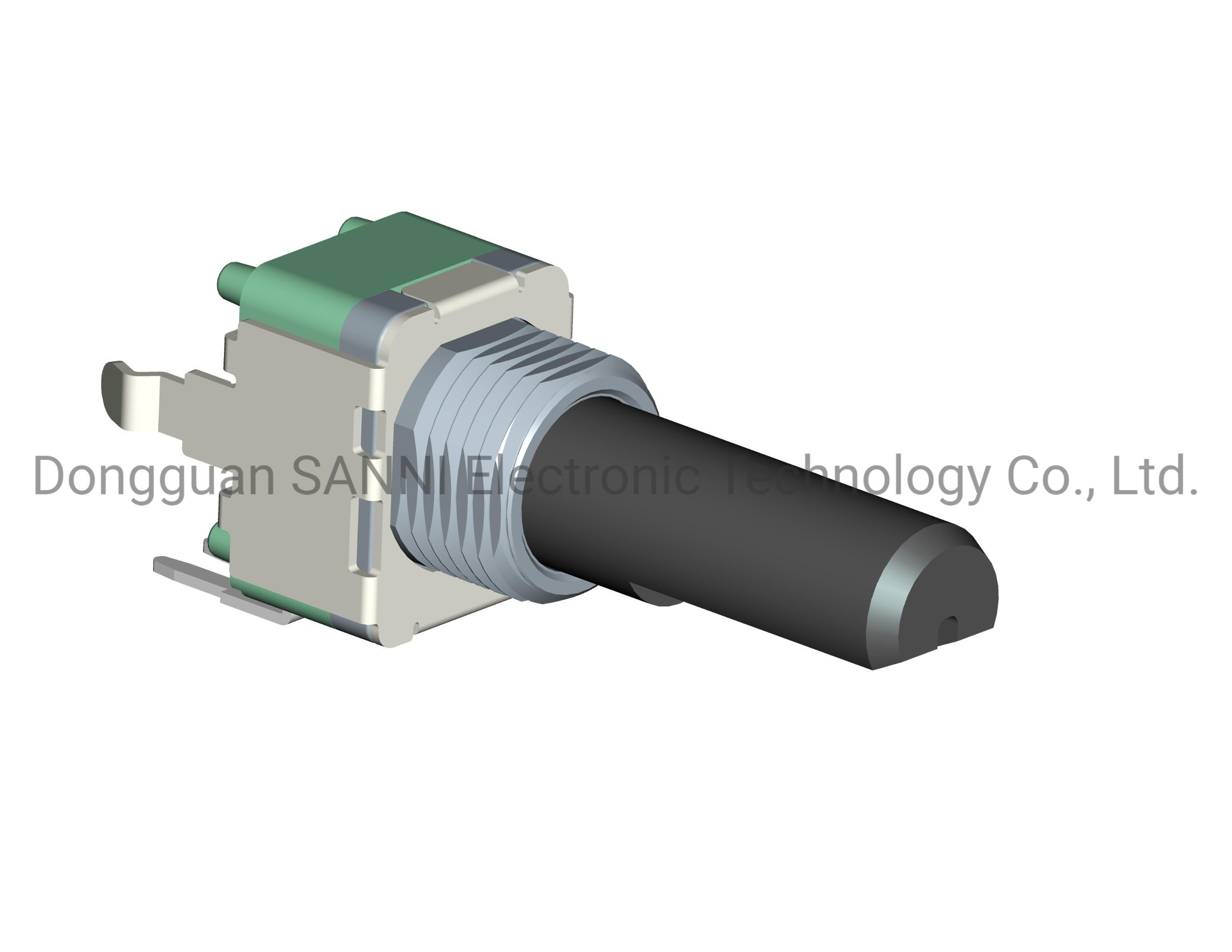

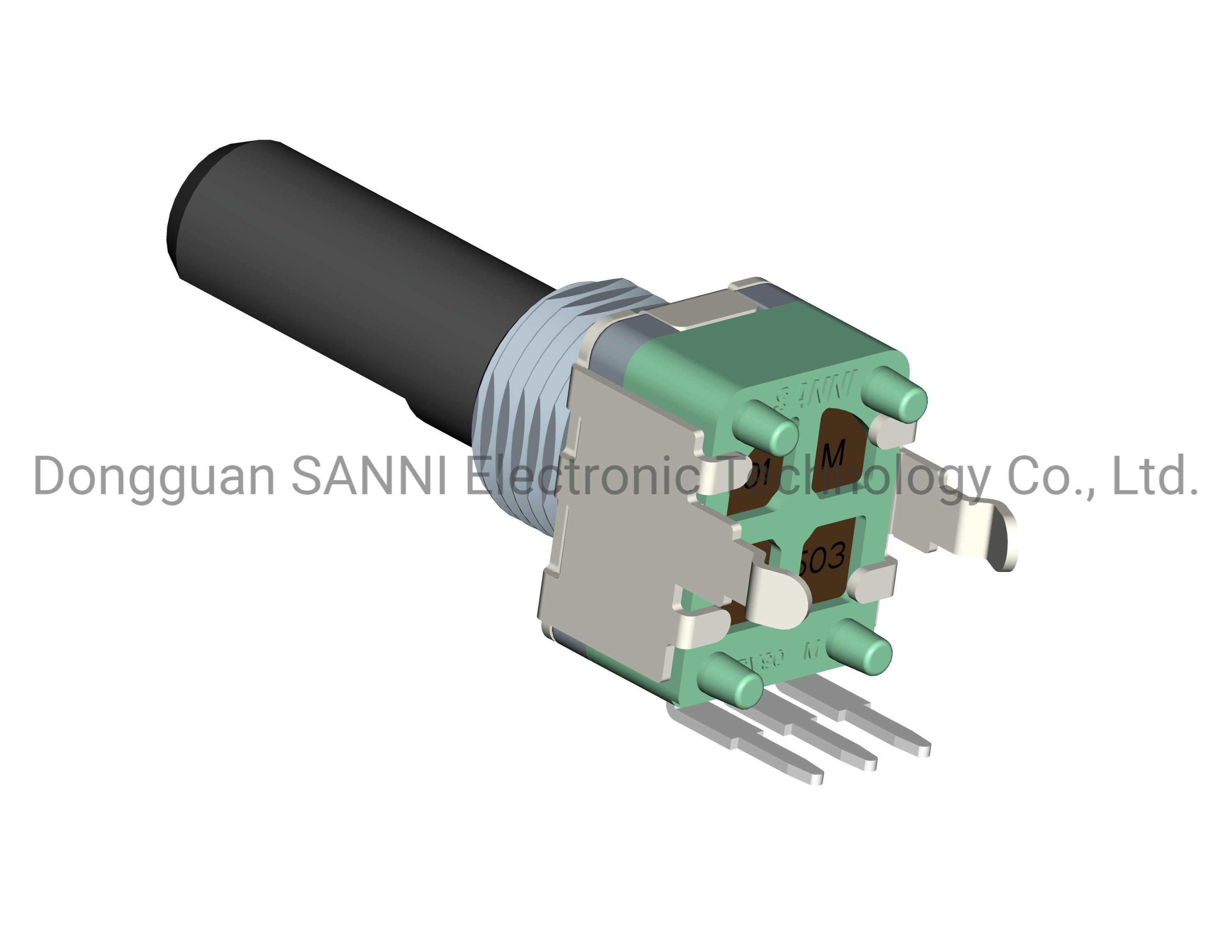

Rotary 9mm Potentiometer Vertical Insulated Shaft Sealed RV90XB2N0FB
