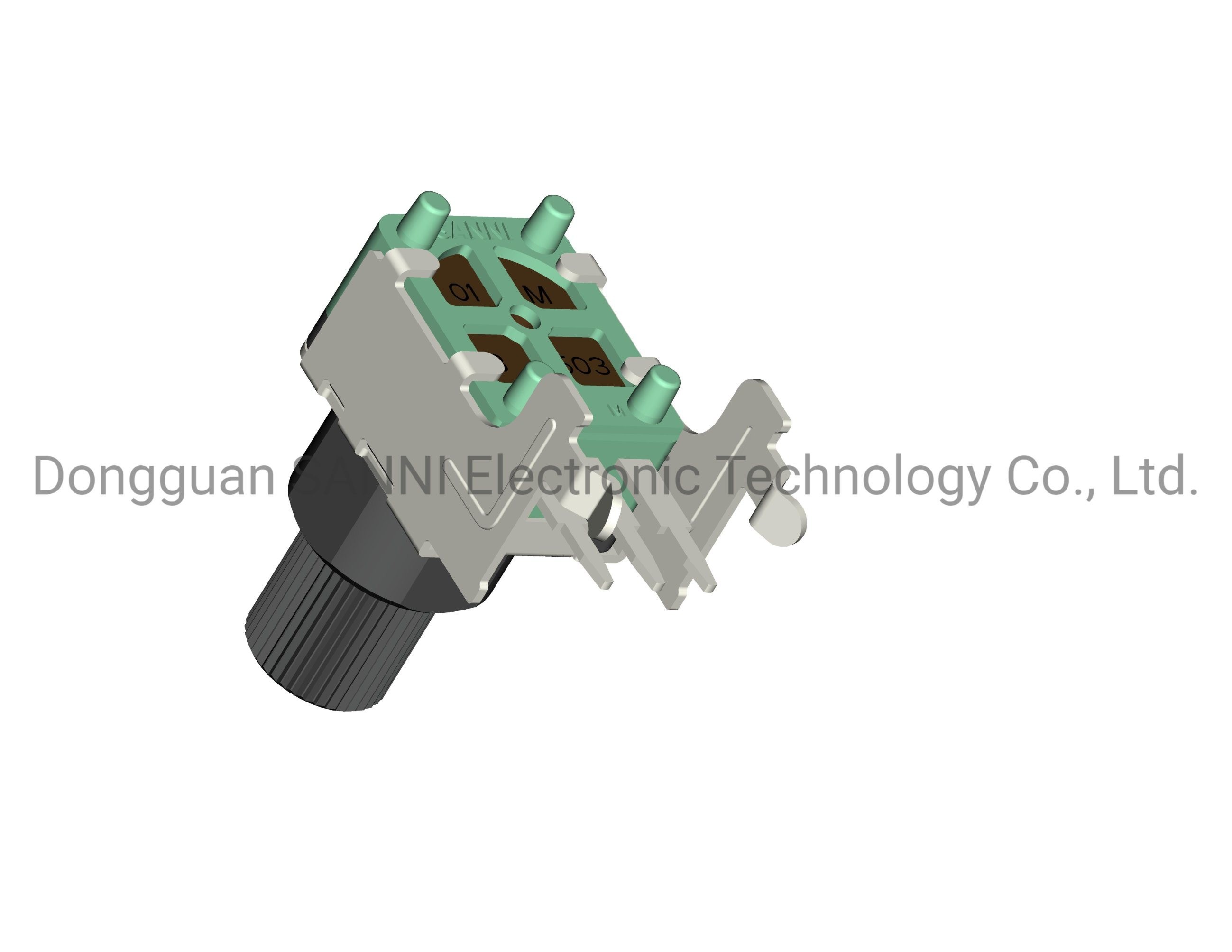

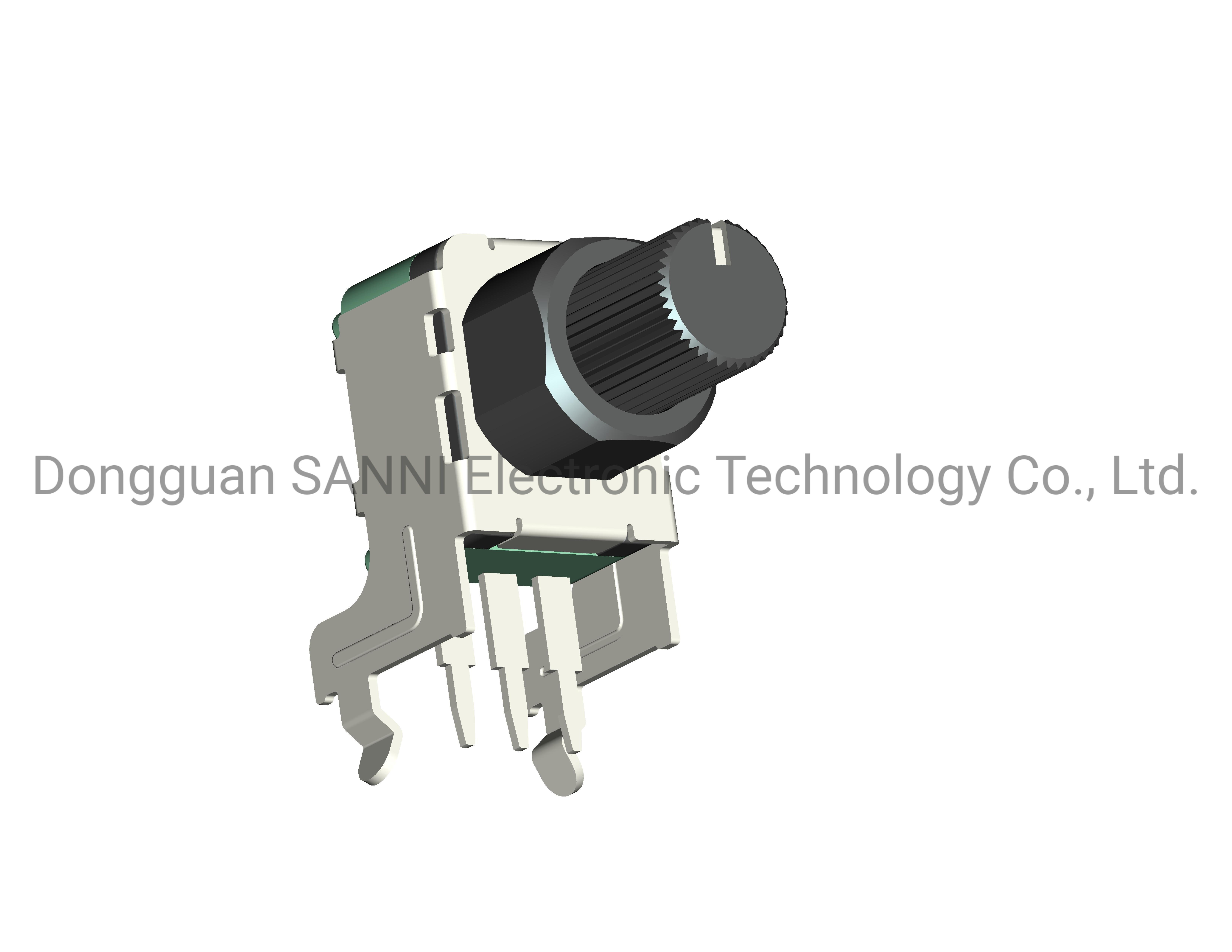

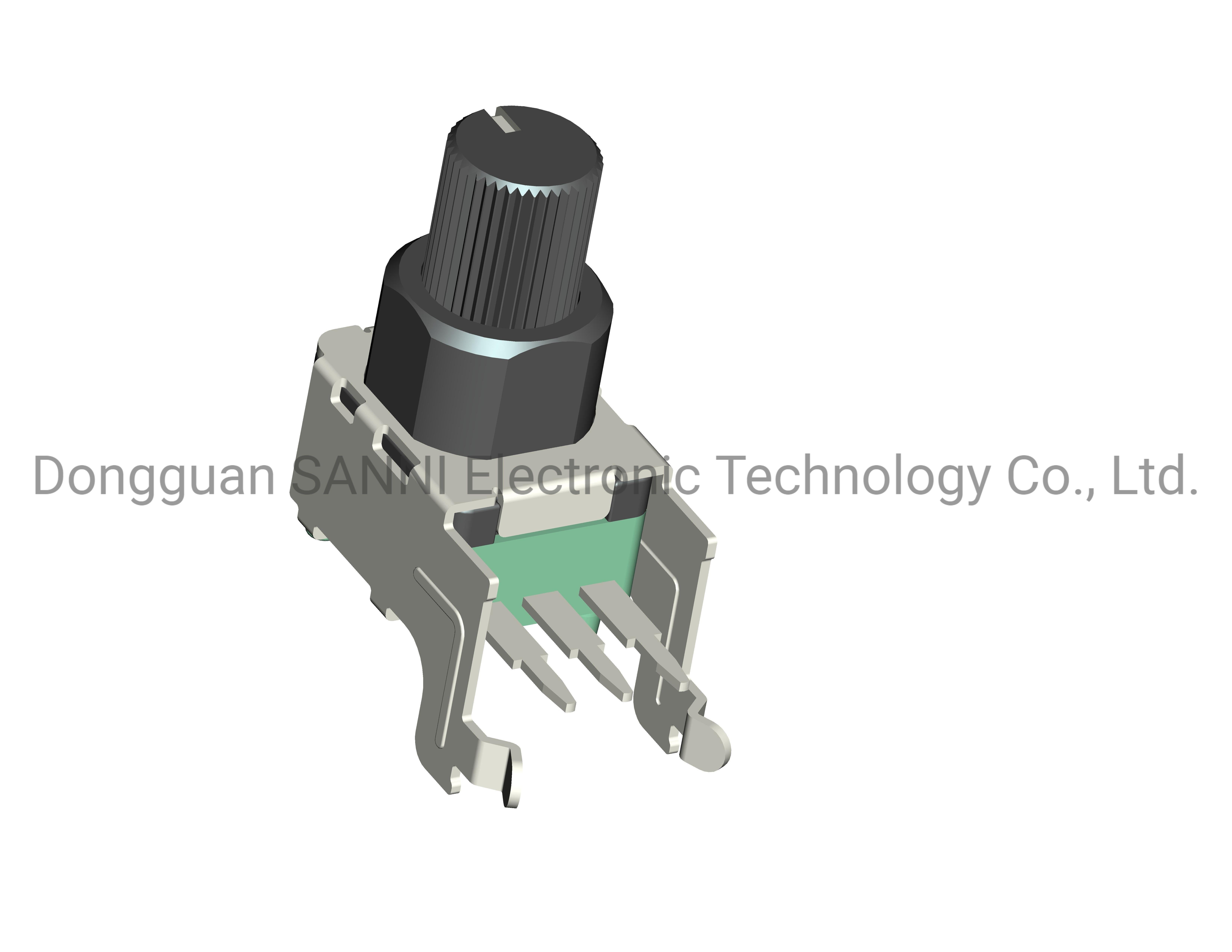

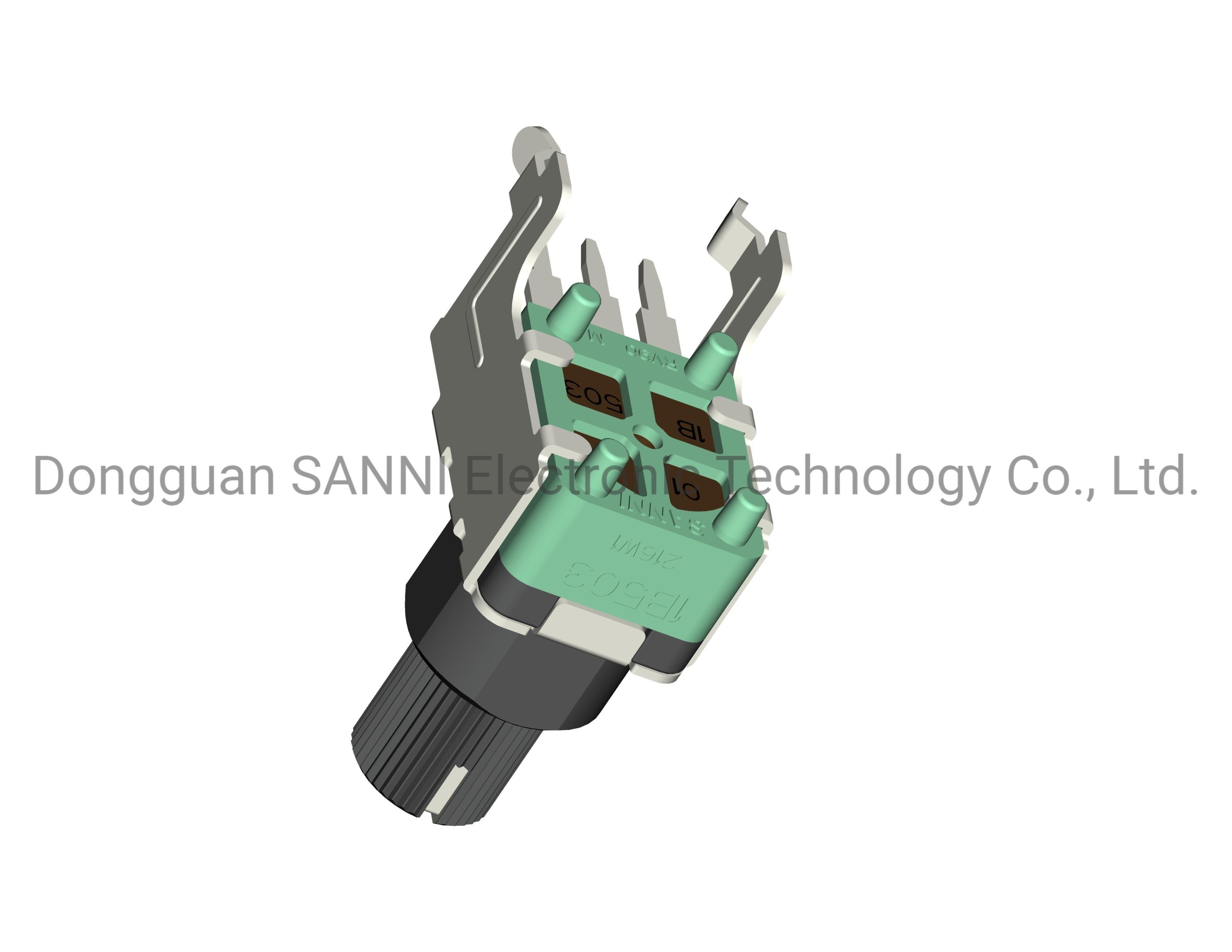

Product Features
Using plastic sealing structure, can effectively deal with wave welding.
Good sealing performance
Can be with positioning.
Push-pull switch or rotating switch can be chosen.
Shaft length and shape can be adjusted.
A variety of mounting methods for choice.
Product Specification
| 1.Electrical Characteristics |
| Total resistance |
200Ω-2MΩ |
| Total resistance tolerance |
200Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30% |
| Residual resistance |
20ΩMax. |
| Rated Power |
Linear taper:0.05W, Audio Taper 0.025W |
| Insulation resistance |
100MΩ min. 250V DC |
| Noise |
100mV Max |
| Voltage proof |
100V AC for 1 minute |
| Maximum operation voltage |
50V AC/20V DC |
| 2.Mechanical Characteristics |
| Rotation stopper strength |
Min:3Kgf |
| Total rotation angle |
280o±10o |
| Totational torque |
10-100gf.cm |
| Key push-pull strength |
Min:8Kgf 10s Min |
| Key Wobble |
Max: 0.5*L/20mm P-P |
| Terminal Strength |
5N for 1 minute |
| 3.Environmental Performance |
| Operating temperature range |
-10oC to +70oC |
| Storage temperature range |
-40oC to +85oC |
| 4.Welding heat reference |
| Manual Soldering |
96.5 Sn/3.0 Ag/0.5 Cu Sold Wire or No-Clean Rosin Core Wire 280oC Max. For 3 Seconds |
| Wave Soldering |
96.5 Sn/3.0 Ag/0.5 Cu Sold Wire or No-Clean Flux 260oC Max. For 5 Seconds |
FAQ
• Q: Can I get sample from you?
• A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.
• Q: Do you accept customization?
• A: Yes, customization is acceptable, please contact our sales staffs for consult.
• Q: Can you provide help for technical issues?
• A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.
