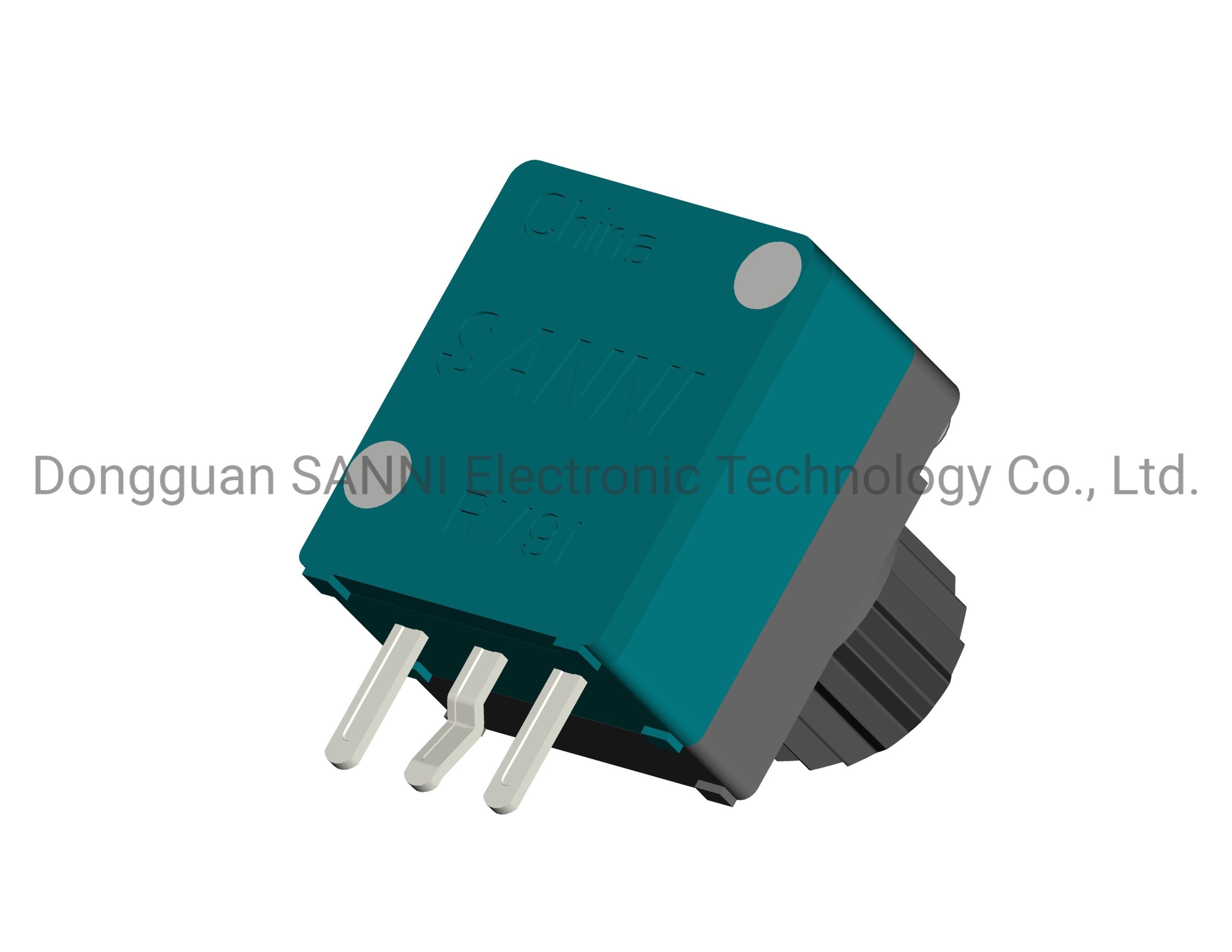

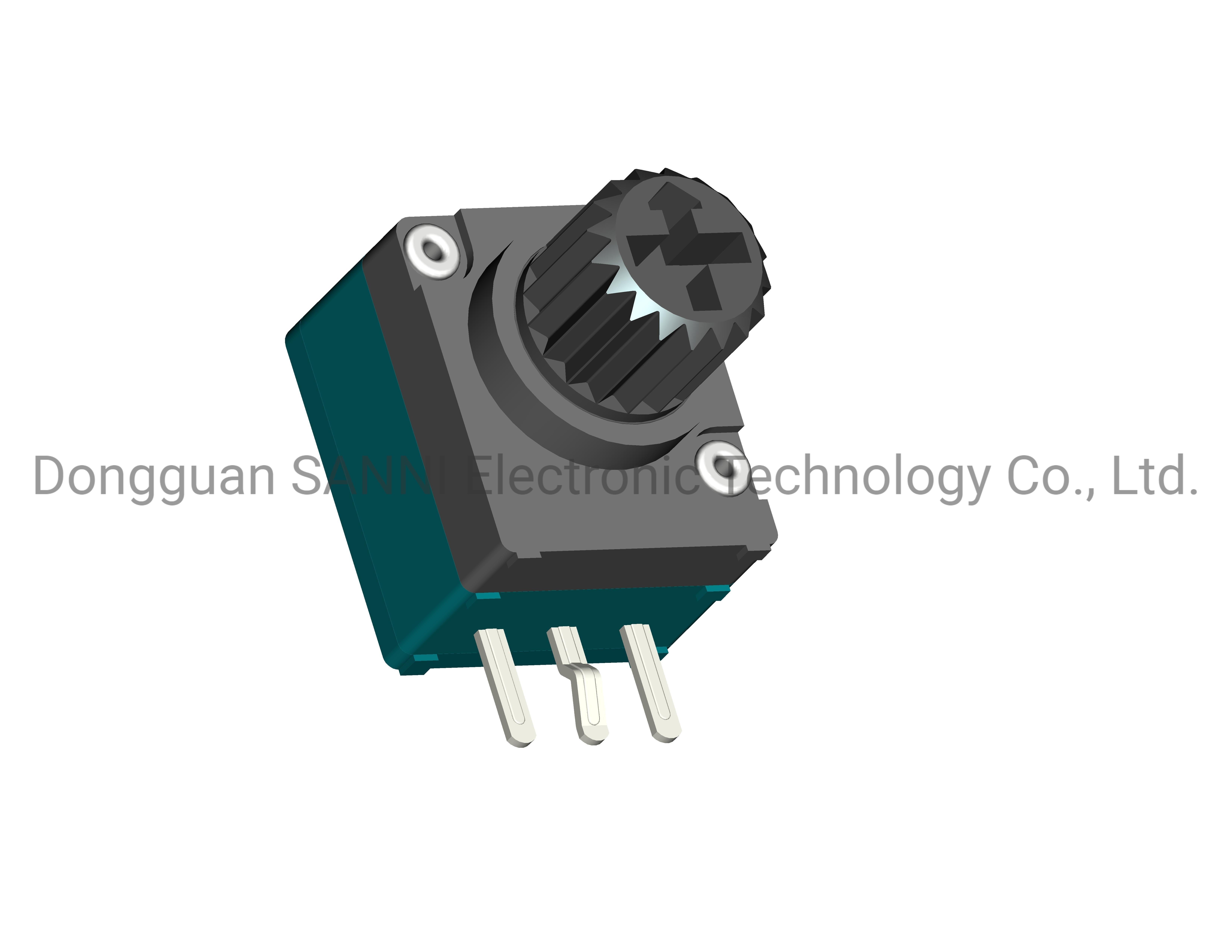

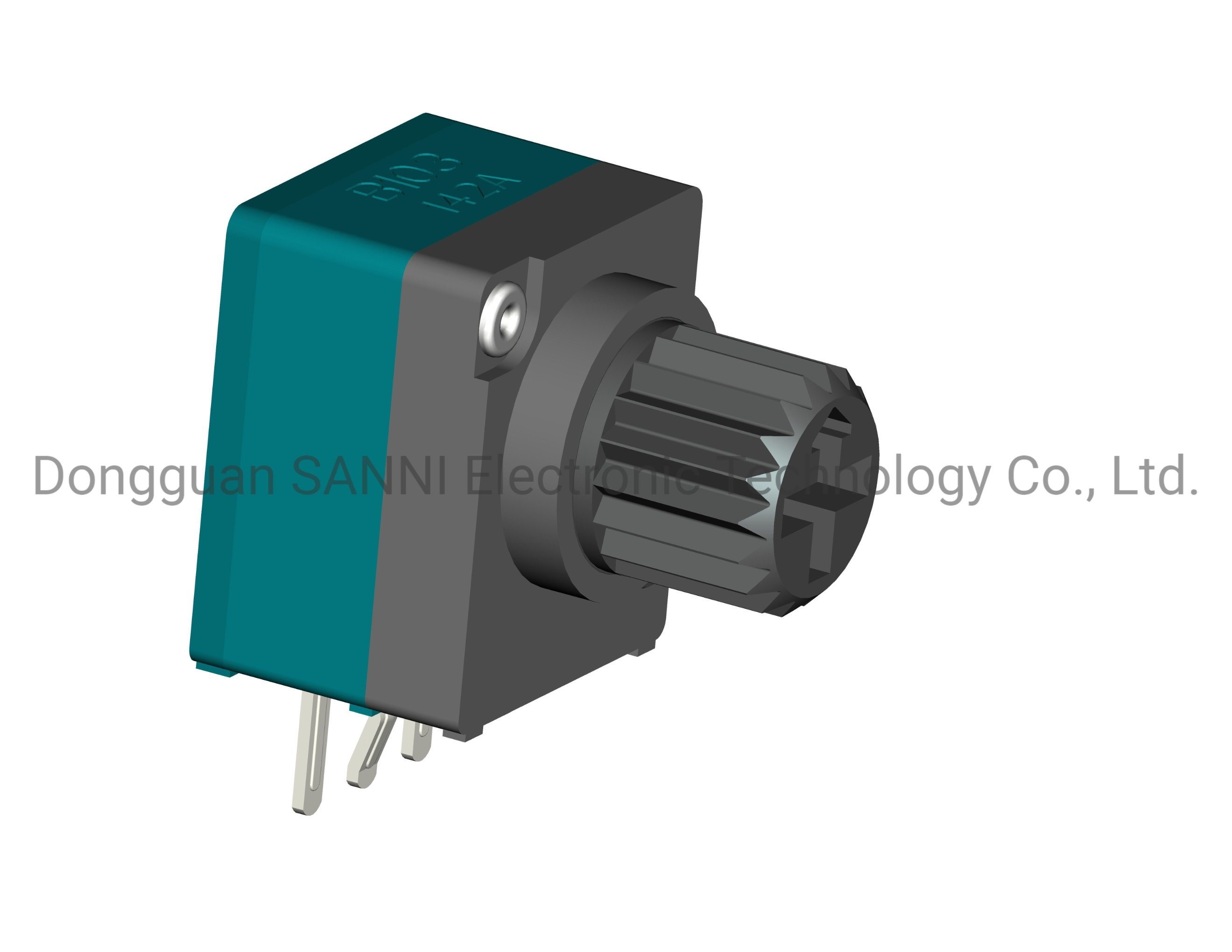

Rotary Potentiometer RV97P0N0 Horizontal Type Single Unit Insulated Shaft Sealed Potentiometer

Rotary Potentiometer RV97P0N0 Horizontal Type Single Unit Insulated Shaft Sealed Potentiometer
Rotary Potentiometer RV97P0N0 Horizontal Type Single Unit Insulated Shaft Sealed Potentiometer
Rotary Potentiometer RV97P0N0 Horizontal Type Single Unit Insulated Shaft Sealed Potentiometer Rotary Potentiometer RV97P0N0 Horizontal Type Single Unit Insulated Shaft Sealed Potentiometer Rotary Potentiometer RV97P0N0 Horizontal Type Single Unit Insulated Shaft Sealed Potentiometer
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV97P0N0
Minimum Order Quantity: 2000PCS
Price: USD0.2~0.4 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV97P0N0 Shape: Square
Resistance: 10KΩ,20KΩ,50KΩ,100KΩ... Application: Audio
Installation: PCB DIP Mounting House Material: Plastic
Resistor Material: Carbon Film

Rotary Potentiometer RV97P0N0 Horizontal Type Single Unit Insulated Shaft Sealed Potentiometer

Product Description

  • 9mm Insulated shaft sealed potentiometer
  • Width: 9.5mm
  • Most suitable for car amplifier, audio amplifier, musical instrument amplifier, guitar effector, mixer, instrument and equipment

Product features

  •    Rohs compliant
  •    Sealed type
  •    Structural diversification
  •    High Quality

Product Performance


1.Mechanical Characteristics
Total rotation angle 300o±25o
Totational torque 10-150gf.cm CC: click torque: 60-400gf.cm
Rotation stopper strength Min:4Kgf
Key push-pull strength Min:8Kgf
Key Wobble Max: 0.6*L/20mm P-P
Terminal Strength 5N for 1 minute
2.Electrical Characteristics
Total resistance 100Ω-3MΩ
Total resistance tolerance 50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance R≤10KΩ: 10ΩMax./10KΩ<R>100KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power 0.05W
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
Maximum operation voltage 50V AC, 10V DC
Gang error applicable for Dual unit parts for audio volume control purposes -40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.)
3.Environmental Performance
Cold -40oC±2oC for 96H
Dry heat 85oC±2oC for 96H
Damp heat -40oC±2oC,90 to 95%RH for 96H
Welding heat reference
Hand Soldering 350oC±10oC/3+1S
Dip Soldering 260oC±5oC/10±1S
RV97P0N0 Horizontal Type Single Unit Insulated Shaft Sealed Rotary PotentiometerRV97P0N0 Horizontal Type Single Unit Insulated Shaft Sealed Rotary PotentiometerRV97P0N0 Horizontal Type Single Unit Insulated Shaft Sealed Rotary PotentiometerRV97P0N0 Horizontal Type Single Unit Insulated Shaft Sealed Rotary PotentiometerRV97P0N0 Horizontal Type Single Unit Insulated Shaft Sealed Rotary PotentiometerRV97P0N0 Horizontal Type Single Unit Insulated Shaft Sealed Rotary Potentiometer
