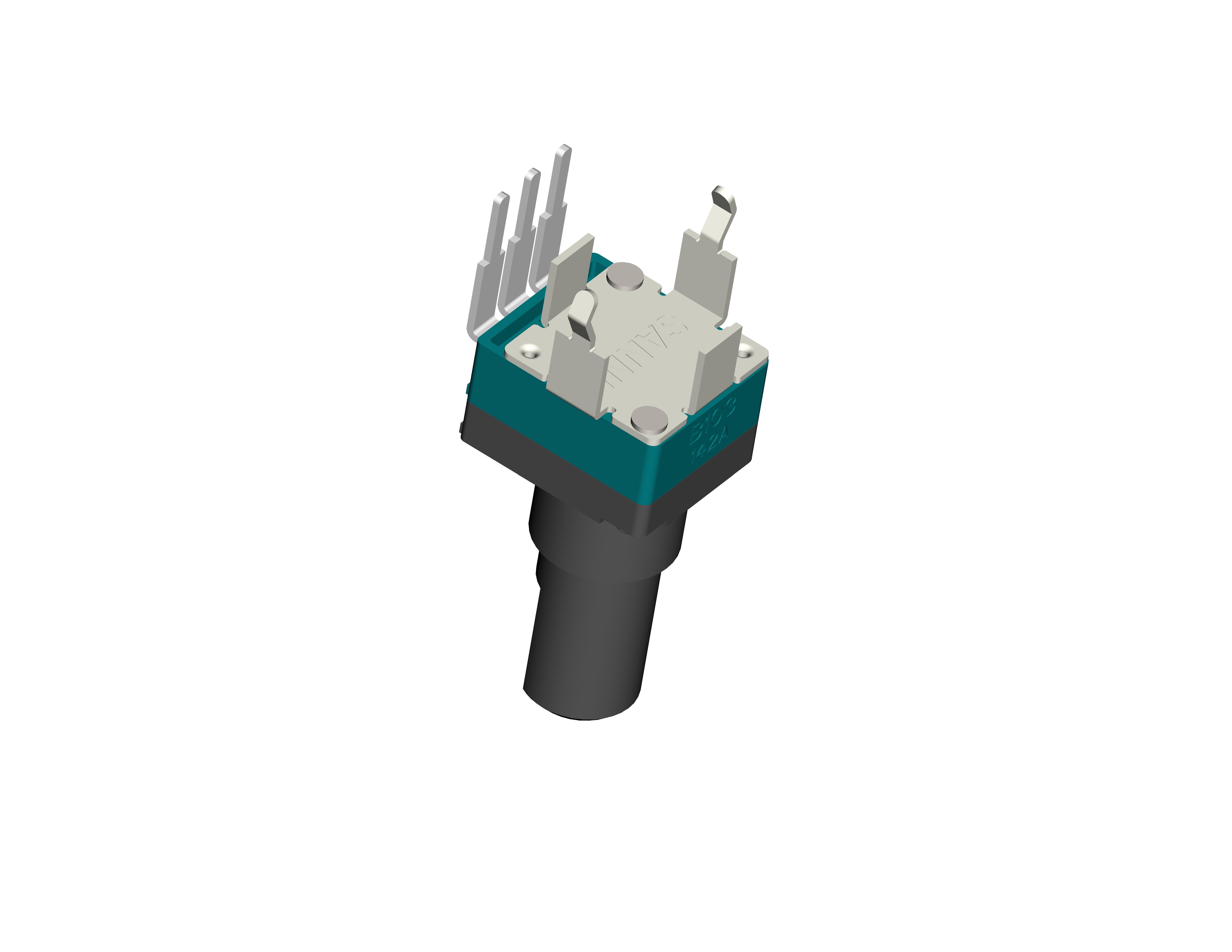

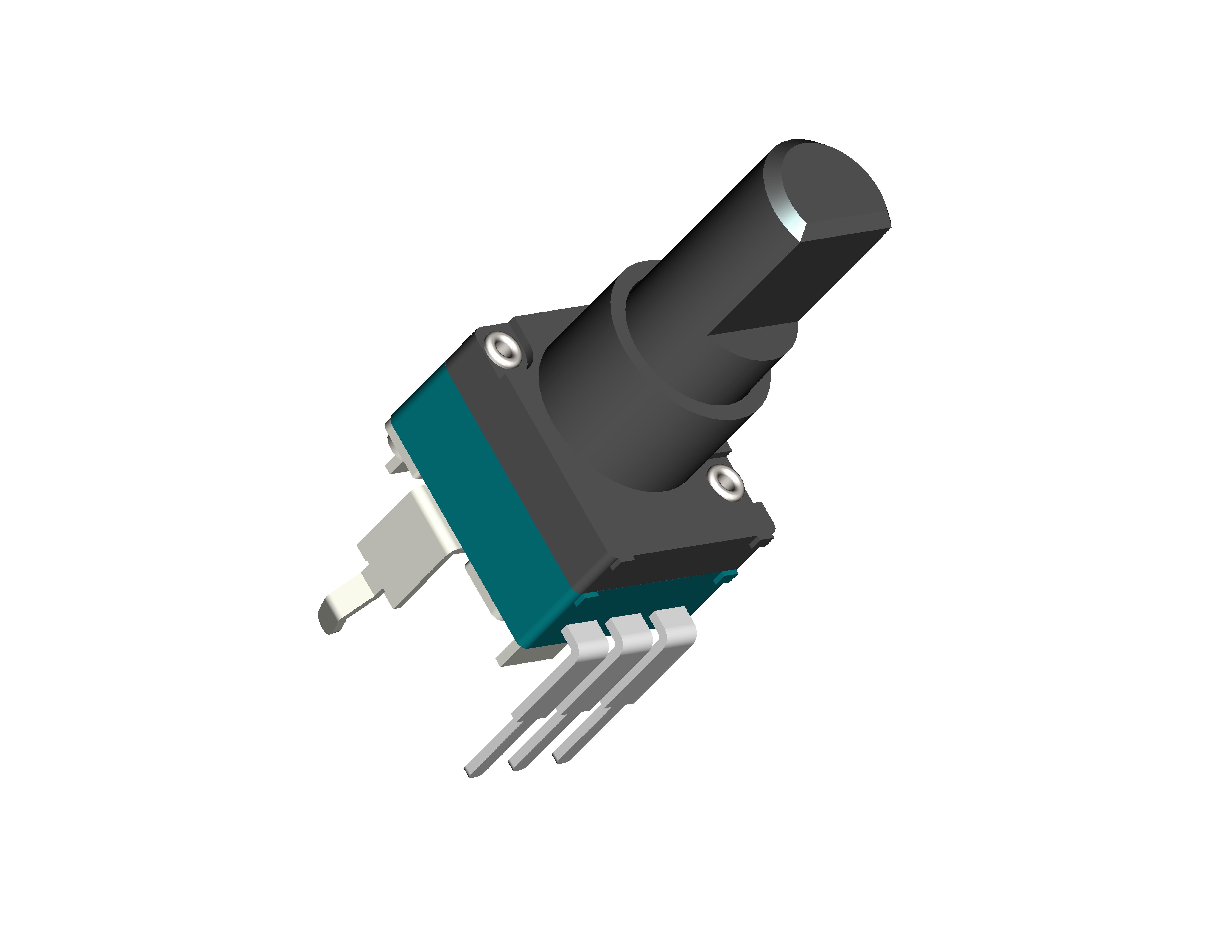

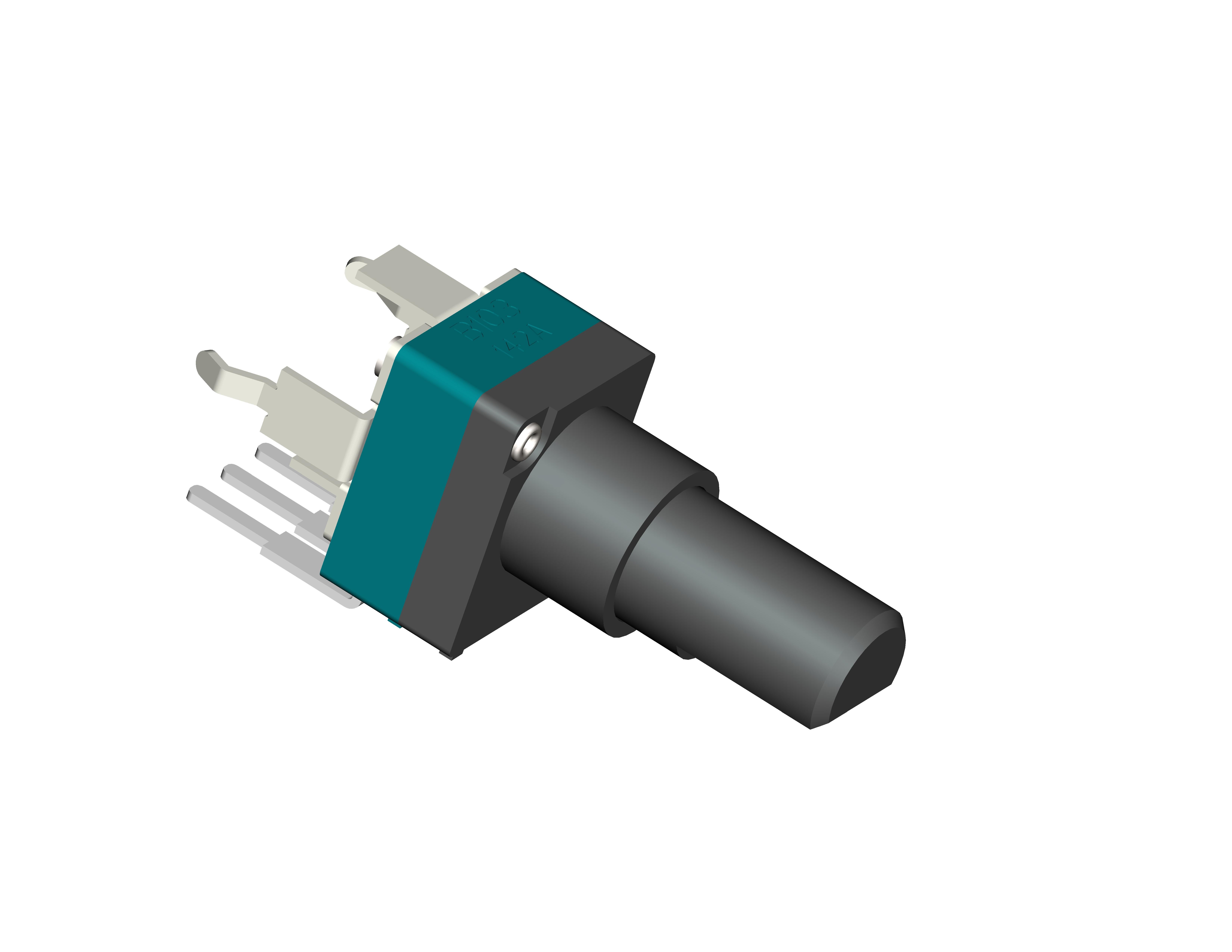

RV97P2N0 Rotary Potentiometer Single Unit Insulated Shaft Sealed

RV97P2N0 Rotary Potentiometer Single Unit Insulated Shaft Sealed
RV97P2N0 Rotary Potentiometer Single Unit Insulated Shaft Sealed
RV97P2N0 Rotary Potentiometer Single Unit Insulated Shaft Sealed RV97P2N0 Rotary Potentiometer Single Unit Insulated Shaft Sealed RV97P2N0 Rotary Potentiometer Single Unit Insulated Shaft Sealed
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV97P2N0
Minimum Order Quantity: 2000PCS
Price: USD0.18~0.25 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV97P2N0 Resistance Taper: Log Or Linear
Brand: Sanni Specification: 9mm
Resistance: 20K，100K，500K Or Customize Installation: DIP PCB Mount
Material: Plastic & Metal Customization: Available | Customized Request
Highlight:

RV97P2N0 Rotary Potentiometer

,

Single Unit Rotary Potentiometer

,

Sealed Potentiometer Rotary

RV97P2N0 Rotary Potentiometer Single Unit Insulated Shaft Sealed

Features of Rotary Potentiometer



Using plastic sealing structure, can effectively deal with wave welding.

Good sealing performance

Can be with positioning.

Push-pull switch or rotating switch can be chosen.

Shaft length and shape can be adjusted.

A variety of mounting methods for choice.

RV97P2N0 Rotary Potentiometer Single Unit Insulated Shaft Sealed 0

Application of Rotary Potentiometer



Rotary Potentiometer is mainly suitable for communication products,  multimedia audio,walkie-talkie,automobile power amplifier and other electronic equipment, but also can use medical equipment,household appliances. It's main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.



Key Specification

1.Mechanical Characteristics
Total rotation angle 300o±5o
Rotation stopper strength Min:4Kgf
Totational torque 10-150gf.cm CC: click torque: 60-400gf.cm
Key push-pull strength Min:8Kgf
Key Wobble Max: 0.6*L/20mm P-P
Terminal Strength 5N for 1 minute
2.Electrical Characteristics
Total resistance 100Ω-3MΩ
Total resistance tolerance 50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance R≤10KΩ: 10ΩMax./10KΩ<R>100KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power 0.05W
Maximum operation voltage 50V AC/10V DC
Voltage proof 300V AC for 1 minute
Insulation resistance 100MΩ min. 250V DC
3.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
4.Welding heat reference
Hand Soldering 350oC±10oC/3+1S
Dip Soldering 260oC±5oC/10±1S
RV97P2N0 Vertical Type Insulated Shaft Sealed PotentiometerRV97P2N0 Vertical Type Insulated Shaft Sealed PotentiometerRV97P2N0 Vertical Type Insulated Shaft Sealed PotentiometerRV97P2N0 Vertical Type Insulated Shaft Sealed PotentiometerRV97P2N0 Vertical Type Insulated Shaft Sealed PotentiometerRV97P2N0 Vertical Type Insulated Shaft Sealed Potentiometer
