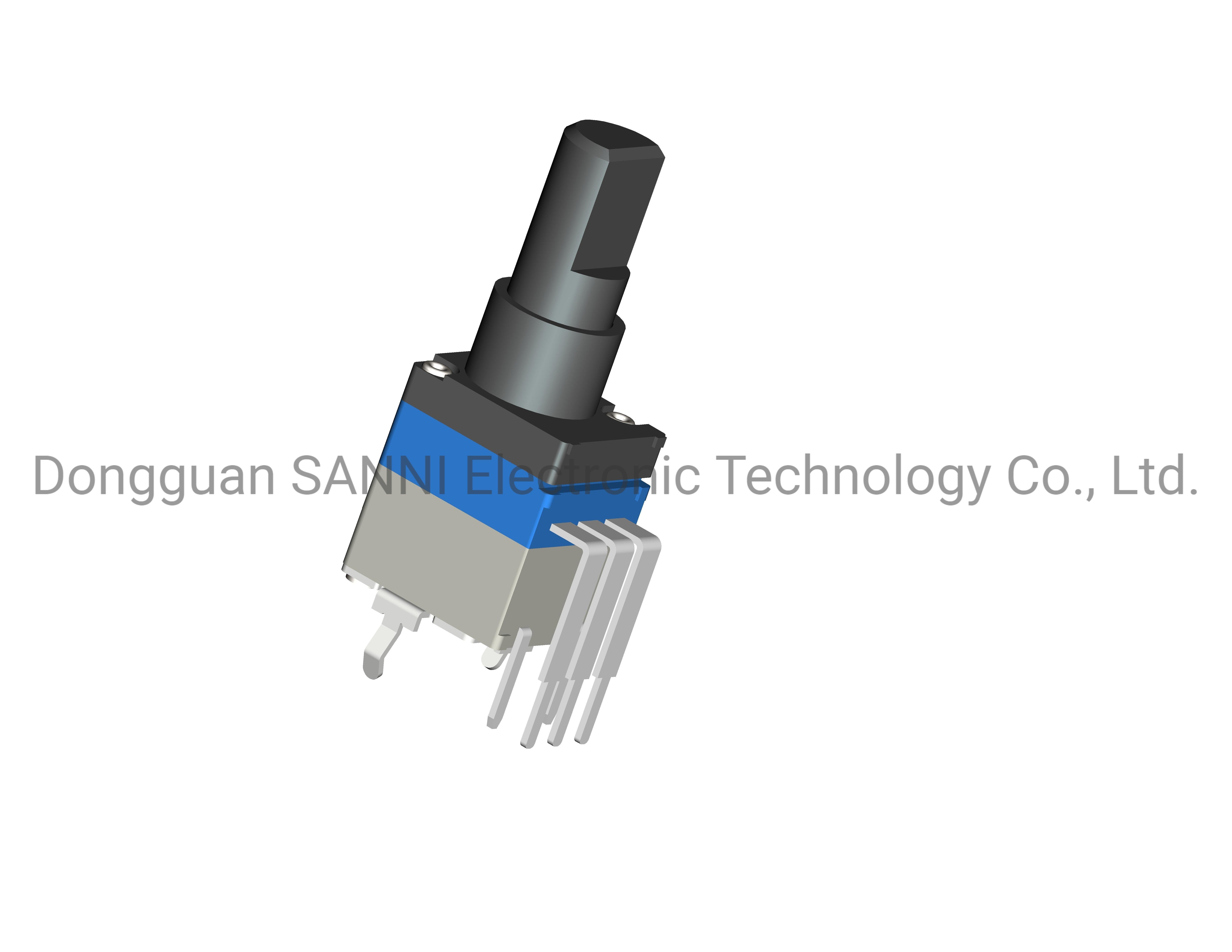

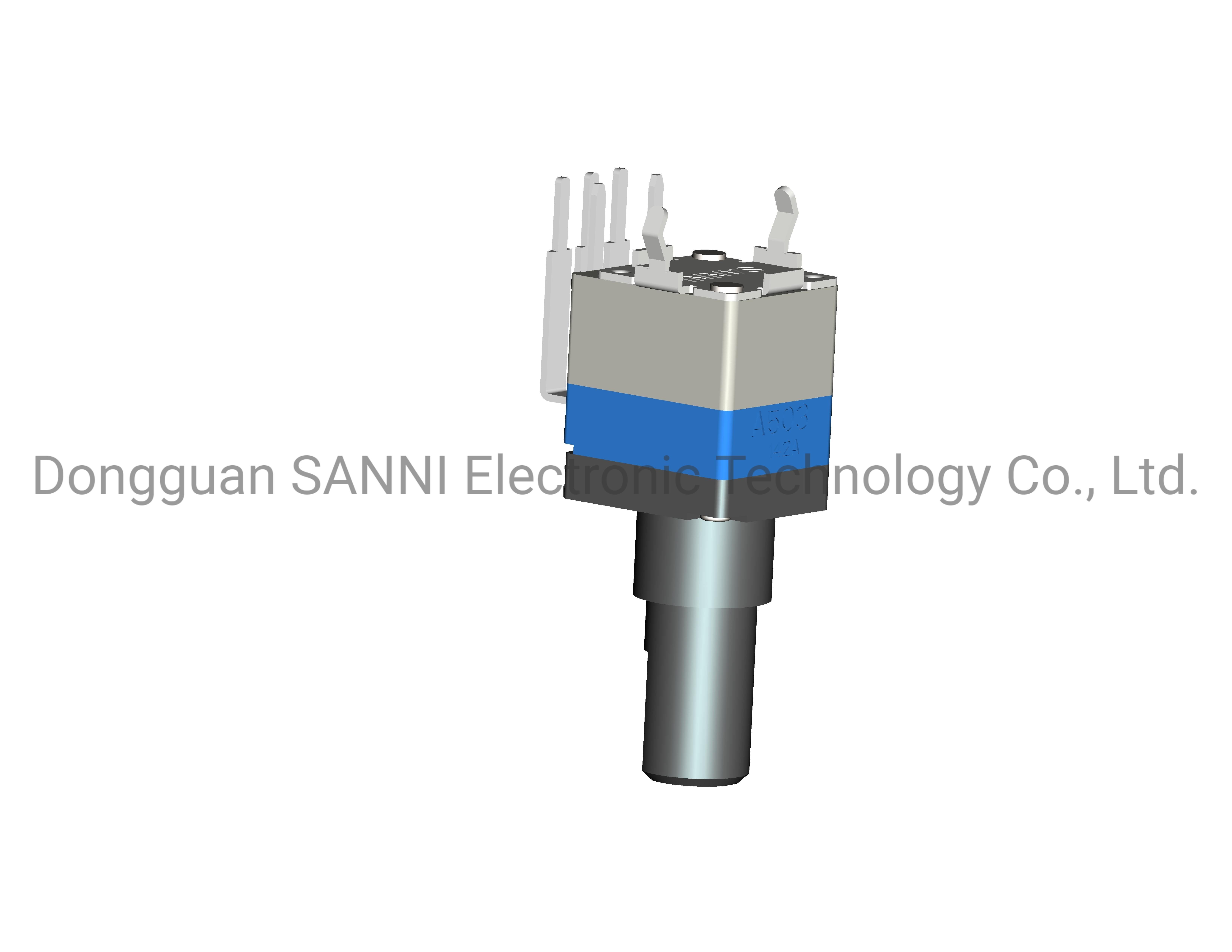

RV97P2NS 9mm Rotary Switch Potentiometer Vertical Type Single Unit

RV97P2NS 9mm Rotary Switch Potentiometer Vertical Type Single Unit
RV97P2NS 9mm Rotary Switch Potentiometer Vertical Type Single Unit
RV97P2NS 9mm Rotary Switch Potentiometer Vertical Type Single Unit RV97P2NS 9mm Rotary Switch Potentiometer Vertical Type Single Unit
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV97P2NS
Minimum Order Quantity: 2000PCS
Price: USD0.3~0.5 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Shape: Square Resistance Change Scale: Log Or Linear
Brand: Sanni Switch: Rotary Switch SPST
Specification: 9mm Resistance: 50K,100K,200K Or Customize
Installation: PCB DIP Mounting Customization: Available | Customized Request
Highlight:

9mm Rotary Switch Potentiometer

,

Rotary Switch Potentiometer Vertical

,

Single Unit Potentiometer Vertical

RV97P2NS Rotary Potentiometer Vertical Type Single Unit Insulated Shaft Sealed With Switch

Product Description

  • 9mm Insulated shaft sealed potentiometer with switch
  • Width: 9.5mm
  • Most suitable for car amplifier volume control
  • Use:Used for car amplifier, musical instrument amplifieraudio amplifier, mixer, guitar effector, instrument and other equipment

​Product Features



  • Using plastic sealing structure, can effectively deal with wave welding.
  • Good sealing performance
  • Can be with positioning.
  • Push-pull switch or rotating switch can be chosen.
  • Shaft length and shape can be adjusted.
  • A variety of mounting methods for choice.

Product Specification



1.Mechanical Characteristics
Total rotation angle 300o±5o
Rotation stopper strength Min:4Kgf
Totational torque 10-150gf.cm CC: click torque: 60-400gf.cm
Key push-pull strength Min:8Kgf
Key Wobble Max: 0.6*L/20mm P-P
Terminal Strength 5N for 1 minute
2.Electrical Characteristics
Total resistance 100Ω-3MΩ
Total resistance tolerance 50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Rated Power 0.05W
Residual resistance R≤10KΩ: 10ΩMax./10KΩ<R>100KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Maximum operation voltage 50V AC/10V DC
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
3.Switch Characteristics
Switch Type SPST
Rated Power 0.1A 16V DC
Switch Torque 500gf.cm
Switch Angle 40o Max
Operating Life without load 10000 cycles 100mΩ Max
Operating life with load:as rating 10000 cycles 100mΩ Max
Initial contact resistance 100mΩ Max
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
4.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
5.Welding heat reference
Hand Soldering 350oC±10oC/3+1S
Dip Soldering 260oC±5oC/10±1S



FAQ

• Q: Can I get sample from you?

• A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.

• Q: Do you accept customization?

• A: Yes, customization is acceptable, please contact our sales staffs for consult.

• Q: Can you provide help for technical issues?

• A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.





RV97P2NS Vertical Type Single Unit Insulated Shaft Sealed Potentiometer SwitchRV97P2NS Vertical Type Single Unit Insulated Shaft Sealed Potentiometer SwitchRV97P2NS Vertical Type Single Unit Insulated Shaft Sealed Potentiometer SwitchRV97P2NS Vertical Type Single Unit Insulated Shaft Sealed Potentiometer SwitchRV97P2NS Vertical Type Single Unit Insulated Shaft Sealed Potentiometer SwitchRV97P2NS Vertical Type Single Unit Insulated Shaft Sealed Potentiometer Switch
