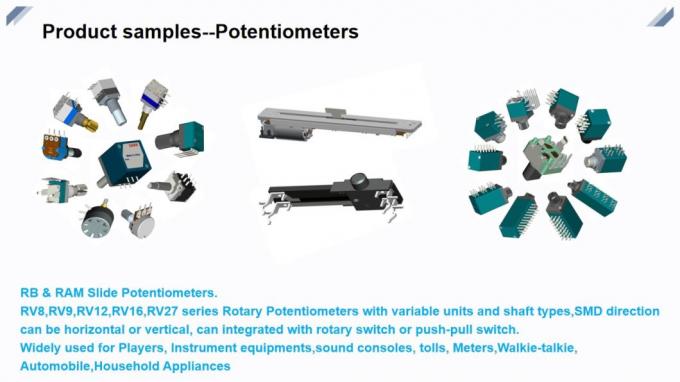

Model NO.:	RV9C11NS	Brand:	Sanni
Switch:	Rotary Switch	Specification:	9mm
Trademark:	SANNI	Resistance:	10KΩ,20KΩ,100KΩ,250KΩ...
Installation:	DIP PCB Mount	Material:	Plastic & Metal
Customization:	Available \| Customized Request
Highlight:	Horizontal Type Rotary Potentiometer , Volume Control Rotary Potentiometer , Car Amplifier Potentiometer

1.Electrical Characteristics
Total resistance	200Ω-2MΩ
Total resistance tolerance	200Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance	20ΩMax.
Rated Power	Linear taper:0.05W, Audio Taper 0.025W
Insulation resistance	100MΩ min. 250V DC
Noise	100mV Max
Voltage proof	100V AC for 1 minute
Maximum operation voltage	50V AC/20V DC
2.Mechanical Characteristics
Rotation stopper strength	Min:4Kgf
Total rotation angle	300^o±5^o
Totational torque	10-150gf.cm
Key push-pull strength	Min:8Kgf
Key Wobble	Max: 0.6*L/20mm P-P
Terminal Strength	5N for 1 minute
3.Switch Characteristics
Switch Type	SPST
Rated Power	1A 16V DC
Switch Torque	500gf.cm Max
Switch Angle	40^o Max
Operating Life without load	15000 cycles 100mΩ Max
Operating life with load:as rating	15000 cycles 200mΩ Max
Initial contact resistance	100mΩ Max
Insulation resistance	100MΩ min. 250V DC
Voltage proof	300V AC for 1 minute
4.Environmental Performance
Operating temperature range	-10^oC to +70^oC
Storage temperature range	-40^oC to +85^oC
5.Welding heat reference
Manual Soldering	350^oC±10^oC/3+1S
Wave Soldering	260^oC±5^oC/10±1S

	Dongguan SANNI Electronics Technology Co., Ltd.
	SUNNY Technology Park,Chisheng Industrial Zone,Nanwu Village,Houjie Town,Dongguan City.Guangdong Province.China
	86-769-85968666-807
	Sanni@chinasanni.com

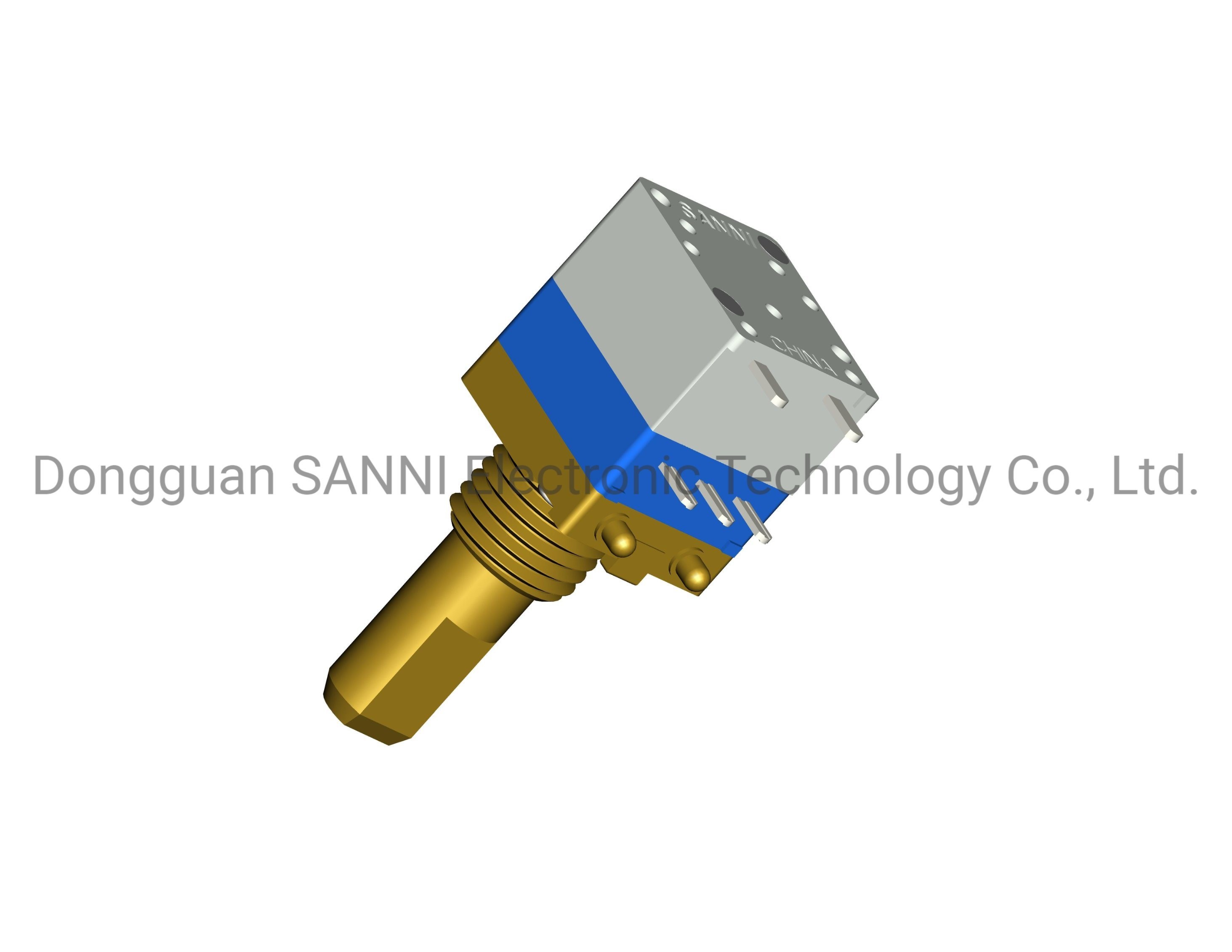

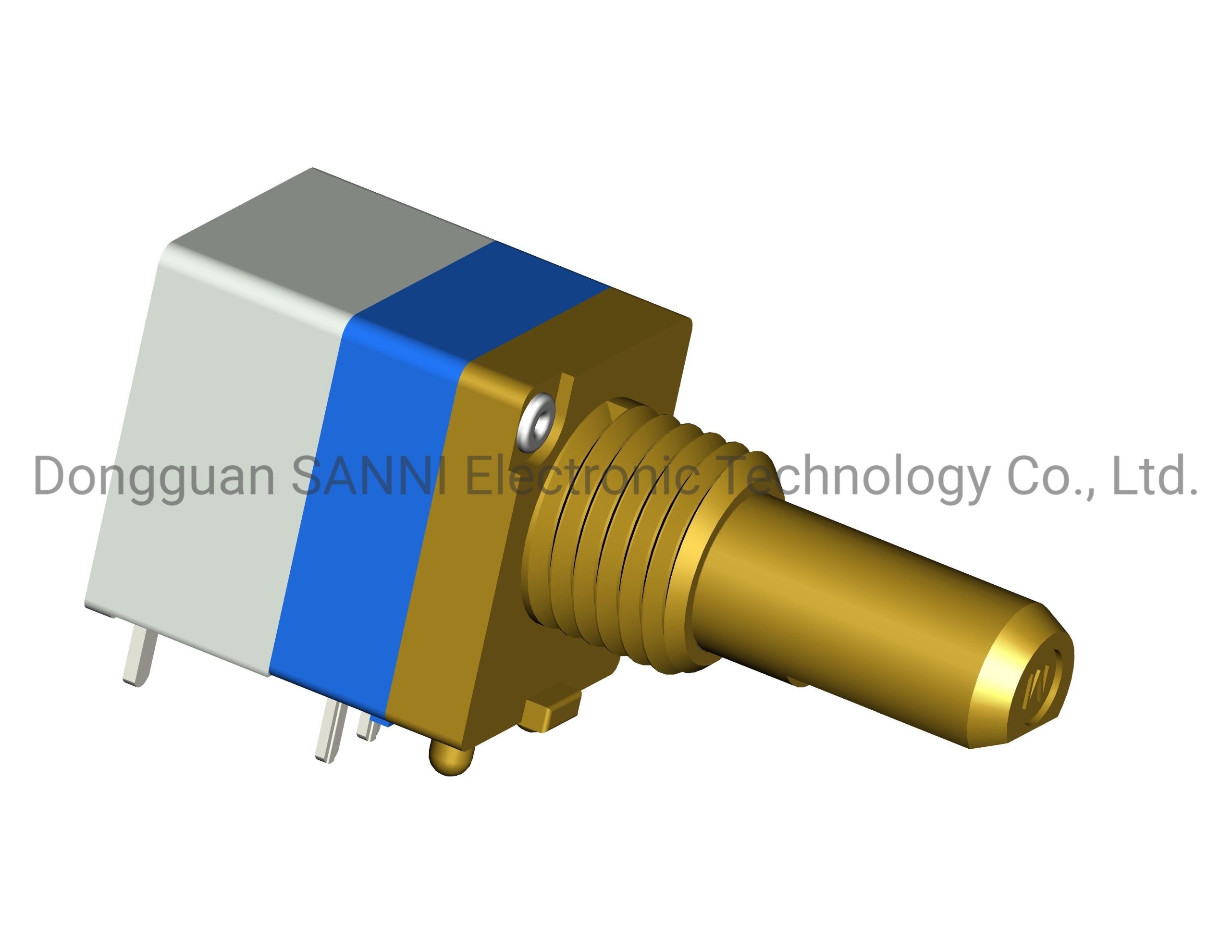

RV9C11NS Horizontal Type Rotary Potentiometer For Car Amplifier Volume Control
