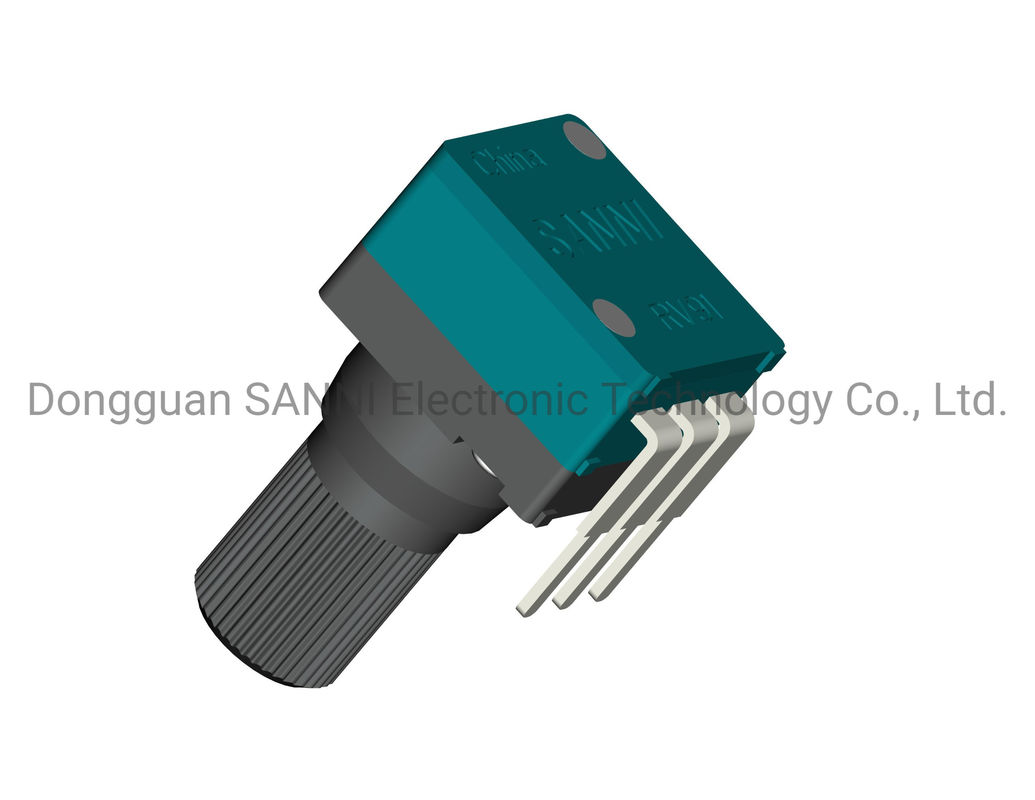

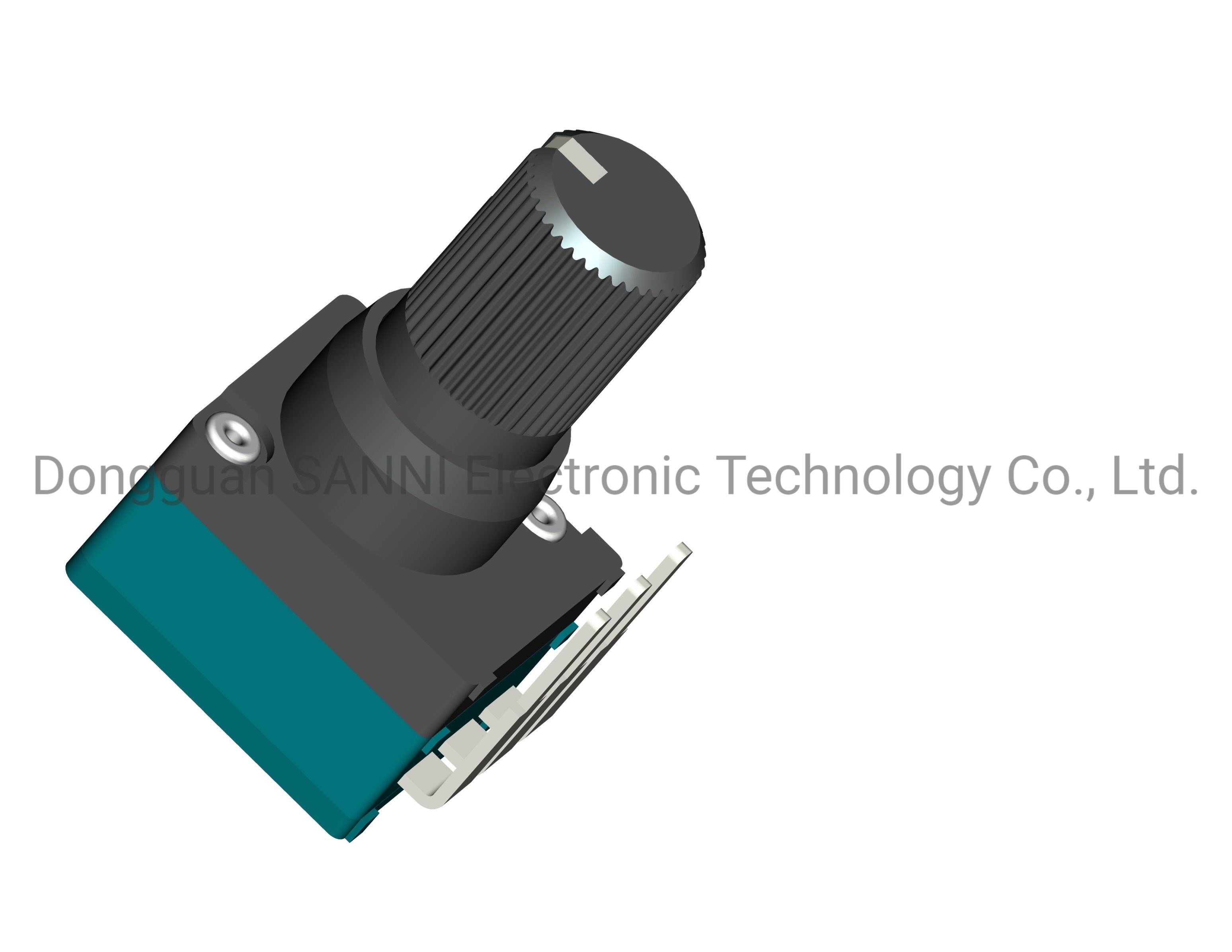

RV97PFN0 Rotary Vertical Pcb Mount Potentiometer 9mm Single Unit

RV97PFN0 Rotary Vertical Pcb Mount Potentiometer 9mm Single Unit
RV97PFN0 Rotary Vertical Pcb Mount Potentiometer 9mm Single Unit
RV97PFN0 Rotary Vertical Pcb Mount Potentiometer 9mm Single Unit RV97PFN0 Rotary Vertical Pcb Mount Potentiometer 9mm Single Unit
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV97PFN0
Minimum Order Quantity: 2000PCS
Price: USD0.2~0.3 per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV97PFN0 Taper: Linear Or Log
Brand: Sanni Specification: 9mm
Resistance: 20K，100K，500K Or Customize Installation: PCB DIP Mounting
Material: Metal & Plastic Customization: Available | Customized Request
Highlight:

Rotary Vertical Pcb Mount Potentiometer

,

Vertical Pcb Mount Potentiometer 9mm

,

Potentiometer 9mm Single Unit

RV97PFN0 Rotary Potentiometer Vertical Type Single Unit Insulated Shaft Sealed Potentiometer

Product Description

  • 9mm Insulated shaft sealed potentiometer
  • Width: 9.5mm
  • Most suitable for car amplifier volume control
  • Use:Used for car amplifier, audio amplifier, musical instrument amplifier, guitar effector, mixer, instrument and equipment

Product Features

  •    Rohs compliant
  •    Seal type
  •    Small volume
  •    Structural diversification
  •    High Quality

Product Specification





1.Mechanical Characteristics
Total rotation angle 300o±5o
Rotation stopper strength Min:4Kgf
Totational torque 10-150gf.cm CC: click torque: 60-400gf.cm
Key push-pull strength Min:8Kgf
Key Wobble Max: 0.6*L/20mm P-P
Terminal Strength 5N for 1 minute
2.Electrical Characteristics
Total resistance 100Ω-3MΩ
Total resistance tolerance 50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Rated Power 0.05W
Residual resistance R≤10KΩ: 10ΩMax./10KΩ<R>100KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Maximum operation voltage 50V AC/10V DC
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
3.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC
4.Welding Profile
Hand Soldering 350oC±10oC/3+1S
Dip Soldering 260oC±5oC/10±1S



Our Advantage



1. More than 10 years of experience in research and development production design.

2. 4 automation production lines, more than 100 experienced workers for higher precision products.

3. 10+ dedicated and experienced engineers and designers in R&D department.

4. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.

5. Professional Testing instruments and team to ensure product quality.

RV97PFN0 Vertical Type Single Unit Insulated Shaft Sealed Rotary PotentiometerRV97PFN0 Vertical Type Single Unit Insulated Shaft Sealed Rotary PotentiometerRV97PFN0 Vertical Type Single Unit Insulated Shaft Sealed Rotary PotentiometerRV97PFN0 Vertical Type Single Unit Insulated Shaft Sealed Rotary PotentiometerRV97PFN0 Vertical Type Single Unit Insulated Shaft Sealed Rotary PotentiometerRV97PFN0 Vertical Type Single Unit Insulated Shaft Sealed Rotary Potentiometer
