Home ProductsAbsolute Rotary Encoder RE104010 10mm Metal Shaft Sealed Encoder

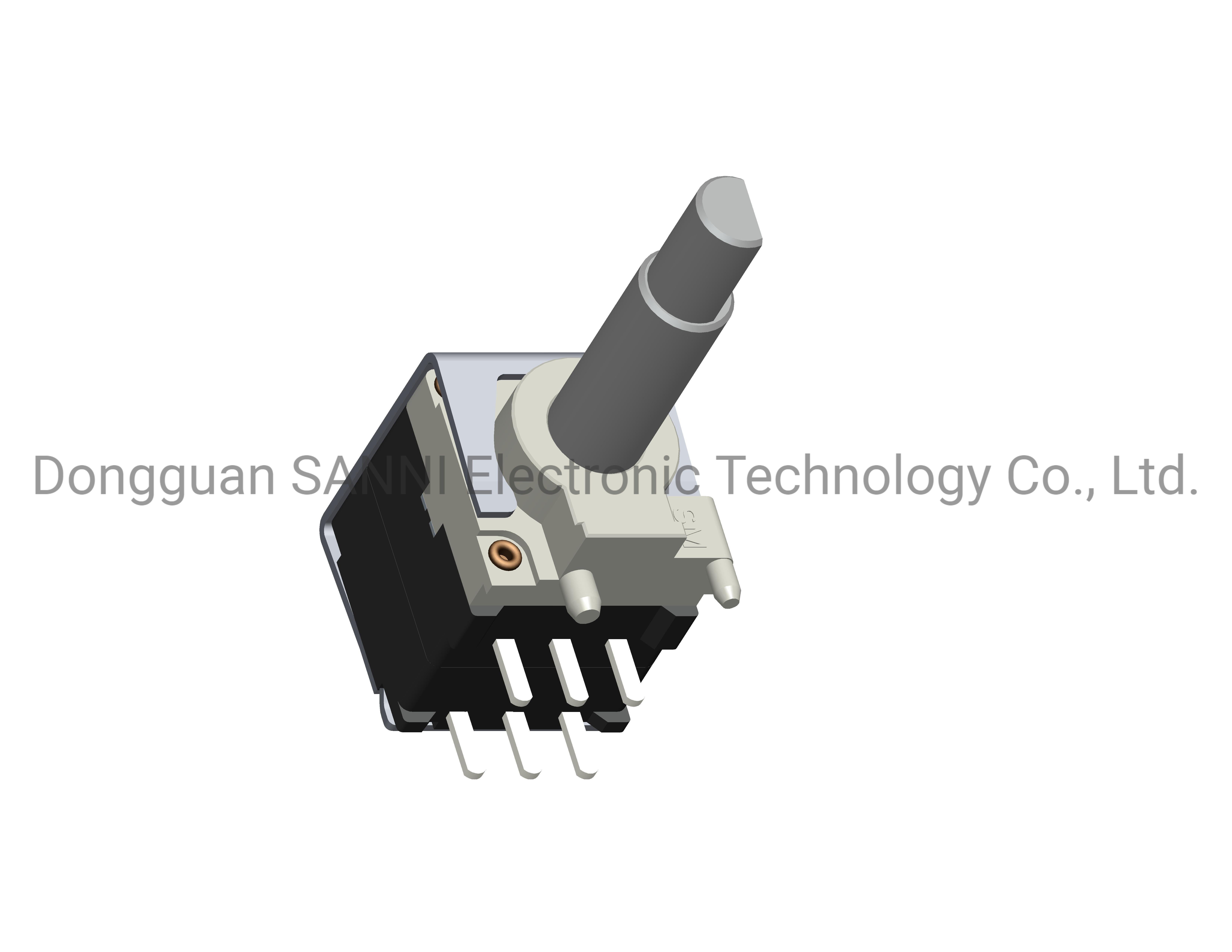

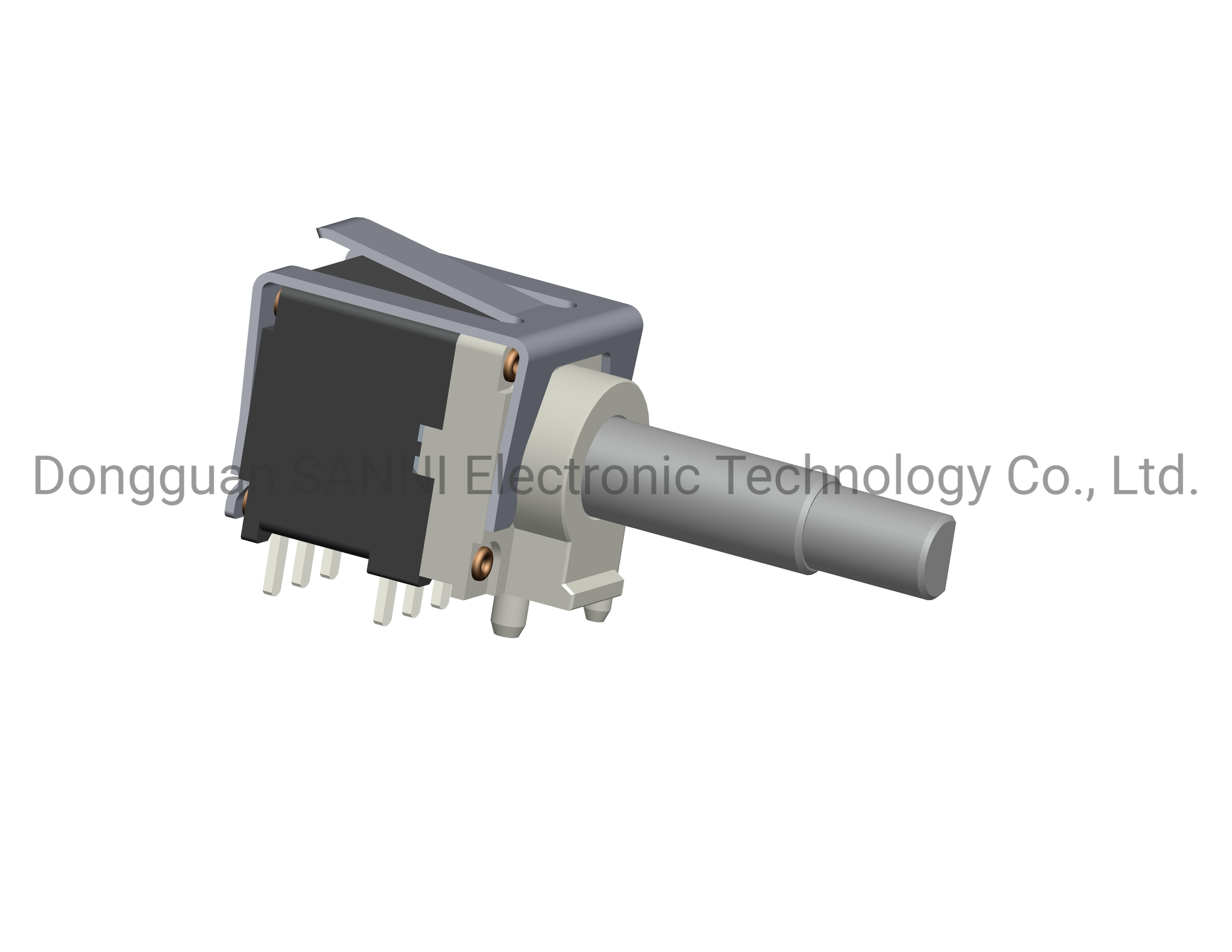

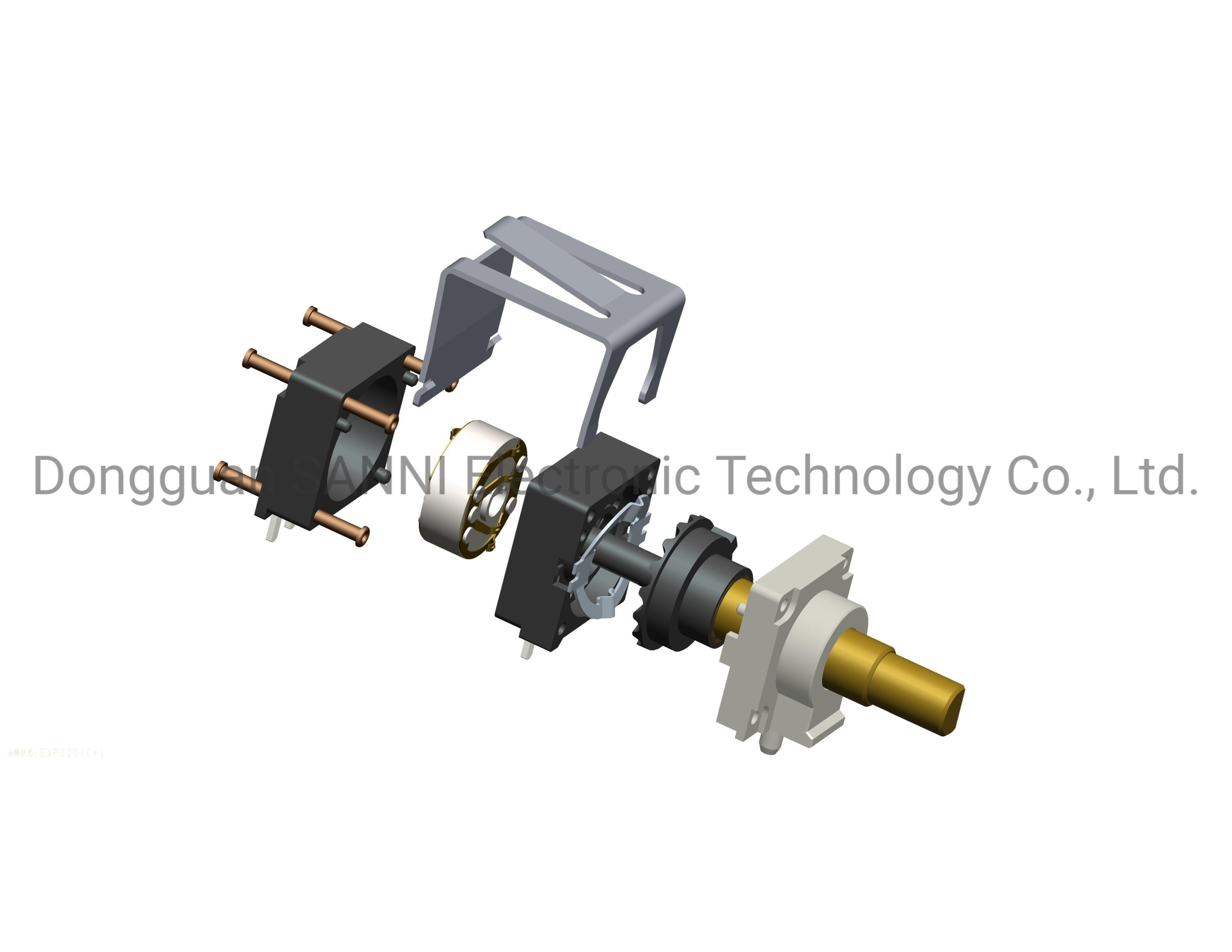

RE104010 10mm Metal Shaft Sealed Encoder

RE104010 10mm Metal Shaft Sealed Encoder
RE104010 10mm Metal Shaft Sealed Encoder
RE104010 10mm Metal Shaft Sealed Encoder RE104010 10mm Metal Shaft Sealed Encoder RE104010 10mm Metal Shaft Sealed Encoder RE104010 10mm Metal Shaft Sealed Encoder
Basic Information
Place of Origin: China
Brand Name: SANNI
Minimum Order Quantity: 2000PCS
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RE104010 Package: SMD
Installation Form: Axle Sleeve Type Axonia: Servo Installation Type
Transport Package: Carton Box Specification: 10mm
Trademark: SANNI Origin: China
Supply Ability: 100000PCS Per Year Type: Rotary Encoder
Working Principle: Absolute Readout Mode: Contact
Operating System: Contact Brush Type Signal Output: Long Drive Output
Axle Sleeve Type: Empty Type Samples: US$ 5/Piece 1 Piece(Min.Order) | Request Sample
Customization: Available | Customized Request
Highlight:

10mm Sealed Encoder

,

10mm Metal Shaft Sealed Encoder

,

RE104010 Sealed Encoder

Product Description

Company Info.

Basic Info.

Model NO.
RE104010
Package
SMD
Installation Form
Axle Sleeve Type
Axonia
Servo Installation Type
Transport Package
Carton Box
Specification
10mm
Trademark
SANNI
Origin
China
Production Capacity
100000PCS Per Year

Product Description

  • Features
  • RoHS compliant
  • Seal type
  • Small volume
  • Structural diversification
  • High quality
  • Application
  • Indeal for volume control and car amplifier,walkie-talkie.
  • Mechanical characteristics
  • Total rotational angel: Incremental:360°  Logic:300°±5º
  • Rotational torque: 150~350gf.cm
  • Rotational stopper strength :3Kgf.min
  • Shaft push-pull strength: 8Kgf.max
  • Shaft wobble: Max:0.6*L/20mm P-P max.
  • Electrical characteristics
  • Ratings power: 0.025W
  • Insulation resistance : 100mΩ min.250V DC
  • Voltage proof: 300V AC for 1 minute
  • Durability
  • Operating life without load: 20,000 cycles 100mΩ max.
  • Environmental performance
  • Cold: -40ºC±2ºC for 96h
  • Dry heat: 85ºC±2ºC for 96h
  • Damp heat: 40±2ºC, 90 to 95%RH for 96H
RE104010 10mm Metal Shaft Sealed Encoder 0 RE104010 10mm Metal Shaft Sealed Encoder 1 RE104010 10mm Metal Shaft Sealed Encoder 2 RE104010 10mm Metal Shaft Sealed Encoder 3 RE104010 10mm Metal Shaft Sealed Encoder 4 RE104010 10mm Metal Shaft Sealed Encoder 5 RE104010 10mm Metal Shaft Sealed Encoder 6 RE104010 10mm Metal Shaft Sealed Encoder 7 RE104010 10mm Metal Shaft Sealed Encoder 8 RE104010 10mm Metal Shaft Sealed Encoder 9 RE104010 10mm Metal Shaft Sealed Encoder 10 RE104010 10mm Metal Shaft Sealed Encoder 11

Tag:

Absolute Rotary Encoder Double Shaft

Absolute Rotary Encoder Dual Unit

Walkie Talkie Rotary Absolute Encoder
