Three-Unit Shaft Sealed Rotary Encoder for Walkie-Talkie Interphone
Description
1. Absolute encoder has many light channels on the light encode disk.
2. Each line in order with 2,4,8,16 lines... arrangement, so that in every position of the encoder,
3.Through reading the open and dark of each line, get a set of unique 2 zero code to 2 (Gray code), which is called n-bit absolute encoder.
4. Such an encoder is determined by the mechanical position of the photoelectric code plate, which is not affected by power off and interference.
5. Absolute rotary photoelectric encoder, because of its absolute unique, anti-interference, no power loss memory, has been increasingly widely used in the Angle, length measurement and positioning control in various industrial systems.
Features
1. Sealed design encoder with highly reliable performance.
2. Available in many different variants.
3. Push switch with 0.5mm travel or 1.5mm travel.
4. Shaft length and shape can be adjusted.
5. A variety of mounting methods for choice.
Specification
| Switch Performance |
| Circuit number: |
SPST |
| Rated power: |
1A 16V DC |
| Switch Torque: |
500gf.cm max |
| Switch Angle: |
40º max |
| Operating life without load: |
30,000 cycles 100mΩ max |
| Operating life with load: |
30,000 cycles 200mΩ max |
| Initial contact resistance: |
100mΩ max |
| Insulation resistance : |
100mΩ min.250V DC |
| Voltage proof: |
300V AC for 1 minute |
| Mechanical characteristics |
| Total rotational angel: |
300°±5º |
| Detent: |
16 |
| Rotational torque: |
150~350gf.cm |
| Rotational stopper strength : |
3Kgf.max/Alu; 3.5kgf max/Brass; 4.0kgf max/Stainless steel |
| Shaft push-pull strength: |
8Kgf.max |
| Rotational torque: |
20~200f.cm CC: click torque: 60~400gf.cm |
| Shaft wobble: |
Max:0.6*L/20mm P-P max |
| Vibration: |
10 to 50 to 10 Hz/min. the amplitude is 1.5mm for all the frequencies. |
| Electrical Performance |
| Number of pulse/detent |
16/16 |
| Features: |
with push switch/rotary switch |
| Insulation resistance : |
100mΩ min.250V DC |
| Voltage proof: |
300V AC for 1 minute |
| Durability |
| Operating life without load: |
20,000 cycles 100mΩ max |
| Environmental performance |
| Cold: |
-40ºC±2ºC for 96h |
| Dry heat: |
85ºC±2ºC for 96h |
| Damp heat: |
40±2ºC, 90 to 95%RH for 96H |
Application
Absolute rotary photoelectric encoder, because of its absolute unique, anti-interference, no power loss memory, has been increasingly widely used in the Angle, length measurement and positioning control in various industrial systems
It is mainly suitable for automotive electronics, household appliances. Household appliances like ovens and washing machines, audio products, timers and other related electronic devices. Mainly used to adjust the volume, temperature, frequency and function switching.
Our Advantage
1. More than 10 years of experience in research and development production design.

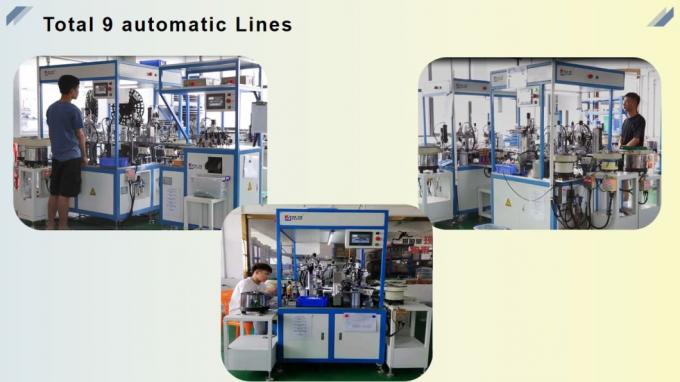

2. 4 automation production lines, more than 100 experienced workers for higher precision products.
