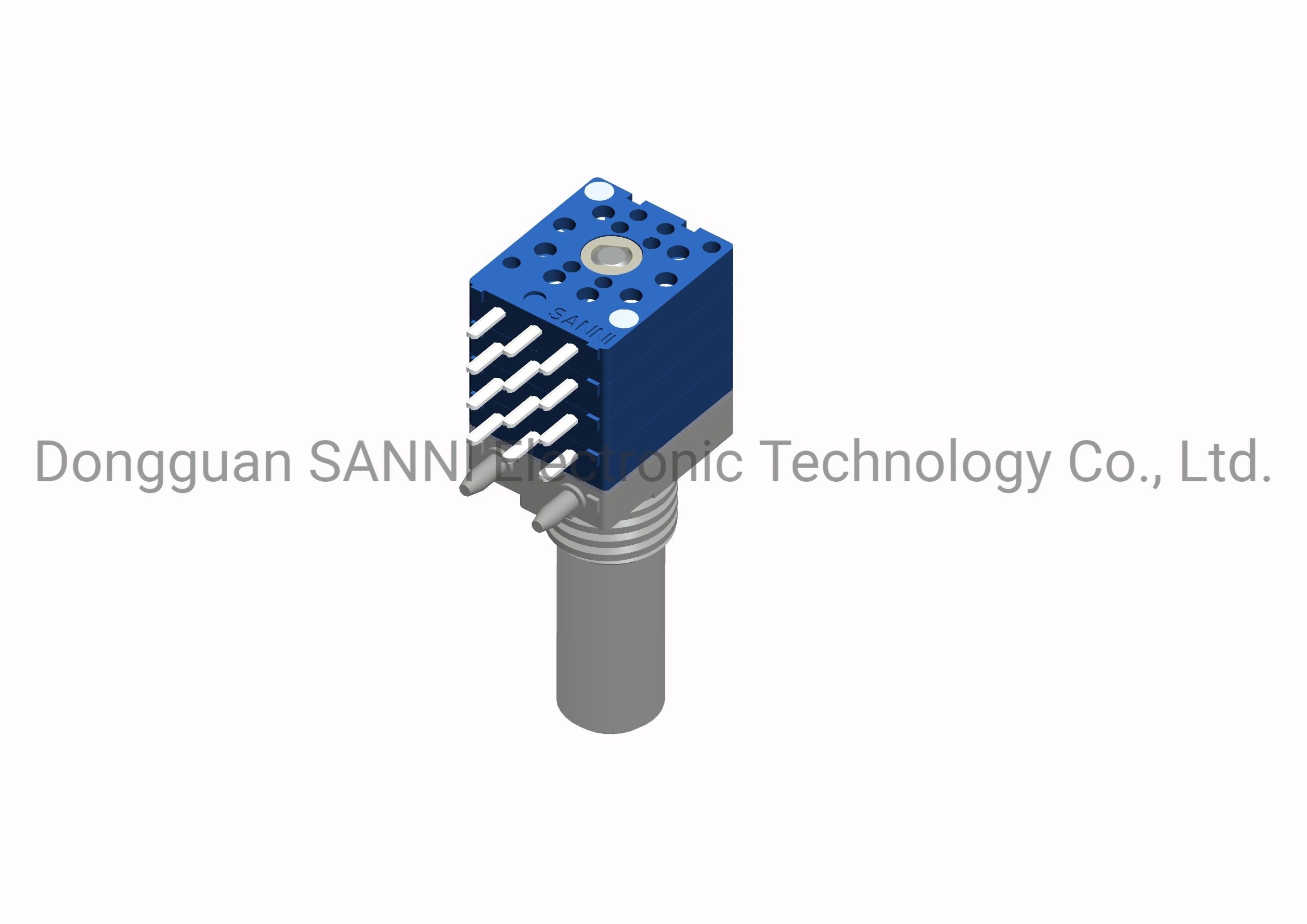

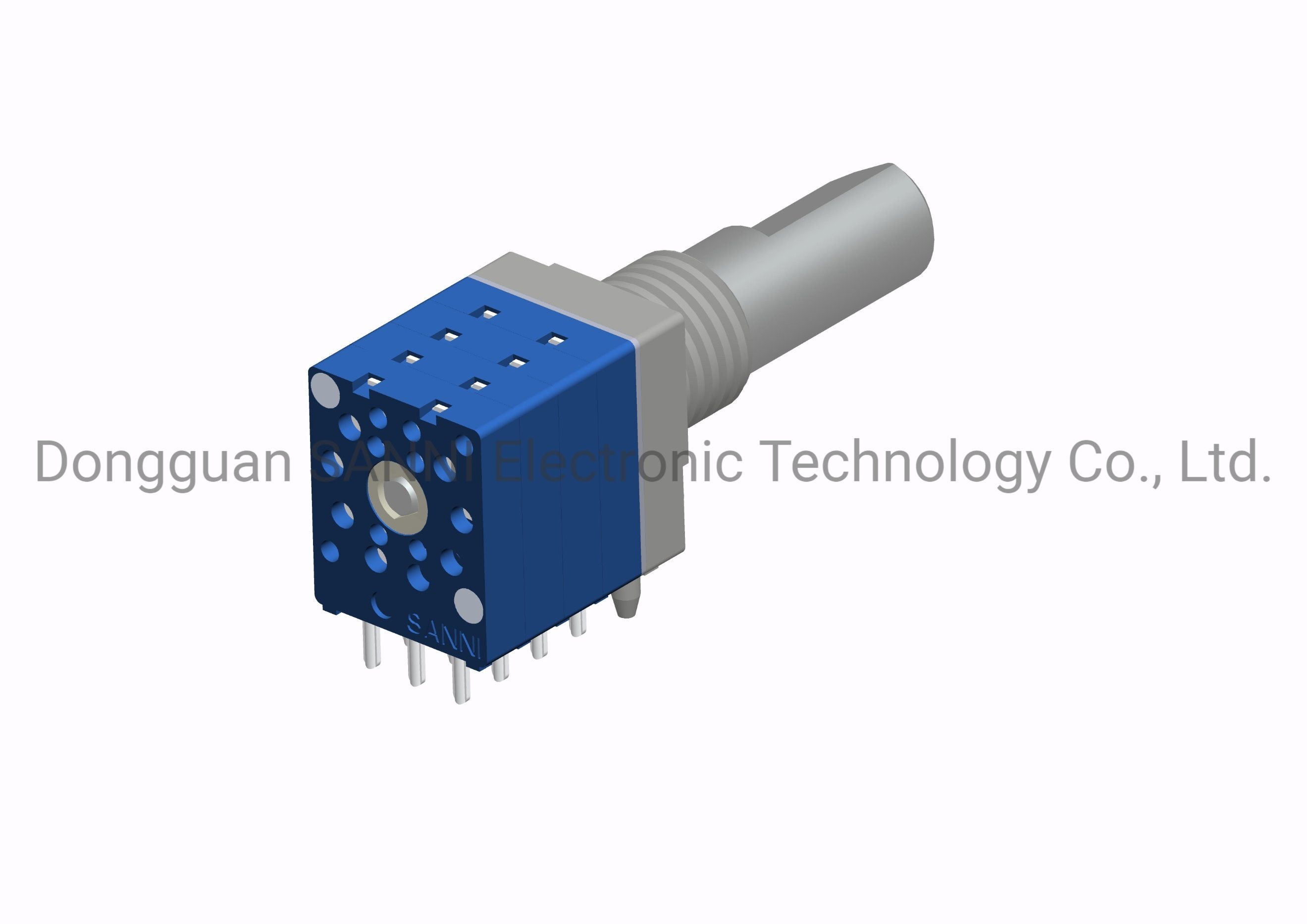

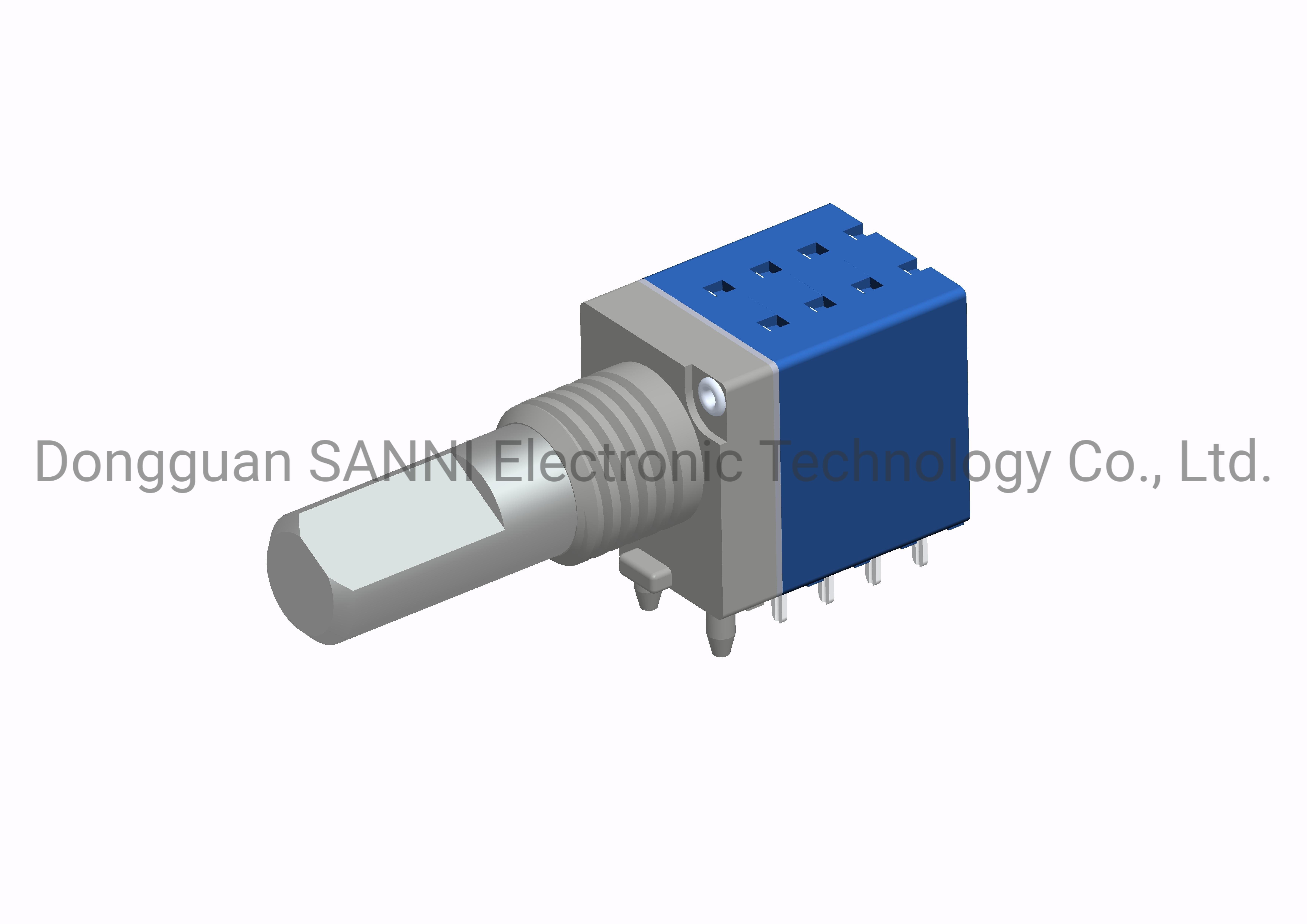

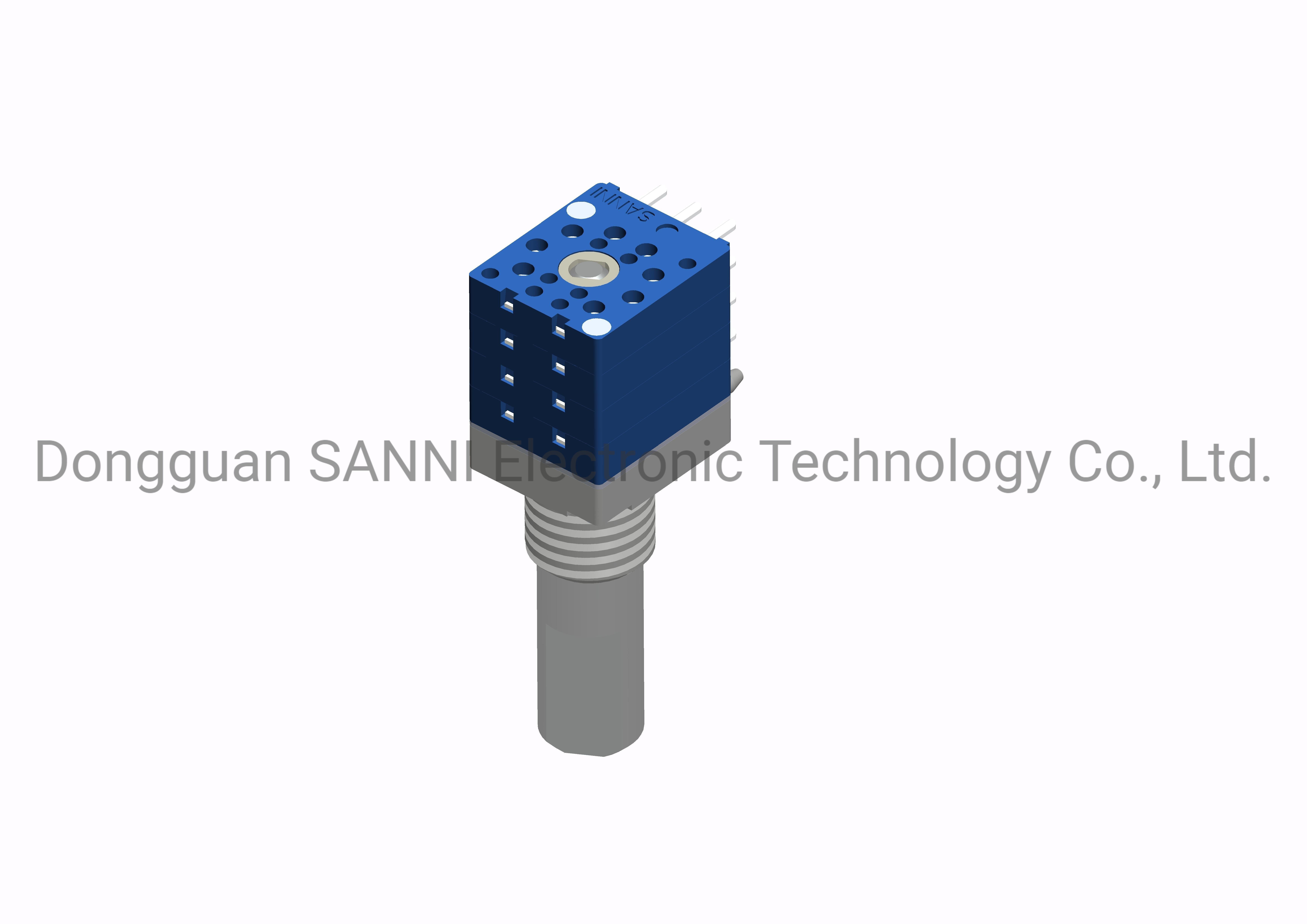

Absolute rotary photoelectric encoder, because of its absolute unique, anti-interference, no power loss memory, has been increasingly widely used in the Angle, length measurement and positioning control in various industrial systems.
Features
1. Samll size high repliable performance sealed design encoder.
2. Available in many different variants.
3. Push switch with 0.5mm travel or 1.5mm travel.
4. Shaft length and shape can be adjusted.
5. A variety of mounting methods for choice.
Specification
| Switch Performance |
| Circuit number: |
SPST |
| Rated power: |
1A 16V DC |
| Switch Torque: |
500gf.cm max |
| Switch Angle: |
40º max |
| Operating life without load: |
30,000 cycles 100mΩ max |
| Operating life with load: |
30,000 cycles 200mΩ max |
| Initial contact resistance: |
100mΩ max |
| Insulation resistance : |
100mΩ min.250V DC |
| Voltage proof: |
300V AC for 1 minute |
| Mechanical characteristics |
| Total rotational angel: |
300°±5º |
| Detent: |
16 |
| Rotational torque: |
150~350gf.cm |
| Rotational stopper strength : |
3Kgf.max/Alu; 3.5kgf max/Brass; 4.0kgf max/Stainless steel |
| Shaft push-pull strength: |
8Kgf.max |
| Rotational torque: |
20~200f.cm CC: click torque: 60~400gf.cm |
| Shaft wobble: |
Max:0.6*L/20mm P-P max |
| Vibration: |
10 to 50 to 10 Hz/min. the amplitude is 1.5mm for all the frequencies. |
| Electrical Performance |
| Number of pulse/detent |
16/16 |
| Features: |
with push switch/rotary switch |
| Insulation resistance : |
100mΩ min.250V DC |
| Voltage proof: |
300V AC for 1 minute |
| Durability |
| Operating life without load: |
20,000 cycles 100mΩ max |
| Environmental performance |
| Cold: |
-40ºC±2ºC for 96h |
| Dry heat: |
85ºC±2ºC for 96h |
| Damp heat: |
40±2ºC, 90 to 95%RH for 96H |
Application
Absolute rotary photoelectric encoder, because of its absolute unique, anti-interference, no power loss memory, has been increasingly widely used in the Angle, length measurement and positioning control in various industrial systems. It is mainly suitable for automotive electronics, household appliances. Household appliances like ovens and washing machines, audio products, timers and other related electronic devices;
Our Advantage
1.More than 10 years of experience in research and development production design.
2. 4 automation production lines, more than 100 experienced workers for higher precision products.
3. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype
4. 10+ dedicated and experienced engineers and designers in R&D department design, development and verification.

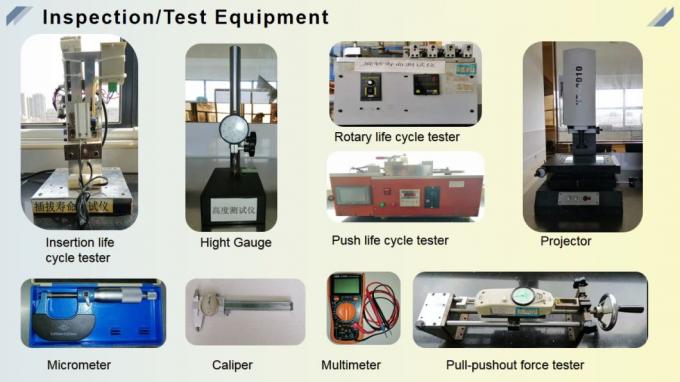

5. Professional Testing instruments and team to ensure product quality.
Our Services
1. Offer 1 year warranty
2. OEM/ODM service to meet all your needs
3. within 24 hours to reply your inquiries
4. Strong R&D team for technical support
5. Offer free sample for test
FAQ
Q: Can I get sample from you?
A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.
Q: Do you accept customization?
A: Yes, customization is acceptable, please contact our sales staffs for consult.
Q: Can you provide help for technical issues?
A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.
