- Mechanical characteristics
-
| Total rotational angel: Incremental: |
Incremental:360° Logic:300°±5º |
| Rotational torque: |
150~350gf.cm |
| Rotational stopper strength : |
3Kgf.min |
| Shaft push-pull strength: |
8Kgf.max |
| Shaft wobble: |
Max:0.6*L/20mm P-P max |
- Electrical characteristics
-
| Ratings power: |
0.025W |
| Insulation resistance : |
100mΩ min.250V DC |
| Voltage proof: |
300V AC for 1 minute |
- Environmental performance
-
| Cold: |
-40ºC±2ºC for 96h |
| Dry heat: |
85ºC±2ºC for 96h |
| Damp heat: |
40±2ºC, 90 to 95%RH for 96H |
Features
1. Sealed design encoder with highly reliable performance.
2. Available in many different variants.
3. Push switch with 0.5mm travel or 1.5mm travel.
4. Shaft length and shape can be adjusted.
5. A variety of mounting methods for choice
Application
Absolute rotary photoelectric encoder, because of its absolute unique, anti-interference, no power loss memory, has been increasingly widely used in the Angle, length measurement and positioning control in various industrial systems
It is mainly suitable for automotive electronics, household appliances. Household appliances like ovens and washing machines, audio products, timers and other related electronic devices;
Mainly used to adjust the volume, temperature, frequency and function switching
Our Factory
Dongguan SANNI Electronics Technology Co., Ltd. have more than 10year of experiences in design and manufacture of potentiometer, encoder, switches and other electronics components. Factory covers 1,2000 square meters facility areas with 180+ employees. We have professinal and good technical and sales teams to serve your needs.
Our Advantage
1. 4 automation production lines, more than 100 experienced workers for higher precision products.
2. 10+ dedicated and experienced engineers and designers in R&D department.
3. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.

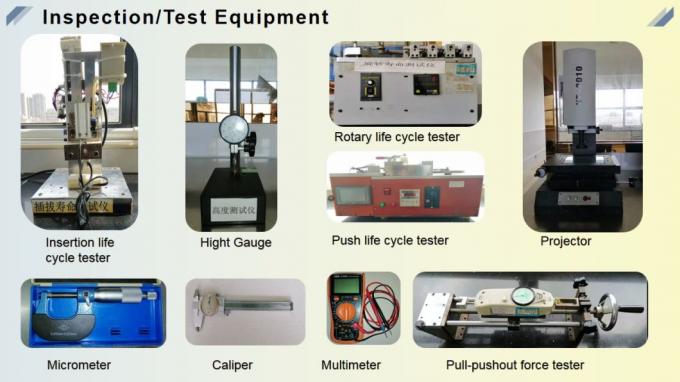

4. Professional Testing instruments and team to ensure product quality.
Our Services
1. Offer 1 year warranty
2. OEM/ODM service to meet all your needs
3. within 24 hours to reply your inquiries
4. Strong R&D team for technical support
5. Offer free sample for test
FAQ
• Q: Can I get sample from you?
• A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.
• Q: Do you accept customization?
• A: Yes, customization is acceptable, please contact our sales staffs for consult.
• Q: Can you provide help for technical issues?
• A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.
