8mm Double Shaft Absolute Rotary Encoder Incremental Integrated With Rotary Switch

Basic Information
Place of Origin: China
Brand Name: SANNI
Certification: ISO9001
Model Number: RE8212NS
Minimum Order Quantity: 2000PCS
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Axonia: Servo Installation Type Shaft Material: Metal
Transport Package: Carton Boxes Specification: 8MM
Trademark: SANNI Origin: Dongguan
Type: Rotary Encoder Working Principle: Incremental
High Light:

Absolute Rotary Encoder Incremental

,

Absolute Rotary Encoder Integrated

,

8mm rotary encoder incremental

8mm Double Shaft Integrated Potentiometer Encoder with Rotary Switch







Description



Absolute encoder has many light channels on the light encode disk, each line in order with 2,4,8,16 lines... arrangement, so that in every position of the encoder, by reading the open and dark of each line, get a set of unique 2 zero code to 2 (Gray code), which is called n-bit absolute encoder. It is mainly suitable for automotive electronics, household appliances. Household appliances like ovens and washing machines, audio products, timers and other related electronic devices;

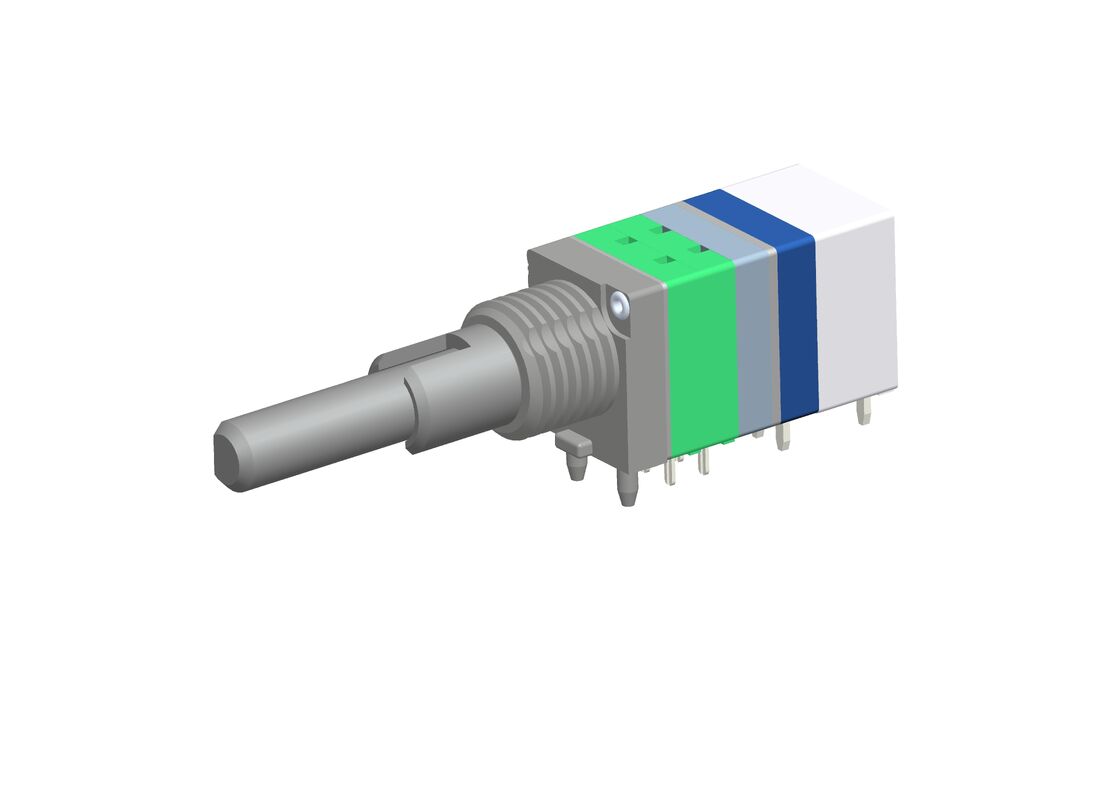

8mm Double Shaft Absolute Rotary Encoder Incremental Integrated With Rotary Switch 0



Specification



Switch Performance
Circuit number: SPST
Rated power: 1A 16V DC
Switch Torque: 500gf.cm max
Switch Angle: 40º max
Operating life without load: 30,000 cycles 100mΩ max
Operating life with load: 30,000 cycles 200mΩ max
Initial contact resistance: 100mΩ max
Insulation resistance : 100mΩ min.250V DC
Voltage proof: 300V AC for 1 minute
Mechanical characteristics
Total rotational angel: 300°±5º
Detent: 16
Rotational torque: 150~350gf.cm
Rotational stopper strength : 3Kgf.max/Alu; 3.5kgf max/Brass; 4.0kgf max/Stainless steel
Shaft push-pull strength: 8Kgf.max
Rotational torque: 20~200f.cm CC: click torque: 60~400gf.cm
Shaft wobble: Max:0.6*L/20mm P-P max
Vibration: 10 to 50 to 10 Hz/min. the amplitude is 1.5mm for all the frequencies.
Electrical Performance
Number of pulse/detent 16/16
Features: with push switch/rotary switch
Insulation resistance : 100mΩ min.250V DC
Durability
Operating life without load: 20,000 cycles 100mΩ max
Environmental performance
Cold: -40ºC±2ºC for 96h
Dry heat: 85ºC±2ºC for 96h
Damp heat: 40±2ºC, 90 to 95%RH for 96H





Features



1. Sealed design encoder with highly reliable performance.

2. Available in many different variants.

3. Push switch with 0.5mm travel or 1.5mm travel.

4. Shaft length and shape can be adjusted.

5. A variety of mounting methods for choice





Application



Absolute rotary photoelectric encoder, because of its absolute unique, anti-interference, no power loss memory, has been increasingly widely used in the Angle, length measurement and positioning control in various industrial systems. Mainly used to adjust the volume, temperature, frequency and function switching
