Home ProductsRotary PotentiometerRV24YN20SB103 Rotary 24mm Potentiometer For Mechanical Medical Equipment

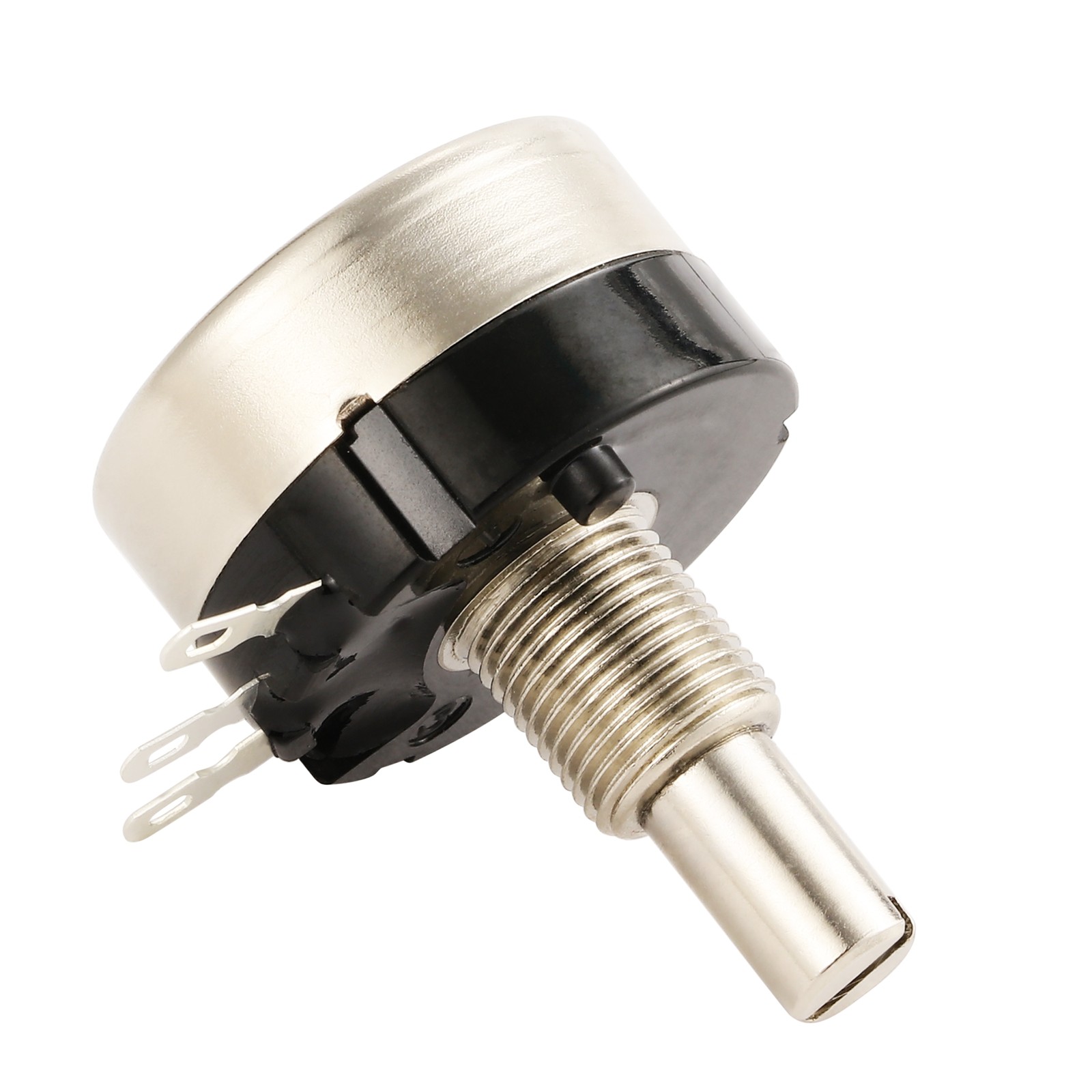

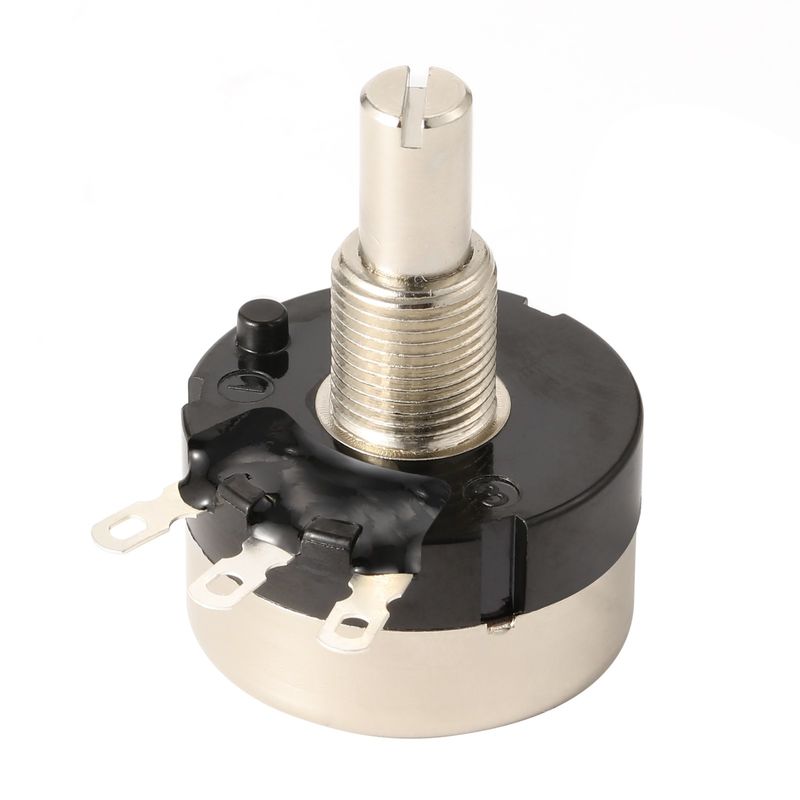

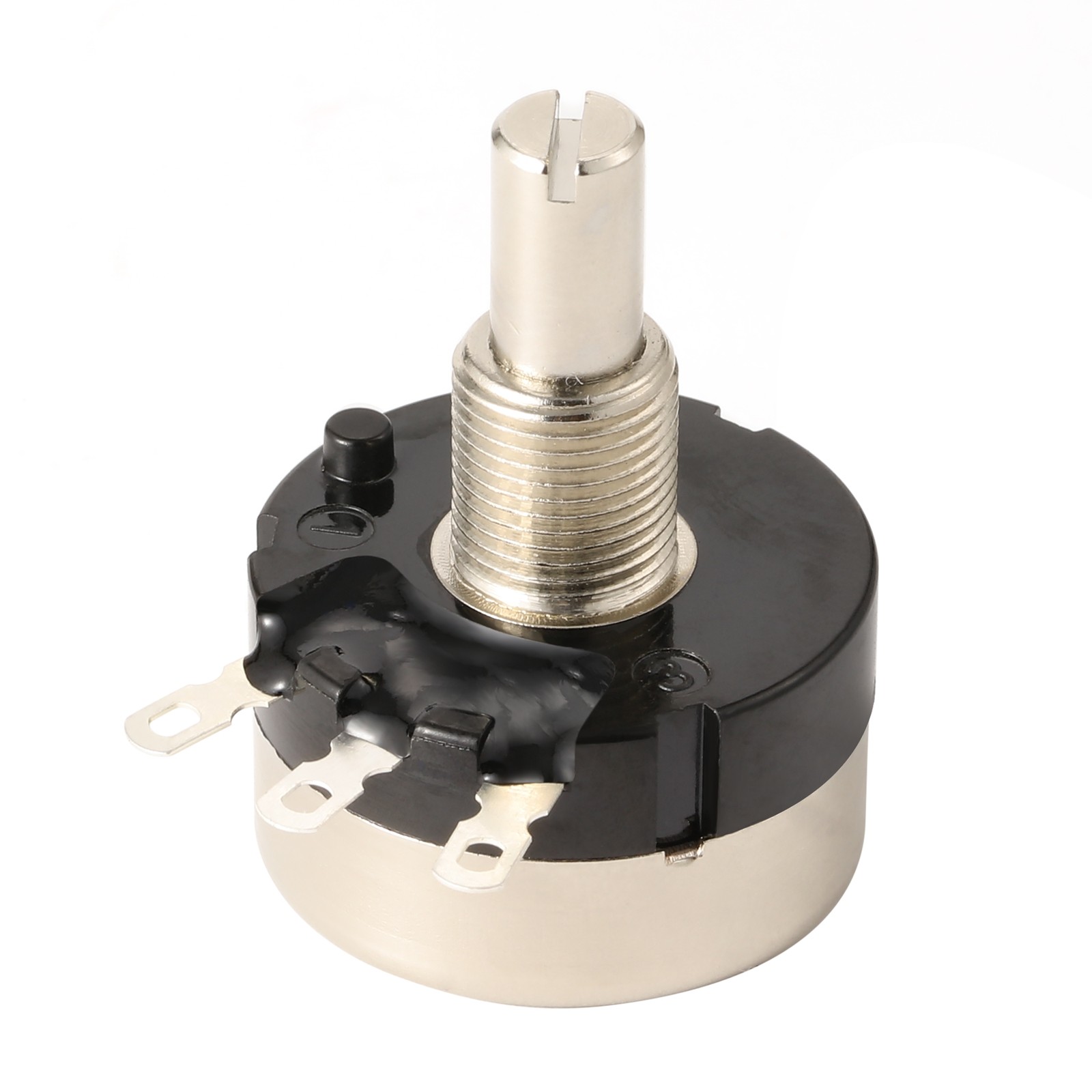

RV24YN20SB103 Rotary 24mm Potentiometer For Mechanical Medical Equipment

RV24YN20SB103 Rotary 24mm Potentiometer For Mechanical Medical Equipment
RV24YN20SB103 Rotary 24mm Potentiometer For Mechanical Medical Equipment
RV24YN20SB103 Rotary 24mm Potentiometer For Mechanical Medical Equipment RV24YN20SB103 Rotary 24mm Potentiometer For Mechanical Medical Equipment
Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: RV24YN20SB103
Minimum Order Quantity: 2000PCS
Price: USD5~USD5.5per pc
Packaging Details: 2000PCS/BOX
Delivery Time: 25 Working days
Payment Terms: T/T
Supply Ability: 30000pcs/Month
Contact Now
Model NO.: RV24YN20SB103 Mount Direction: Horizontal
Units: Single Shell Material: Brass With Nickel Plating
Base Material: ABS Black Terminal: Copper With Silver Plating
Resistance: 10KΩ Customization: Available | Customized Request
High Light:

Rotary 24mm Potentiometer

,

Mechanical 24mm Potentiometer

,

RV24YN20SB103

RV24YN20SB103 Rotary Potentiometer 24mm Metal Shaft Potentiometer For Mechanical and Medical Equipment



Application of Rotary Potentiometer



Rotary Potentiometer is mainly suitable for communication products,  automobile power amplifier,multimedia audio, and other electronic equipment, but also can use medical equipment, household appliances.It's main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.



Features of Rotary Potentiometer



Good sealing performance

Using plastic sealing structure, can effectively deal with wave welding.

Push-pull switch or rotating switch can be chosen.

Can be with positioning.

Shaft length and shape can be adjusted.

A variety of mounting methods for choice.



RV24YN20SB103 Rotary 24mm Potentiometer For Mechanical Medical Equipment 0



Specification of Rotary Potentiometer



1.Mechanical Characteristics
Rotation stopper strength 900N・m min．(9.18kgf・cm min.)
Total rotation angle 300o±5o
Totational torque 5 ～ 30mN・m (51 to 306gf・cm)
Key push-pull strength Min:8Kgf
Terminal Strength 5N for 1 minute
2.Electrical Characteristics
Total resistance 1KΩ-2MΩ
Total resistance tolerance ±10%
Residual resistance 3Ω Max
Rated Power

 At 40℃: B :0.4W ／ R ≦ 1kΩ , 0.3W ／ 1kΩ <R ≦ 10kΩ , 0.25W ／ 10kΩ <R
 A, C :0.2W ／ R ≦ 1kΩ , 0.2W ／ 1kΩ <R ≦ 10kΩ , 0.15W ／ 10kΩ <R
At 85℃ : OW
Insulation resistance 100MΩ min．(DC 1,000V)
Dielctrical proof AC 1,000V １minute
Electrical angle 280 ± 10°
3.Environmental Performance
Operating temperature range -10oC to +85oC
4.Welding Performance
Reference for hand soldering 235℃ 5sec.



Our Services



1. Offer 1 year warranty

2. OEM/ODM service to meet all your needs

3. within 24 hours to reply your inquiries

4. Strong R&D team for technical support

5. Offer free sample for test
