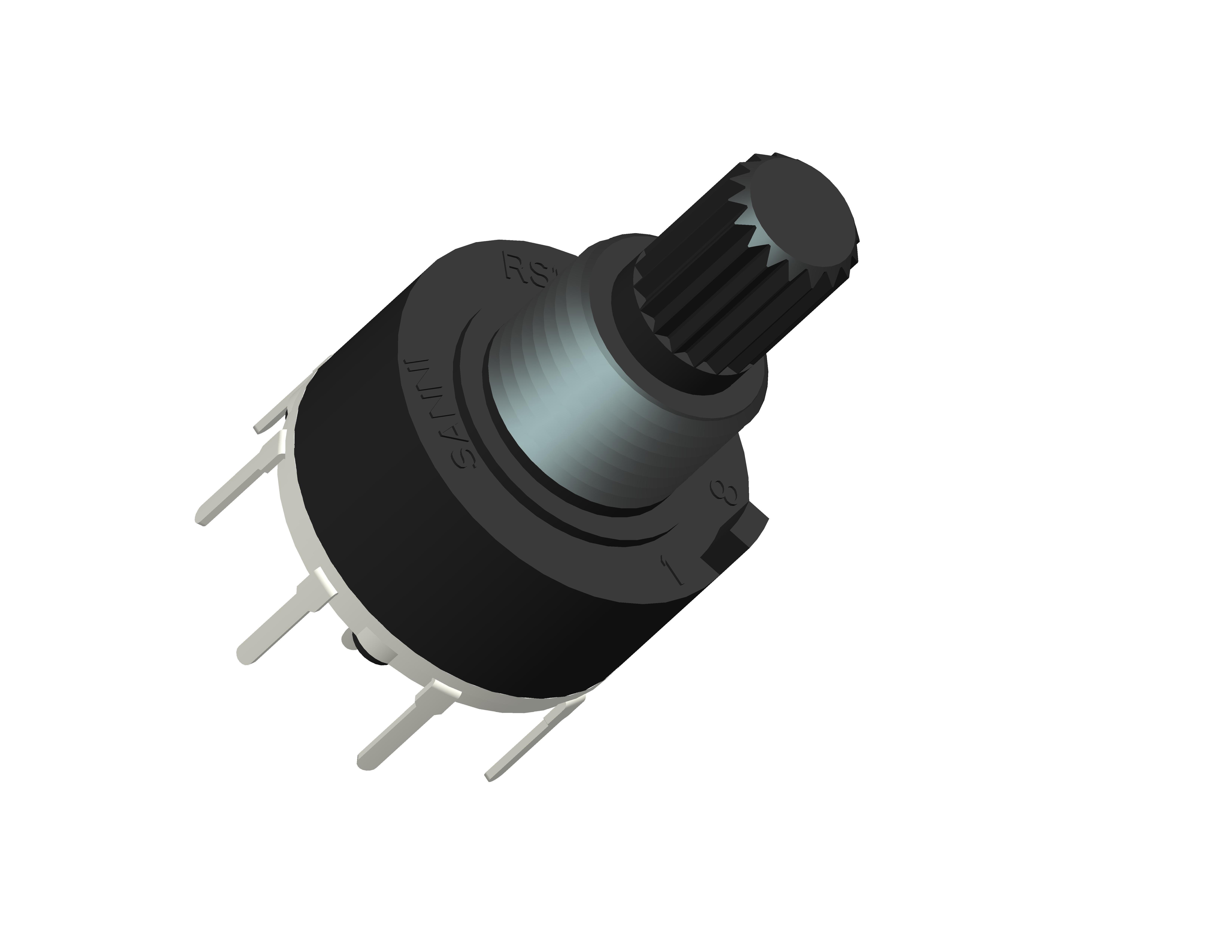

Name: 2 Pole 2 Position Rotary Switch Channel Selecting Band 16MM RS16211-2P2T
Brand: Dongguan SANNI Electronics Technology Co., Ltd.
SKU: RS16211-2P2T
Price: 0.30 USD
Availability: InStock

2 Pole 2 Position Rotary Switch Channel Selecting Band 16MM RS16211-2P2T

Basic Information

Place of Origin:	China
Brand Name:	SANNI
Model Number:	RS16211-2P2T

Minimum Order Quantity:	2000PCS
Price:	USD0.3~0.5 per pc
Packaging Details:	1000pcs per Carton box,
Delivery Time:	25 Working days
Payment Terms:	T/T
Supply Ability:	10000pcs per Month

Contact Now

Model NO.:

RS16211-2P2T

Specification:

16MM

Circuit:

2Pole And 2 Position

Structure:

Screw Shank

Trademark:

SANNI

Operation:

Knob

Highlight:

2 Pole 2 Position Rotary Switch

2 Position Rotary Switch Channel Selecting

16MM 2 Pole Rotary Switch

RS16211-2P2T Rotary Switch Channel Selecting Band Switch

Description of Rotary Switch

The rotary switch is a switch operated by rotation. They are often be chosen when more than 2 locations are needed, such as a three-speed fan or CB radio with multiple receiving frequencies or "channels". The rotary switch will always have clear click sound when you rotate it to change the band.

Application:

Used as channel selectors on signal receivers, as well as range selectors on electric meter equipment and band selectors on multi-band radios, etc....

Product Specifications

1.Electrical Characteristics
Rating(max.)/(min.)(Resistive load)	0.1A 16V DC/50uA 3V DC
Contact Resistance(Initial/After Operating life)	100mΩmax.
Insulation resistance	100MΩ min. 100V DC
Voltage proof	100V AC for 1 minute
2.Mechanical Characteristics
Switching Angle	RS121:30^o±3^o
Rotation Stopper strengh	Min:5Kgf
Totational torque	30±15mN.m
Shaft push-pull strength	Min:8Kgf
Terminal Strength	5N for 1 minute
Shaft Wobble	Max: 0.6*L/20mm P-P
3.Durability
Operating life without load	10,000 cycles 100mΩ max
Operating life with load Load:as rating	10,000 cycles 150mΩ max
4.Environmental Performance
Operating temperature range	-10oC to +85oC
Storage temperature range	-40oC to +85oC
5.Welding heat reference
Manual Soldering	350oC±10oC/3+1S
Wave Soldering	260oC±5oC/10±1S
Reflow Soldering	See temperature distribution on data sheet
