BT10-001A 10 Position Terminal Block Barrier Type For Car Amplifier

Basic Information
Place of Origin: China
Brand Name: SANNI
Model Number: BT10-001A
Minimum Order Quantity: 1000pcs
Price: USD1.5~2.5 per pc
Packaging Details: 150pcs per Carton box,
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 10000pccs per Month
Model NO.: BT10-001A Position: 10 Postions
Brand: RORUDA Shape: Rectanglular
PCB Mount: Insertion And Welding Samples: Free Sample With Freight Collecting Ship
Highlight:

10 Position Terminal Block Barrier Type

,

Amplifier 10 Position Terminal Block

BT10-001A 10 Position Panel Barrier Terminal Block For Car Amplifier



Descriptions



Using the terminal blocks is a convenient and economical method for distributing an electrical circuit from a single input source, to several devices in the branch circuit. Thus reducing the total number of wires in your electrical panel and saving your money and time.



Features of Terminal Block



Long life and Good Cosmetic Performance

Stable distributing performance

RoHS Compliant



Applications:



Car amplifier audio signal distribution and power distribution/connection.

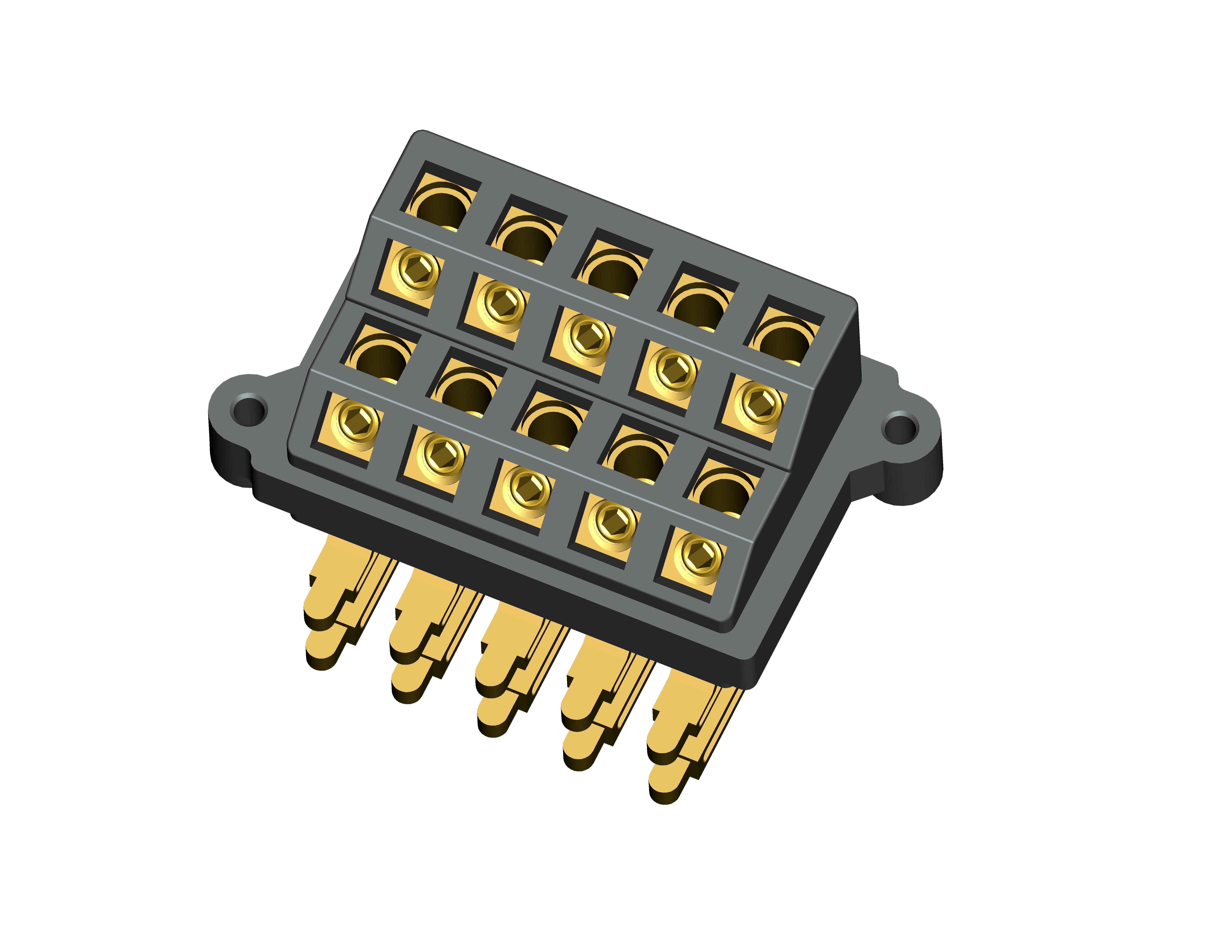

BT10-001A 10 Position Terminal Block Barrier Type For Car Amplifier 0



Product Specifications



1.Materials & Finish Spec
Screw: Steel , Finish: Nickel plating with Copper underneath
Terminal: Zinc Alloy, Finish: Tin/Nickel/with Copper underneath or Gold plating
Body: PBT or PC UL94-V0
2.Electrical Characteristics
Rated voltage: 300VDC
Rated current: 35A
Insulation resistance: ≥1000OHM
Wire range: 12-22AWG with standing
Withstand voltage: 1500V AC/minute
3.Mechanical Specification
Torque: 15.7Lb/in
Installation: PCB Insertion and Welding
Operating temperatures: -40°C to 85°C



Our Services



1. Offer one year warranty

2. OEM/ODM service to meet all your requirement

3. 24 hours to reply your inquiries

4. Strong R&D team for technical supporting

5. Offer free sample for test





FAQ



Q: Can I get sample from you?

A: Yes, we can offer free samples for your testing, please contact us freely and tell us which product you need.

Q: Do you accept customization?

A: Yes, customization is acceptable, please contact our sales staffs for details.

Q: Can you provide help for technical issues?

A: Yes, we have more than 10 years of R&D in the industry. If you need technical support, please feel free to contact us.

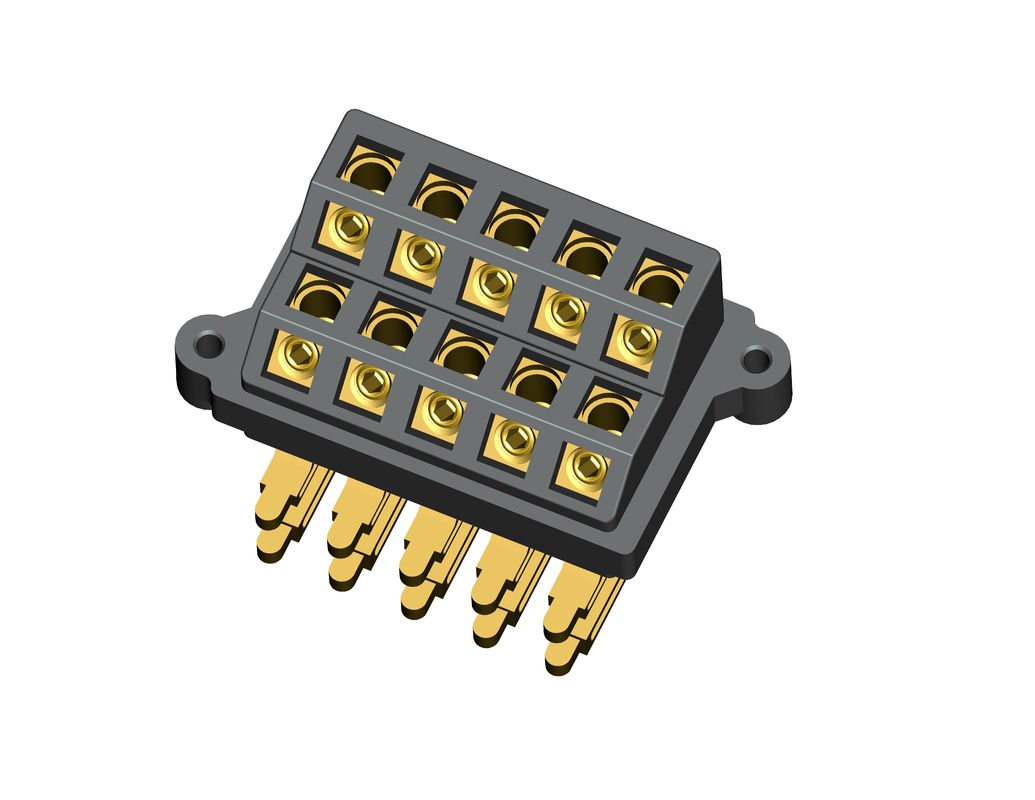

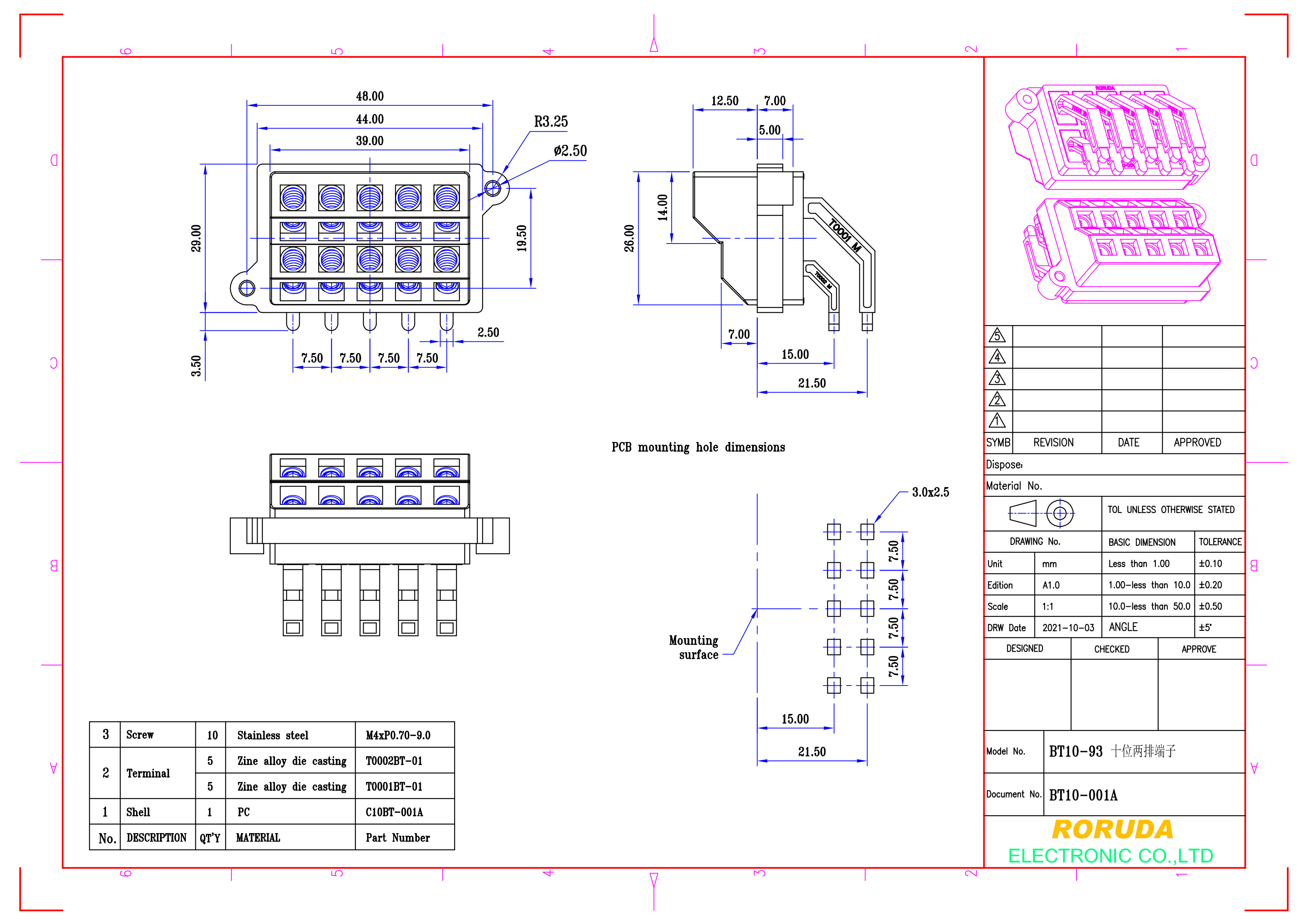

BT10-001A 10 Position Terminal Block Barrier Type For Car Amplifier 1BT10-001A 10 Position Terminal Block Barrier Type For Car Amplifier 2BT10-001A 10 Position Terminal Block Barrier Type For Car Amplifier 3
