Single Phase Custom Toroidal Power Transformer , Winding Toroidal Coil Choke

Basic Information
Place of Origin: China
Brand Name: Sanni
Model Number: TOT-15
Minimum Order Quantity: 1000pcs
Packaging Details: carton box
Delivery Time: 30days
Payment Terms: L/C
Material: Cooper Wire Phase: Single
Cooling Method: Dry-type Transformer Winding Type: Separated Winding Transformer
Frequency Characteristics: High Frequency Usage: Single-phase Transformer, Power Transformer
Shape Of Core: Ring Rated Capacity:: 120VA
Coil Structure: Toroida Coil Number:: Autotransformer Or Isolation Transformer
High Light:

Winding Custom Toroidal Power Transformer

,

Custom Toroidal Power Transformer Choke

,

Single Phase Toroidal Coil Choke

Customized winding coil choke filter power winding coil choke ferrite coil transformer





Description



A toroidal transformer is a power transformer in which both the primary and secondary coils are wound around a toroidal iron core. When a current flows through the primary winding, it causes an electromotive force (EMF), which then creates a current in the secondary winding, thereby transferring power from the primary to the secondary. Annular transformer is a kind of competitive electronic transformer because of its excellent performance-price ratio, good output characteristics and anti-interference ability.

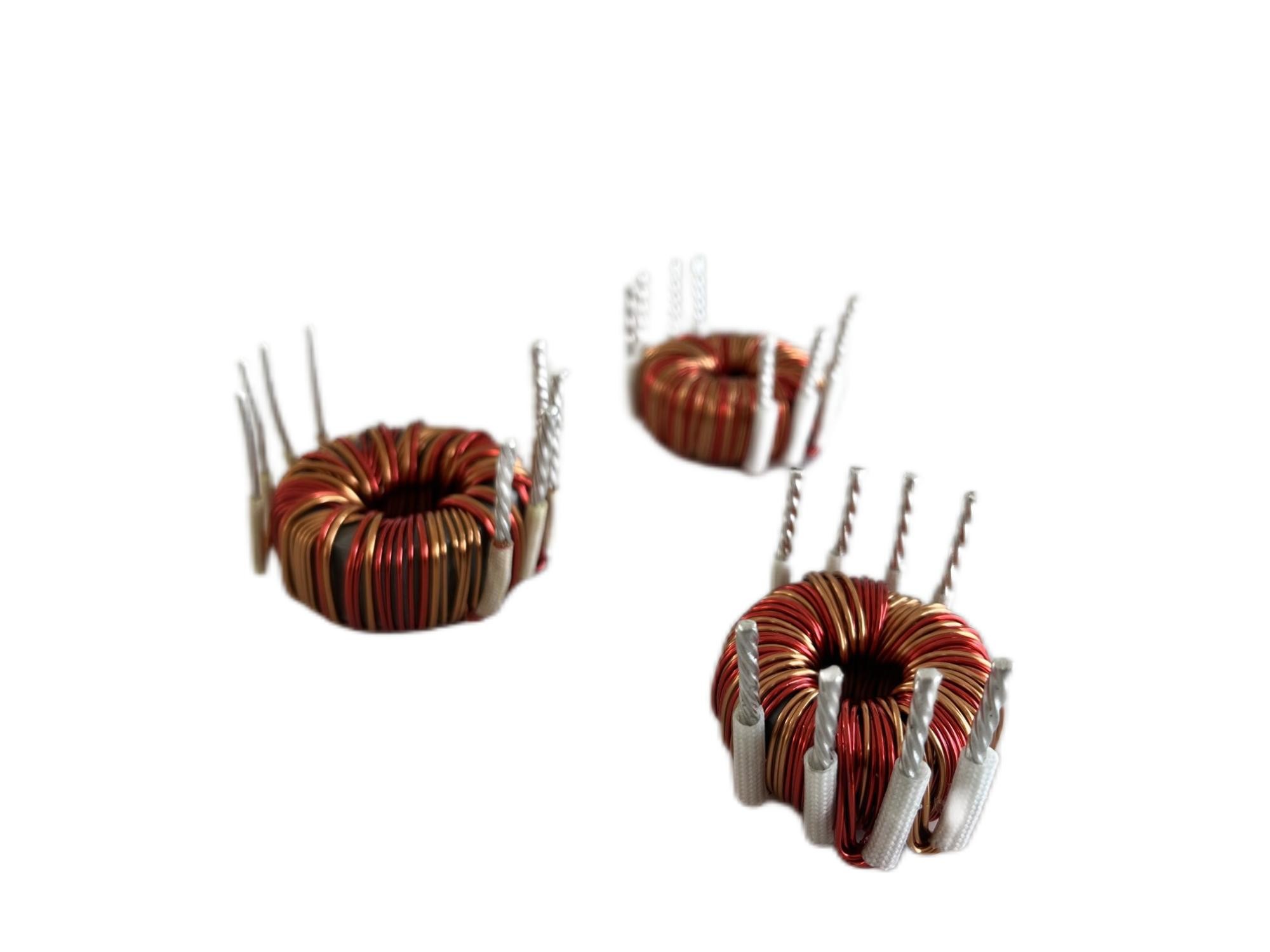

Single Phase Custom Toroidal Power Transformer , Winding Toroidal Coil Choke 0



Features


1. Industrial Copper wire , double insulation

2. High Efficiency, Strong Stability

3. Endure High Temperature

4. Core: Low power loss and high Bs

5. Insulation Tube: High stage and high dielectric strength

6. Polyster Film tape: High temp resistence, 94V-1, 3KV withstand voltage





Specification



Type: Toroidal Transformer
Product Name Net Transforemer
Core Grain oriented silicon steel 027P090 or equal, OD*ID*H:105*55*40
Transformer temperature rising ≤45°C
Working Frequency 50~50Hz
Power 180W
Lead Wire 500mm
Sedondary Voltage Drop ≤4%







Application



toroidal transformer was mainly used for the following fields:



1, audio equipment: ring transformer can be used for 3 types of high power high fidelity amplifier as a power transformer of high performance products, as well as for small and medium power audio equipment power transformer. Power range from 6VA to 1000VA can use high quality ring transformer.

2, electrical control: such as current and voltage transformer. The high precision and high stability transformer made of annular transformer technology can ensure that the transformer parameters are accurate and the performance is completely consistent.

3, medical equipment: specially designed and manufactured for medical equipment ring transformer, in addition to high efficiency, high reliability and high safety requirements, but also especially strengthen the electrical strength and improve the resistance to humidity and heat performance.





Our Advantage



Design and prototype& automation basis in Dongguan which is the manufacturing center of South China.

10+ dedicated and experienced engineers and designers in R&D department.

Manufacture Center in Sichuan Province which is close to Yangzi River wharf and Chongqing Airport .

10+ production lines, 100+ experienced managers and workers.

Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.





Our Services



1. Can customize to meet all your need

3. Within 24 hours to reply your inquiries

4. Strong R&D team for technical support

5. Flexible lead time and can accept lower MOQ





FAQ



Q: Can you do OEM/ODM?

A: Yes, both OEM and ODM services are acceptable and we can also print your logo and make your packaging according to your requirements.



Q: How is your product quality?

A: We always put emphasis on the quality of our product. Our product are 100% tested and inspected before shipment.



Q: Are you a factory or a trading company?

A: We are the manufacturer of foot switch......



Q: How do you ship the goods?

A: The products will be sent to you by optional shipping service, such express, air cargo, sea transportation.
