Model NO.: | WLC20002 | Application: | Car Amplifier |
---|---|---|---|
Resistance Change Scale: | Linear Or Log | Type: | Rotary Potentiometer |
Specification: | 9mm Potentiometer | Customization: | Available | Customized Request |
Product Description

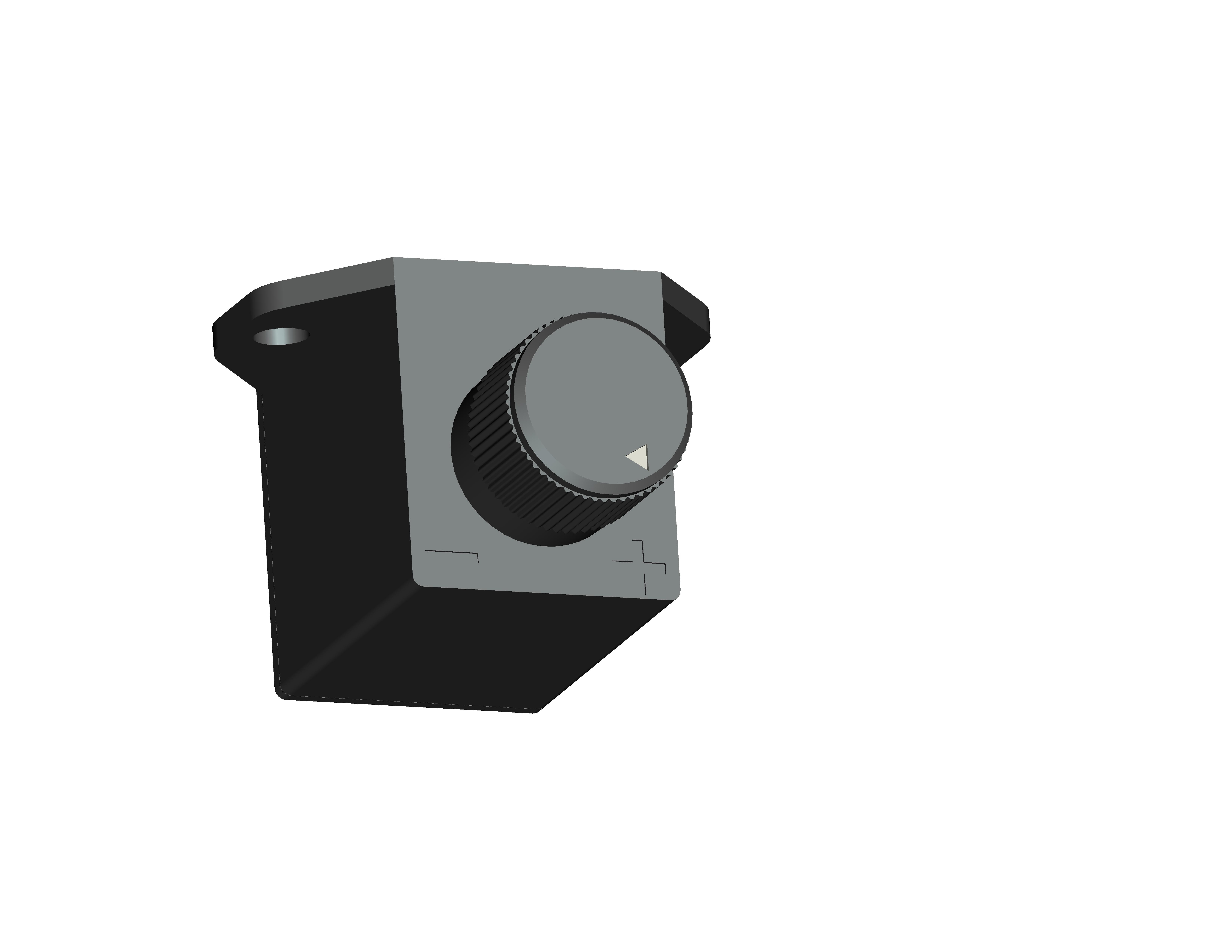

The car amplifier remote control box is customized to make the traditionaly remote components to an ingegrated remote box to match customer's car amplifier for convenient installation. The design and prototype jobs are all done by SANNI's engineer per customer's request.The key component of the box is SANNI's potentiometer which has stable and high quality performance.
Product Features
Seal type
IP67 Water proof
Can mark customer's logo
Smooth rotation feeling
Taper and gangs--can customize
Cable length -- can customzie
Plug type-- can customize
Complaint to Rohs directive
Product Specification
1.Mechanical Characteristics | |
Total rotation angle | 300o±5o |
Totational torque | 10-150gf.cm |
Key push-pull strength | Min:8Kgf |
Rotation stopper strength | Min:4Kgf |
Terminal Strength | 5N for 1 minute |
Key Wobble | Max: 0.6*L/20mm P-P |
2.Electrical Characteristics | |
Total resistance | 100Ω-3MΩ |
Total resistance tolerance | 50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30% |
Rated Power | 0.05W |
Residual resistance | 10ΩMax |
Maximum operation voltage | 50V AC/10V DC |
Insulation resistance | 100MΩ min. 250V DC |
Voltage proof | 300V AC for 1 minute |
Gang error applicable for Dual unit parts for audio volume control purposes | -40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.) |
4.Environmental Performance | |
Operating temperature range | -10oC to +70oC |
Storage temperature range | -40oC to +85oC |
