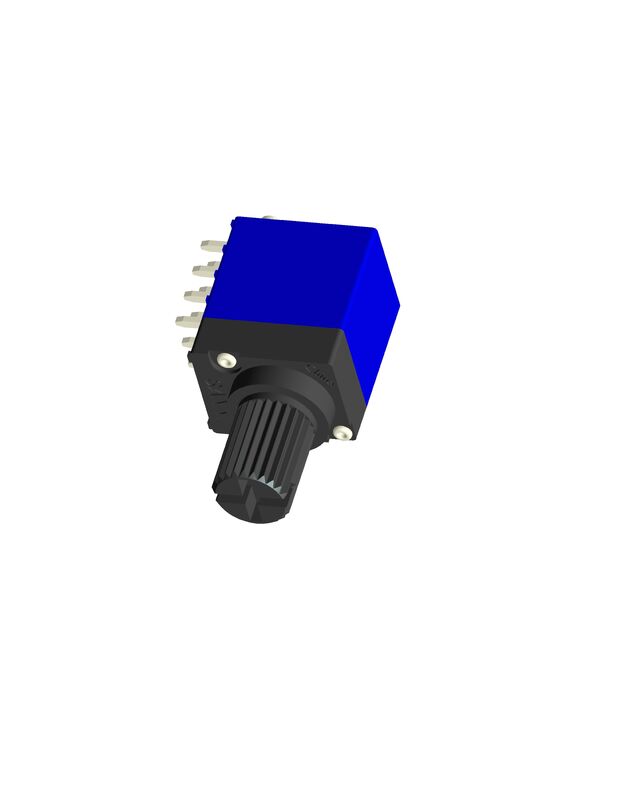

Insulation Resistance 100MΩ Min Rotary Adjustable Resistor For Performance 300Ω-3MKΩ

Basic Information
Place of Origin: Dongguan China
Brand Name: SANNI
Dielectric Strength: 500VAC Terminal Type: PCB/Solder Lug
Shaft Length: 6mm-20mm Normal Or Customized Mounting Type: Through Hole/Surface Mount
Operating Temperature: -25℃-85℃ Shaft Type: Round/Flat/knurled
Insulation Resistance: 100MΩ Min Resistance Tolerance: ±20%
High Light:

Insulation Resistance Rotary Adjustable Resistor

,

3MKΩ Rotary Adjustable Resistor

Insulation Resistance 100MΩ Min Rotary Adjustable Resistor For Performance 300Ω-3MKΩ

Product Description:

Rotary Potentiometer

Rotary Potentiometer is a type of electronic component that is used to adjust and control the flow of electric current in a circuit. It is also known as a Rotary Adjustable Resistor, Rotary Multi-Turn Potentiometer, or Rotary Linear Variable Resistor. This versatile component is widely used in various electronic devices such as audio equipment, industrial control systems, and consumer electronics.

Product Overview

The Rotary Potentiometer is a compact and durable device that is designed to provide precise and reliable control over electrical currents. It consists of a circular body made of plastic or metal, with a shaft that extends from one side. The length of the shaft can range from 6mm to 20mm, and it can also be customized according to specific requirements.

The power rating of the Rotary Potentiometer can range from 0.1W to 1W, making it suitable for a wide range of applications. It is capable of handling both low and high voltage currents, making it a versatile choice for various electronic devices.

Material

The Rotary Potentiometer is available in both plastic and metal materials. The plastic version is lightweight, cost-effective, and suitable for low-power applications. On the other hand, the metal version is more robust and can handle higher power ratings, making it ideal for industrial and heavy-duty applications.

Shaft Type

The shaft of the Rotary Potentiometer can come in three different types - round, flat, and knurled. The round shaft is the most common type and is suitable for general use. The flat shaft is ideal for applications where space is limited, and the knurled shaft provides a better grip for precise adjustments.

Applications

The Rotary Potentiometer is widely used in various electronic devices and systems, including:

  • Audio equipment: It is used in volume and tone controls in amplifiers, mixers, and other audio devices.
  • Industrial control systems: It is used in motor speed controls, temperature controls, and other industrial control systems.
  • Consumer electronics: It is used in televisions, washing machines, refrigerators, and other household appliances.
  • Medical equipment: It is used in patient monitoring systems, diagnostic equipment, and other medical devices.
  • Automotive electronics: It is used in car radios, air-conditioning controls, and other electronic systems in vehicles.
Conclusion

The Rotary Potentiometer is a versatile and essential component in the world of electronics. With its customizable shaft length, wide power rating range, and various material and shaft type options, it can cater to the specific needs of different applications. Its precise and reliable control over electrical currents makes it an indispensable component in many electronic devices and systems.

Features:

  • Product Name: Rotary Potentiometer
  • Dielectric Strength: 500VAC
  • Material: Plastic/Metal
  • Mounting Type: Through Hole/Surface Mount
  • Terminal Type: PCB/Solder Lug
  • Resistance: 300Ω-3MKΩ
  • Rotary Electrical Position Sensor
  • Rotary Linear Variable Resistor
  • High Dielectric Strength
  • Durable Plastic or Metal Material
  • Easy Installation with Through Hole or Surface Mount options
  • Flexible Terminal Type for PCB or Solder Lug connections
  • Wide range of Resistance options from 300Ω to 3MKΩ
Insulation Resistance 100MΩ Min Rotary Adjustable Resistor For Performance 300Ω-3MKΩ 0

Technical Parameters:

Technical Parameter Value
Rotational Life 10,000 Cycles
Power Rating 0.1W-1W
Shaft Length 6mm-20mm Normal Or Customized
Insulation Resistance 100MΩ Min
Resistance Tolerance ±20%
Shaft Diameter 6mm Or Customized
Dimension 8mm/9mm/11mm/16mm/24mm
Mounting Type Through Hole/Surface Mount
Product Name Rotary Potentiometer
Shaft Type Round/Flat/knurled
Application Rotary Manual Adjustment Tool, Rotary Analog Adjustment Device, Rotary Potentiometer Device


Applications:

Rotary Potentiometer: A Versatile Rotary Electrical Position Sensor



Brand Name: SANNI

Place of Origin: Dongguan China

Introducing the Rotary Potentiometer from SANNI

The Rotary Potentiometer, also known as a Rotary Electrical Position Sensor or Rotary Linear Variable Resistor, is a versatile and essential component for various electronic devices. Developed by SANNI, a leading manufacturer of electronic components, this potentiometer offers precise and reliable performance in a compact and durable design.

Resistance Tolerance: ±20%

The Rotary Potentiometer from SANNI has a resistance tolerance of ±20%, making it suitable for a wide range of applications. This high tolerance ensures accurate and consistent readings, making it ideal for use in sensitive electronic equipment.

Dimension Options for Any Application

SANNI's Rotary Potentiometer comes in various dimensions to suit different application requirements. This includes 8mm, 9mm, 11mm, 16mm, and 24mm options, providing flexibility and versatility in installation and use.

Terminal and Shaft Types for Easy Installation

The Rotary Potentiometer is available with different terminal types, such as PCB and Solder Lug, for hassle-free installation. Additionally, it offers multiple shaft types, including Round, Flat, and Knurled, to fit a variety of control mechanisms.

Applications and Scenarios

The Rotary Potentiometer from SANNI is widely used in different industries, including automotive, aerospace, medical, and consumer electronics. Its adjustable resistance and precise control make it suitable for various applications, such as volume control, speed and position sensing, and temperature control.

Experience the Versatility and Reliability of SANNI's Rotary Potentiometer

With its high resistance tolerance, multiple dimension, terminal, and shaft options, the Rotary Potentiometer from SANNI is a must-have component for any electronic device. Trust SANNI to provide you with top-quality, durable, and precise rotary potentiometers for all your electronic needs. Contact us now to learn more!

Footer: © 2021 SANNI. All rights reserved.



Customization:

Customized Service for Rotary Potentiometer - SANNI

Brand Name: SANNI

Place of Origin: Dongguan, China

Mounting Type: Through Hole/Surface Mount

Material: Plastic/Metal

Insulation Resistance: 100MΩ Min

Terminal Type: PCB/Solder Lug

Resistance Tolerance: ±20%

SANNI offers customized services for our Rotary Potentiometer, a versatile and reliable rotary linear variable resistor. With our expertise in the field, we can provide tailored solutions to meet your specific needs.

Our Rotary Potentiometer is not just a simple manual adjustment tool, but also a highly accurate and durable electrical position sensor. It can be used in various applications such as audio equipment, industrial machinery, and medical devices.

Choose SANNI for your Rotary Potentiometer customization needs, and experience our commitment to quality, innovation, and customer satisfaction.



Packing and Shipping:

Rotary Potentiometer Packaging and Shipping

Our Rotary Potentiometer is carefully packaged in a sturdy box to ensure safe delivery to our customers. Each potentiometer is wrapped in protective foam and placed in a plastic bag to prevent any damage during shipping. The box is then sealed with tape and labeled with the product name and quantity.

For shipping, we use reliable and trusted courier services to ensure timely and efficient delivery of our products. We offer various shipping options such as standard, expedited, and express delivery to meet our customers' needs.

Upon receiving the product, please inspect the package for any signs of damage during shipping. If there are any issues, please contact our customer service immediately for assistance.

We are committed to providing our customers with high-quality products and excellent service. Thank you for choosing our Rotary Potentiometer.

Insulation Resistance 100MΩ Min Rotary Adjustable Resistor For Performance 300Ω-3MKΩ 1Insulation Resistance 100MΩ Min Rotary Adjustable Resistor For Performance 300Ω-3MKΩ 2Insulation Resistance 100MΩ Min Rotary Adjustable Resistor For Performance 300Ω-3MKΩ 3Insulation Resistance 100MΩ Min Rotary Adjustable Resistor For Performance 300Ω-3MKΩ 4

FAQ:

  • Q: What is the brand name of this product? A: The brand name of this product is SANNI.
  • Q: Where is this product made? A: This product is made in Dongguan, China.
  • Q: What is a rotary potentiometer used for? A: A rotary potentiometer is used to control the voltage or current in a circuit.
  • Q: How does a rotary potentiometer work? A: A rotary potentiometer works by varying the resistance in a circuit through the rotation of a control knob.
  • Q: What are the common applications of a rotary potentiometer? A: A rotary potentiometer is commonly used in audio equipment, lighting controls, and industrial machinery.
