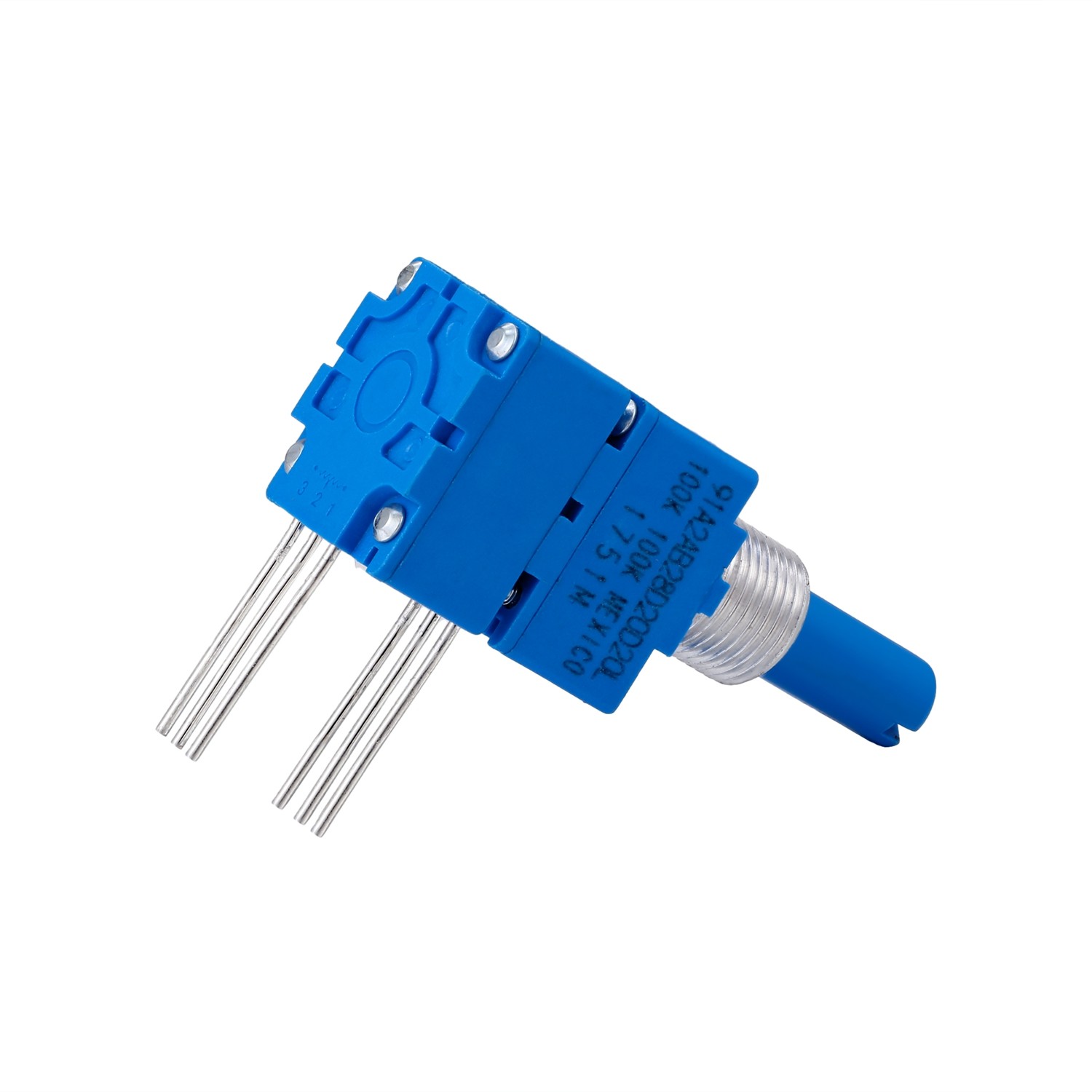

Panel Mount Horizontal Rotary Potentiometer Dual Gang 100K Resistance Value for Audio
Product Description:
Rotating potentiometer is a variable resistor (electromechanical component), he relies on the brush to slide on the resistor body, in the circuit to obtain a certain relationship with the input voltage output voltage, so it is called potentiometer.
Since the unit of the resistance value of the rotating potentiometer is the same as that of the resistor, its unit is also ohms, and the symbol is represented by ω.
The main parameters of rotary potentiometer are linearity, resistance value, rated power, rotation noise, temperature, resistance change characteristic, insulation impedance, etc.
Key Features:
- Resistance: 100kΩ
- Available in a variety of pin-outconfigurationsn
- Virtually infinite electrical circuit isolationn
- Metal or plastic shaft optionsn
- RoHS compliant
Application:
Rotary potentiometer is mainly used in communication products, walkie-talkies, automotive power amplifier, multimedia audio, smart home, computer peripheral, etc. Its functions are mainly: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.
Technical Parameters:
| Electrical Characteristics: |
|
| Mounting Style: |
Panel Mount |
| Termination Style: |
Through Hole |
| Number of Gangs: |
2 Gang |
| Orientation: |
Horizontal |
| Number of Turns: |
1 turn |
| Shaft Type: |
Smooth / Slotted |
| Type: |
Rotary |
| Unit Weight: |
12.700 g |
| Model: |
single-turn in-line PC pins |
| Bushing |
Metal Plain 3/8 ” (9.53 mm) D x 3/8 ” (9.53 mm) L |
| Element taper Type |
CW Audio C-P ±20 % |
| Resistance value |
100K |
| Effective Electrical Angle |
(Audio tapers) 225 ° ± 5 ° |
| Contact Resistance Variation |
±1 % |
| Insulation Resistance (500 VDC) |
.1,000 megohms minimum |
| |
|
| Enviromental Charateristics: |
|
| Operating Temperature Range: |
-40 °C to +125 °C |
| Storage Temperature Range |
-55 °C to +125 °C |
| Temperature Range |
±1,000 ppm/°C |
| Total Resistance Shift |
±2 % maximum |
| Voltage Ratio Shift |
±5 % maximum |
| Load Life.. |
1,000 hours . |
| Rotational Life (No Load) |
100,000 cycles |
| |
|
| Mechanical Charasteristic: |
|
| Stop strength((1/8 ˝ D shaft) |
33.89 N-cm (3 lb.-in.) |
| Mechanical Angle |
300 ° ±5 ° |
| Torque |
0.3 max. above average running torque |
| Mounting |
1.7-2.0 N-m (15-18 lb.-in.) maximum |
| Variation |
0.35 N-cm (0.5 oz.-in.) maximum in 45 ° shaft travel |
