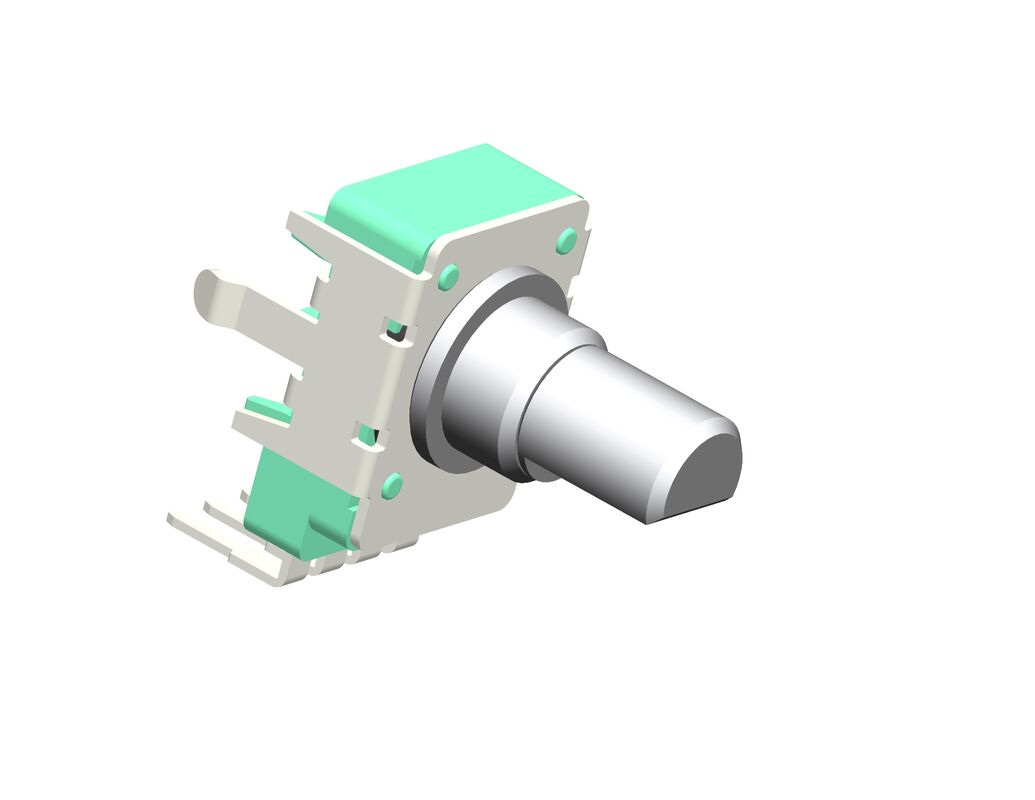

High Precision PCB Lug Terminal Rotary Potentiometer Single/Dual Shaft -25C-85C Operating Temp

Basic Information
Place of Origin: Dongguan China
Brand Name: SANNI
Certification: ISO9001:2015
Model Number: RV11114N0
Minimum Order Quantity: 1000pcs
Price: USD0.15~0.2 per pc
Packaging Details: 1000pcs per Carton box,
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 100000pccs per Month
Shaft Diameter: 6mm Or Customized Gan: Single Or Dual Or Multipal
Dimension: 11mm Resistance Tolerance: ±20%
Mounting Type: Through Hole/DIP Mount Operating Temperature: -25℃-85℃
Insulation Resistance: 100MΩ Min Rotational Life: 10,000 Cycles
High Light:

High Precision Rotary Potentiometer

,

-25C-85C Rotary Potentiometer

,

Dual Shaft Rotary Potentiometer

Product Description:

The Rotary Potentiometer Device is a precision instrument designed for a variety of applications requiring variable resistance control. This device is a robust and reliable component that is integral in applications ranging from audio equipment to industrial machinery. The rotary potentiometer is especially suited for users requiring a tactile and precise method of resistance variation. With a sleek design and durable construction, this product is geared towards both enthusiasts and professionals alike.

The potentiometer comes with a versatile shaft that is available in round, flat, and knurled options to cater to different preferences and usage scenarios. The shaft design ensures a secure grip and smooth operation, enhancing the user experience. The shaft diameter is a standard 6mm, which is compatible with most knobs and can be customized to fit specific requirements, ensuring a perfect fit for your project or product.

A wide resistance range of 300Ω to 3MKΩ allows for a broad spectrum of applications, making it an ideal choice for projects that require fine-tuning and precision. Whether you are dealing with low-resistance circuits or high-resistance scenarios, this Rotary Linear Variable Resistor has the flexibility to match your needs. The ability to operate over such a diverse range of resistances makes it one of the most adaptable potentiometers on the market.

Mounting the potentiometer is straightforward, thanks to its Through Hole/DIP Mount design. This mounting type is not only easy to solder but also ensures a strong and stable connection to the circuit board. The Through Hole mounting provides a robust mechanical anchor, which is essential for devices that are subject to frequent adjustments or are in environments where they may be knocked or disturbed.

Durability is a key attribute of this potentiometer, with a rotational life of 10,000 cycles. It stands up to repeated use, ensuring a long service life and reliability over time. Whether it's being used in a professional audio mixer or as part of a hobbyist's electronics project, users can be confident in the potentiometer's ability to withstand regular adjustments. The high cycle count before wear ensures that the resistance settings remain consistent and the performance stays accurate.

As a Rotary Multi-Turn Potentiometer, it provides users with the ability to achieve precise resistance adjustments over multiple turns of the shaft. This multi-turn design is particularly beneficial in fine-tuning applications where incremental changes can have a significant impact on performance. It also allows for a greater range of resistance control, giving users more flexibility in how they set up and manage their circuits.

The construction of the potentiometer is also geared towards ensuring a noise-free operation. This is crucial in audio applications where the clarity of the signal can be affected by the quality of the potentiometer. The materials and design employed in the manufacturing of this component work together to minimize noise and ensure a clean, uninterrupted signal path.

To sum up, the Rotary Potentiometer Device is a well-engineered piece of equipment that serves as a Rotary Linear Variable Resistor and a Rotary Multi-Turn Potentiometer. It offers a wide range of resistance values, multiple shaft options, and a high cycle life, making it a versatile and durable choice for all manner of applications. Whether for professional or hobbyist use, this potentiometer is built to deliver precise control and long-lasting reliability.



Applications:

The SANNI RV11 Rotary Potentiometer is a versatile and essential component in a wide array of electronic applications. As a rotary analog adjustment device, it is meticulously engineered to cater to various scenarios where precise resistance tuning is required. Its origin in Dongguan, China, is a testament to its reliable manufacturing process and quality assurance.

With its robust rotational life of 10,000 cycles, the RV11 is designed for endurance, making it ideal for applications where it will be adjusted frequently. The potentiometer's compact dimension of 11mm and a shaft diameter that can be 6mm or customized according to client specifications, allows for seamless integration into space-constrained designs.

The resistance range of the SANNI RV11, spanning from 300Ω to 3MKΩ, along with a resistance tolerance of ±20%, ensures adaptability for a wide spectrum of circuit requirements. This broad range makes it a highly sought-after component for precise control in various electronic devices.

One of the primary applications of the RV11 is in audio equipment. As a rotary multi-turn potentiometer, it is ideal for volume control, tone adjustment, and balancing audio signals in mixers, amplifiers, and receivers. Its high-resolution adjustment capability allows users to fine-tune the audio output to their exact preferences, resulting in an optimal listening experience.

Additionally, the RV11 serves as an effective rotary analog adjustment device in industrial controls. It can be used to adjust settings on machinery, control panel interfaces, and calibration equipment where precise settings are crucial for optimal performance and safety.

The medical field also benefits from the precision of the SANNI RV11. It finds its place in medical instrumentation, where fine adjustments can be the difference in diagnostic equipment, therapeutic devices, and research tools. The reliability and accuracy of the RV11 ensure that it meets the stringent requirements of medical technology.

In the realm of consumer electronics, the RV11 potentiometer can be found in home appliances, gaming controllers, and personal gadgets. Its user-friendly interface enhances the functionality and ergonomics of devices that require variable settings for speed, intensity, or user preference adjustments.

In summary, the SANNI RV11 Rotary Potentiometer is a highly adaptable and durable component, crucial for applications requiring reliable and precise analog adjustment. From audio equipment to industrial machinery and medical devices, the RV11 is a component that designers and engineers can trust for consistent performance and quality.



Customization:

Introducing the SANNI Model RV11 Rotary Potentiometer , a high-precision Rotary Voltage Divider Potentiometer designed for a variety of applications. Manufactured with the utmost care in Dongguan, China , this potentiometer is the perfect Rotary Manual Adjustment Tool for your needs.

The RV11 potentiometer boasts a robust construction with a premium blend of Plastic/Metal materials, ensuring long-lasting durability and reliability. With a standard dimension of 11mm , it fits seamlessly into your designs, making it an ideal choice for those who require a compact and efficient Rotary Multi-Turn Potentiometer .

Our SANNI potentiometers come with a Resistance Tolerance of ±20% , providing precise control for your applications. The Dielectric Strength of 500VAC and an Insulation Resistance of 100MΩ Min highlight our commitment to safety and product integrity.



Support and Services:

The Rotary Potentiometer is designed for reliable and precise variable resistance tuning. Our product offers a smooth rotational feel and a robust construction, ensuring a long service life even under demanding conditions. With a range of resistance values and tapers, our potentiometers are suitable for a variety of applications including audio equipment, industrial controls, and instrumentation.

Technical Support for the Rotary Potentiometer includes troubleshooting assistance, guidance on product specifications, and advice on proper installation and use. Our team is committed to providing comprehensive support to ensure the optimal performance and longevity of your potentiometer.

Our Services for the Rotary Potentiometer extend to offering replacements for defective units under warranty, providing detailed product documentation, and assisting with compatibility and interfacing issues. We are dedicated to ensuring that our customers can fully leverage the capabilities of our products in their respective applications.

Please refer to the included user manual for initial setup and troubleshooting steps. For more in-depth support needs, access our online resources which include FAQs, technical articles, and best practice guides tailored to the Rotary Potentiometer.



Packing and Shipping:

Product Packaging for Rotary Potentiometer:

Each rotary potentiometer is individually sealed in an anti-static bag to prevent electrostatic discharge damage during handling. The potentiometer is then cushioned with foam inserts to ensure stability and minimize movement within the box. The primary box is made of high-quality cardboard, designed to fit the potentiometer snugly and securely. For additional protection, the box is labeled with "Fragile" and "Handle with Care" to ensure careful handling during transit.

Shipping Information for Rotary Potentiometer:

Our rotary potentiometers are shipped via trusted courier services to ensure timely and safe delivery. A tracking number will be provided upon dispatch so that customers can monitor their shipment's progress. We take every precaution to ensure that the product arrives in perfect working condition, including weather-resistant packaging for protection against environmental factors. Please inspect the package upon arrival and report any damage immediately to customer service for prompt assistance.



FAQ:

Q1: What is the resistance range of the SANNI RV11 Rotary Potentiometer?

A1: The resistance range of the SANNI RV11 Rotary Potentiometer varies depending on the specific model. Please check the product specifications for the exact range or contact us for more details.

Q2: Can the SANNI RV11 Rotary Potentiometer be used in audio applications?

A2: Yes, the SANNI RV11 Rotary Potentiometer is suitable for use in various audio applications, including volume control and equalization adjustments.

Q3: What is the power rating of the SANNI RV11 Rotary Potentiometer?

A3: The power rating for the SANNI RV11 Rotary Potentiometer can vary. Please refer to the datasheet for the specific power rating of the model you are interested in.

Q4: Is the SANNI RV11 Rotary Potentiometer designed for heavy-duty applications?

A4: The SANNI RV11 is designed for durability, but whether it is suitable for heavy-duty applications depends on the specifics of the application. Please consult our product documentation or contact our support team for advice on your particular needs.

Q5: How do I properly install the SANNI RV11 Rotary Potentiometer?

A5: Installation instructions are provided with the product. Ensure the potentiometer is mounted securely, with proper alignment, and that the terminals are connected to the correct points in your circuit. Always follow the safety guidelines and consult an expert if you are unsure about the installation process.
