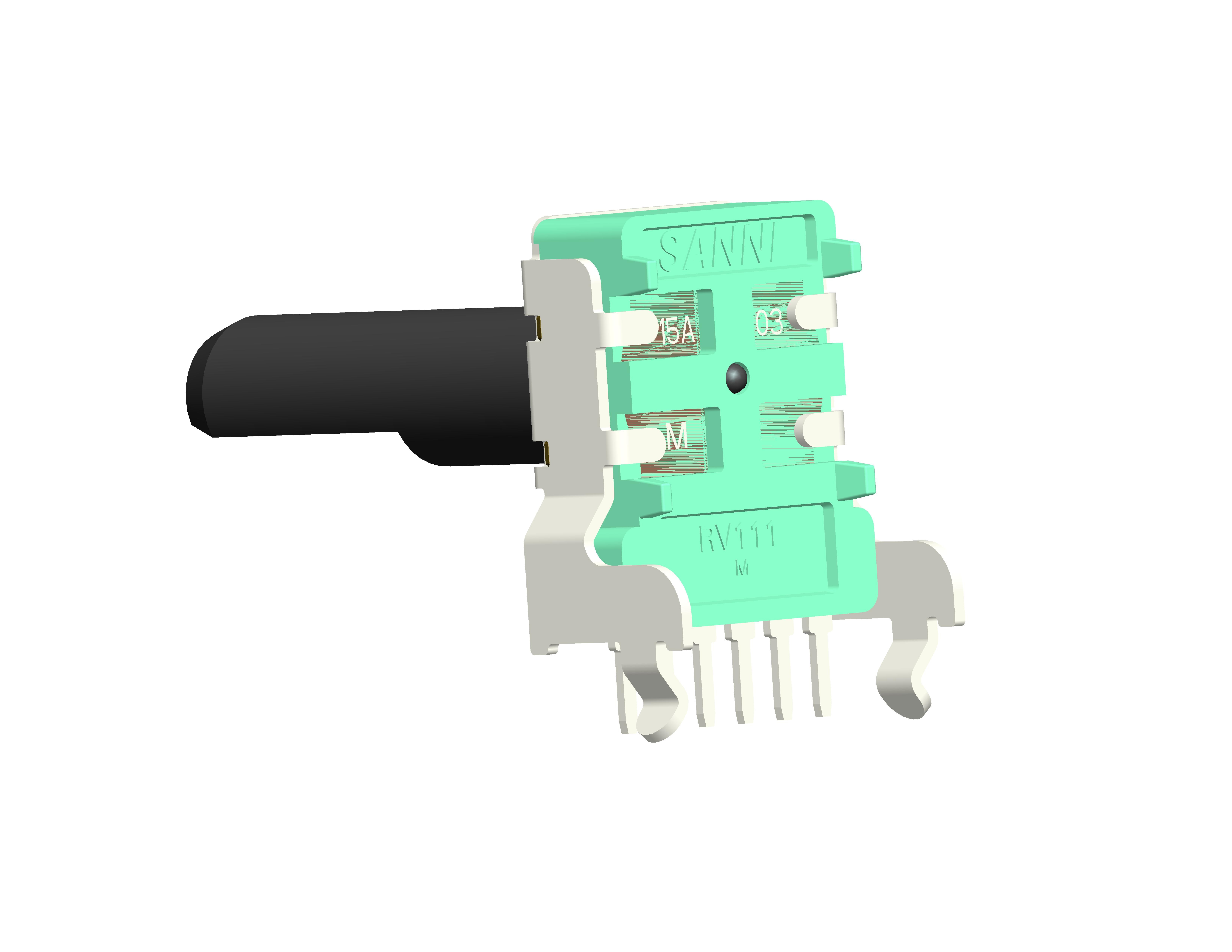

High Precision 6mm-20mm Shaft Length Rotary Potentiometer 10 000 Cycles Rotation 0.05W Power Rating Single/Dual/Multiple

Basic Information
Place of Origin: Dongguan China
Brand Name: SANNI
Certification: ISO9001:2015
Model Number: RV111111G0
Minimum Order Quantity: 1000pcs
Price: USD0.13~0.15 per pc
Packaging Details: 1000pcs per Carton box,
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 100000pccs per Month
Shaft Diameter: 6mm Or Customized Rotational Life: 10,000 Cycles
Power Rating: 0.05W Gan: Single Or Dual Or Multipal
Dielectric Strength: 500VAC Shaft Length: 6mm-20mm Normal Or Customized
Resistance: 300Ω-3MKΩ Insulation Resistance: 100MΩ Min
High Light:

0.05W Rotary Potentiometer

,

20mm Rotary Potentiometer

,

10 000 Cycles Rotation Rotary Potentiometer

Product Description:

The Rotary Potentiometer is a state-of-the-art variable resistor that is designed for a wide range of applications, where precise voltage control and variable resistance are required. This high-quality, robust potentiometer offers exceptional durability and performance, making it an ideal choice for professionals and hobbyists alike. With its through-hole mounting type, also known as DIP (Dual In-line Package) mount, the Rotary Potentiometer ensures a secure fit and easy installation onto printed circuit boards (PCBs).

A potentiometer, in essence, is a type of rotary linear variable resistor, which means that it provides linear change in resistance in a rotary motion. The Rotary Potentiometer boasts a remarkable resistance range from 300 ohms to 3 megaohms (3MΩ), offering users a wide spectrum of options to suit their specific needs. Whether it’s for fine-tuning audio equipment, adjusting light levels, or calibrating measurement instruments, this potentiometer is versatile enough to handle it all with precision.

One of the key features of this Rotary Electrical Potentiometer is its operating temperature range. Designed to withstand harsh conditions, it operates effectively within a temperature range of -25℃ to 85℃. This makes it suitable for use in a variety of environments, from industrial to consumer applications, ensuring reliable performance regardless of external temperature fluctuations.

Furthermore, the Rotary Potentiometer is built to last. It has an impressive rotational life of 10,000 cycles, which is a testament to its durability and the quality of its construction. This long lifespan ensures that the potentiometer will provide consistent performance over time, reducing the need for frequent replacements and maintenance, and thus offering a cost-effective solution for any project that requires a reliable rotary variable resistor.

At the heart of this Rotary Potentiometer’s design is its smooth rotational feel and accurate response. This makes it incredibly user-friendly, providing a tactile experience that allows for precise adjustments. The transition between resistance values is seamless, ensuring that users can achieve the exact resistance setting needed for their specific application without any hassle.

The Rotary Variable Resistor is an essential component in many electronic devices, and its applications are virtually limitless. It’s commonly used in audio control boards as volume knobs, in lighting systems as dimmers, and in a variety of sensors and transducers. Its through-hole/DIP mount design also makes it a popular choice for DIY projects, as it can be easily soldered onto prototype boards and integrated into custom circuits.

In summary, the Rotary Potentiometer is a versatile, reliable, and durable component that stands out as a top choice for anyone in need of a rotary linear variable resistor. Its wide resistance range, robust operating temperature, and long rotational life make it a superior product that can cater to a multitude of applications, ensuring that you get accurate control and response every time. The through-hole/DIP mount configuration also adds to its appeal, as it simplifies the installation process and ensures a stable connection. Whether for professional use or personal projects, this Rotary Electrical Potentiometer is an excellent investment for anyone looking to add precise variable resistance control to their electronic devices.



Applications:

The SANNI brand, known for its precision in control and adjustment solutions, presents the RV11 model Rotary Potentiometer, a device that serves as a rotary voltage divider potentiometer in various applications. With its origin in Dongguan China, the RV11 has been meticulously designed to meet the needs of both commercial and industrial sectors. Its robust construction and PCB lug terminal type make it suitable for printed circuit board mounting, ensuring secure connections and longevity in operation.

The RV11 model by SANNI is a versatile rotary analog adjustment device that finds its applications across a multitude of scenarios. With a shaft length ranging from 6mm to 20mm, normal or customized to fit specific requirements, it is an ideal choice for manufacturers looking to integrate a rotary adjustable resistor into their designs. Moreover, the compact dimension of 11mm and shaft diameter of 6mm, or customized options, allow for integration into equipment where space is at a premium, without compromising on functionality.

This rotary potentiometer is commonly employed in audio equipment, serving as a volume control or balance adjuster. It provides smooth, accurate control, essential for achieving the desired audio output in high-fidelity sound systems, amplifiers, and mixing consoles. The RV11's precision makes it a go-to component for musicians and audio engineers who demand reliable performance in their audio apparatus.

Beyond audio applications, the SANNI RV11 finds its place in automotive electronics, where it can be used to adjust settings such as the position of seats or mirrors, offering a tangible, user-friendly interface. The automotive industry values the RV11 for its reliable performance under variable conditions, ensuring a consistent user experience.

In the realm of industrial controls, the RV11 acts as a rotary voltage divider potentiometer where precise voltage control is necessary. This can be in the control panels of machinery, where operators need to fine-tune machine parameters, or in laboratory equipment where exact adjustments are crucial for experimental accuracy.

The RV11's utility extends to consumer electronics, where it functions as an interface for setting levels on various household devices. Whether adjusting the intensity of a light or the speed of a fan, the RV11 provides a familiar and intuitive control mechanism for end-users.

Lastly, the RV11 potentiometer is also suitable for educational purposes, used in teaching electronics and physics, where students can learn about resistance and voltage division in a hands-on manner. Its durability and ease of use make the RV11 an excellent tool for educational demonstrations and experiments.

In conclusion, the SANNI RV11 Rotary Potentiometer is a highly adaptable component that delivers precise control across a spectrum of applications. From the fine-tuning of audio equipment to the adjustment of automotive settings, the RV11 stands out as a reliable rotary analog adjustment device, ready to meet the demands of any scenario where a rotary adjustable resistor is required.



Customization:

Brand Name: SANNI

Model Number: RV11

Place of Origin: Dongguan China

Gang: Single Or Dual Or Multiple

Resistance Tolerance: ±20%

Terminal Type: PCB Lug

Power Rating: 0.05W

Dielectric Strength: 500VAC

Experience precise control with our SANNI RV11, a top-quality Rotary Manual Adjustment Tool designed for fine adjustments in your circuits. As a versatile Rotary Voltage Divider Potentiometer , it is perfect for a wide range of applications requiring a reliable and accurate Rotary Adjustable Resistor . Manufactured in Dongguan, China, this potentiometer ensures durability and performance.



Support and Services:

The Rotary Potentiometer is designed to provide precise voltage control and feedback for various applications. As part of our commitment to customer satisfaction, we offer comprehensive technical support and services for this product.

Our technical support includes troubleshooting assistance, guidance on proper usage and installation, and advice on compatibility and customization options. We are dedicated to ensuring that your experience with the Rotary Potentiometer is seamless and efficient.

For maintenance and repair services, our skilled technicians are available to provide you with prompt and reliable solutions. We can assist with warranty claims, provide replacement parts, and offer service advice to extend the life of your product.

Additionally, we offer resources and documentation such as detailed product manuals, specification sheets, and application notes to support your technical needs. Our goal is to help you maximize the performance and reliability of your Rotary Potentiometer.



Packing and Shipping:

The Rotary Potentiometer is meticulously encased in a durable, anti-static packaging to ensure its integrity during transport. The product is snugly fit within custom-molded foam inserts that provide shock absorption and prevent movement that could lead to damage.

Each packaged Rotary Potentiometer is then sealed and placed into a sturdy, corrugated cardboard box that is sized to prevent excess movement while allowing enough room for necessary padding materials. The exterior of the box is clearly marked with the appropriate handling and sensitivity warnings to ensure careful handling during the shipping process.

Prior to dispatch, the box is taped securely and a final inspection is conducted to confirm that the packaging meets our strict quality standards. The packaged product is then labeled with all relevant shipping information including tracking details to ensure a transparent and traceable delivery to our customers.



FAQ:

Q1: What is the resistance range of the SANNI RV11 Rotary Potentiometer?

A1: The SANNI RV11 Rotary Potentiometer offers a variety of resistance ranges to suit different applications. Please refer to the product specifications or contact customer service for the specific resistance range that you require.

Q2: Can the SANNI RV11 Rotary Potentiometer be used for audio applications?

A2: Yes, the SANNI RV11 is suitable for audio applications. It is commonly used for volume control or as an adjustment knob in audio equipment due to its smooth rotation and stable performance.

Q3: Is the RV11 model from SANNI available with different shaft lengths?

A3: Yes, the SANNI RV11 Rotary Potentiometer can come with different shaft lengths to accommodate various mounting requirements. Please check the product data sheet or contact us for more details on available shaft dimensions.

Q4: How do I wire the SANNI RV11 Rotary Potentiometer?

A4: Wiring the SANNI RV11 is straightforward. It typically has three terminals: one for the input voltage, one for the output voltage, and one for the ground connection. Always ensure the power is off before wiring and consult the datasheet for detailed wiring instructions specific to your model.

Q5: What is the operational life expectancy of the SANNI RV11 Rotary Potentiometer?

A5: The SANNI RV11 is designed for durability and long-term use. The operational life expectancy can vary based on the application and environmental conditions, but typical potentiometers of this kind can last for many cycles. For precise figures, please refer to the product documentation or inquire with our customer service team.
