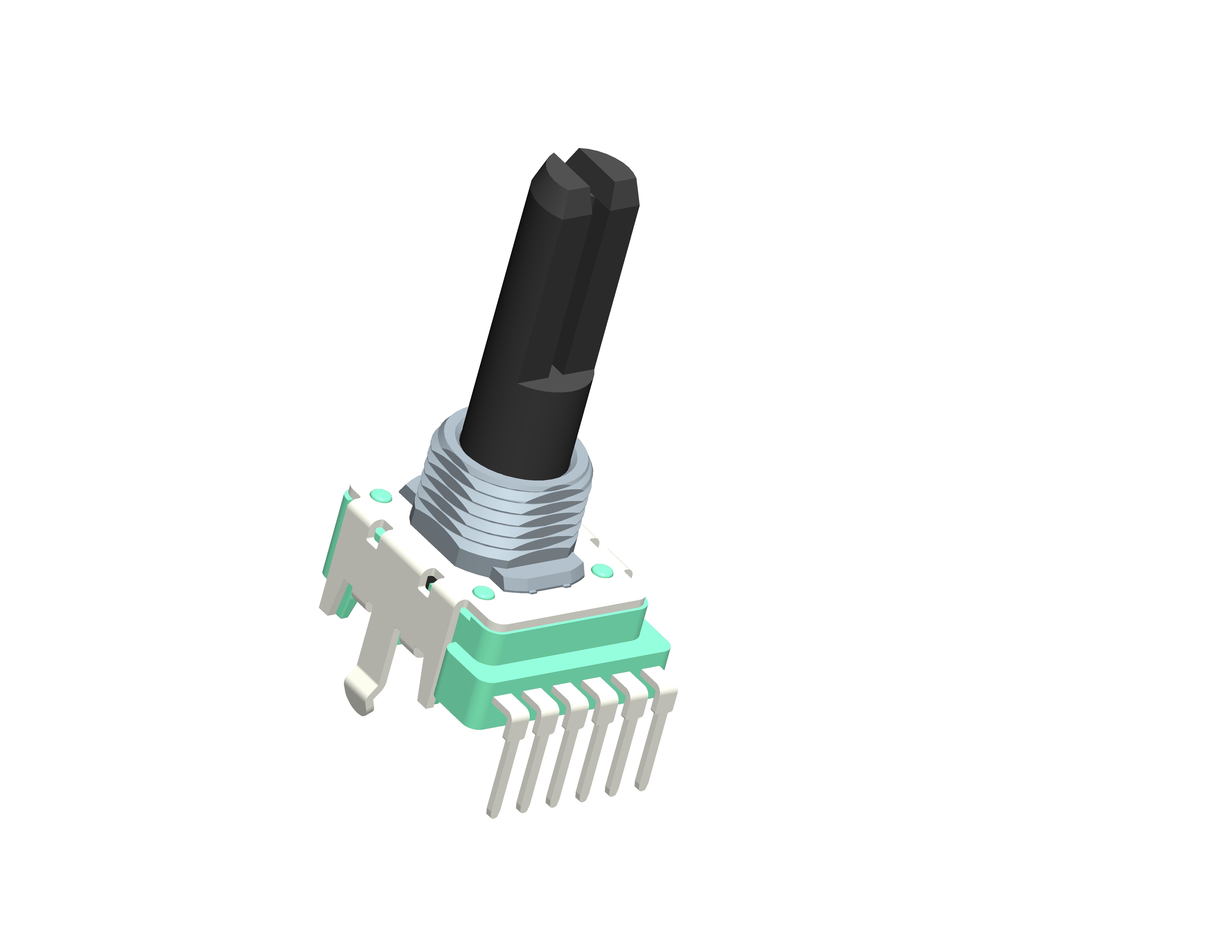

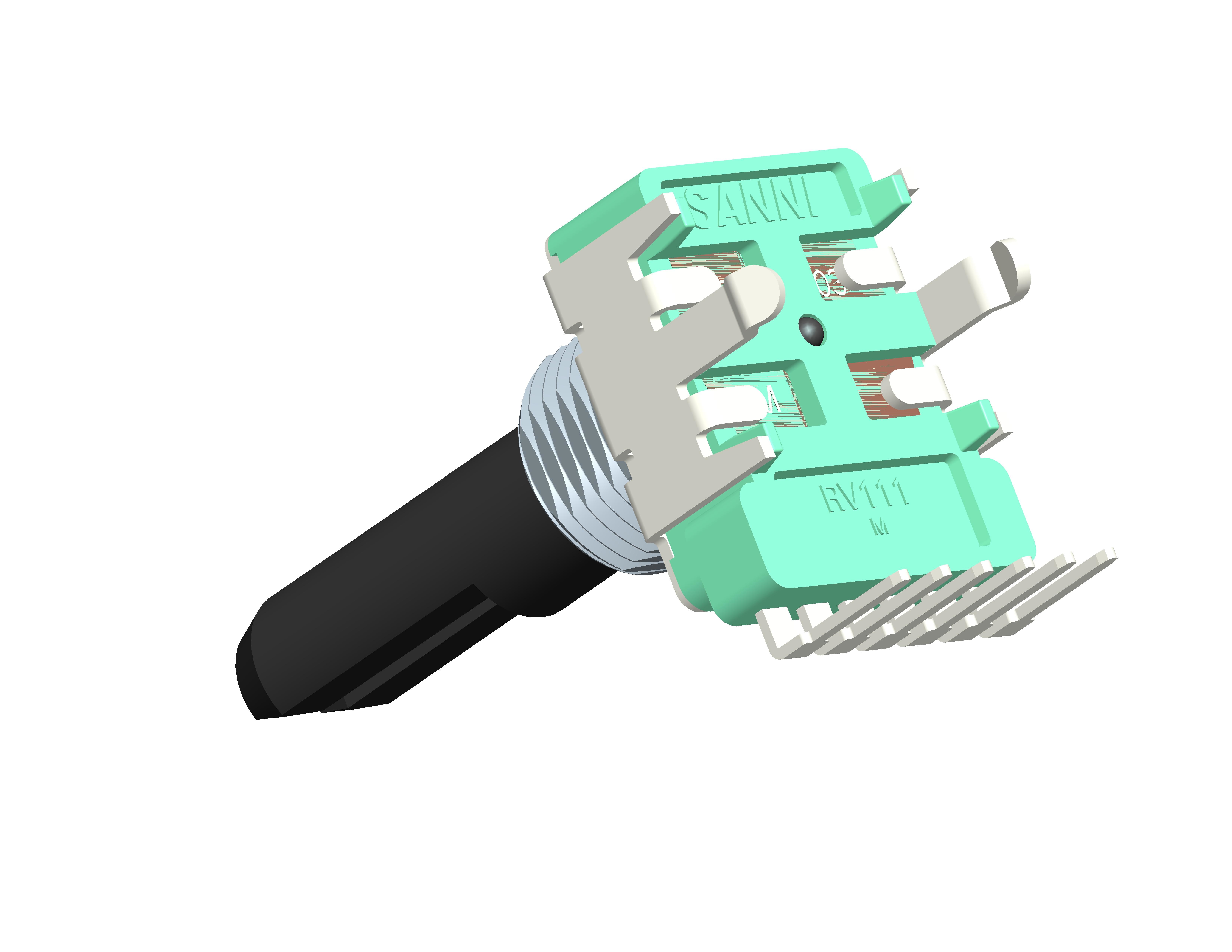

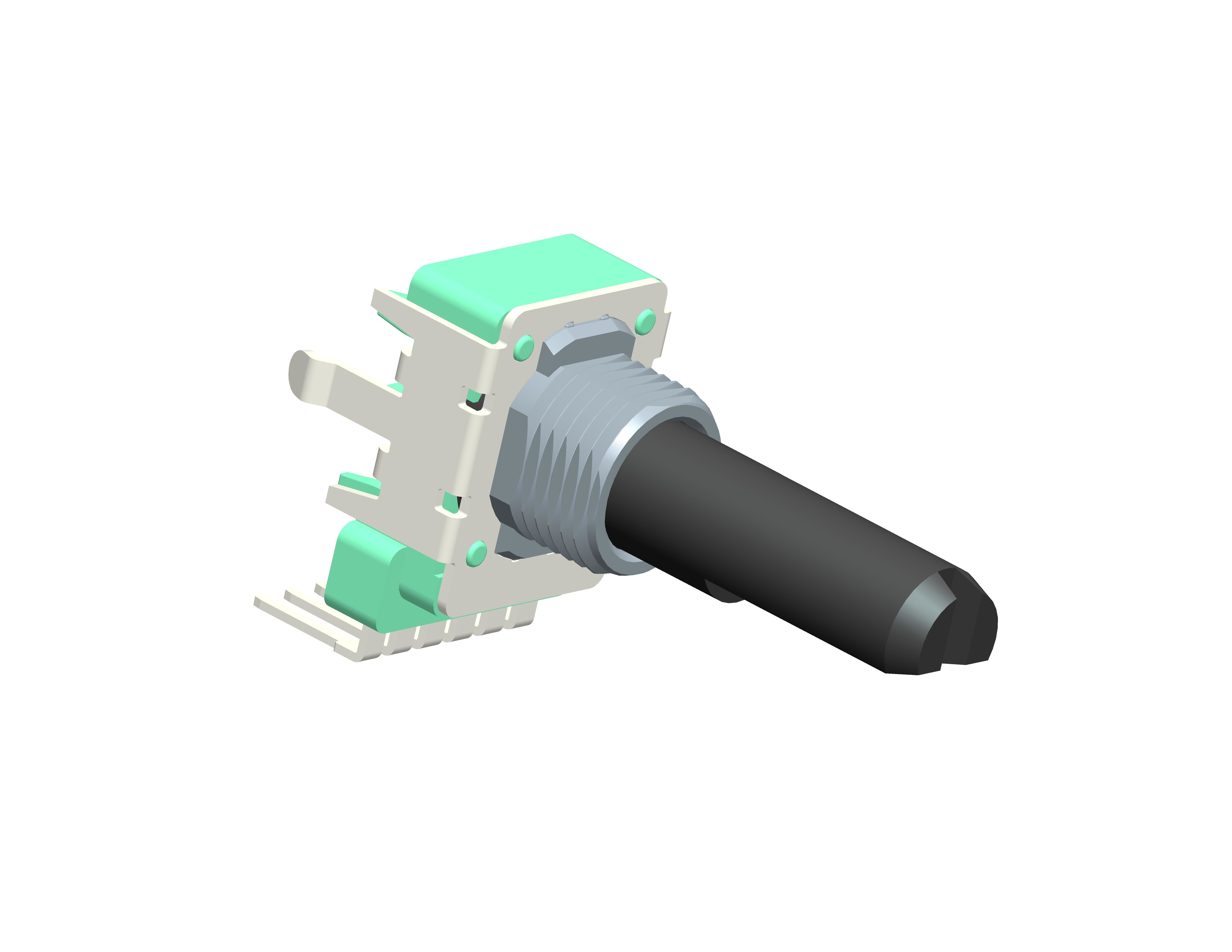

Low Price Single Or Dual Gang PCB Lug Rotary Potentiometer Plastic/Metal Shaft 6mm-20mm 0.05W Power Rating

Basic Information
Place of Origin: Dongguan China
Brand Name: SANNI
Certification: ISO9001:2015
Model Number: RV11A2G0
Minimum Order Quantity: 1000pcs
Price: USD0.16 per pc
Packaging Details: 1000pcs per Carton box,
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 100000pccs per Month
Gang: Dual Terminal Type: PCB Lug
Product Name: Rotary Potentiometer Operating Temperature: -25℃-85℃
Material: Plastic/Metal Shaft Length: 6mm-20mm Normal Or Customized
Power Rating: 0.05W Shaft Diameter: 6mm Or Customized
High Light:

PCB Lug Rotary Potentiometer

,

0.05W Rotary Potentiometer

,

Single Or Dual Gang Rotary Potentiometer

Product Description:

The Rotary Potentiometer, a versatile and indispensable component within the electronic components industry, is engineered to meet a wide range of variable resistance requirements. This rotary adjustable resistor is a three-terminal device, primarily used in a plethora of applications including the control of devices such as volume controls on audio equipment, as a voltage divider, and in many other applications where it is imperative to adjust the flow of electrical current in a circuit. With its mounting type designed for Through Hole/DIP Mount, this potentiometer ensures a secure and stable connection to a circuit board, making it suitable for a variety of electronic projects and commercial products.

Constructed with high-quality materials, the potentiometer combines plastic and metal components to offer a robust product designed to withstand the rigors of regular use. The operating temperature range of -25℃ to 85℃ guarantees that the potentiometer functions optimally in a wide range of environmental conditions, ensuring reliability and performance stability in both cold and warm climates. This feature is especially important for devices that are exposed to variable temperatures or that need to operate outdoors.

When it comes to resistance, this rotary adjustable resistor offers a broad spectrum ranging from 300Ω to 3MKΩ. This wide range makes it an excellent choice for precision applications, allowing users to find the perfect resistance value for their specific needs. Whether you require a minimal resistance adjustment or need to manage high resistance levels, this potentiometer provides the flexibility to achieve the desired outcome efficiently and accurately.

The shaft length of the potentiometer can vary from 6mm to 20mm, catering to standard requirements or be customized according to the needs of the application. The option for customization is a testament to the product's adaptability and user-centered design, enabling it to fit into compact spaces or extend as needed for easier manual adjustments. The shaft itself is crafted for ease of use, allowing for smooth rotations and precise control over the resistance changes.

One of the defining features of this rotary adjustable resistor is its durability and longevity. The combination of plastic and metal materials not only contributes to the product's sturdiness but also ensures that it can endure repetitive adjustments over time without significant wear and tear. This resilience translates to a reliable performance and an extended lifespan, making it an economical choice for both hobbyists and professional users alike.

Moreover, the rotary potentiometer is designed with the end-user in mind. Its intuitive operation makes it accessible for beginners while its precision and reliability satisfy the stringent requirements of advanced users and professionals. Whether it's for learning electronics, prototyping, or integrating into high-quality commercial products, this potentiometer stands as a versatile component that can meet diverse needs.

In conclusion, the Rotary Potentiometer with Through Hole/DIP Mount is an exceptional rotary adjustable resistor that stands out for its robust construction, wide operating temperature range, extensive resistance spectrum, and customizable shaft length. Its compatibility with various applications, durability, and user-friendliness make it an invaluable component for anyone involved in electronics. Whether for educational purposes, DIY projects, or professional applications, this potentiometer is crafted to deliver reliable and precise resistance adjustments, ensuring optimal performance in every use case.



Features:

  • Product Name: Rotary Potentiometer
  • Shaft Type: Round/Flat/Knurled
  • Shaft Length: 6mm-20mm Normal Or Customized
  • Shaft Diameter: 6mm Or Customized
  • Dimension: 11mm
  • Terminal Type: PCB Lug
  • Function: Rotary Adjustable Resistor
  • Usage: Rotary Manual Adjustment Tool
  • Application: Rotary Electrical Position Sensor


Technical Parameters:

Parameter Specification
Product Name Rotary Potentiometer
Insulation Resistance 100MΩ Min
Gang Dual
Dielectric Strength 500VAC
Mounting Type Through Hole/DIP Mount
Shaft Length 6mm-20mm Normal Or Customized
Terminal Type PCB Lug
Rotational Life 10,000 Cycles
Resistance Tolerance ±20%
Material Plastic/Metal


Applications:

The SANNI brand, specifically the model RV11 Rotary Potentiometer, is a versatile device that serves an array of applications across different industries. Originating from Dongguan, China, this rotary linear variable resistor is crafted to meet high-quality standards, ensuring reliability and performance. With a power rating of 0.05W and an operating temperature range of -25℃ to 85℃, the RV11 is suitable for environments that experience significant temperature fluctuations.

The PCB lug terminal type coupled with through-hole/DIP mounting allows for secure and stable integration into various electronic circuits. Furthermore, the SANNI RV11 boasts an impressive insulation resistance of 100MΩ Min, providing excellent isolation and preventing electrical leakage, which is crucial for maintaining the integrity and safety of electronic equipment.

One of the primary applications of the RV11 rotary potentiometer device is in audio equipment. As a rotary linear variable resistor, it can be used to adjust volume levels on amplifiers, mixing consoles, and musical instruments, providing smooth and precise control over the audio output. In automotive electronics, the RV11 can serve as a sensor for controlling different vehicle functions, such as adjusting the position of mirrors, seats, and dashboard luminance.

Industrial controls also benefit from the accuracy and durability of the SANNI RV11. It can be employed in control panels for machinery, allowing operators to fine-tune settings for temperature, speed, and other variables critical to the industrial process. Additionally, in consumer electronics, the RV11 is used to control the settings on household devices such as air conditioners, ovens, and lighting systems, where precise adjustments are necessary for user comfort and energy efficiency.

Furthermore, the SANNI RV11 is suitable for use in laboratory equipment where precision is paramount. It can be part of the design for variable power supplies, signal generators, and other diagnostic instruments. The robustness and precision of the RV11 ensure that it can handle the nuanced adjustments required in scientific research and development.

In summary, the SANNI RV11 Rotary Potentiometer is a flexible and reliable component that is indispensable in applications requiring precise variable resistance. Its broad operating temperature range, sturdy construction, and high insulation resistance make it an excellent choice for a multitude of scenarios, from audio control to industrial automation and beyond.



Customization:

Brand Name: SANNI

Model Number: RV11

Place of Origin: Dongguan China

Product Name: Rotary Potentiometer

Dielectric Strength: 500VAC

Insulation Resistance: 100MΩ Min

Resistance Range: 300Ω-3MKΩ

Power Rating: 0.05W

Our SANNI model RV11 Rotary Potentiometer is a high-precision Rotary Voltage Divider Potentiometer designed for a wide range of applications. Made with quality materials in Dongguan, China, this Rotary Adjustable Resistor ensures reliable performance with dielectric strength of 500VAC and insulation resistance of at least 100MΩ. Whether you need a fine adjustment or a consistent voltage division, our potentiometer offers a resistance range from 300Ω up to 3MKΩ to meet your specific requirements. With a power rating of 0.05W, the RV11 is an ideal choice for your precision electronic needs.



Support and Services:

The Rotary Potentiometer is designed to ensure precise and reliable control for a variety of applications. Our technical support and services are committed to providing you with the assistance you need to integrate and maintain your potentiometer effectively.

We offer comprehensive documentation that includes detailed product specifications, wiring diagrams, and installation guides. Our support also extends to troubleshooting common issues, such as calibration, physical installation, and environmental factors that may affect the performance of your potentiometer.

For applications requiring customization, our team is available to discuss your specific needs and provide recommendations for custom-tailored solutions. We understand the importance of ensuring that your potentiometer fits seamlessly into your system.

Our services include guidance on best practices for usage and maintenance to prolong the life of your potentiometer. We are dedicated to helping you achieve optimal performance and reliability from our product.

If you encounter any issues or have technical questions, our knowledgeable support team is ready to assist you with expert advice and solutions. We are committed to providing exceptional service and support to ensure your complete satisfaction with our rotary potentiometer.



Packing and Shipping:

Product Packaging for Rotary Potentiometer:

Each rotary potentiometer is individually packaged in a static-resistant bag to prevent electrostatic discharge during handling. The potentiometer is then cushioned with high-density foam within a sturdy cardboard box to protect against physical shock and vibration. The box is sealed with tamper-evident tape to ensure product integrity upon arrival.

Shipping Instructions for Rotary Potentiometer:

Our rotary potentiometers are shipped via trusted courier services to provide timely and secure delivery. The exterior of the shipping package is labeled with fragile handling stickers and includes a packing slip with product details and a tracking number for convenience. Customers are advised to inspect the package upon arrival and report any damages immediately for prompt resolution.



FAQ:

Q1: What is the resistance range offered by the SANNI RV11 Rotary Potentiometer?

A1: The SANNI RV11 Rotary Potentiometer offers a wide range of resistance values. Please refer to the product datasheet or contact customer support for specific resistance values available for this model.

Q2: Can the SANNI RV11 Rotary Potentiometer be used for audio applications?

A2: Yes, the SANNI RV11 Rotary Potentiometer is suitable for audio applications. Its smooth rotational feel and stable resistance characteristics make it an excellent choice for volume control and sound balancing in audio devices.

Q3: Is the SANNI RV11 Rotary Potentiometer rated for industrial use?

A3: The SANNI RV11 is designed to accommodate a range of applications, including industrial settings. However, for specific industrial ratings and certifications, please check the product specifications or contact customer service for further information.

Q4: What kind of terminals does the SANNI RV11 Rotary Potentiometer have?

A4: The SANNI RV11 Rotary Potentiometer typically comes with solder lug terminals for easy and secure connections. For other terminal options, please consult the product datasheet or contact us directly.

Q5: Where is the SANNI RV11 Rotary Potentiometer manufactured?

A5: The SANNI RV11 Rotary Potentiometer is manufactured in Dongguan, China. SANNI is committed to maintaining high-quality standards in all of its manufacturing locations.
