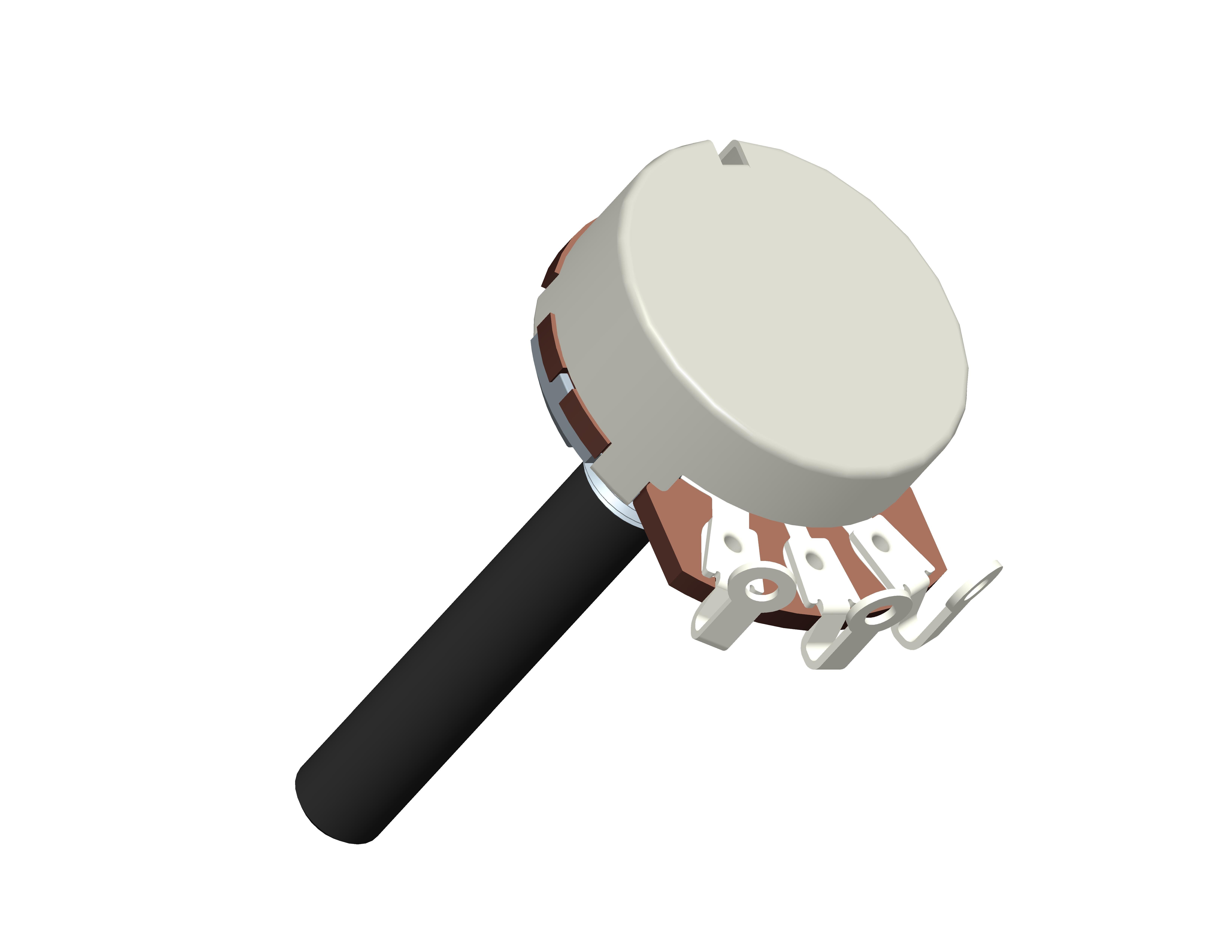

Rotary Potentiometer Plastic Metal 0.05W 500VAC Insulation Resistance 100MΩ Min

Product Description:

The Rotary Multi-Turn Potentiometer is a highly versatile and reliable component designed for a wide range of applications that require precise voltage control and adjustment. This robust Rotary Analog Adjustment Device is engineered to provide smooth and accurate tuning, making it an ideal solution for professional audio equipment, instrumentation, and industrial control systems.

At the heart of this potentiometer's superior performance is its meticulous construction and quality materials, which ensure a resistance tolerance of ±20%. This level of precision guarantees that the potentiometer will maintain its value within the specified range, thereby providing stable and predictable adjustments. Such precision is critical in applications where exact resistance values are necessary for the proper functioning of the circuit or system.

The Rotary Multi-Turn Potentiometer is designed with a variety of shaft types to accommodate different mounting and interfacing requirements. Users can select from round, flat, or knurled shaft designs based on their specific needs. The knurled shaft option is particularly useful for applications that require a secure grip for manual adjustments, while the round and flat options offer smooth, consistent rotation for applications that may involve the use of a control knob or dial.

Furthermore, the shaft length of the Rotary Multi-Turn Potentiometer ranges from 6mm to 20mm as a standard option, but can also be customized to fit unique applications or design specifications. This flexibility in shaft length allows designers and engineers to incorporate the potentiometer into a variety of product configurations without compromising on functionality or performance.

Designed to perform reliably in a diverse array of operating environments, the Rotary Multi-Turn Potentiometer boasts an operating temperature range of -25℃ to 85℃. This wide temperature range ensures that the device will function effectively under extreme conditions, whether it's exposed to the cold of refrigeration systems or the heat of industrial machinery. Its ability to withstand such temperatures makes it an excellent choice for outdoor applications and other settings where temperature fluctuations are common.

When it comes to electrical safety and longevity, the potentiometer's insulation resistance plays a pivotal role. With an insulation resistance of 100MΩ Min, the Rotary Multi-Turn Potentiometer is well-protected against potential electrical hazards, such as short circuits and electrical leakage, that could otherwise compromise the device's performance and the safety of the overall system. This high level of insulation resistance is especially important in applications where the potentiometer is subjected to high voltages or is in close proximity to other electrical components.

In summary, the Rotary Multi-Turn Potentiometer is a reliable and adaptable Rotary Analog Adjustment Device that offers precise control for a variety of applications. Its tight resistance tolerance, variety of shaft options, customizable shaft length, and robust operating temperature range, combined with a strong insulation resistance, make it a top choice for professionals looking for quality and durability. Whether it's used in audio mixing consoles, laboratory instruments, or industrial machinery, this potentiometer is designed to deliver consistent, high-quality performance in any setting.

Features:

• Product Name: Rotary Potentiometer
• Gang: Single or Dual
• Rotational Life: 10,000 Cycles
• Power Rating: 0.05W
• Resistance: 300Ω-3MΩ
• Shaft Diameter: 6mm or Customized
• Type: Rotary Electrical Potentiometer
• Application: Rotary Manual Adjustment Tool
• Function: Rotary Variable Resistor

Technical Parameters:

Applications:

The SANNI brand, renowned for its precision electronics, offers the model RV9 Rotary Potentiometer, a versatile component essential in a multitude of applications ranging from hobbyist projects to professional equipment. Originating from Dongguan, China, this potentiometer embodies high-quality craftsmanship in a compact 9mm dimension, suitable for applications where space conservation is key. The RV9 is available with either a single or dual gang configuration, catering to various circuitry requirements and providing users with flexibility in integration.

With shaft lengths ranging from 6mm to 20mm, which can also be customized to fit specific needs, the RV9 ensures compatibility with a broad array of devices. The terminal type is designed for PCB lug connections, ensuring a secure and reliable electrical interface. The SANNI RV9 potentiometer also boasts an impressive insulation resistance of 100MΩ Min, ensuring stable performance and longevity even in demanding environments.

As a rotary manual adjustment tool, the RV9 is commonly found in audio equipment for volume control, in lighting fixtures for dimming, and in automotive dashboards for adjusting various settings. Its precise control makes it an ideal rotary analog adjustment device for laboratory instruments, where fine tuning of variables is necessary. The RV9's robust construction and reliability also make it a go-to choice for industrial controls, where precision and durability are paramount.

Furthermore, the SANNI RV9 serves as a rotary variable resistor in power supplies, aiding in the regulation of current flow, and in consumer electronics for adjusting levels such as contrast or color balance in TVs and monitors. The potentiometer's adaptability also extends to musical instruments, where it can be used to modulate tone, gain, and other sound characteristics in electric guitars, amplifiers, and synthesizers.

In summary, the SANNI RV9 Rotary Potentiometer is a fundamental component for designers and engineers who require a reliable and adaptable rotary analog adjustment device. Whether it's for fine adjustments in sensitive electronic devices or for rugged use in industrial machinery, the RV9 delivers consistent performance with the quality assurance of a product made in Dongguan, China.

Customization:

Introducing the SANNI RV9, a high-quality Rotary Electrical Potentiometer designed for precision and durability. This potentiometer is the perfect Rotary Manual Adjustment Tool for a wide range of applications. Manufactured with meticulous attention to detail in Dongguan China, the RV9 model boasts a sturdy Through Hole/DIP Mount mounting type, ensuring secure installation and reliable operation.

Constructed with premium-grade Plastic & Metal materials, the SANNI RV9 ensures a smooth rotational feel and consistent performance. With a resistance range from 300Ω to 3MKΩ, this Rotary Multi-Turn Potentiometer provides precise control over your settings. The resistance tolerance is maintained within ±20%, allowing for accurate adjustments and stable circuit operation.

Ensuring safety and longevity, the RV9 potentiometer features an impressive Insulation Resistance of 100MΩ Min, protecting your equipment from electrical faults and enhancing the device's overall lifespan. Trust in the reliable SANNI brand for your potentiometer needs, and experience the difference in quality and craftsmanship with our RV9 model.

Support and Services:

The Rotary Potentiometer is a high-precision variable resistor that offers smooth rotational operation for accurate voltage division and control applications. Our product is designed to withstand a wide range of environmental conditions, ensuring reliability and durability. Technical support for this product includes troubleshooting assistance, product specifications, and guidance on best usage practices.

For installation support, our team provides step-by-step instructions and tips for integrating the Rotary Potentiometer into your existing systems. We also offer advice on calibration and adjustment to ensure optimal performance. Our experts can help you understand the electrical characteristics and mechanical dimensions of the product, tailoring support to your specific needs.

Regular maintenance is key to the longevity of your Rotary Potentiometer. We provide maintenance guidelines, cleaning procedures, and recommendations for preventive care. If you encounter any issues, our team is ready to assist with diagnostics and can guide you through any necessary repairs or replacements.

In the event that your Rotary Potentiometer requires servicing, we offer a comprehensive range of services to keep your product in top condition. This includes refurbishment options, part replacement, and upgrade advice to ensure your equipment stays up-to-date with the latest technological advancements.

Finally, we are committed to continuous improvement and welcome customer feedback. Your insights help us enhance our products and services, ensuring that we meet your needs and exceed your expectations. Thank you for choosing our Rotary Potentiometer.

Packing and Shipping:

Product Packaging for Rotary Potentiometer:

The Rotary Potentiometer is securely enclosed in a high-quality, anti-static packaging material to ensure its integrity and functionality during transit. Each unit is individually packaged in a sturdy box that is clearly labeled with the product name, specifications, and handling instructions. The packaging is designed to protect the potentiometer from physical damage, moisture, and electrostatic discharge.

Shipping Details for Rotary Potentiometer:

Our Rotary Potentiometers are shipped via a reputable courier service to ensure timely and safe delivery. Each package is carefully handled and includes a tracking number for the customer's convenience. We recommend inspecting the package upon arrival to ensure that no damage occurred during shipping. In the event of any shipping-related issues, please contact our customer service team immediately for assistance.

FAQ:

Q1: What is the resistance range of the SANNI RV9 Rotary Potentiometer?

A1: The SANNI RV9 Rotary Potentiometer comes in various resistance ranges. Please refer to the product specifications or contact customer service to find the exact range suitable for your application.

Q2: Can the SANNI RV9 be used for audio applications?

A2: Yes, the SANNI RV9 is suitable for audio applications, providing smooth volume control and adjustment. Ensure that the resistance value matches your audio system's requirements.

Q3: What is the expected lifespan of the SANNI RV9 Rotary Potentiometer?

A3: The SANNI RV9 is designed for durability, but the lifespan can vary depending on usage conditions. For information on the operational life under specific conditions, please consult the product datasheet or contact support.

Q4: Is the SANNI RV9 RoHS compliant?

A4: Yes, the SANNI RV9 Rotary Potentiometer is RoHS compliant, adhering to environmental and safety standards that restrict the use of certain hazardous substances in electrical and electronic equipment.

Q5: Can I obtain a sample of the SANNI RV9 Rotary Potentiometer for testing?

A5: Sample requests are typically accommodated to allow for testing and evaluation. Please reach out to SANNI's sales department for sample availability and shipping details.
