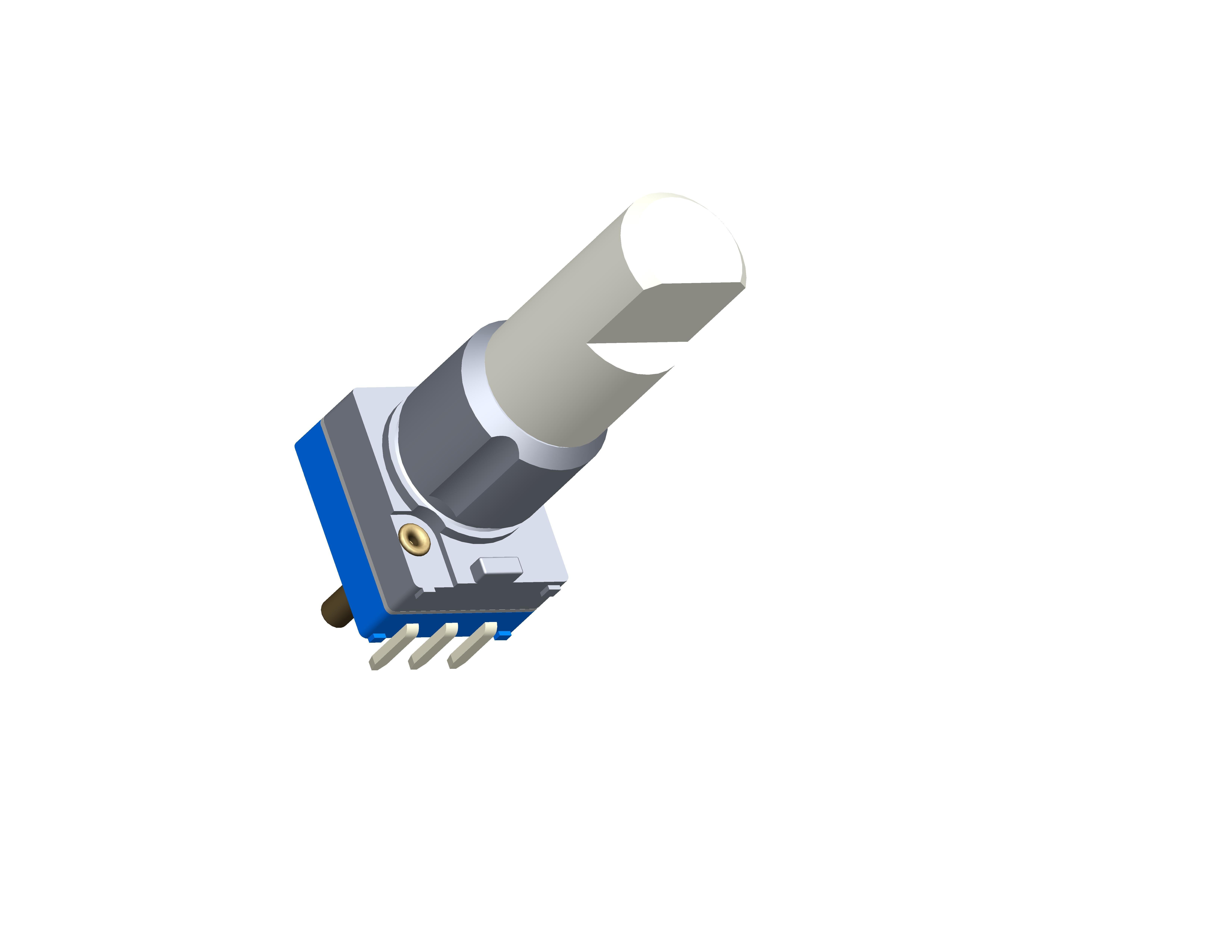

Plastic Metal Rotary Potentiometer Device -25C-85C 300 Ohm-3M Ohm Resistance 0.05W Power Rating

Basic Information
Place of Origin: Dongguan China
Brand Name: SANNI
Model Number: RV9
Operating Temperature: -25℃-85℃ Product Name: Rotary Potentiometer
Material: Plastic & Metal Resistance: 300Ω-3MKΩ
Shaft Length: 6mm-20mm Normal Or Customized Power Rating: 0.05W
Rotational Life: 10,000 Cycles Gang: Single Or Dual
High Light:

0.05W Rotary Potentiometer

,

-25C-85C Rotary Potentiometer

,

Plastic Metal Rotary Potentiometer

Product Description:

The Rotary Potentiometer is an essential component in the realm of electrical engineering, offering precision and control in a compact form. This particular model boasts a dimension of 9mm, making it an ideal choice for applications where space is at a premium. Its small size does not detract from its functionality or reliability. Crafted for versatility, this Rotary Electrical Potentiometer is an indispensable tool for adjusting voltage, controlling signal levels, or tuning circuits in a diverse range of electronic devices.

When it comes to installation, this Rotary Potentiometer features a Through Hole/DIP (Dual In-line Package) Mounting Type, ensuring a secure and stable connection to printed circuit boards. This mounting style is favored for its ease of soldering and the mechanical strength it provides, making it suitable for both prototyping and mass production. The DIP configuration is also user-friendly for those who prefer to do their own repairs or modifications, as it allows for straightforward removal and replacement.

Designed to withstand the demands of continuous usage, this Rotary Potentiometer is rated for a power of 0.05W. This power rating is indicative of the potentiometer's ability to handle electrical power efficiently without compromising performance or safety. It can perform reliably within a wide range of circuits, making it a versatile choice for designers and engineers seeking a low-power solution for their variable resistance needs.

Durability is a key consideration for any component, and this Rotary Multi-Turn Potentiometer excels in this regard with a Rotational Life of 10,000 Cycles. Such a lifespan ensures that the potentiometer will provide consistent performance over a significant period, reducing the need for frequent replacements and thus minimizing maintenance costs. Whether it's being used in audio equipment, instrumentation, or any other application requiring precise resistance adjustment, this potentiometer is built to last.

Another highlight of this Rotary Adjustable Resistor is its Operating Temperature range of -25℃ to 85℃. This broad temperature spectrum ensures that the potentiometer will function optimally in various environments, from the cold confines of a refrigerated system to the warmth of a sunlit control panel. This feature is particularly important for applications that are exposed to fluctuating or extreme temperatures, as it guarantees that the potentiometer will not falter when the conditions get tough.

In summary, the 9mm Rotary Potentiometer is a fine example of engineering and design converging to produce a reliable, efficient, and versatile component. Its Through Hole/DIP Mounting Type, combined with a modest 0.05W Power Rating and an impressive Rotational Life of 10,000 Cycles, makes it a preferred choice for a wide array of electronic applications. The ability to operate within a temperature range of -25℃ to 85℃ further enhances its appeal, ensuring performance in diverse operating conditions. For those in need of a Rotary Electrical Potentiometer, Rotary Multi-Turn Potentiometer, or a Rotary Adjustable Resistor, this product offers an excellent balance of size, power, longevity, and environmental adaptability.


Features:

  • Product Name: Rotary Potentiometer
  • Resistance Tolerance: ±20%
  • Power Rating: 0.05W
  • Shaft Type: Round/Flat/Knurled
  • Shaft Material: Metal
  • Also known as: Rotary Voltage Divider Potentiometer
  • Function: Rotary Analog Adjustment Device
  • Type: Rotary Voltage Divider Potentiometer

Technical Parameters:

Parameter Specification
Dielectric Strength 500VAC
Shaft Material Metal
Insulation Resistance 100MΩ Min
Power Rating 0.05W
Terminal Type PCB Lug
Shaft Diameter 6mm Or Customized
Shaft Length 6mm-20mm Normal Or Customized
Operating Temperature -25℃-85℃
Gang Single Or Dual
Dimension 9mm

Applications:

The SANNI brand, known for its reliable and high-quality electronic components, presents the RV9 model rotary potentiometer, a versatile rotary analog adjustment device designed for a wide range of applications. With its origins in Dongguan, China, this potentiometer is crafted with a combination of durable plastic and robust metal materials, ensuring longevity and consistent performance.

The RV9 model is available as a single or dual gang configuration, catering to different application needs. It features a PCB lug terminal type, allowing for secure and stable mounting onto circuit boards. The rotary electrical potentiometer boasts an impressive rotational life of 10,000 cycles, making it a reliable choice for devices that require frequent adjustments. With a power rating of 0.05W, it is an efficient solution for low-power circuits.

One of the primary application occasions for the SANNI RV9 is in audio equipment. As a rotary variable resistor, it can be used to control volume, balance, tone, and other audio settings in mixers, amplifiers, and receivers. The smooth and precise adjustment provided by the RV9 ensures high-quality sound regulation in professional and consumer audio devices.

Additionally, the RV9 is ideal for use in lighting control systems. It can function as a dimmer or adjust the intensity of lights in residential, commercial, and stage lighting applications. The durability and consistent performance of the RV9 ensure that it can handle the frequent adjustments required in dynamic lighting scenarios.

In the field of electronics, the RV9 rotary potentiometer can be incorporated into test and measurement instruments. Engineers and technicians rely on the precise control it offers for calibrating equipment or setting parameters during experiments and product development processes.

The automotive industry also benefits from the RV9's precision. It can be used in car audio systems, climate control units, and various dashboard controls, where the driver's tactile feedback and accurate settings are crucial for a comfortable and safe driving experience.

Furthermore, the SANNI RV9 finds its applications in industrial machinery where precise adjustments are necessary for controlling speed, resistance, or position in automation systems. Its robust construction ensures that it can withstand the demanding conditions of industrial environments.

In conclusion, the SANNI RV9 rotary potentiometer is a highly adaptable component suitable for a range of applications that require accurate and reliable analog control. Its combination of quality materials, long service life, and precise adjustability makes it a top choice for manufacturers and designers in various industries.


Customization:

Brand Name: SANNI

Product Name: Rotary Potentiometer

Model Number: RV9

Place of Origin: Dongguan, China

Rotational Life: 10,000 Cycles

Shaft Length: 6mm-20mm Normal Or Customized

Dielectric Strength: 500VAC

Insulation Resistance: 100MΩ Min

Our SANNI RV9 Rotary Potentiometer offers precise rotary electrical potentiometer functionality for a variety of applications. This high-quality rotary analog adjustment device is designed to meet the needs of demanding audio and electronics projects. As a rotary linear variable resistor, it ensures reliable performance with a rotational life of 10,000 cycles. Customization services are available to tailor the shaft length from 6mm to 20mm to fit your specific requirements. Manufactured in Dongguan, China, this potentiometer boasts a dielectric strength of 500VAC and an insulation resistance of 100MΩ min, ensuring durability and safety in your designs.


Support and Services:

Our Rotary Potentiometer comes with comprehensive technical support and services designed to ensure your experience with our product is seamless and satisfactory. Our support includes detailed product documentation that provides guidance on installation, operation, and troubleshooting. Additionally, we offer a series of online resources such as FAQs, tutorials, and application notes to help you gain a deeper understanding of the product and its uses.

If further assistance is required, our dedicated technical support team is available to provide expert advice on product integration, optimization, and customization to meet the specific needs of your application. We are committed to providing timely and effective solutions to any technical challenges you may encounter.

For maintenance and repair services, we have a network of authorized service centers equipped with the necessary tools and expertise to ensure your potentiometer maintains peak performance. We also provide calibration services to ensure accuracy and extend the lifespan of the product.

Please note that our support and services may vary by region and are subject to the terms and conditions of our warranty policy. We encourage our customers to refer to the product documentation for warranty information and to contact us for any further service requirements.


Packing and Shipping:

Product Packaging:

The Rotary Potentiometer is securely encased in a protective foam insert that conforms to its shape, ensuring the sensitive components remain unharmed during transit. This insert is placed within a sturdy cardboard box that is sized appropriately to prevent excessive movement. The box is sealed with tamper-evident tape and labeled with handling instructions to further safeguard the product's integrity.

Shipping:

Your Rotary Potentiometer will be shipped using a reliable courier service to ensure timely and safe delivery. The package will be tracked from the moment it leaves our facility to the time it arrives at your doorstep. Fragile handling labels will be affixed to the exterior of the box to remind carriers of the delicate nature of the contents. Please inspect the package upon arrival for any signs of mishandling or damage, and report any issues immediately for prompt resolution.


FAQ:

Q1: What is the resistance range available for the SANNI RV9 Rotary Potentiometer?

A1: The SANNI RV9 Rotary Potentiometer offers a variety of resistance ranges to fit different applications. Please consult the product datasheet or contact customer support for specific resistance values available for this model.

Q2: Can the SANNI RV9 be used for audio applications?

A2: Yes, the SANNI RV9 Rotary Potentiometer is suitable for audio applications. It is designed to provide smooth volume adjustment and can be used in mixers, amplifiers, and other audio equipment.

Q3: What is the power rating of the SANNI RV9 Rotary Potentiometer?

A3: The power rating for the SANNI RV9 Rotary Potentiometer varies depending on the specific configuration. Please refer to the technical specifications in the product datasheet or reach out to our customer service for detailed information regarding the power rating.

Q4: Does the SANNI RV9 Rotary Potentiometer come with a knob?

A4: The SANNI RV9 Rotary Potentiometer typically does not include a knob. Knobs are usually sold separately to allow users to choose a style that best fits their design preferences and ergonomic requirements.

Q5: Is the SANNI RV9 Rotary Potentiometer RoHS compliant?

A5: Yes, the SANNI RV9 Rotary Potentiometer is manufactured in compliance with RoHS directives, ensuring that it does not contain hazardous substances and meets environmental standards for electronic components.
