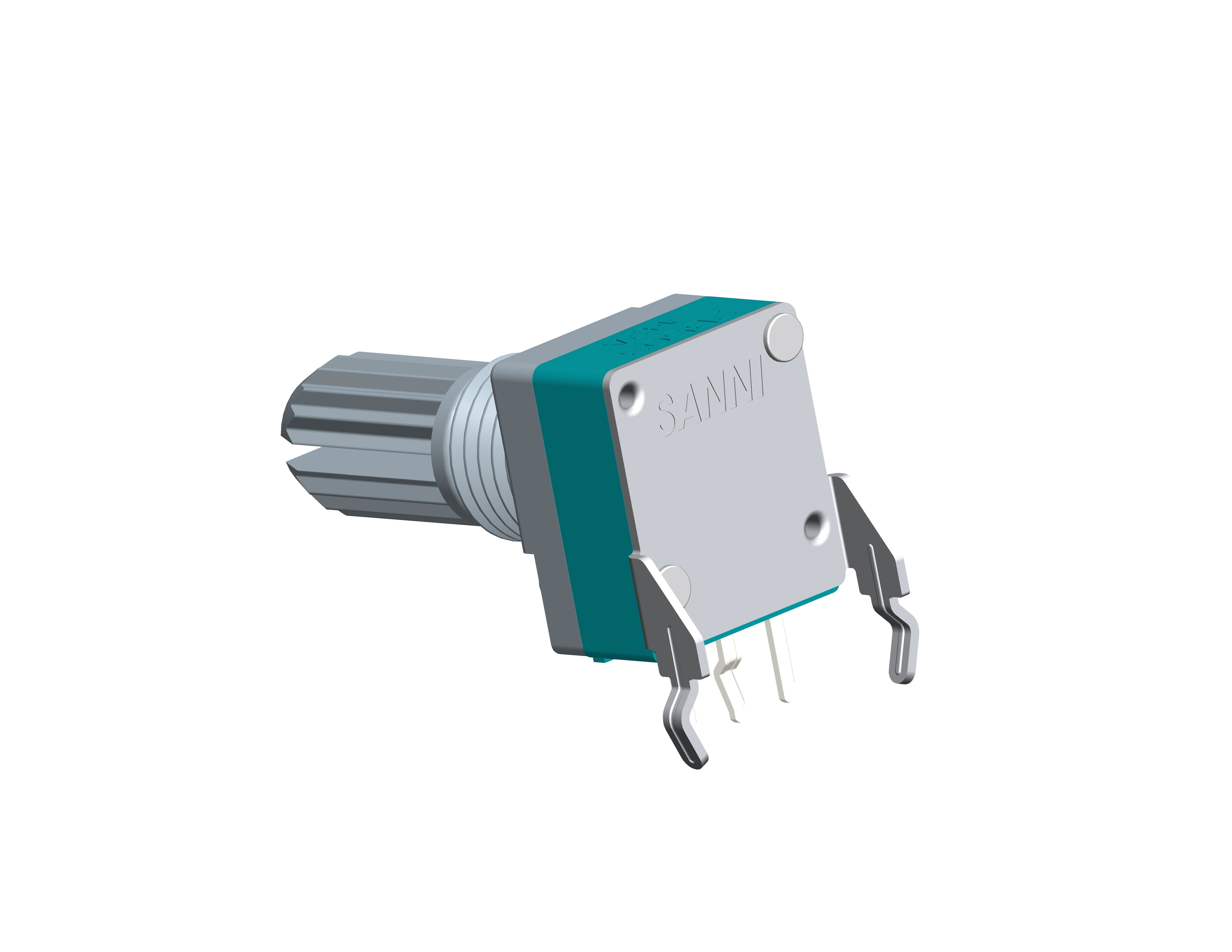

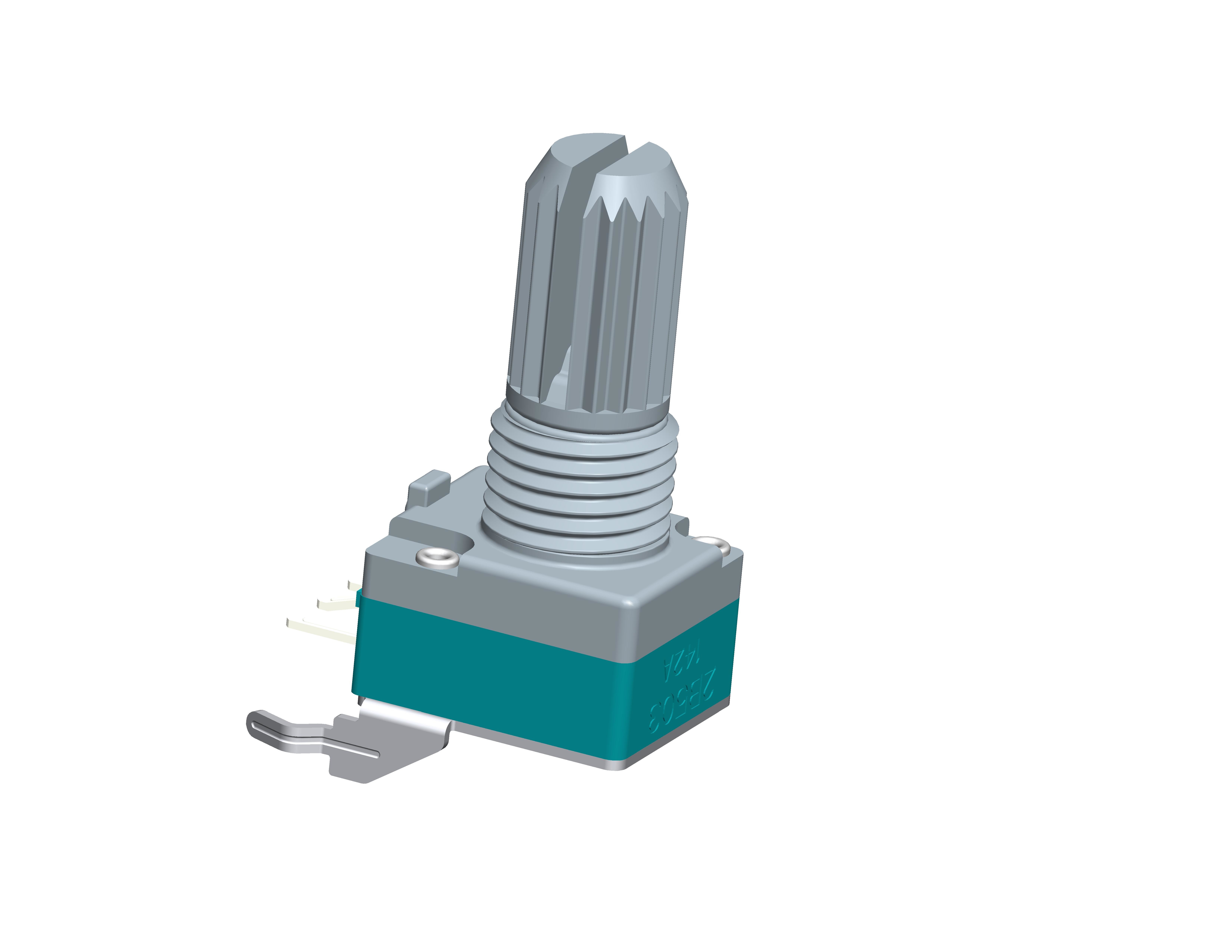

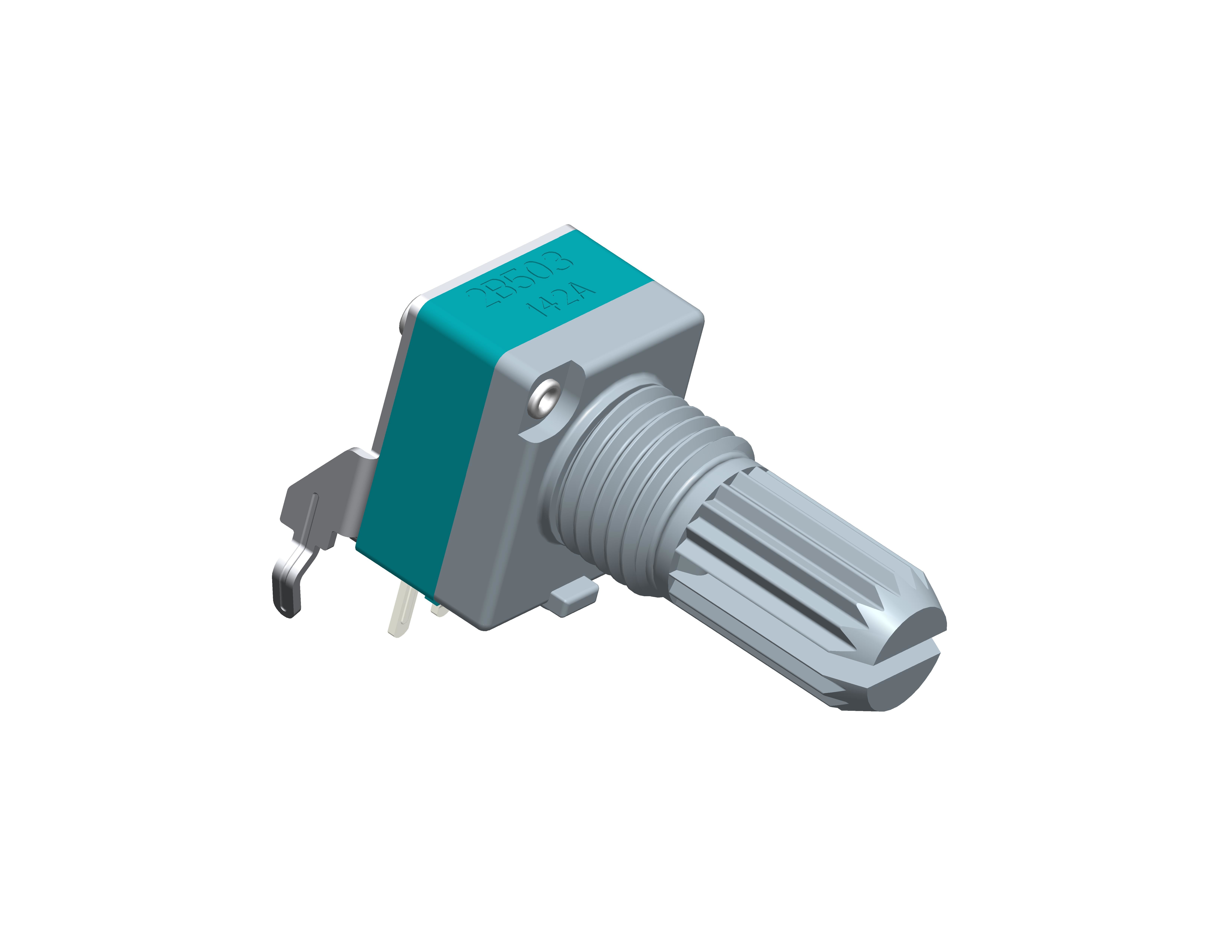

Manufacturer Supplier 09mm Horizontal type rotary potentiometer with bracket for audio appliance

Product Description:

The rotating potentiometer is an adjustable electrical resistor, which slides on the resistors by the brush, and obtains the output voltage associated with the input voltage in the circuit. It is mainly used for communication products, walkie-talkie, automobile power amplifier, multimedia audio, smart home, computer peripheral, etc.

Manufacturer Supplier 09mm Horizontal type rotary potentiometer with bracket for audio appliance 0

Features of Rotary Potentiometer

Using plastic sealing structure, can effectively deal with wave welding.
Good sealing performance
Can be with positioning.
Push-pull switch or rotating switch can be chosen.
Shaft length and shape can be adjusted.
A variety of mounting methods for choice.

Application of Rotary Potentiometer

Rotary Potentiometer is mainly suitable for communication products, walkie-talkie, multimedia audio, automobile power amplifier and other electronic equipment, but also can use household appliances, medical equipment, its main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.

Technical Parameters:

1.Electrical Characteristics
Total resistance	200Ω-2MΩ
Total resistance tolerance	200Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Insulation resistance	100MΩ min. 250V DC
Residual resistance	20ΩMax.
Rated Power	Linear taper:0.05W, Audio Taper 0.025W
Noise	100mV Max
Voltage proof	100V AC for 1 minute
Maximum operation voltage	50V AC/20V DC
Gang error applicable for Dual unit parts for audio volume control purposes	-40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.)
2.Mechanical Characteristics
Rotation stopper strength	Min:4Kgf
Total rotation angle	300o±5o
Totational torque	10-150gf.cm
Key push-pull strength	Min:8Kgf
Terminal Strength	5N for 1 minute
Key Wobble	Max: 0.6*L/20mm P-P
3.Switch Characteristics
Switch Type	SPST
Rated Power	1A 16V DC
Switch Torque	500gf.cm Max
Switch Angle	40o Max
Operating Life without load	15000 cycles 100mΩ Max
Operating life with load:as rating	15000 cycles 200mΩ Max
Initial contact resistance	100mΩ Max
Insulation resistance	100MΩ min. 250V DC
Voltage proof	300V AC for 1 minute
4.Environmental Performance
Operating temperature range	-10oC to +70oC
Storage temperature range	-40oC to +85oC
5.Welding heat reference
Manual Soldering	350oC±10oC/3+1S
Wave Soldering	260oC±5oC/10±1S

FAQ:

Q: What is the Brand Name of this product?
A: The Brand Name of this product is Sanni.
Q: What are the model numbers of this product?
A: The model numbers of this product are RE11 and RE12.
Q: Where is this product made?
A: This product is made in China.
Q: What is the function of an Absolute Rotary Encoder?
A: An Absolute Rotary Encoder is a device that converts rotational motion into digital signals, allowing for precise positioning and measurement.
Q: How does this product compare to other rotary encoders?
A: Sanni's Absolute Rotary Encoder offers high accuracy, durability, and versatility, making it a top choice for various industrial and automation applications.

Tag:

Place of Origin:	China
Brand Name:	Sanni
Certification:	ISO9001
Model Number:	RV9312N0

Minimum Order Quantity:	2000
Price:	1.5USD
Packaging Details:	carton box
Delivery Time:	30days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/month

Control Part Orientation:	Horizontal	Actuator Configuration:	Flange
Actuator Length:	15mm	Operating Temperature Range:	'-40℃ ～ +85℃
Total Resistance:	200Ω-2MΩ	Rated Power:	Linear Taper:0.05W, Audio Taper 0.025W
Voltage Proof:	100V AC For 1 Minute	Operating Life:	30,000 Cycles
Highlight:	09mm rotary potentiometer , rotary potentiometer with bracket , Horizontal type rotary potentiometer
