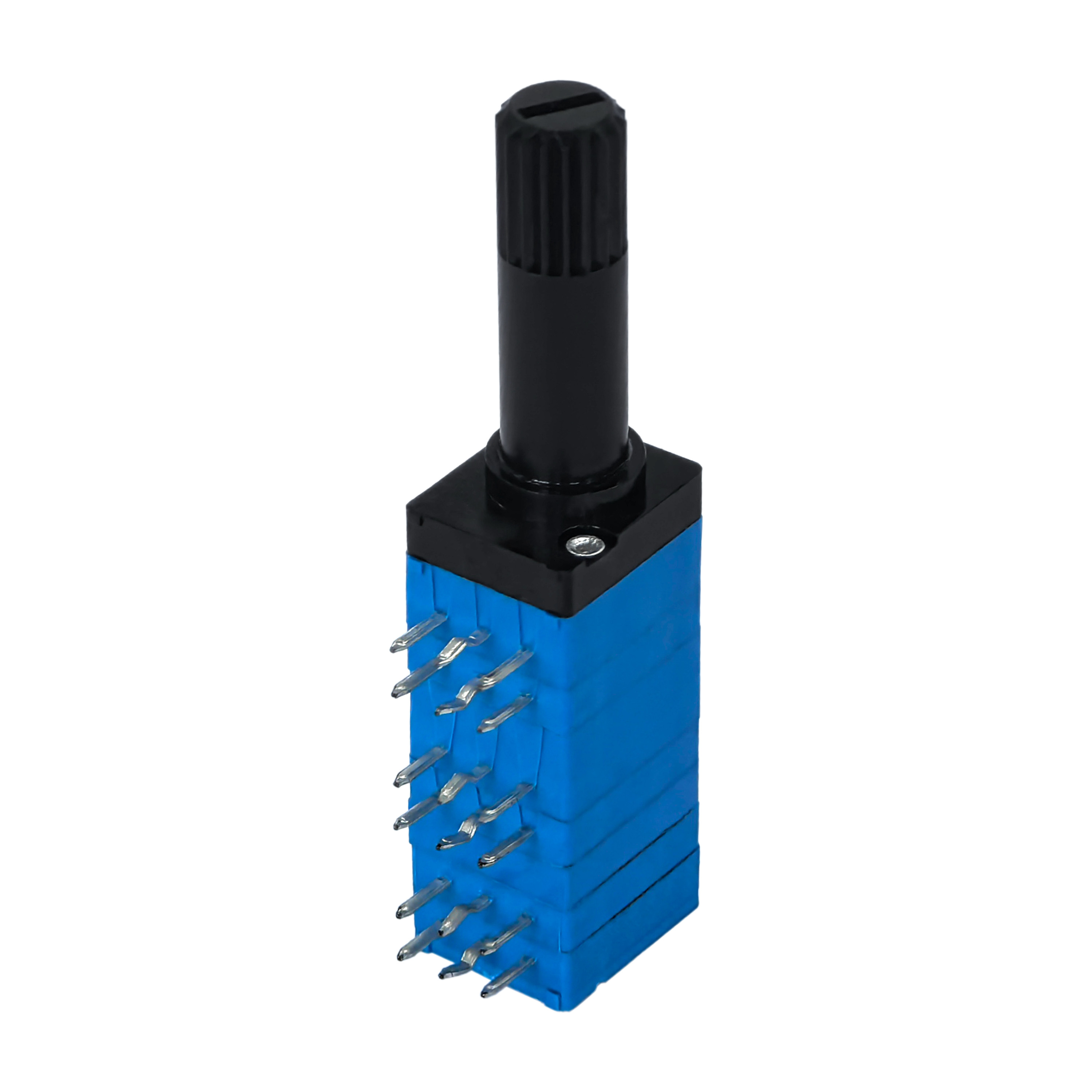

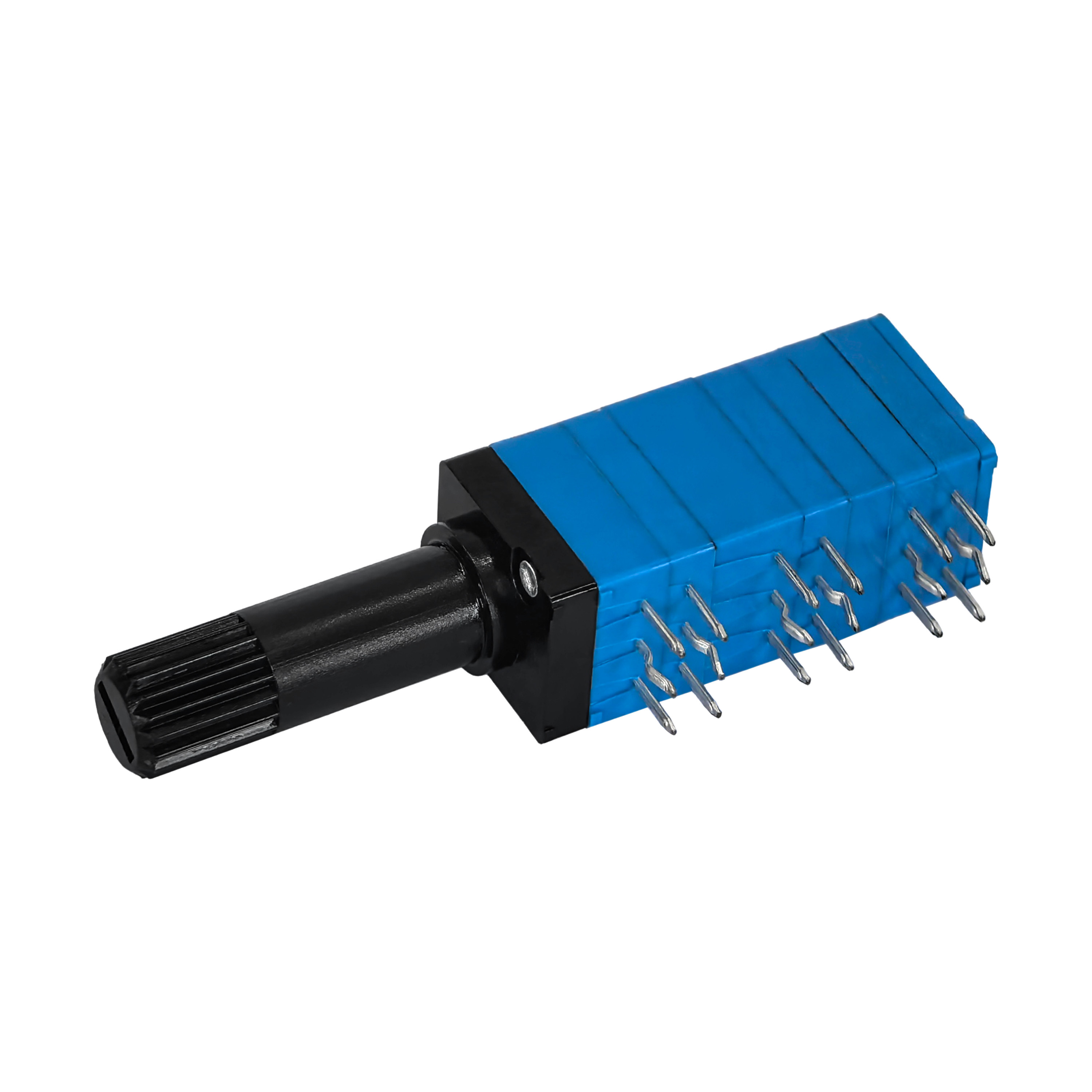

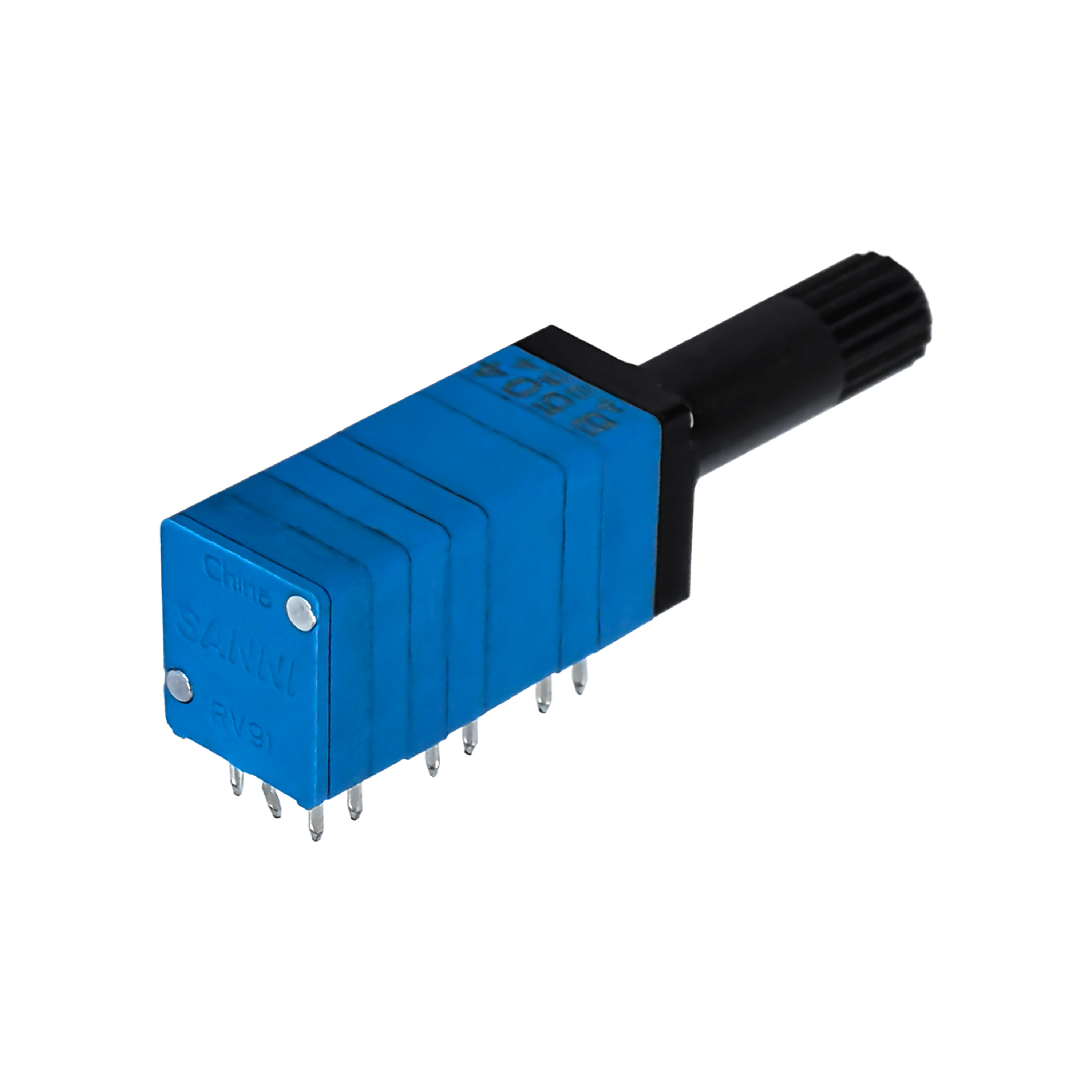

9mm Variable Resistor 5K 10k Linear Potentiometer Six Gang 15/20mm Plastic Shaft Rotary Potentiometer For Volume Control

Basic Information

Place of Origin:	China
Brand Name:	Sanni
Certification:	ISO9001
Model Number:	RV97P0D0

Minimum Order Quantity:	2000
Price:	0.7USD
Packaging Details:	carton box
Delivery Time:	30days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/month

Contact Now

Type:

Rotary Potentiometer

Voltage Proof:

100V AC For 1 Minute

Operating Life:

30,000 Cycles

Total Resistance:

100Ω-3MΩ

Ratings Power:

0.05W

Maximum Operating Voltage:

DC 10V ，AC 50V

Total Rotational Angle:

300°±5°

Resistance Taper:

A/B/C

Resistance Tolerance:

±20%

Apply To:

Audio,lamp,mixer

Highlight:

15/20mm Rotary Potentiometer

10k Rotary Potentiometer

9mm Rotary Potentiometer

9mm Variable Resistor 5K 10k Linear Potentiometer Six Gang 15/20mm plastic Shaft Rotary Potentiometer for Volume Control

Name: 9mm Variable Resistor 5K 10k Linear Potentiometer Six Gang 15/20mm Plastic Shaft Rotary Potentiometer For Volume Control
Brand: Dongguan SANNI Electronics Technology Co., Ltd.
SKU: RV97P0D0
Price: 0.7 USD
Availability: InStock

Product Description:

A rotary potentiometer is a variable resistor (electromechanical component) that works by moving a wiper across a resistive element to obtain an output voltage related to the input voltage, hence its name. The main parameters of a rotary potentiometer include linearity, resistance value, rated power, rotational noise, temperature, resistance variation characteristics, and insulation impedance. Rotary potentiometers are primarily used in communication products, walkie-talkies, car amplifiers, multimedia speakers, smart home devices, computer peripherals, etc. Their functions mainly include volume adjustment, light intensity regulation, menu selection, speed control, and temperature adjustment.

9mm Variable Resistor 5K 10k Linear Potentiometer Six Gang 15/20mm Plastic Shaft Rotary Potentiometer For Volume Control 0

Features of Rotary Potentiometer

Using plastic sealing structure, can effectively deal with wave welding.
Good sealing performance
Can be with positioning.
Shaft length and shape can be adjusted.

Technical Parameters:

1.Electrical Characteristics
Total resistance	100Ω-3MΩ
Insulation resistance	100MΩ min. 250V DC
Residual resistance	20ΩMax.
Rated Power	Linear taper:0.05W, Audio Taper 0.025W
Noise	100mV Max
Voltage proof	100V AC for 1 minute
Maximum operation voltage	50V AC/20V DC
Gang error applicable for Dual unit parts for audio volume control purposes	-40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.)
2.Mechanical Characteristics
Rotation stopper strength	Min:4Kgf
Total rotation angle	300o±5o
Totational torque	30~80gf.cm
Key push-pull strength	Min:8Kgf
Terminal Strength	5N for 1 minute
3.Switch Characteristics
Switch Type	SPST
Rated Power	1A 16V DC
Switch Torque	500gf.cm Max
Switch Angle	40o Max
Operating life with load:as rating	15000 cycles 200mΩ Max
Initial contact resistance	100mΩ Max
Insulation resistance	100MΩ min. 250V DC
Voltage proof	300V AC for 1 minute
4.Environmental Performance
Operating temperature range	-10oC to +70oC
Storage temperature range	-40oC to +85oC
5.Welding heat reference
Manual Soldering	350oC±10oC/3+1S
Wave Soldering	260oC±5oC/10±1S

9mm Variable Resistor 5K 10k Linear Potentiometer Six Gang 15/20mm Plastic Shaft Rotary Potentiometer For Volume Control 1

FAQ:

Q: What is the Brand Name of this product?
A: The Brand Name of this product is Sanni.
Q: What are the model numbers of this product?
A: The model numbers of this product are RE11 and RE12.
Q: Where is this product made?
A: This product is made in China.
Q: What is the function of an Absolute Rotary Encoder?
A: An Absolute Rotary Encoder is a device that converts rotational motion into digital signals, allowing for precise positioning and measurement.
Q: How does this product compare to other rotary encoders?
A: Sanni's Absolute Rotary Encoder offers high accuracy, durability, and versatility, making it a top choice for various industrial and automation applications.
