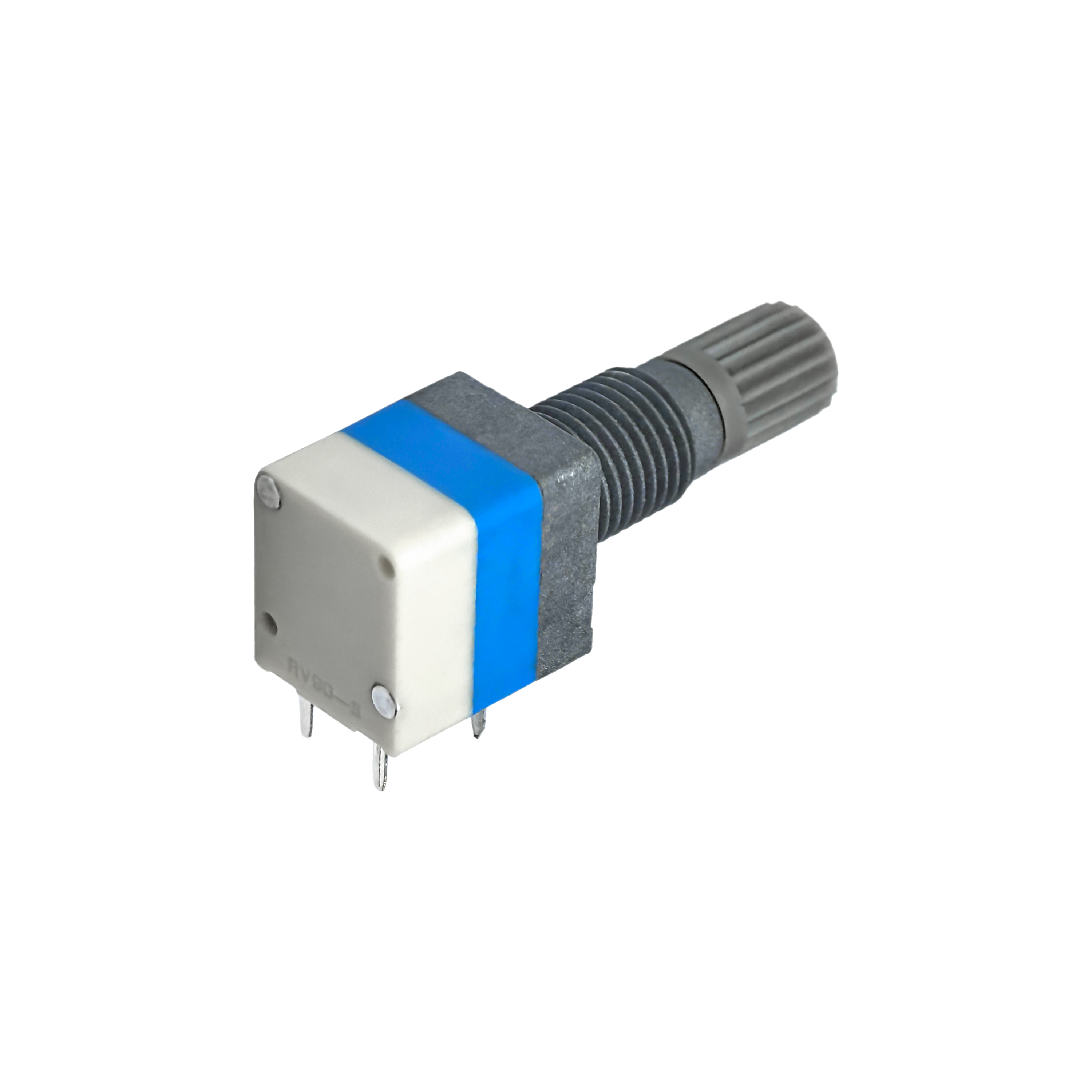

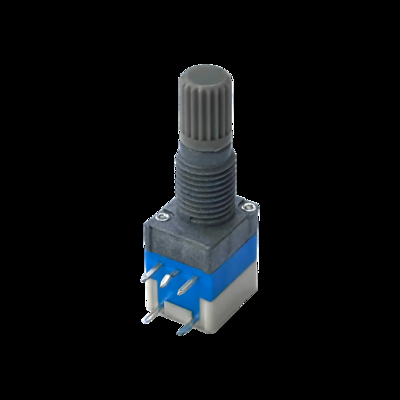

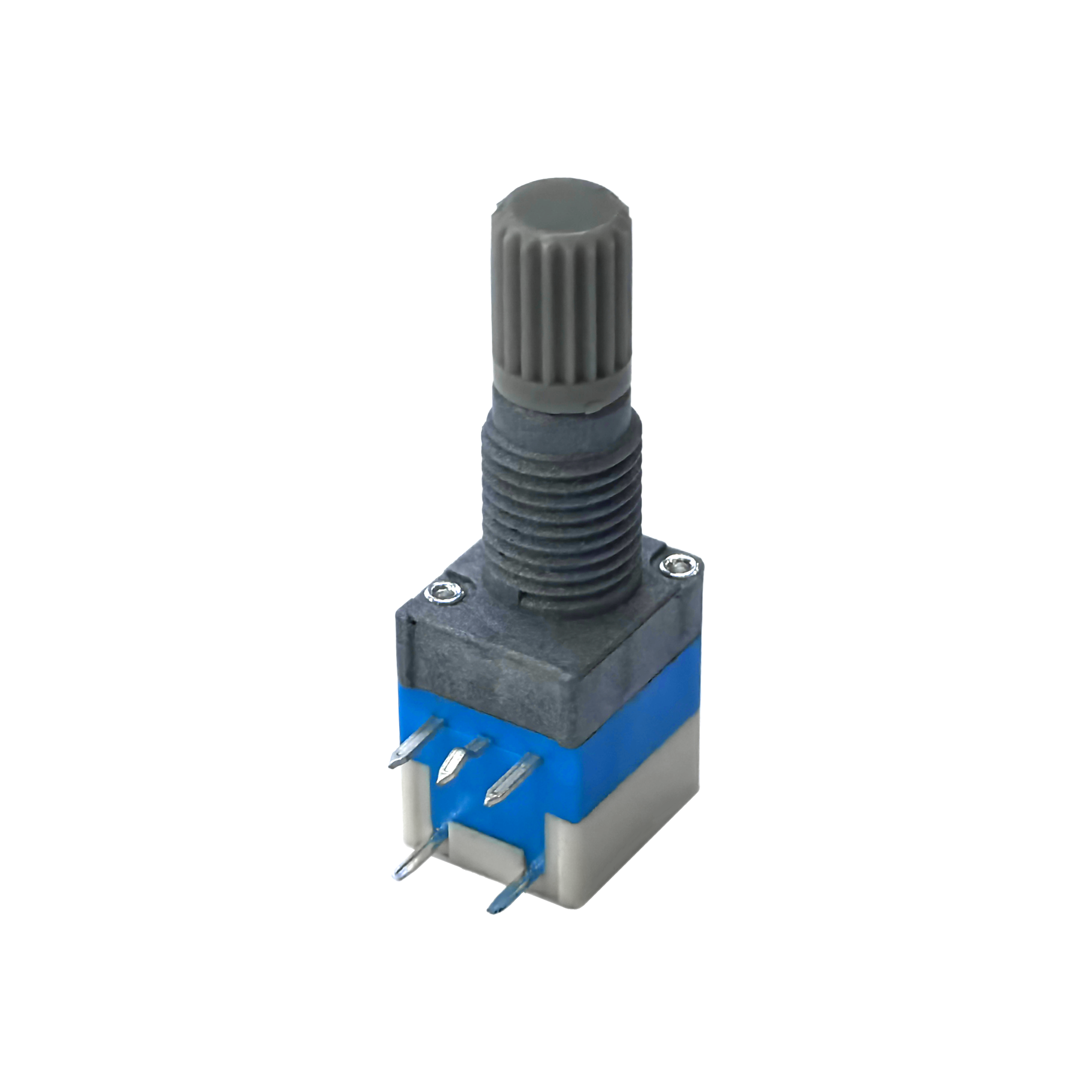

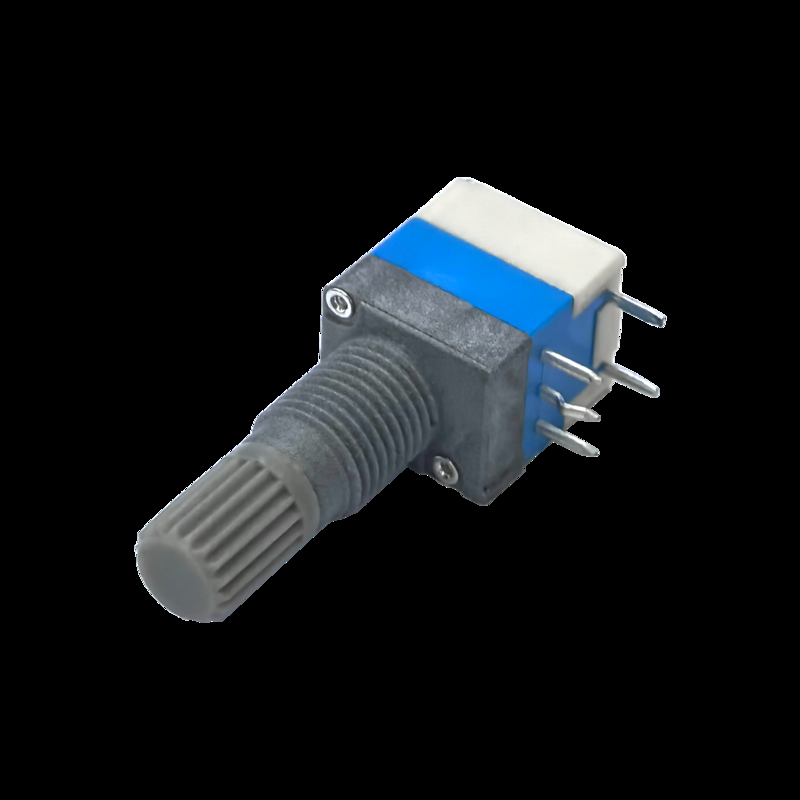

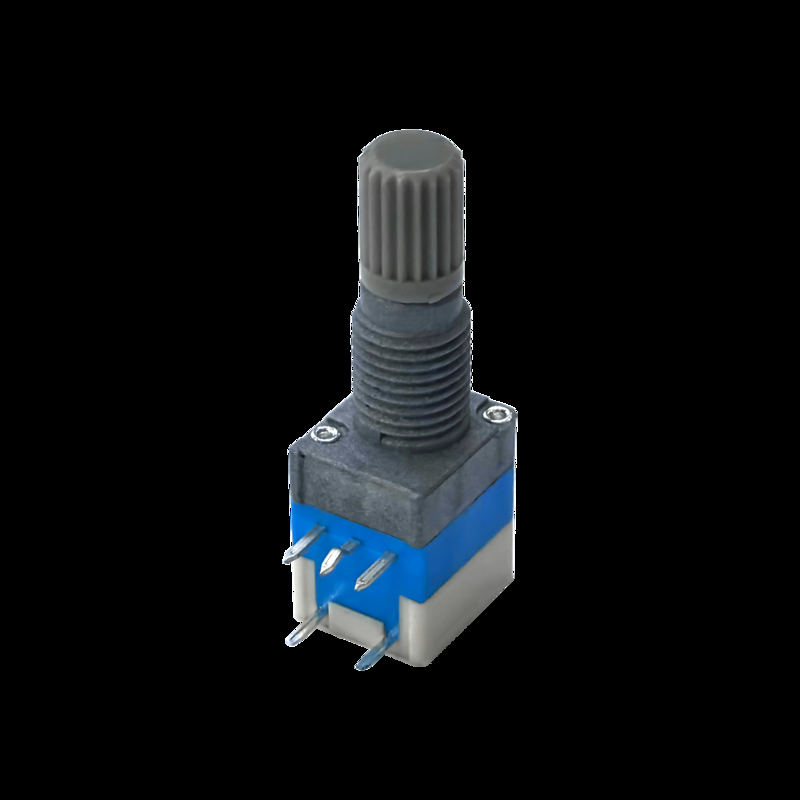

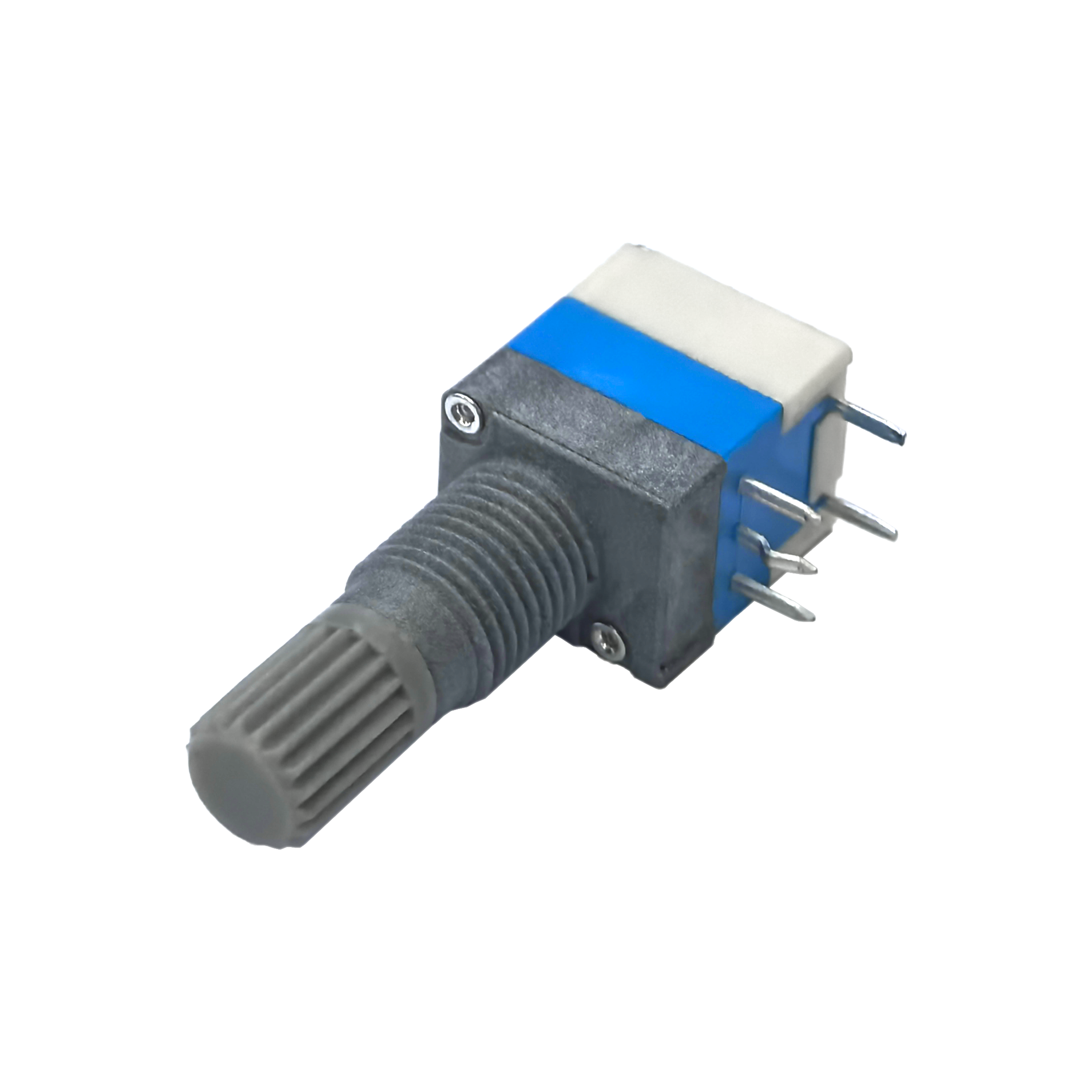

RV9G30NS ±20% Resistance Tolerance Rotary Potentiometer For Precise Electronic Measurement In Versatile Applications

Basic Information
Place of Origin: Dongguan China
Brand Name: SANNI
Certification: ISO9001:2015
Model Number: RV9G30NS
Document: RV9G30NS.pdf
Minimum Order Quantity: 1000pcs
Price: 0.15
Packaging Details: 1000pcs per Carton box,
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 100000pccs per Month
Power Rating: 0.05W Material: Plastic & Metal
Shaft Type: Round/Flat/knurled Rotational Life: 10,000 Cycles
Dielectric Strength: 500VAC Mounting Type: Through Hole/DIP Mount
Shaft Length: 6mm-20mm Normal Or Customized Shaft Diameter: 6mm Or Customized
Highlight:

Precise Rotary Potentiometer

,

Electronic Measurement Rotary Potentiometer

,

Versatile Rotary Potentiometer

Product Description:

The Rotary Potentiometer is a versatile rotary analog adjustment device that is commonly used in electronic circuits for controlling the electrical resistance. This rotary electrical potentiometer features a shaft length ranging from 6mm to 20mm, which can be either the normal size or customized to suit specific requirements.

With a rotational life of 10,000 cycles, this rotary multi-turn potentiometer offers durable and reliable performance for a wide range of applications. The potentiometer is constructed with a combination of plastic and metal materials, ensuring both strength and durability in its design.

One of the key specifications of this rotary potentiometer is its dielectric strength of 500VAC, which indicates its ability to withstand high voltages without breakdown. Additionally, the potentiometer boasts an insulation resistance of 100MΩ minimum, providing effective electrical insulation to maintain proper functionality and safety.



Features:

  • Product Name: Rotary Potentiometer
  • Resistance Tolerance: ±20%
  • Resistance: 300Ω-3MKΩ
  • Material: Plastic & Metal
  • Dimension: 9mm
  • Dielectric Strength: 500VAC


Technical Parameters:

Gang Single
Resistance Tolerance ±20%
Mounting Type Through Hole/DIP Mount
Insulation Resistance 100MΩ Min
Operating Temperature -25℃-85℃
Rotational Life 10,000 Cycles
Shaft Diameter 6mm Or Customized
Power Rating 0.05W
Shaft Length 6mm-20mm Normal Or Customized
Resistance 300Ω-3MKΩ


Applications:

SANNI RV97 Rotary Potentiometer is a versatile electronic component suitable for a wide range of applications due to its high-quality construction and precise performance. Designed to meet the needs of various industries, this Rotary Multi-Turn Potentiometer offers exceptional resistance values ranging from 300Ω to 3MKΩ with a tolerance of ±20%.

The Rotary Potentiometer Device is commonly used in audio equipment, lighting controls, industrial machinery, and electronic instruments to control and adjust voltage levels, volume, and other parameters. Its durable plastic shaft material ensures reliability and longevity, making it ideal for demanding environments.

Originating from Dongguan, China, the SANNI RV97 Rotary Potentiometer reflects superior craftsmanship and engineering excellence. The shaft diameter of 6mm, or customized as needed, provides flexibility for integration into various systems and designs.

Whether in professional audio mixing consoles, medical equipment, or automotive applications, the Rotary Variable Resistor delivers precise and accurate performance, enhancing the functionality and control of electronic devices. Its robust design and wide resistance range make it a reliable choice for both industrial and consumer electronics.



Customization:

Product Customization Services for the Rotary Potentiometer product:

Brand Name: SANNI

Model Number: RV97

Place of Origin: Dongguan China

Shaft Material: Plastic

Mounting Type: Through Hole/DIP Mount

Dielectric Strength: 500VAC

Shaft Type: Round/Flat/knurled

Power Rating: 0.05W

Customize your Rotary Electrical Potentiometer (Model RV97) from SANNI, manufactured in Dongguan China. This Rotary Analog Adjustment Device features a plastic shaft material, with mounting options for Through Hole or DIP Mount. It offers a dielectric strength of 500VAC and comes with shaft types in Round, Flat, or knurled design. The power rating for this Rotary Potentiometer Device is 0.05W.



Support and Services:

The Product Technical Support and Services for the Rotary Potentiometer include:

- Installation assistance

- Troubleshooting guidance

- Product maintenance tips

- Product specifications and data sheets

- Warranty information

- Repair and replacement services

- Online resources and tutorials



Packing and Shipping:

Product Packaging:

This Rotary Potentiometer is carefully packaged in a sturdy cardboard box to ensure safe delivery to our customers. The potentiometer is secured with protective foam padding to prevent any damage during transportation.

Shipping:

We offer reliable shipping services to deliver your Rotary Potentiometer swiftly and securely. Orders are processed promptly, and the product is shipped with tracking information provided so you can monitor its journey to your doorstep.



FAQ:

Q: What is the brand of this rotary potentiometer?

A: The brand of this rotary potentiometer is SANNI.

Q: What is the model number of this rotary potentiometer?

A: The model number of this rotary potentiometer is RV97.

Q: Where is this rotary potentiometer manufactured?

A: This rotary potentiometer is manufactured in Dongguan, China.

Q: What is the resistance range of the RV97 rotary potentiometer?

A: The resistance range of the RV97 rotary potentiometer varies depending on the specific variant, but typically ranges from X ohms to Y ohms.

Q: Can the RV97 rotary potentiometer be used in industrial applications?

A: Yes, the RV97 rotary potentiometer is suitable for use in industrial applications due to its durable construction and reliable performance.
