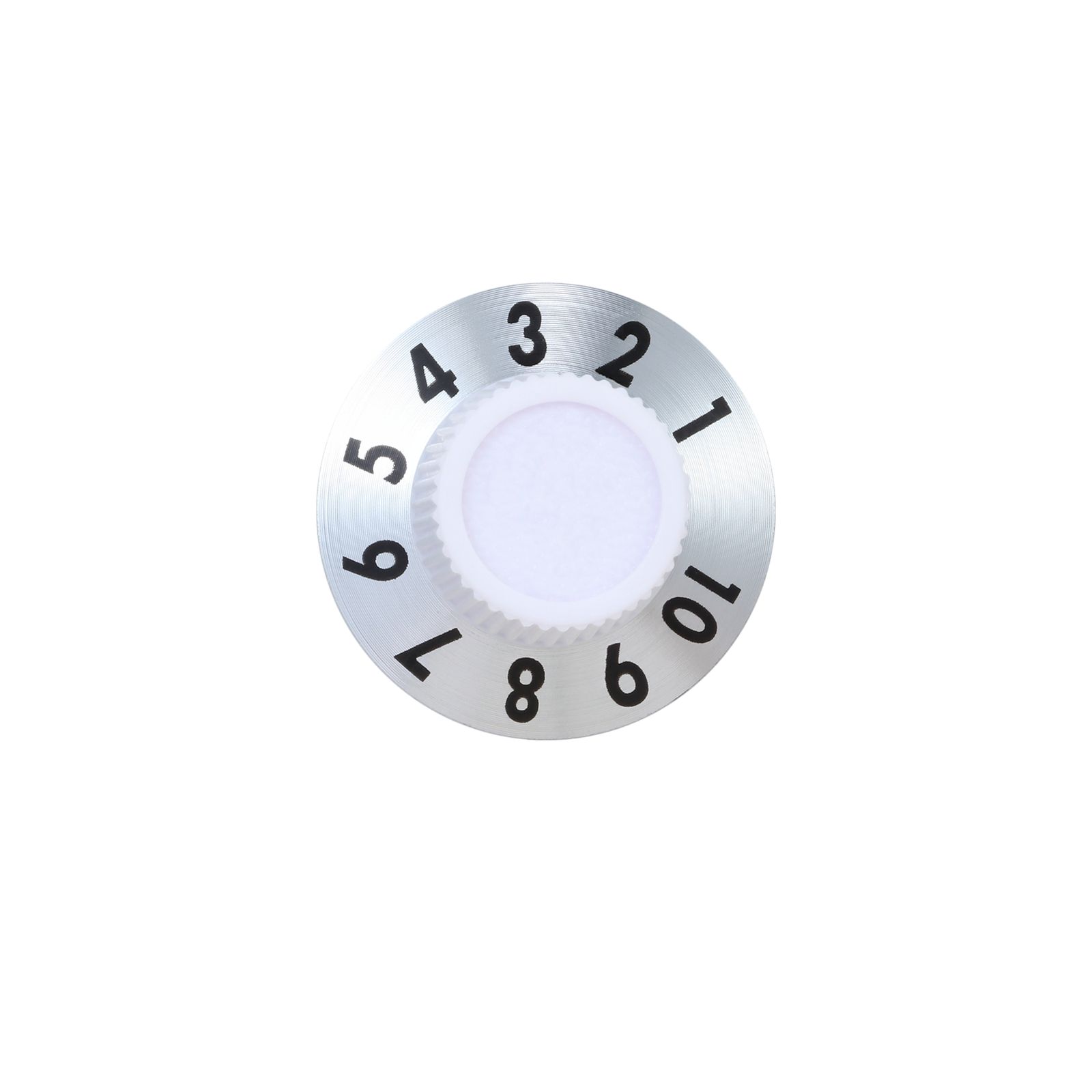

Through Hole DIP Mount Rotary Potentiometer Rotational Life 000 Cycles Shaft Length 6mm 20mm Normal Or Customized Lengths

Product Description:

The Rotary Potentiometer is a versatile and essential component widely used in electronic circuits to measure and adjust electrical resistance. As a Rotary Electrical Position Sensor, this device provides precise control over the resistance value by allowing rotational movement of its shaft. This adjustment capability makes it an ideal choice for applications requiring fine-tuned control of voltage and current, such as in audio equipment, instrumentation, and various control systems.

Constructed from high-quality plastic and metal materials, the Rotary Potentiometer combines durability with reliable performance. The use of plastic ensures lightweight and corrosion resistance, while the metal components contribute to mechanical strength and longevity. This robust construction ensures that the Rotary Potentiometer Device can withstand repeated adjustments and harsh operating environments without compromising its accuracy or functionality.

The mounting type of this Rotary Adjustable Resistor is Through Hole or DIP Mount, which facilitates easy and secure installation on printed circuit boards (PCBs). Through Hole mounting provides strong mechanical stability, making the potentiometer suitable for applications where the device may be subject to mechanical stress or vibration. DIP Mounting further simplifies assembly and enhances the device’s integration into compact electronic designs, maintaining a low profile while providing dependable electrical connections.

One of the key features of this Rotary Potentiometer is its resistance tolerance of ±20%. This tolerance level indicates the allowable deviation from the nominal resistance value, ensuring consistent performance across various units. Although this tolerance is relatively broad compared to precision potentiometers, it is well-suited for applications where moderate accuracy is acceptable, balancing cost and functionality effectively.

The shaft diameter of the Rotary Potentiometer is typically 6mm, with customization options available to accommodate specific requirements. This flexibility allows designers and engineers to select the most appropriate shaft size for their application, ensuring compatibility with knobs, dials, or other mechanical components. The shaft type can also be chosen from round, flat, or knurled designs, offering additional adaptability. A round shaft provides smooth rotational movement, a flat shaft allows for secure attachment of knobs with set screws, and a knurled shaft enhances grip, preventing slippage during adjustment.

As a Rotary Electrical Position Sensor, this potentiometer excels in providing accurate feedback on angular position, which is critical in many control systems. It converts rotational position into a variable electrical resistance, which can then be interpreted by microcontrollers or analog circuits to monitor or control the movement of mechanical components. This capability makes it invaluable in applications such as volume controls, tuning circuits, and user interface controls in various electronic devices.

In summary, the Rotary Potentiometer Device is a reliable and adaptable component designed to meet the needs of diverse electronic applications. Its combination of plastic and metal materials, through-hole/DIP mounting options, ±20% resistance tolerance, and customizable shaft diameter and type make it a practical choice for engineers and designers. Whether used as a Rotary Adjustable Resistor or a Rotary Electrical Position Sensor, this potentiometer offers dependable performance and ease of integration, making it an indispensable element in modern electronic systems.

Features:

• Product Name: Rotary Potentiometer
• Power Rating: 0.05W
• Dielectric Strength: 500VAC
• Gang: Single
• Material: Plastic & Metal
• Function as a Rotary Manual Adjustment Tool for precise control
• Serves as a Rotary Electrical Position Sensor for accurate position detection
• Acts as a Rotary Adjustable Resistor to vary resistance smoothly

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer Device, originating from Dongguan, China, is an essential component widely used across various industries and applications. Known for its reliable performance and precise control, this rotary manual adjustment tool is designed to meet diverse needs where variable resistance is required. With a resistance range from 300Ω to 3MΩ and a resistance tolerance of ±20%, the device ensures accurate adjustment and fine-tuning capabilities in both simple and complex electronic circuits.

This rotary potentiometer device is commonly applied in audio equipment for volume control, offering smooth and consistent manual adjustment. Its robust insulation resistance of 100MΩ minimum guarantees safety and durability, making it ideal for use in environments where electrical insulation is critical. Additionally, the operating temperature range of -25℃ to 85℃ allows the device to function reliably in various climatic conditions, from cold industrial settings to warmer consumer electronics environments.

In industrial machinery, the SANNI rotary manual adjustment tool is frequently utilized for calibrating sensors, adjusting control panels, and managing motor speeds. The customizable shaft length, ranging from 6mm to 20mm, offers flexibility to fit different installation requirements, whether in compact devices or larger control systems. This adaptability makes it suitable for automotive applications, medical equipment, and home appliances where precise manual input is necessary.

Moreover, the rotary potentiometer device is integral to prototyping and experimental setups in research and development labs, enabling engineers and designers to fine-tune circuit parameters easily. Its high insulation resistance and stable operation under varying temperatures contribute to its reliability in such critical testing environments.

Overall, the SANNI rotary potentiometer device serves as a versatile rotary manual adjustment tool across multiple scenarios, including audio controls, industrial automation, consumer electronics, and scientific instrumentation. Its quality construction from Dongguan, China, combined with customizable features, ensures it meets the specific demands of various applications, providing users with dependable and precise resistance adjustment solutions.

Customization:

At SANNI, based in Dongguan, China, we offer comprehensive product customization services for our Rotary Potentiometer range. Our Rotary Variable Resistor products can be tailored to meet your specific requirements, with resistance values adjustable from 300Ω to 3MΩ to suit various applications.

We specialize in Rotary Adjustable Resistors featuring a single gang design, ensuring precise control and reliability. Customers can choose from different terminal types, including PCB Lug, to seamlessly integrate with your circuit boards.

Our Rotary Multi-Turn Potentiometer options support through hole/DIP mount installation, providing flexible mounting solutions for enhanced durability and performance. Trust SANNI to deliver customized rotary potentiometers that meet your exact specifications and quality standards.

Support and Services:

Our Rotary Potentiometers are precision components designed to provide reliable and accurate variable resistance in a wide range of applications. To ensure optimal performance, it is important to handle and install the device according to the specified guidelines.

For technical support, please refer to the datasheet provided with the product, which includes detailed specifications, wiring diagrams, and mounting instructions. Proper installation includes securing the potentiometer shaft and ensuring that the wiper is not subjected to excessive mechanical stress.

When using the Rotary Potentiometer, avoid exposure to harsh environmental conditions such as excessive moisture, dust, or corrosive chemicals unless the product variant is specifically rated for such environments. Ensure that the operating temperature remains within the recommended range to maintain accuracy and longevity.

If you experience any issues with the product’s performance, verify the electrical connections and confirm that the potentiometer is being used within its rated voltage and power limits. Mechanical wear can also affect performance over time; periodic inspection and, if necessary, replacement are advised for critical applications.

For additional services including custom configurations, calibration, or technical consultation, please refer to our service offerings. Our technical team is dedicated to providing the support necessary to integrate our Rotary Potentiometers effectively into your systems.

Packing and Shipping:

Product Packaging: Each rotary potentiometer is carefully packaged in an anti-static bag to protect against moisture and electrostatic discharge. The individual units are then placed in a sturdy cardboard box with adequate cushioning material to prevent damage during transit. For bulk orders, multiple boxes are securely packed into a larger carton to ensure safe delivery.

Shipping: We offer reliable shipping options worldwide, including standard and expedited services. All orders are processed within 1-2 business days. Tracking information will be provided once the package is dispatched. We ensure that the rotary potentiometers are shipped with proper labeling and documentation to facilitate smooth customs clearance and timely delivery.
