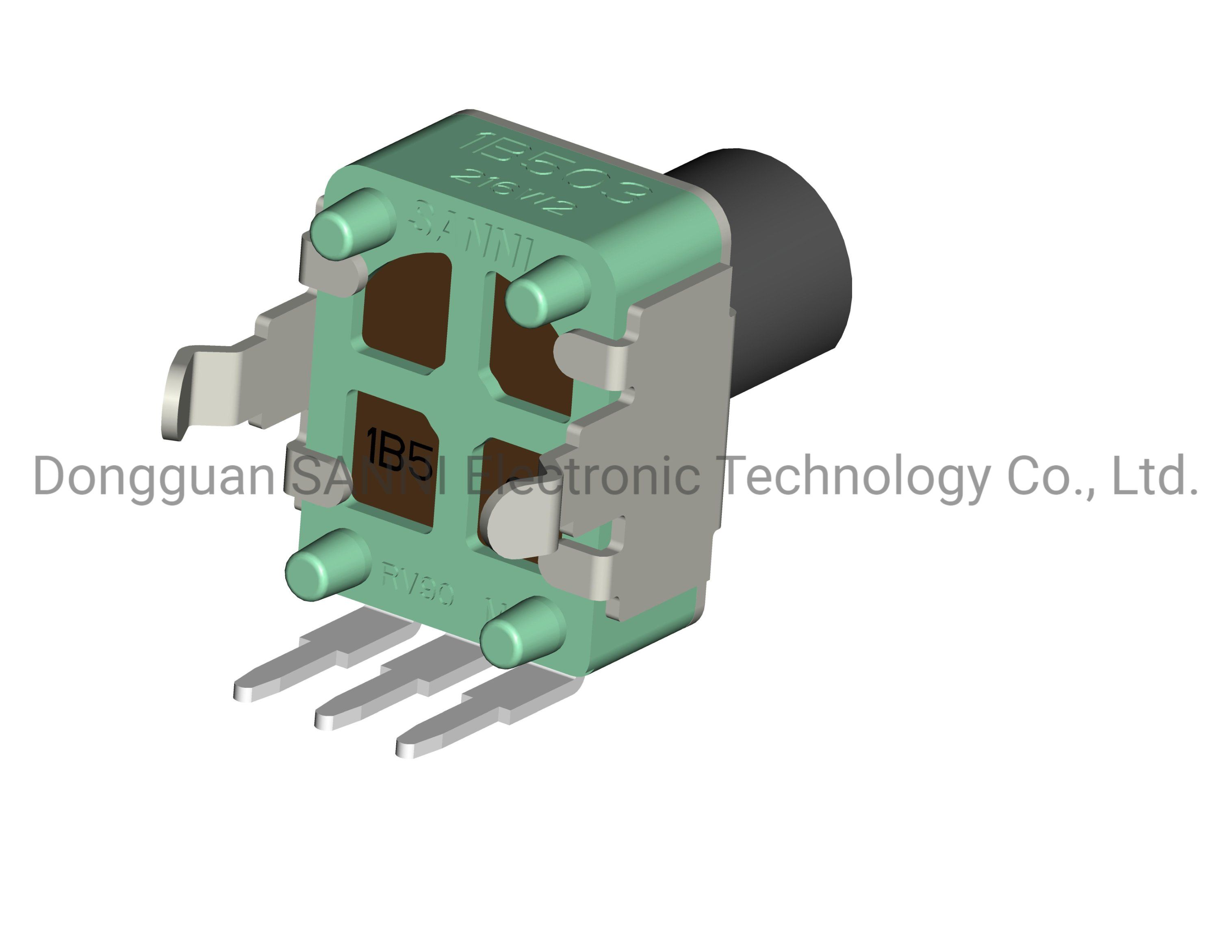

Dielectric Strength 500VAC Rotary Potentiometer Offering Resistance Tolerance ±20 Percent and Shaft Types Round Flat Knurled for Adjustment

Product Description:

The Rotary Potentiometer is a versatile and reliable component widely used in electronic circuits for precise manual adjustment of voltage and resistance. Designed as a Rotary Manual Adjustment Tool, this potentiometer offers excellent performance characteristics suitable for various applications, from audio equipment to industrial controls. Its compact 9mm dimension makes it an ideal choice where space-saving is crucial without compromising functionality or durability.

This Rotary Potentiometer Device features a robust construction that ensures stable operation under different environmental conditions. One of its key attributes is its impressive dielectric strength of 500VAC, which guarantees excellent insulation and safety during high-voltage operations. This property makes the potentiometer suitable for applications requiring high voltage isolation, providing peace of mind to engineers and users alike.

The resistance tolerance of this potentiometer is ±20%, offering a balanced combination of precision and cost-effectiveness. This tolerance level is particularly beneficial in applications where moderate accuracy is sufficient, allowing for reliable performance in tuning and calibration tasks. Whether you are adjusting audio levels, controlling light intensity, or fine-tuning sensor readings, this Rotary Voltage Divider Potentiometer ensures consistent and repeatable results.

The shaft type of the potentiometer is available in multiple variants, including round, flat, and knurled. This versatility allows users to select the most suitable shaft style based on their specific mounting and adjustment requirements. The round shaft provides smooth and easy rotation, ideal for general-purpose use. The flat shaft offers enhanced grip and prevents slippage when used with knobs or adjustment tools. Meanwhile, the knurled shaft design adds an extra layer of tactile feedback and control, making it easier to perform precise adjustments manually.

As a Single gang potentiometer, this device contains one resistive element and one wiper, simplifying circuit design and reducing complexity. This single gang configuration is commonly used in various electronic applications where one adjustable resistance is needed to control parameters such as voltage division, signal attenuation, or level setting. The straightforward design ensures easy integration into existing systems with minimal wiring and mounting effort.

The compact 9mm dimension of this Rotary Potentiometer makes it highly suitable for applications with limited space. Despite its small size, it does not compromise on performance or durability. Its size allows designers to incorporate it into tightly packed circuit boards, handheld devices, or other compact mechanisms where precise manual adjustment is necessary. The potentiometer’s compact form factor also contributes to a lightweight and ergonomic design, enhancing user comfort during manual operation.

Overall, this Rotary Voltage Divider Potentiometer stands out as a dependable and efficient Rotary Manual Adjustment Tool for a broad range of electronic applications. Its combination of high dielectric strength, adequate resistance tolerance, versatile shaft options, single gang design, and compact size makes it an excellent choice for engineers, hobbyists, and manufacturers alike. Whether you are building custom electronics, repairing equipment, or designing new devices, this potentiometer provides the precision and reliability you need to achieve optimal performance.

In conclusion, investing in this Rotary Potentiometer Device ensures you have a high-quality, durable, and easy-to-use component that meets stringent electrical and mechanical requirements. Its adaptability and proven performance make it a fundamental element for any project requiring manual voltage or resistance adjustment. Experience enhanced control and accuracy with this exceptional Rotary Voltage Divider Potentiometer, the ultimate tool for your electronic adjustment needs.

Features:

• Product Name: Rotary Potentiometer
• Type: Rotary Voltage Divider Potentiometer
• Insulation Resistance: 100MΩ Min
• Power Rating: 0.05W
• Dielectric Strength: 500VAC
• Gang: Single
• Shaft Length: 6mm-20mm Normal Or Customized
• Also known as Rotary Electrical Potentiometer
• Functions as a Rotary Analog Adjustment Device

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer, originating from Dongguan, China, is a highly versatile rotary variable resistor designed to meet the demands of various application occasions and scenarios. Crafted from durable plastic and metal materials, this rotary analog adjustment device offers excellent reliability and longevity, boasting a rotational life of up to 10,000 cycles. Its robust construction ensures stable performance even under continuous use, making it ideal for both industrial and consumer electronics settings.

One of the primary application occasions for the SANNI Rotary Potentiometer is in precision control systems where accurate analog adjustments are crucial. The rotary multi-turn potentiometer variant allows for fine-tuning of resistance values over multiple rotations, making it perfect for calibrating audio equipment, instrumentation, and other electronic devices requiring precise voltage control. Its operating temperature range of -25℃ to 85℃ ensures stable functionality in various environmental conditions, from indoor electronics to outdoor machinery controls.

In the automotive industry, this rotary variable resistor is frequently utilized for adjusting dashboard controls, climate systems, and infotainment units, where reliable and smooth rotary input is essential for user experience. The customizable shaft diameter, typically 6mm or tailored to specific requirements, allows seamless integration into diverse mechanical designs, accommodating different mounting and control panel layouts.

Additionally, the SANNI Rotary Potentiometer finds extensive use in home appliances, including washing machines, ovens, and lighting dimmers, where users need to make analog adjustments effortlessly. Its robust build and consistent performance under varying temperatures contribute to the longevity and user satisfaction of these appliances.

In industrial automation, this rotary analog adjustment device serves as a key component in control panels and machinery, facilitating manual adjustments of parameters such as speed, pressure, and temperature. The multi-turn design enhances precision, enabling operators to achieve exact settings with ease.

Overall, the SANNI Rotary Potentiometer is a reliable and adaptable component suitable for a wide range of applications, from consumer electronics and automotive controls to industrial automation and home appliances. Its combination of durable materials, customizable features, and stable performance under diverse conditions makes it a preferred choice for professionals seeking quality rotary variable resistors.

Customization:

At SANNI, based in Dongguan China, we offer comprehensive product customization services for our Rotary Potentiometer. Our Rotary Variable Resistor can be tailored to meet specific resistance requirements ranging from 300Ω to 3MKΩ, ensuring precise control for your applications. We provide customization options for the power rating, maintaining a reliable 0.05W capacity to suit diverse operating conditions.

Understanding the environmental demands, our Rotary Manual Adjustment Tool is designed to operate efficiently within a temperature range of -25℃ to 85℃. Customers can choose between single gang configurations and various shaft types, including round, flat, and knurled, to match their mechanical and ergonomic needs.

Our expertise in manufacturing Rotary Variable Resistors ensures high-quality, durable products that can be customized to your exact specifications. Trust SANNI to deliver tailored solutions that enhance performance and reliability in your electronic applications.

Support and Services:

Our Rotary Potentiometer product is designed for precision and durability in various applications. For technical support, please refer to the product datasheet and user manual available on our website. These documents provide detailed information on installation, operation, and troubleshooting.

If you encounter any issues with the Rotary Potentiometer, verify the wiring and ensure compatibility with your system specifications. Common problems often relate to improper connections or environmental factors such as excessive vibration or moisture.

We offer comprehensive services including calibration, repair, and replacement for products under warranty. For calibration, please follow the recommended procedures outlined in the technical documentation to maintain accuracy and performance.

For repairs, only authorized service centers should handle the product to avoid voiding the warranty. Replacement parts and accessories are available through our distribution network to support your maintenance needs.

Regular maintenance is advised to extend the life of your Rotary Potentiometer. Keep the device clean and free from dust and debris, and avoid exposure to extreme temperatures or corrosive substances.

For further assistance, please consult the FAQ section or reach out to our technical support team through our official communication channels.

Packing and Shipping:

Product Packaging:

The Rotary Potentiometer is carefully packaged to ensure it reaches you in perfect condition. Each unit is individually sealed in an anti-static bag to protect against moisture and static damage. The potentiometers are then placed in a sturdy cardboard box with adequate padding materials to prevent movement and impact during transit. For bulk orders, multiple units are packed in larger cartons with additional cushioning for extra protection.

Shipping:

We offer reliable shipping options worldwide. Orders are processed within 1-2 business days after payment confirmation. Shipping methods include standard ground shipping, expedited air shipping, and express courier services to meet your delivery needs. Tracking information will be provided once the shipment is dispatched. We ensure that all packages are securely sealed and labeled to guarantee safe and timely delivery.
